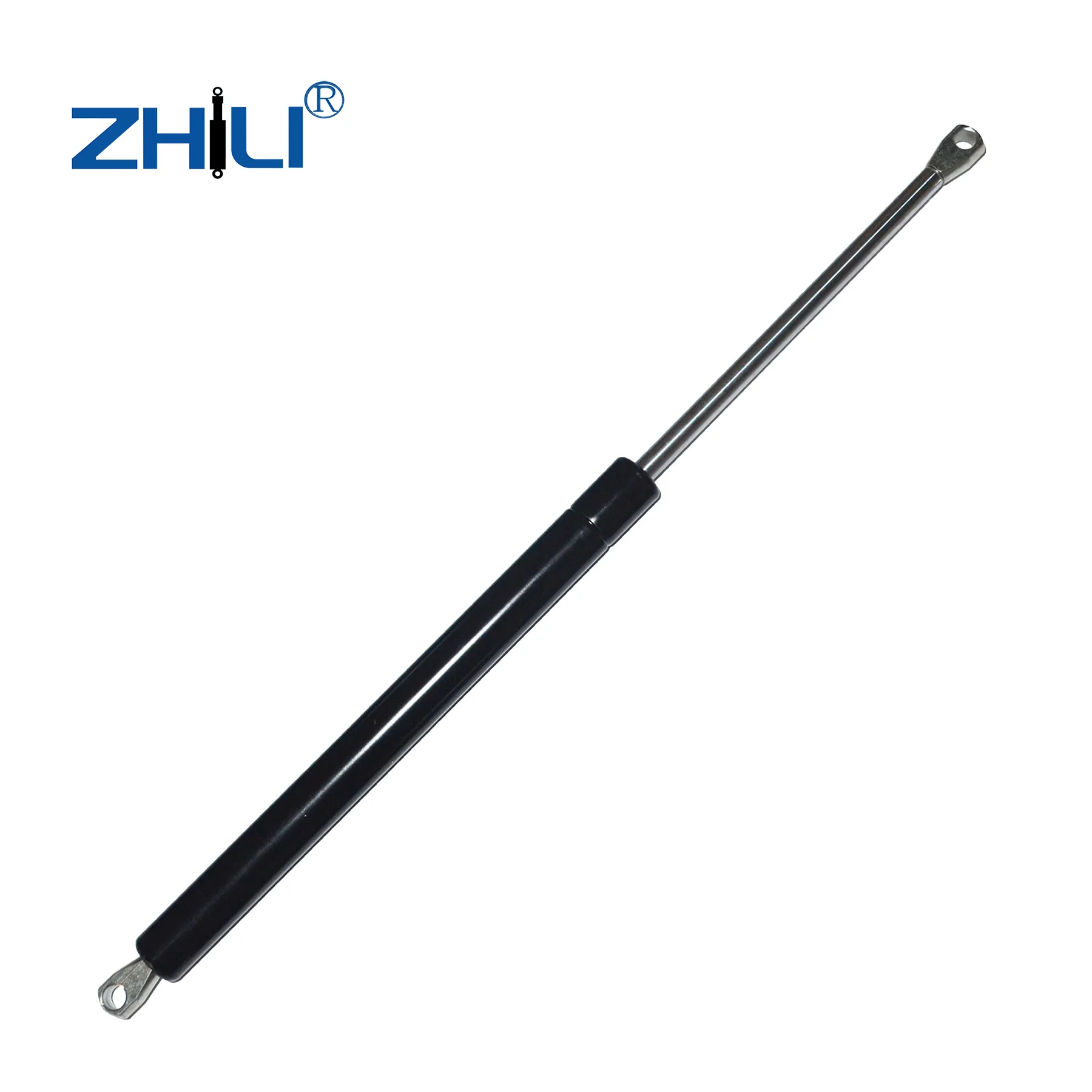

Комплект оборудования Master Lift газовая пружина Easy 60N для мебели
- Категория: Springs >>>
- Поставщик: Dongguan,City,Zhili,Gas,Sprirng,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 1.87 $* | 1.12 $* |
| Jul-19-2025 | 1.21 $* | 1.44 $* |
| Jun-19-2025 | 1.64 $* | 1.97 $* |
| May-19-2025 | 1.15 $* | 1.7 $* |
| Apr-19-2025 | 1.67 $* | 1.95 $* |
| Mar-19-2025 | 1.37 $* | 1.29 $* |
| Feb-19-2025 | 1.24 $* | 1.46 $* |
| Jan-19-2025 | 1.81 $* | 1.16 $* |
Характеристики
Products Description
F1 Force | Stroke | Surface treatment | Standard of product execution | Service life | ||||
50N-600N | 30MM-400MM | tube painting, piston rod hard chromium plating\\QPQ. | GB/T 25751-2010. | At least 28000 times | ||||
Calculation of tube length and stroke | ||||||||
L（Total length of fully extended）=A（tube length）+S（Stroke）+B1（Installation length on the tube's end）+B2（Installation length on the piston rod's end） Computational formula of tube length and stroke: A≥S+40.（As the length of stroke increases, the length of tube will increase.) | ||||||||
Name | Ordinary gas spring |
Force | 50N-600N |
Color | Black, silver and others |
Connector | Optional |
Size | 22-10-255-215-45KG |

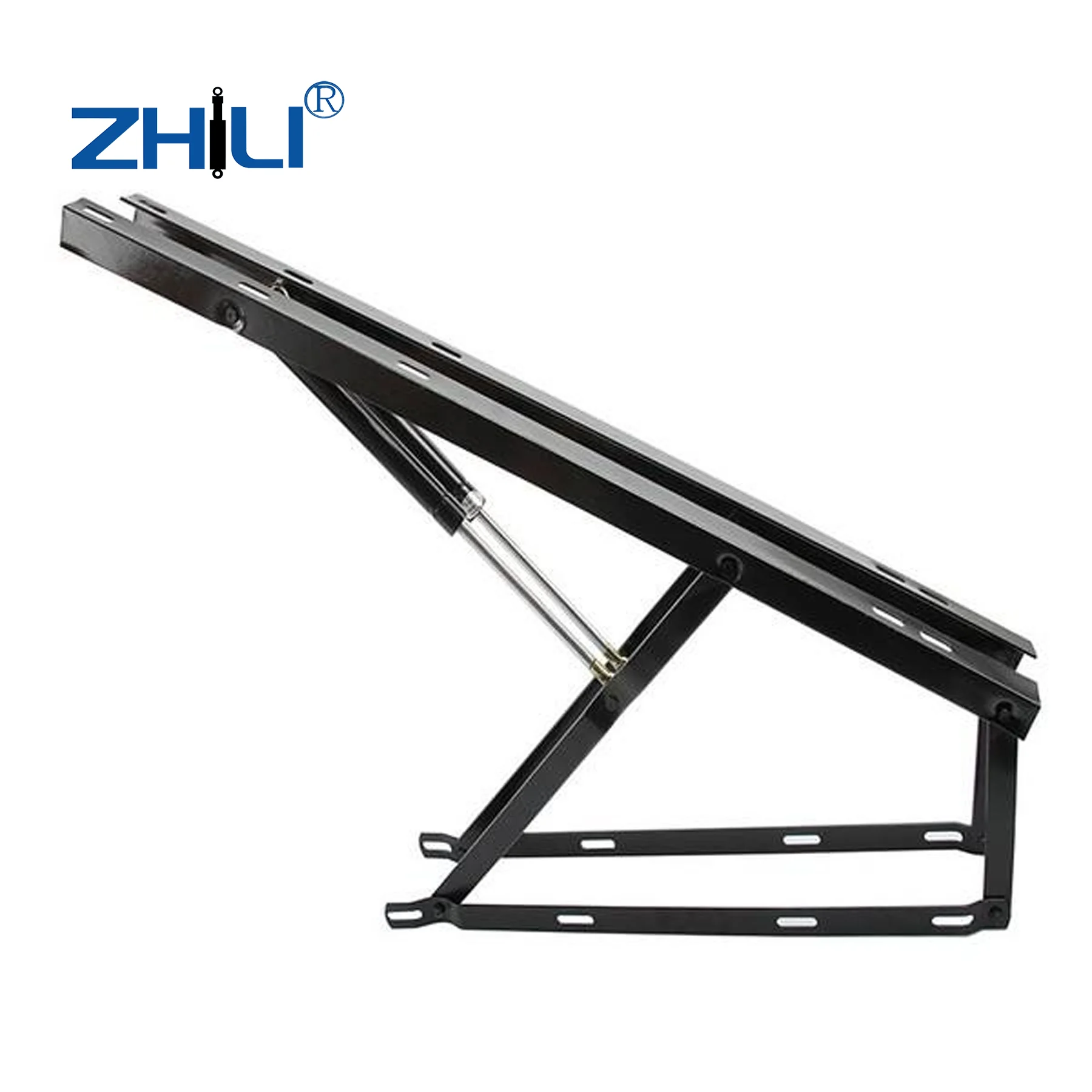

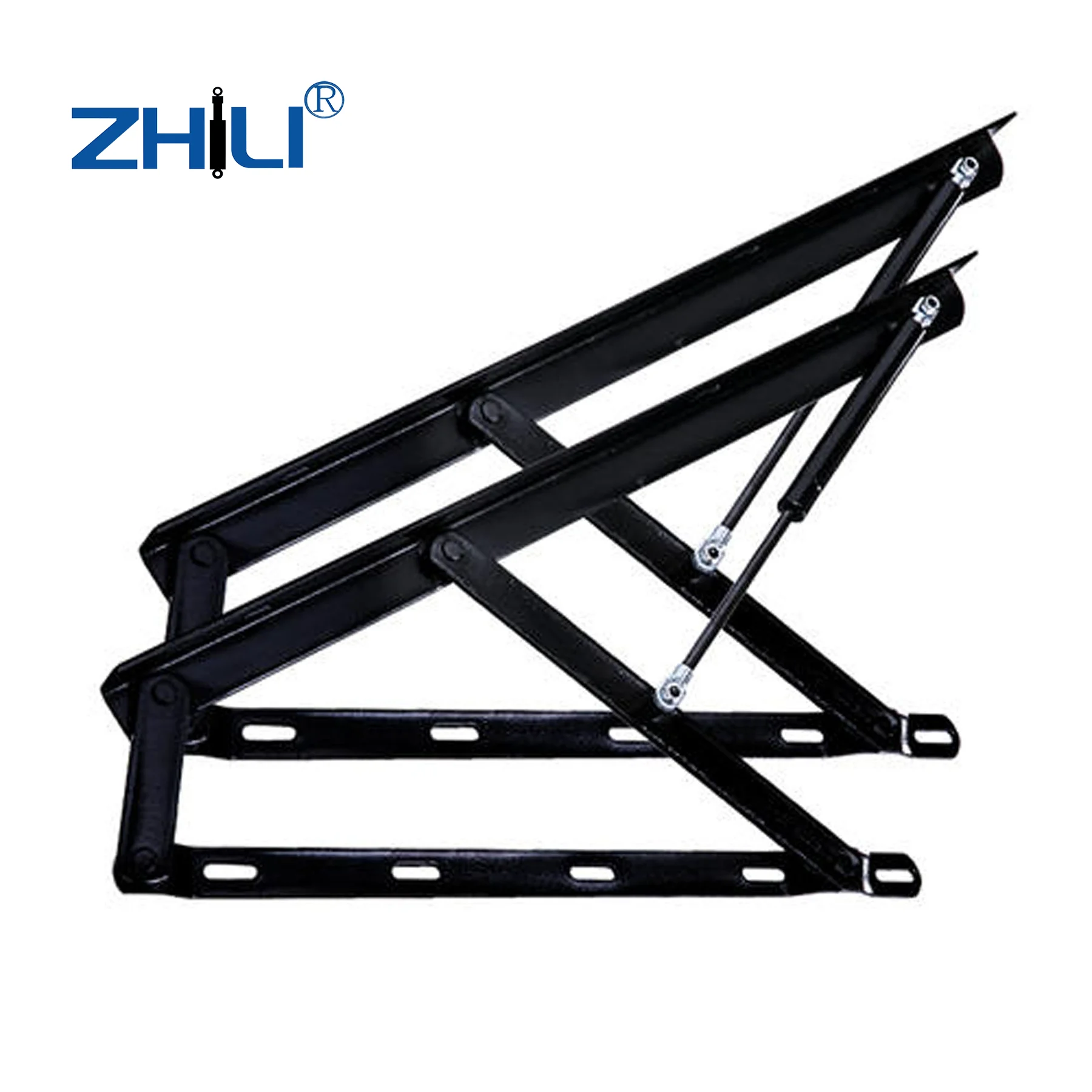

Application | storage bed/bracket |
Scope of application
Installation Instructions
MAIN FEATURES & BENEFITS OF OUR GAS SPRINGS |
1.50,000 cycles durability ，Maintenance free Requirements customized |
2.Excellent reliability in a wide range of environmental conditions ，Predefined extension velocity and compression resistance |
3.High volume OEM supply，Extreme temperature ranges ，50N-600N for your choise |
Accessories
Certifications
About us
Our Service
Q: Are you trading company or manufacturer?
A: We are a factory located in Dongguan, China.
Q: How long of your delivery time?
A: 10-40 days, depends on the order quantity and requirements of the products.
Q: Do you provide samples? Is it free or extra?
A: Sure we could offer the sample for free charge, while the cost of freight is on customers' side.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, paid with the agreed terms.
Attention:
1.The quantity of the sample is limited.
2.All the prices are only for reference. Exact price will be based on the latest quotation.
3.The final interpretation right of this event is reserved by ZhiLi company.
2.All the prices are only for reference. Exact price will be based on the latest quotation.
3.The final interpretation right of this event is reserved by ZhiLi company.
