Китайская высокоскоростная машина для производства одноразовых бумажных пакетов с V-образным
- Категория: Packaging Material Making Machine >>>
- Поставщик: Zhejiang,Allwell,Intelligent,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 71400.40 $* | 74970.32 $* |
| Aug-19-2025 | 70800.49 $* | 74340.65 $* |
| Jul-19-2025 | 59400.35 $* | 62370.12 $* |
| Jun-19-2025 | 69600.21 $* | 73080.98 $* |
| May-19-2025 | 60600.66 $* | 63630.62 $* |
| Apr-19-2025 | 68400.66 $* | 71820.56 $* |
| Mar-19-2025 | 67800.39 $* | 71190.22 $* |
| Feb-19-2025 | 67200.85 $* | 70560.47 $* |
| Jan-19-2025 | 66600.34 $* | 69930.23 $* |
Характеристики
Product Overview
china high speed V bottom disposable paper bag making machine
This machine forming the paper bag in one process from roll paper, edge folding, tube forming, cutting, gluing, bottom folding, bottom gluing and finishing bag. Easy operation, low power consumption, high efficiency. It is an ideal machine for producing food bags like bread bags, KFC bags and McDonald’s bags.
FEATURES AT A GLANCE
Description
1-This machine adopts touch screen man-machine interface, regardless of correction, trimming can be arbitrarily set, alarm and operation state displayed on screen, easy to operate. The operation interface, English can be switched with each other.
2-With a touch screen and man-machine interface using the German import PC programmable control system, real-time working status display.
3-Set the original French servo motor control with long motor, is making more stable.
4-Printing color tracking system, using the German color photoelectric tracking precision, with automatic calibration function.
2-With a touch screen and man-machine interface using the German import PC programmable control system, real-time working status display.
3-Set the original French servo motor control with long motor, is making more stable.
4-Printing color tracking system, using the German color photoelectric tracking precision, with automatic calibration function.
5-Photoelectric sensor limiting automatic control system, speed correction roll on saving the machine adjusting time and reduce waste.
6-Magnetic powder tension control with automatic constant tension control system, automatic calculation of roll diameter to achieve constant tension control.
7-Material handling with pneumatic lifting structure combination, can save manpower and reduce the loading and unloading time.
8-This machine adopts Germany original electrical system, to ensure the machine more stable.
9-Safety protection design of the machine has a new humanity; full face cover design, fully guarantee the safety and product operator environment.
7-Material handling with pneumatic lifting structure combination, can save manpower and reduce the loading and unloading time.
8-This machine adopts Germany original electrical system, to ensure the machine more stable.
9-Safety protection design of the machine has a new humanity; full face cover design, fully guarantee the safety and product operator environment.

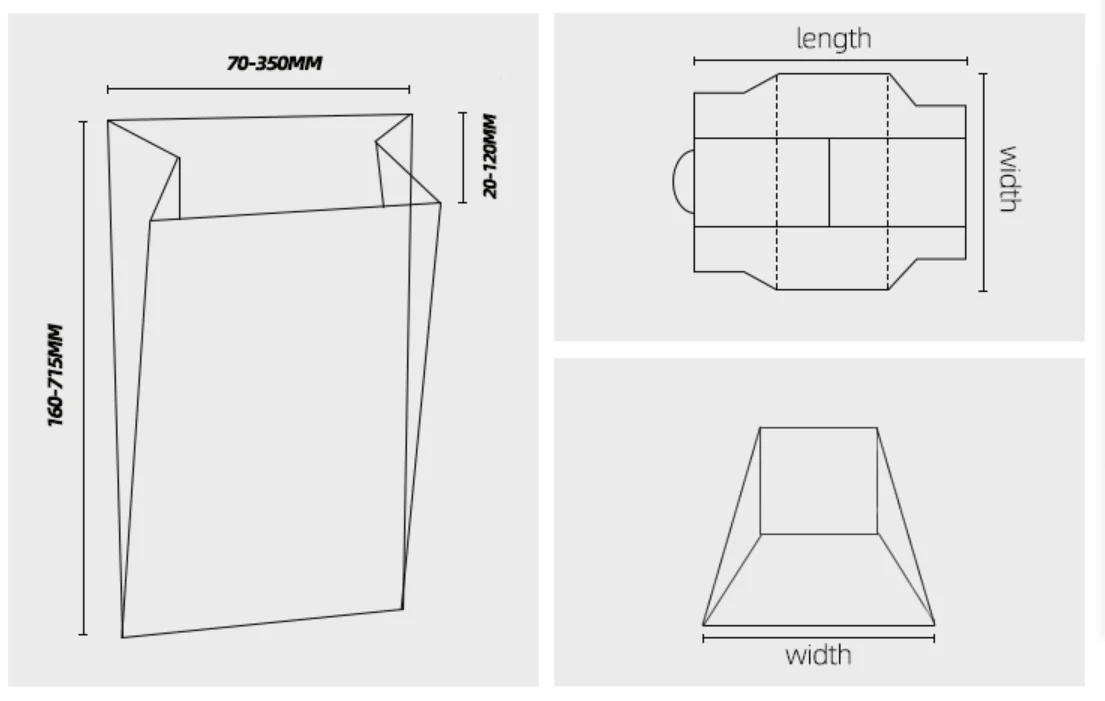

sample bag
sample bag
sample bag
PRODUCT SPECIFICATIONS
Model | New world -C270 | New world -C330 |
Paper Thickness Range | 30-100GSM | 30-100GSM |
Paper Bag Width Range | 80-270mm | 80-330mm |
Paper Bag Length Range | 120-400mm | 120-720mm |
Side Folding Range | 0-50mm | 0-50mm |
Production Precision | ±0.2mm | ±0.2mm |
Machinery Speed | 150-500 pcs /min | 150-500 pcs /min |
Maximum paper roll Width | 900mm | 1000mm |
Maximum Paper roll Diameter | 1200mm | 1200mm |
Total Power | 380V 3 Phase 16kw | 380V 3 Phase 16kw |
Machine Weight | 5000kg | 5500kg |
Machine size | 7300×2000×1850 mm | 7300×2100×1900 mm |
PRODUCT CONFIGURATION

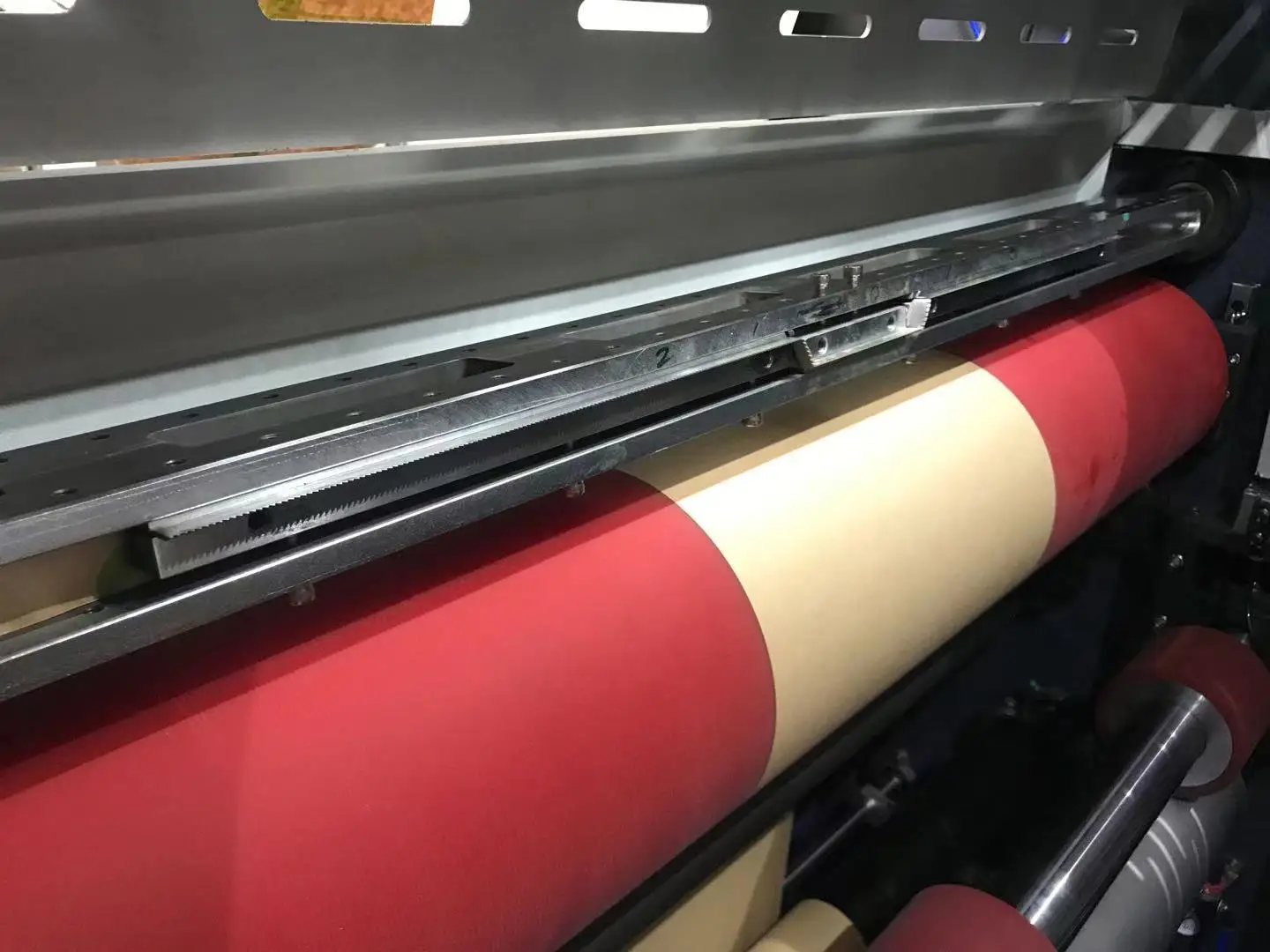

Bag cutting structure

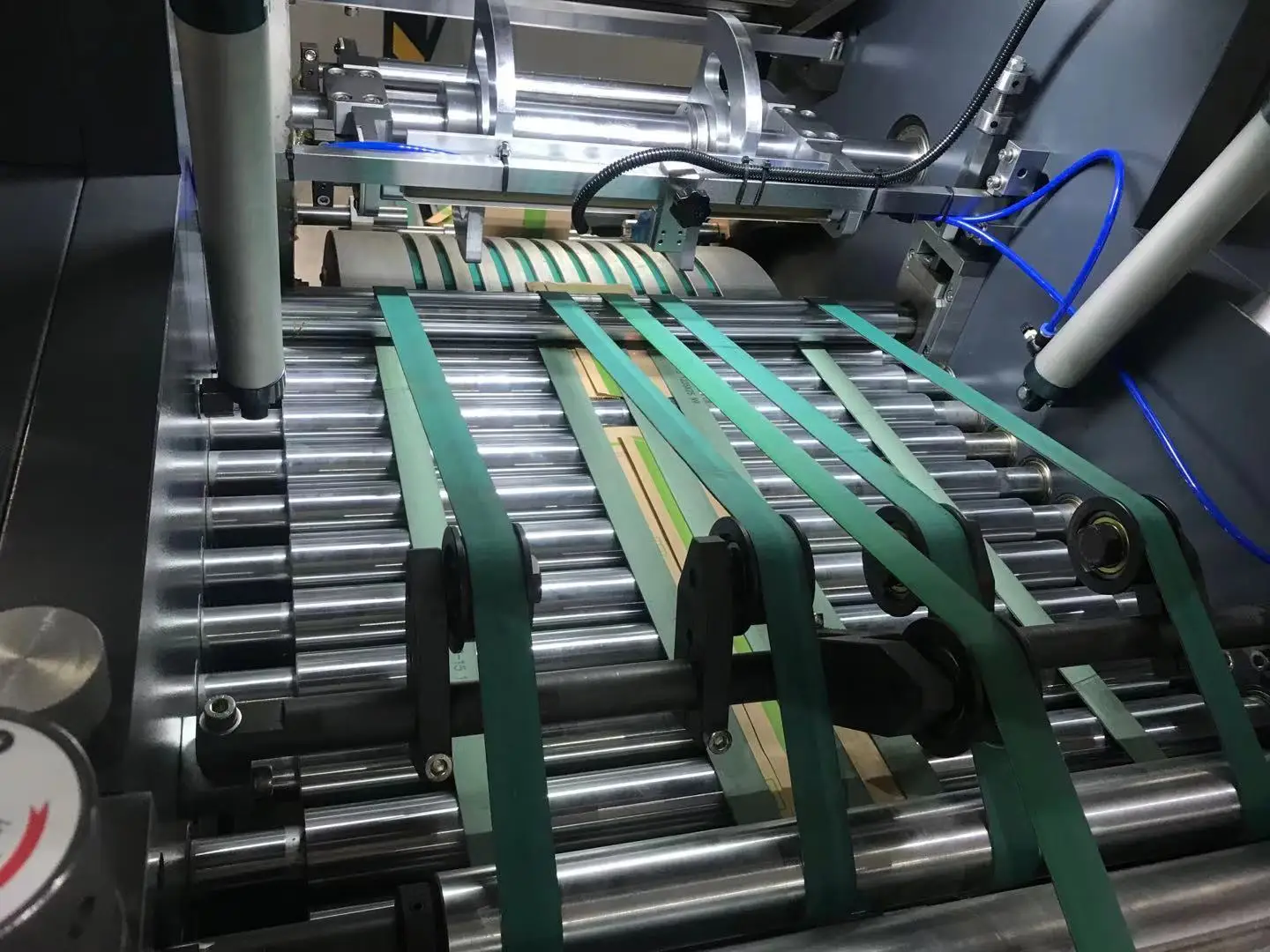

Bag traction structure
side folding structure
Manufacturing Technique
SALES AND SERVICE NETWORK
SIMILAR PRODUCTS
FAQ
Q1：What kind of this machine can making ?
A1：This machine is mainly for sharp bottom papaer bag.
Q2：Is the bag size adjustable?
A2：The bag size is adjustable within machine size range.
Q3：what is the packing of the delivery?
A3：Wooden packing.
Q4：How many container we need for this machien ?
A4：According diffent machien size ,machine may loaidng up to 9m in container.
Q5：How to doing the after service?
A5：We support machine working manual,machine install and running video.Support the technician to install and guildance.
Company Profile
OUR COMPANY (130000㎡)
ZHEJIANG OUNUO MACHINERY CO.,LTD
Our company covered 130000㎡ workshop, more than 400 employees. We have 15 invention patents, 60 untility model patent and 6 appearance patents so far. Professional in making non-woven bag making machine line (Biggest in China)and paper bag machine line for more than 15 year experience. The machines were sold more than 125 countries.
OUR OFFICE
Recreational area
Manager office
Meeting room
OUR OFFICE
Workshop corner
Japan "Mazak" & "Okuma" , Taiwan Weili CNC center(more than 100 sets)
Warehouse corner
