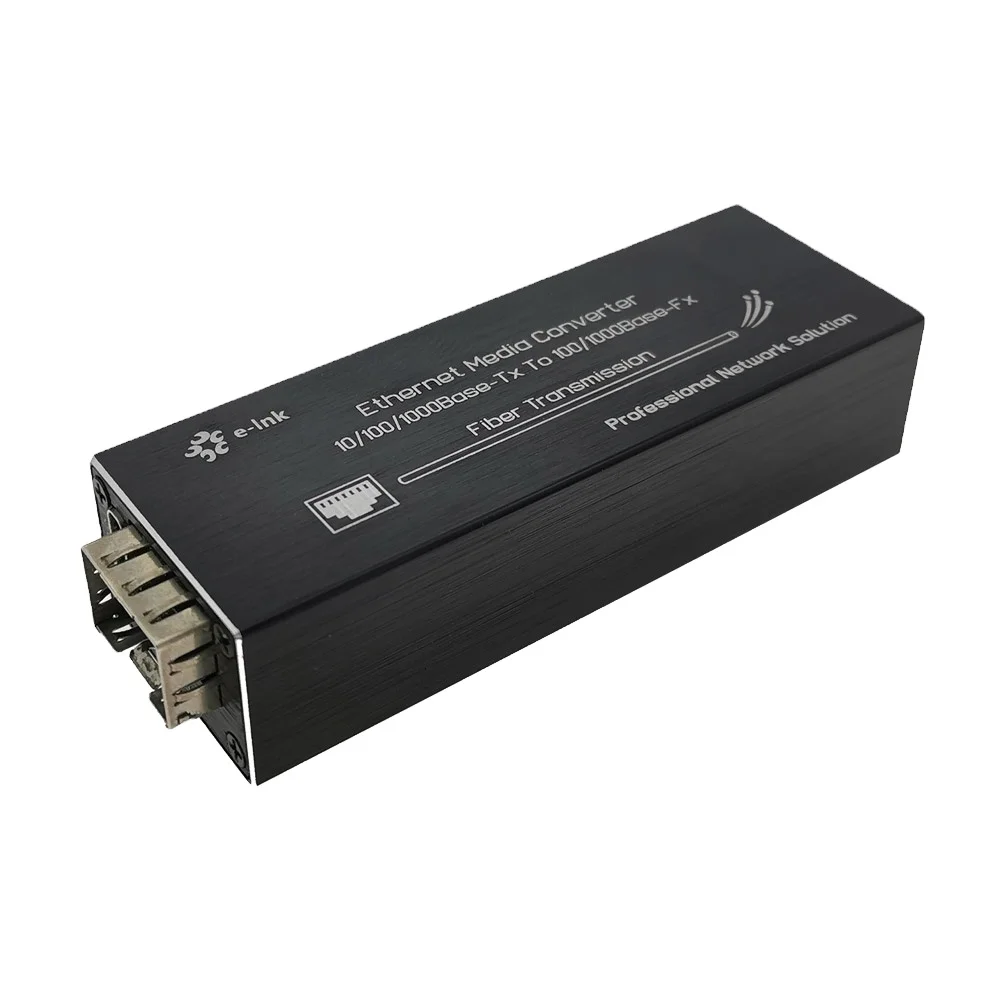

Micro Mini 10/100/1000BASE-T до 100/1000BASE-X SFP
- Категория: Network Switches >>>
- Поставщик: Shenzhen,E-Linkchina,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 11.56 $* | 11.88 $* |
| Jul-18-2025 | 9.22 $* | 9.45 $* |
| Jun-18-2025 | 11.69 $* | 11.7 $* |
| May-18-2025 | 11.74 $* | 11.23 $* |
| Apr-18-2025 | 9.9 $* | 9.72 $* |
| Mar-18-2025 | 11.48 $* | 11.77 $* |
| Feb-18-2025 | 11.83 $* | 11.14 $* |
| Jan-18-2025 | 11.96 $* | 11.92 $* |
Характеристики
Product Description
Technical Indexes
Parameter | Specifications |
Access mode | 10/100/1000Mbps Gigabit Ethernet |
Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet |

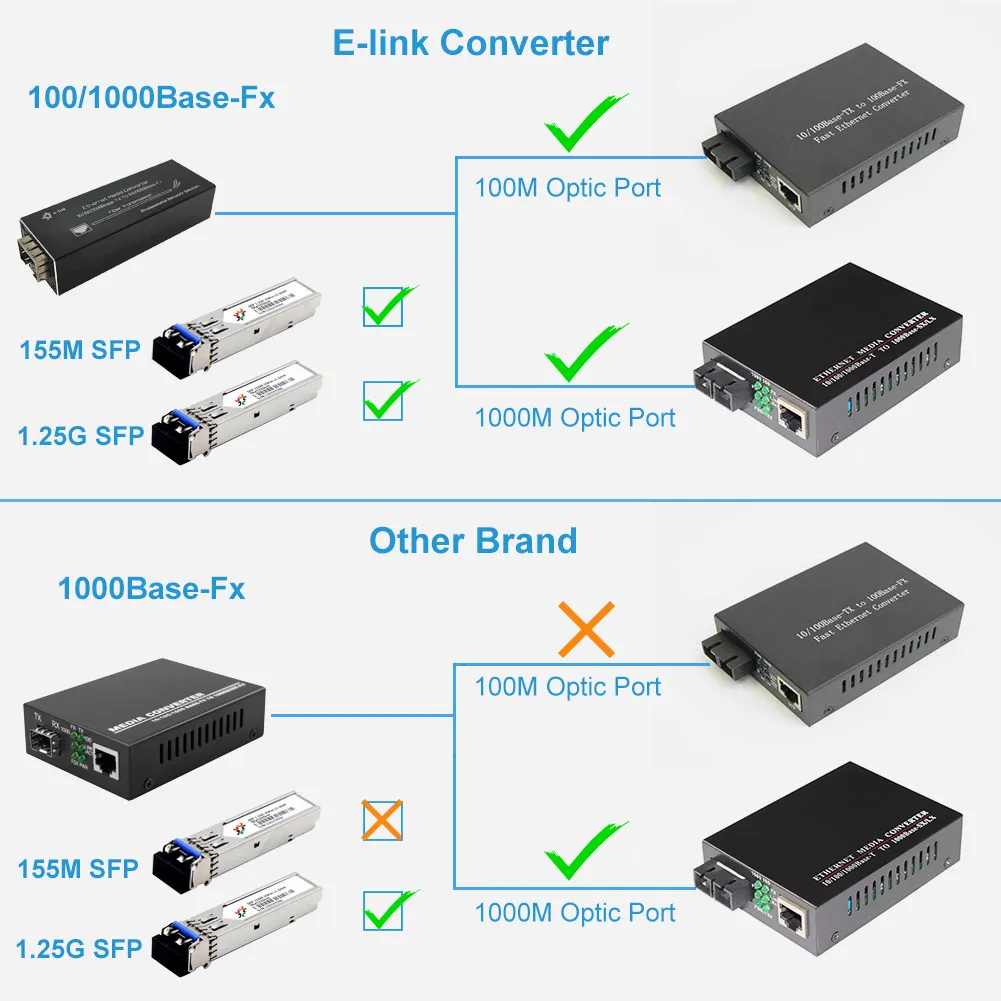

Fiber Port | SFP - 100/1000M adaptive |
Wavelength | 850nm/1310nm/1550nm (Based on SFP Module used) |
Transmission distance | Fiber Cable: Depends on SFP Module Category-5 twisted pairs: 100m |
Port | One RJ45 port: for connecting with STP/UTP cat5/6 twisted pairs One Optical port: SFP |
Conversion means | Media conversion |
LFP | Not Support |
BER | <10-9 |
MTBF | 100,000 hours |

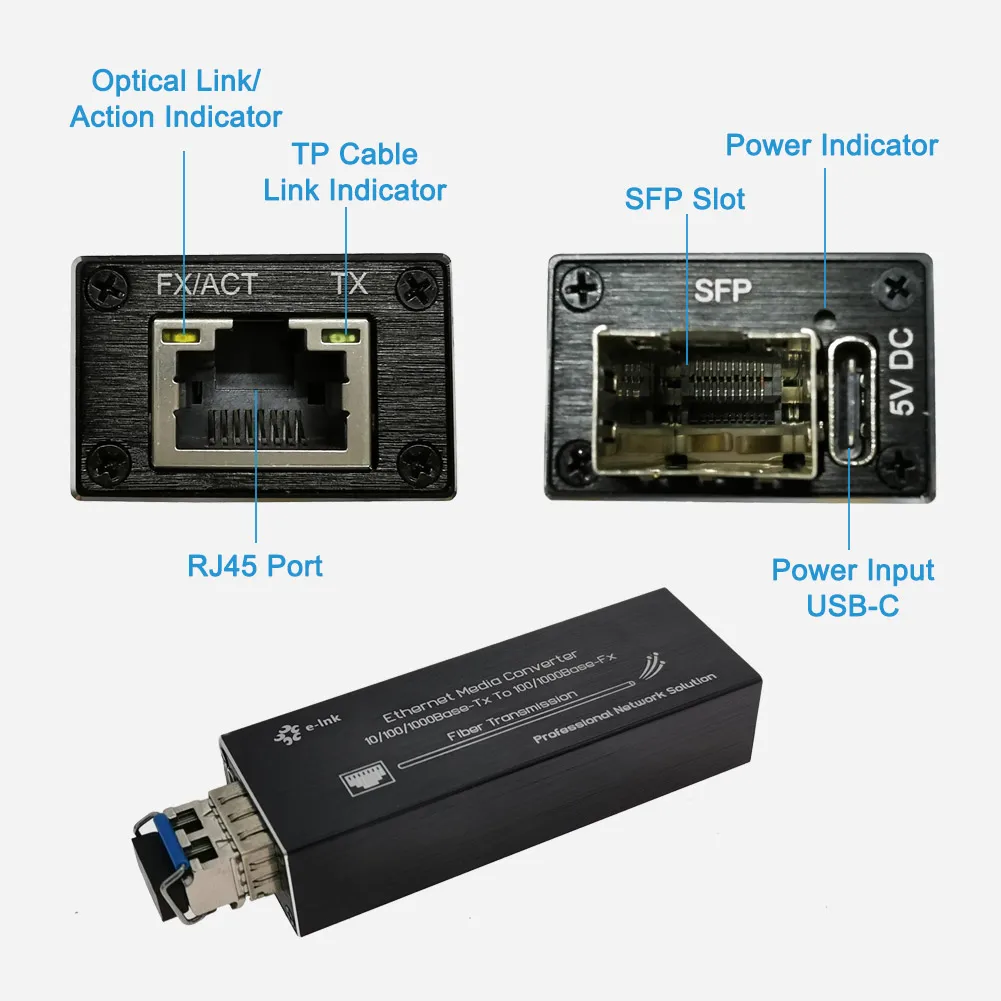

LED indicator | PWR (Power supply) TX (LINK100/1000, TP cable rate 100/1000M) FX/ACT (Optical link action /TP cable packet forwarding action) |
Power supply | DC 5V (Type-C) |
Power consumption | <3W |
Operating temperature | 0~45ºC |
Operating humidity | 5%~90% |
Maintaining temperature | -40~70ºC |
Maintaining humidity | 5% ~ 90% non-condensing |
Weight | 46g |

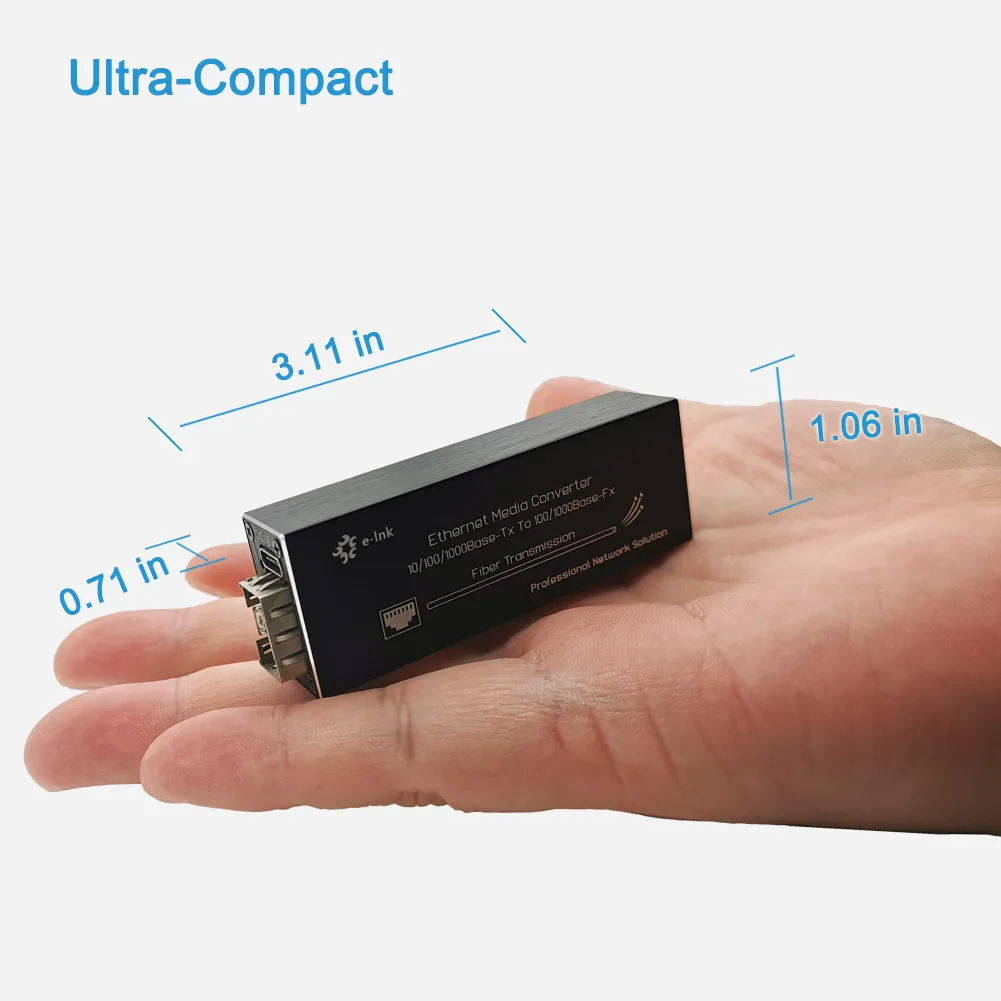

Dimensions (W x D x H) | 78 x 27 x 18 mm |
Ordering Information
Model | Description |
LNK-M3011-SFP | Micro Mini Media Converter: 10/100/1000Base-T to 100/1000Base-X, SFP slot, standalone, external power adaptor |
