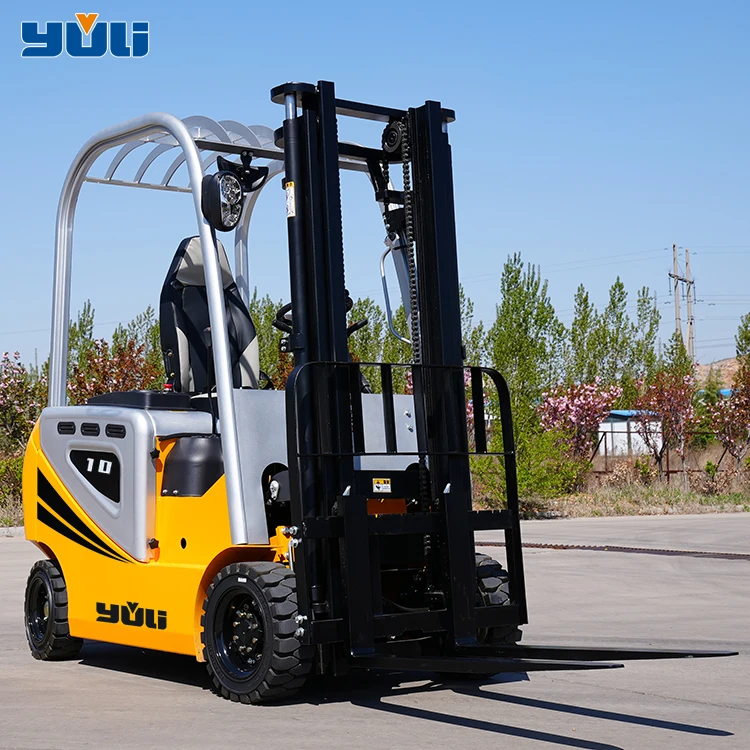

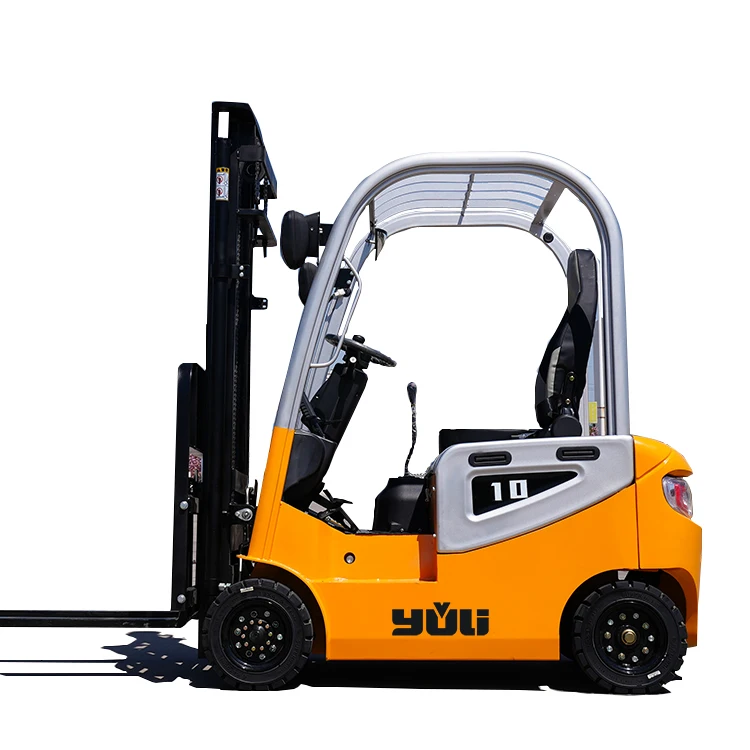

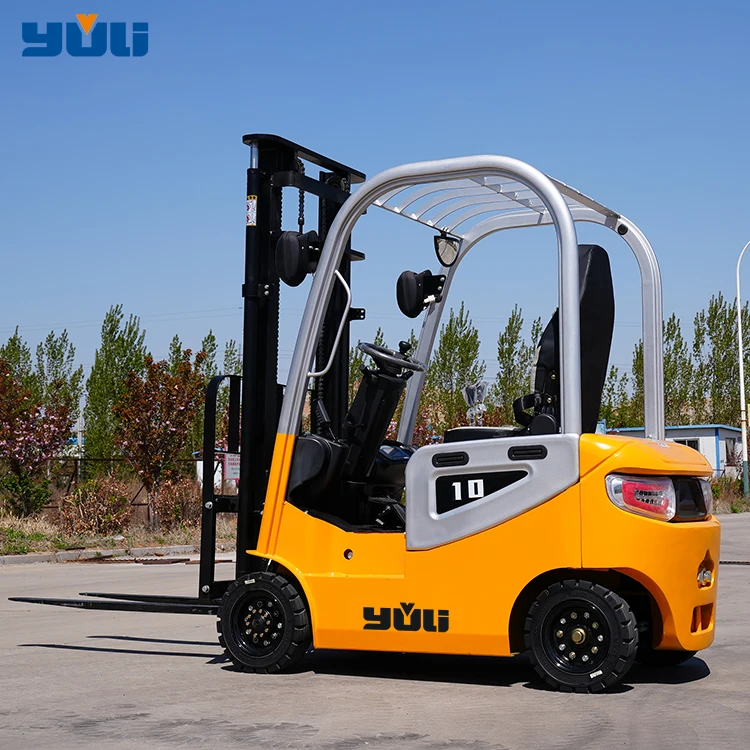

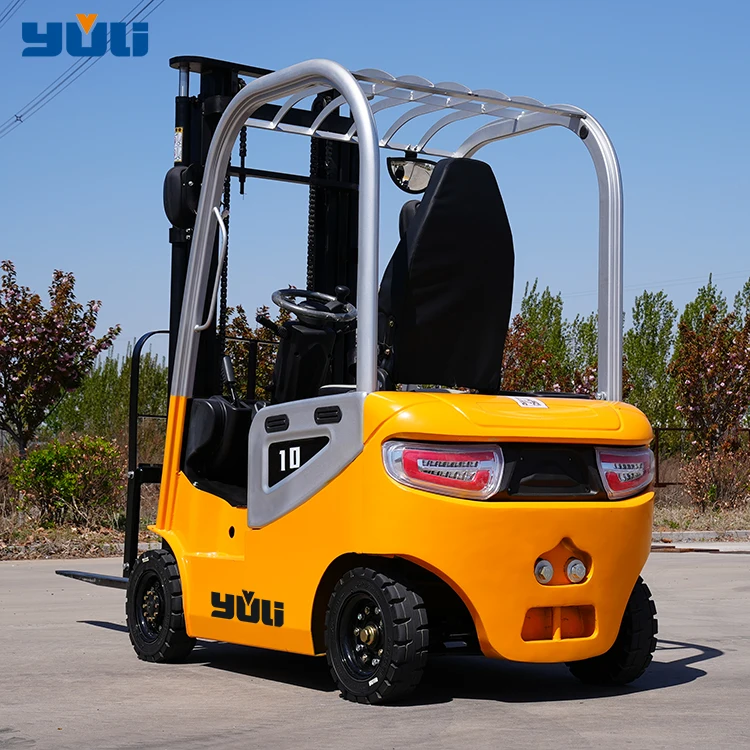

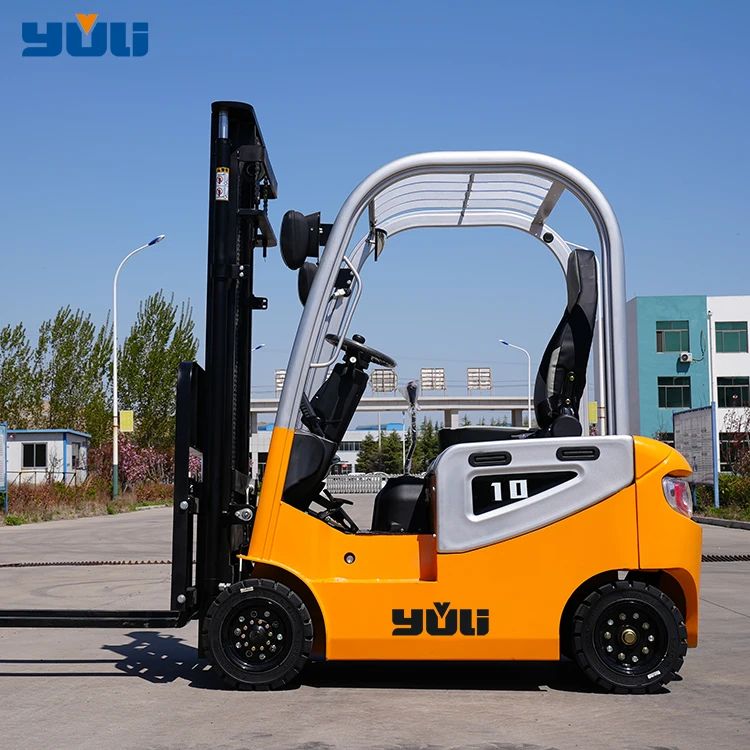

Электрический вилочный погрузчик 1000 кг 1 тонна 3 м 4 5 высота

Описание и отзывы

Трекер стоимости

Характеристики

Characteristics		unit
Model			CPD10
driving mode			seated
rated capacity	Q	kg	1000
load center distance	C	mm	500
power mode			lead-acid battery
wheelbase	L1	mm	1430
tyre type			Solid tire
wheels number(front/rear)			2/2
front track	W3	mm	920
rear track	W2	mm	898
tyre(front)			18x7-10
tyre(rear)			16x6-8
Size
front overhang	L2	mm	325
tilt of the mast,front/rear	α/β	°	5/10
height,mast retraction	H1	mm	2030
free lift height	H3	mm	/
overall maximum lift height	H	mm	3000
height,mast extended	H2	mm	4055
overhead guard height	H4	mm	2110
lateral Fork Adjustment(Outside of Forks)Max/Min	W5	mm	970/200
fork size(LxWxT)	T*W*L4	mm	35*100*920
truck body length(fork excluded)	L'	mm	2063
truck body width	W1	mm	1096
turning radius	R	mm	2070
groubd clearance under mast	H5	mm	88
Ground clearance at center of wheelbase(laden)	H6	mm	110
width of aisle right-angle stacking(pallet1000x1000mm clearance 200mm)	Ast	mm	3655
width of aisle right-angle stacking(pallet1200x1200mm clearance 200mm)	Ast	mm	3855
Performance
travel speed,laden/unladen		km/h	9/10
lifting speed,laden/unladen		mm/s	220/230
lowering speed,laden/unladen		mm/s	450
maximum negoniable gradient,laden/unladen		%	15/20
battery voltage /nominal capacity		V/Ah	60V/150Ah
battery weight		kg	240
Electrical configuration
drive motor power-60 minutes		kW	4
lift motor  power-15 minutes		kW	3
drive motor controlling mode			MOSFET/PMSM
lifting motor controlling mode			MOSFET/PMSM
service brake/parking brake			Hydraulic/Mechanial
hydraulic system working pressure		Mpa	14.5



Shandong Leiteng Electric Technology Co., Ltd. is a professional supplier of electric machinery products in Qingzhou, China. Our factory is located in Weifang, very close to Qingdao Port. The factory was established in 2014, with a registered capital of 83 million, mainly producing a full range of electric products. The factory covers a total area of about 200,000 square meters, with a total construction area of 80,000 square meters. Grace forklifts are one of the company's important sectors. We have professional engineer support, efficient sales team and competitive price advantage, and attract customers from all over the world.
Our factory has advanced parts processing centers, robot welding equipment, forklift parts test benches, painting lines, and final assembly lines. At present, three series of forklift products have been developed, namely: 1.5 ton-3 ton electric pallet truck series, 1 ton-2 ton electric stacker truck series, 0.75-5 ton electric balance weight series, and 11 utility models and appearances have been obtained. patent.
Our R&D department provides strong technical support, enabling us to accept O E M, O D M projects.
With its exquisite appearance, reliable performance, and high-quality service, YULI forklifts have attracted wide attention and favor from customers at home and abroad. We will take internationalization, specialization, and environmental protection as our standards, and make YULI forklifts a favorite forklift brand for customers all over the world.
We are a reliable supplier of electric forklifts, and we look forward to more cooperation with you.
