Сверхмощный стальной заземляющий винт спиральный якорь для переносных конструкций усиление

Сверхмощный стальной заземляющий винт спиральный якорь для переносных конструкций усиление

Категория: Anchors >>>
Поставщик: Shanxi,Century,Metal,Industries,Inc.

Цена:2,99 $ - 4,99 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-20-2025	2.80 $*	2.32 $*
Aug-20-2025	2.23 $*	2.33 $*
Jul-20-2025	2.41 $*	2.10 $*
Jun-20-2025	2.53 $*	2.8 $*
May-20-2025	2.9 $*	2.55 $*
Apr-20-2025	2.2 $*	2.95 $*
Mar-20-2025	2.35 $*	2.21 $*
Feb-20-2025	2.91 $*	2.17 $*
Jan-20-2025	2.4 $*	2.99 $*

Характеристики

Products Description

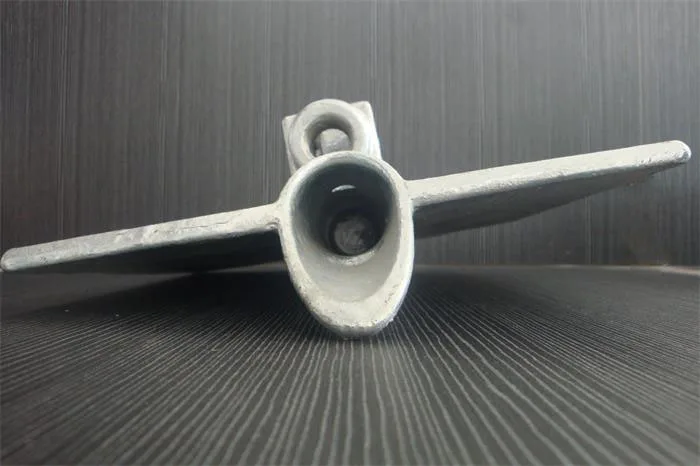

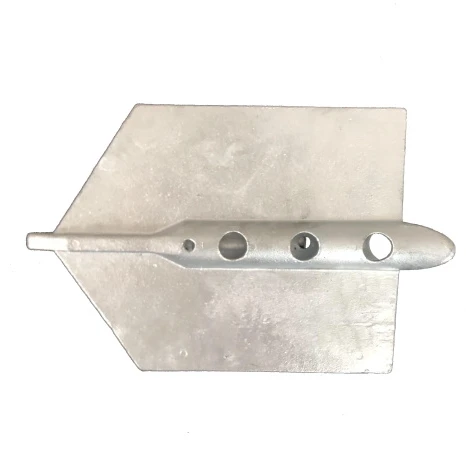

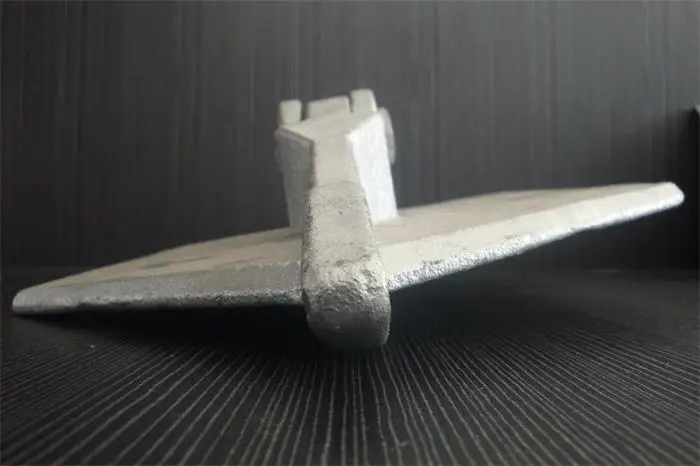

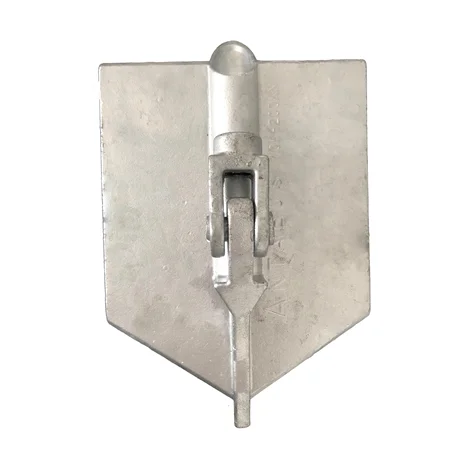

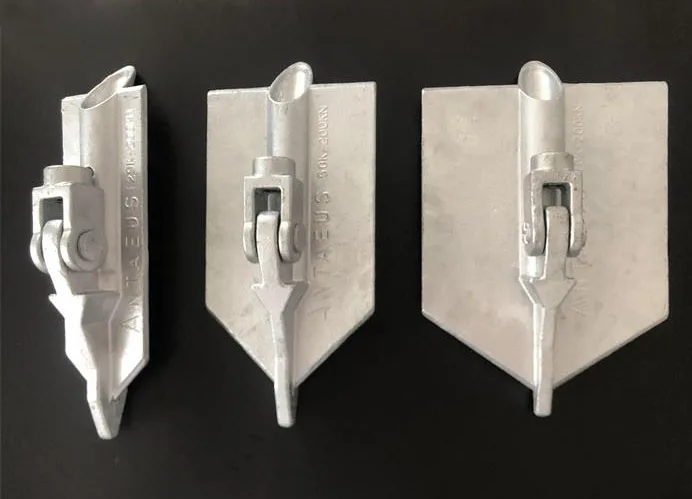

This guide serves to aid suppliers and installers of ANTAEUS Earth Anchors about installation methods and techniques. The anchors range in holding capacities in normal soil from 300 to 5000 Ibs(135 kg to 2250 kg). The ANTAES Earth Anchor has been developed to function in the total range of soils. Its design allows the installer much greater flexibility than other anchors offer. Installation details, tools and special soil conditions will be covered and should answer any questions that may arise. ANTAEUS anchoring systems offer an economic, light weight solution to nearly any anchoring situation, big or small.

KEY FEATURES

• Chisel shaped drive tip for quicker and straighter installs.
• Hex drive technology allowing for stronger and easier to install anchors.
• Larger surface area for higher potential loads.
• Shorter rotation distances resulting in quicker load locking times and less drive time.
• Fewer drive rods.
• All products designed to relevant CM specifications.

KEY BENEFITS

• Quick and easy to install using readily available gear.
• Available for immediate use.
• Every anchor is proof tested as part of the installation process.
• No excavation necessary.
• No concrete required.
• Environmentally friendly.
• High quality technical support.

Anchor type	Tendon type-mm	L-mm	W-mm	H-mm	Weight-Kg
*CM-ANTAEUS-1*	3	77	26	23	0.03
*CM-ANTAEUS-5*	8	127	41	35	0.22
*CM-ANTAEUS-10*	12	168	70	72	0.96
*CM-ANTAEUS-20*	16	240	76	95	2
*CM-ANTAEUS-30*	16	293	88	107	3
*CM-ANTAEUS-50*	20	375	98	110	4
*CM-ANTAEUS-90*	20	375	178	109	5
*CM-ANTAEUS-120*	25	500	300	178	10
*CM-ANTAEUS-200*	28	500	172	150	10
*CM-ANTAEUS-300*	30	500	300	176	15
*CM-ANTAEUS-400*	30	650	450	176	29

Anchor type	Load capacity	Independent destructive TEST of mechanical anchor head(kN)	Ultimate strength of tendon(kN)	Limiting structural strength	Anchor head surface area mm²
*CM-ANTAEUS-1*	1-4kN	5	6.98	4.5	1,500
*CM-ANTAEUS-5*	2-13kN	30	15	13.5	3,481
*CM-ANTAEUS-10*	4-27kN	55	65	49.5	6,781
*CM-ANTAEUS-20*	10-63kN	70.74	121	63.7	15,637
*CM-ANTAEUS-30*	14-87kN	112.6	121	101.3	21,130
*CM-ANTAEUS-50*	19-119kN	195.3	188	169.2	29,093
*CM-ANTAEUS-90*	33-169kN	195.3	188	169.2	48,734
*CM-ANTAEUS-120*	71-199kN	222.2	295	200.0	104,517
*CM-ANTAEUS-200*	45-271kN	356.7	370	321.0	65,886
*CM-ANTAEUS-300*	71-405kN	450	566	405.0	104,769
*CM-ANTAEUS-400*	148-450kN	500	566	450.0	216,078

Soil Class	1	2	3	4	5	6	7	8
CM-ANTAEUS-1	4	4	4	3	2	1	1	1
CM-ANTAEUS-5	13	12	10	8	5	4	3	2
CM-ANTAEUS-10	27	24	20	16	11	7	6	4
CM-ANTAEUS-20	63	57	48	38	26	18	14	10
CM-ANTAEUS-30	87	77	64	52	35	24	18	14
CM-ANTAEUS-50	119	106	89	72	49	33	26	19
CM-ANTAEUS-90	169	169	149	120	82	56	43	33
CM-ANTAEUS-120	199	199	199	199	177	121	93	71
CM-ANTAEUS-200	271	242	202	163	112	76	58	45
CM-ANTAEUS-300	405	385	322	259	178	121	93	71
CM-ANTAEUS-400	450	450	450	450	367	251	193	148
blow count or "SPT"	60+	45-60	35-50	25-40	14-25	7—14	4—8	0-5

Soil Class	Features
1	very dense and/or cemented sands course gravel& cobbles
2	dense fine sand very hard silts & clays
3	dense clays, sands & gravel; very stiff to hard silts & clays
4	medium dense sandy gravel; very stiff to hard silts & clays
5	medium dense course sand & sandy gravel; stiff to very stiff silts & clays
6	loose to medium dense fine to course sand; firm to stiff clays & silts
7	loose fine sand; alluvium; soft-firm clays; varied clays; fill
8	peat; organic silts; inundates silts fly ash

Installation Instructions

HOW CM EARTH ANCHORS WORK

1) Drive the CM Earth Anchor.

Using readily available conventional tools and equipment, drive the CM Earth Anchor into the ground with a reusable CM Smasher Rod.

2) Remove the Smasher Rod.
Once the CM Earth Anchor is driven to the required depth remove the CM Smasher Rod.

3) Proof Test.
Anchor Lock the CM Earth Anchor while simultaneously proof testing to the required
capacity.
