Портативный тестер сопротивления изоляции высокого напряжения мегомметр 500 В 1000 2500 5000 в 10000
- Категория: Resistance Meters >>>
- Поставщик: Run,Test,Electric,Manufacturing,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.65 $* | 0.86 $* |
| Aug-16-2025 | 0.97 $* | 0.0 $* |
| Jul-16-2025 | 0.19 $* | 0.3 $* |
| Jun-16-2025 | 0.70 $* | 0.72 $* |
| May-16-2025 | 0.52 $* | 0.72 $* |
| Apr-16-2025 | 0.26 $* | 0.99 $* |
| Mar-16-2025 | 0.68 $* | 0.84 $* |
| Feb-16-2025 | 0.10 $* | 0.51 $* |
| Jan-16-2025 | 0.39 $* | 0.74 $* |
Характеристики
Products Description

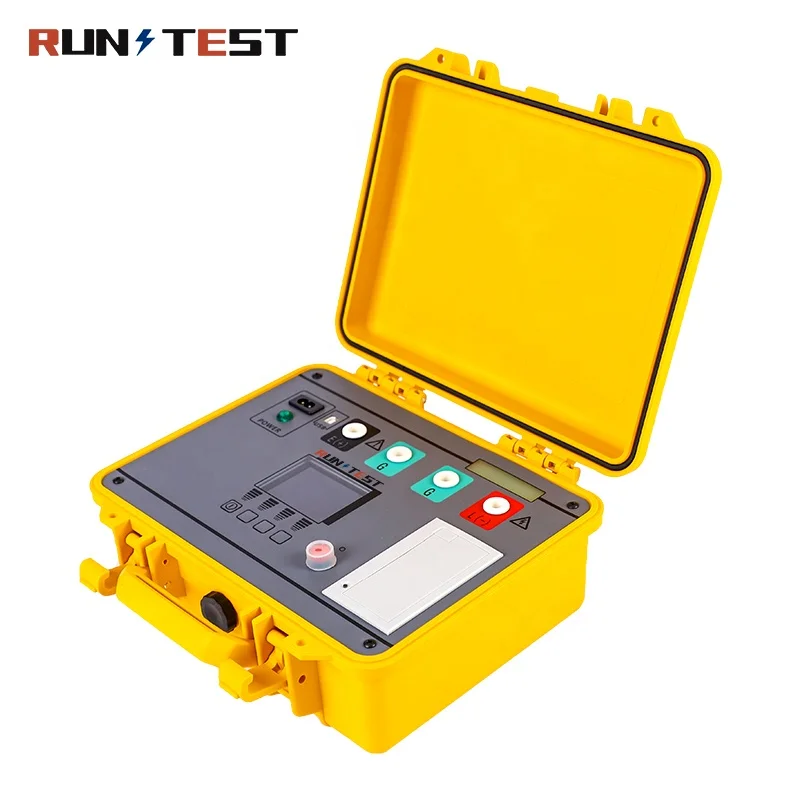

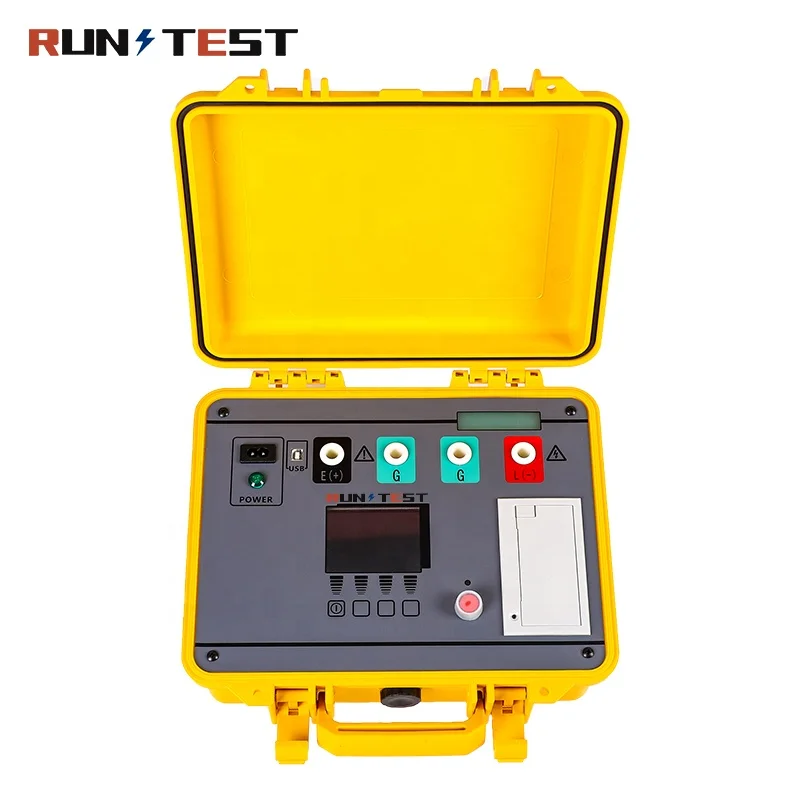

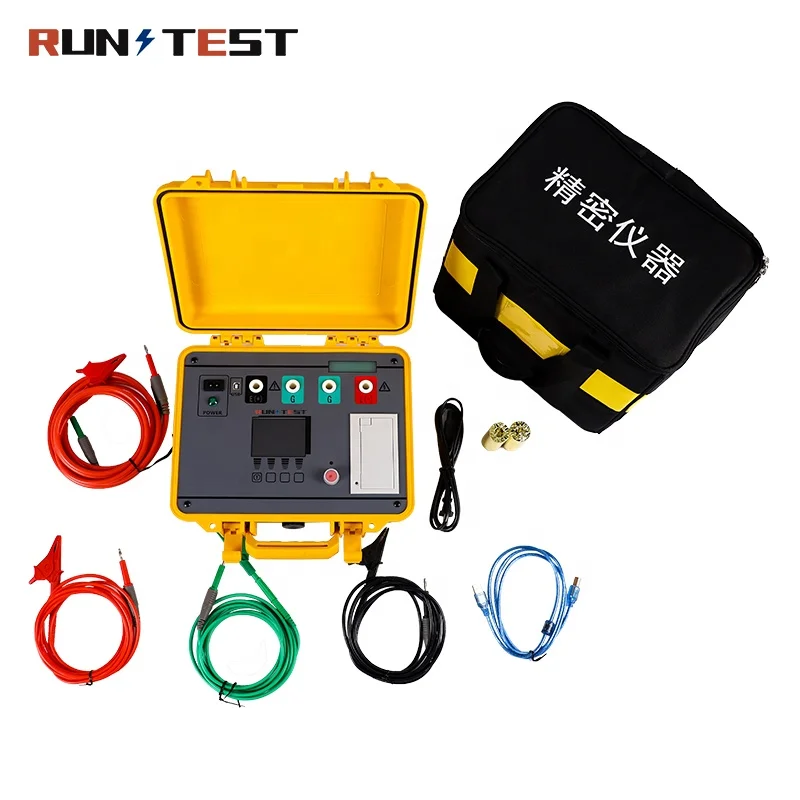

The intelligent high-voltage insulation resistance tester has 6 ranges: 500V, 1000V, 2500V, 5000V, 10000V, 15000V. and the maximum test can reach 30TΩ. With Manual boost function.
Feature
* Insulation resistance range 20TΩ@10kV
* The short-circuit current can be adjusted up to 3mA.
* Automatically display the test values of polarization index (PI) and absorption ratio (DAR), which can test leakage current and capacitance, as well as dielectric discharge test (DD) and step voltage test (SV).
* Excellent anti-interference performance, when the interference current reaches 2mA, the instrument still guarantees the test accuracy.
* The AC and DC voltage test function of the tested circuit can automatically identify AC or DC.
* The capacitive test product is discharged quickly. When the cable is tested, manual discharge is not required, and the instrument automatically discharges quickly.
* 2 power modes: use lithium battery for power supply, battery life can reach 6 hours. It can be charged in use. In the event of a power failure, it can automatically switch from AC power supply to battery power supply.
* Digital filter function, use the filter function to reduce the influence when the display value is deviated due to external influence.
* Complete protection function, and equipped with fuse blowing prompt function.
* Data saving function, and data can be exported.
* The short-circuit current can be adjusted up to 3mA.
* Automatically display the test values of polarization index (PI) and absorption ratio (DAR), which can test leakage current and capacitance, as well as dielectric discharge test (DD) and step voltage test (SV).
* Excellent anti-interference performance, when the interference current reaches 2mA, the instrument still guarantees the test accuracy.
* The AC and DC voltage test function of the tested circuit can automatically identify AC or DC.
* The capacitive test product is discharged quickly. When the cable is tested, manual discharge is not required, and the instrument automatically discharges quickly.
* 2 power modes: use lithium battery for power supply, battery life can reach 6 hours. It can be charged in use. In the event of a power failure, it can automatically switch from AC power supply to battery power supply.
* Digital filter function, use the filter function to reduce the influence when the display value is deviated due to external influence.
* Complete protection function, and equipped with fuse blowing prompt function.
* Data saving function, and data can be exported.
Product Paramenters
Safety specifications | IEC 61010-1 CAT.IV 600V Pollution degree 2 IEC 61326 EMC specification: electrical equipment for testing, control and inspection IEC60529 IP64 (outer box closed state) |
AC power supply | 220V±10%, 50/60 HZ, 20VA |
Battery power supply | 16.8V lithium ion rechargeable battery |
Battery life time | 5000V@100M, about 6 hours |
Dimensions | 270*230*160 mm |
Weight | 3.8 kg |
Output voltage accuracy | 100% to 110% of the nominal value |
Output Voltage Monitoring Accuracy | ±5%±10V |
Voltage measurement range | AC: 30-600V (50HZ/60HZ), DC: 30-600V |
Voltage Measurement Accuracy | ±2%±3dgt |
Current test range | 10mA |
Current measurement accuracy | 5%+0.2nA |
Short circuit current | 2 to 6mA, adjustable output |
Capacitance test range | 25uF |
Capacitance test accuracy | ±10%+0.03uF |
Discharge rate of capacitor sample | from 5000V to 10V, 1S/µF |
Protection | 2% error, shielding 500kΩ leakage resistance under 100MΩ load |
Analog display range | 100kΩ to 10TΩ |
Digital display range | 10kΩ to 20TΩ |
Insulation alarm | 0.01MΩ to 9999.99MΩ |
Manual Boost:
Range: 1G/V, 100G at 100V. When the voltage is less than 200V, the resistance error increases by 10%.
Range: 1G/V, 100G at 100V. When the voltage is less than 200V, the resistance error increases by 10%.
Product packaging
Company Profile
Run Test Electric Manufacturing Co., Ltd, located in High-Tech Industrial Development Zone, Baoding, China. It is a joint venture which is invested by Zhongchuang Electric and Dongrun Technology. We have been in electric testing industry more than 10 years, specialized in design, manufacture and test service. We are qualified supplier and service provider of State Grid in China.
We have our own R&D department which is specialized both in hardware and software, at the same time, our R&D department is cooperating with high technology institute such as Chinese Academy of Sciences,North China Electric Power University etc.
Our main products including: Partial discharge tester, transformer tester, transformer oil test series, high voltage test series, safety product test series, cable fault location system, relay & microcomputer protection test, etc.
Our main products including: Partial discharge tester, transformer tester, transformer oil test series, high voltage test series, safety product test series, cable fault location system, relay & microcomputer protection test, etc.
All our products comply with international quality standard and customizable. We sincerely invite clients and friends all over the world to visit our company. We will and always provides nice products and service.
FAQ
After-sale Service: 100% quality guaranteed.
One year warranty from the date of purchase, customers enjoy a free repair or replacement service.
Lifetime maintenance and free remotely technical support.
Payments: all kinds of payment to meet your requirement.
Delivery: Ocean, Railway, Air or Express
One year warranty from the date of purchase, customers enjoy a free repair or replacement service.
Lifetime maintenance and free remotely technical support.
Payments: all kinds of payment to meet your requirement.
Delivery: Ocean, Railway, Air or Express
Certifications
