Характеристики
Details Images

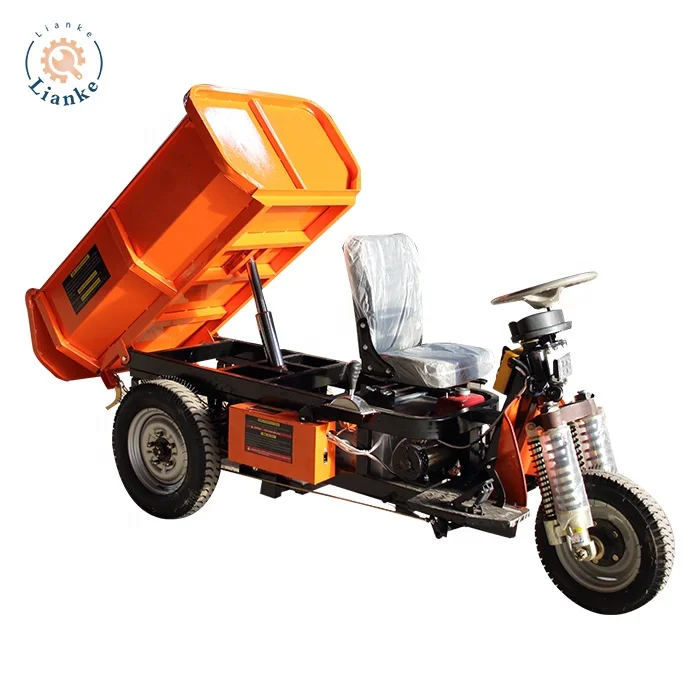

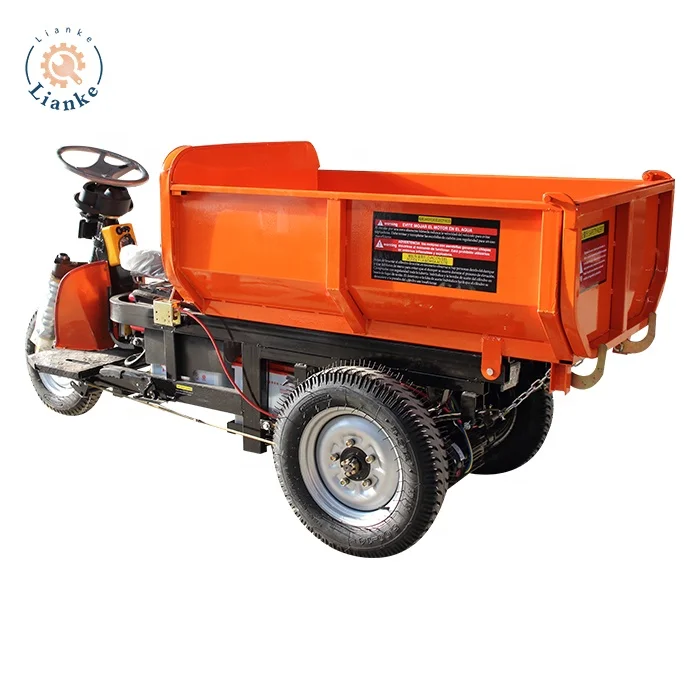

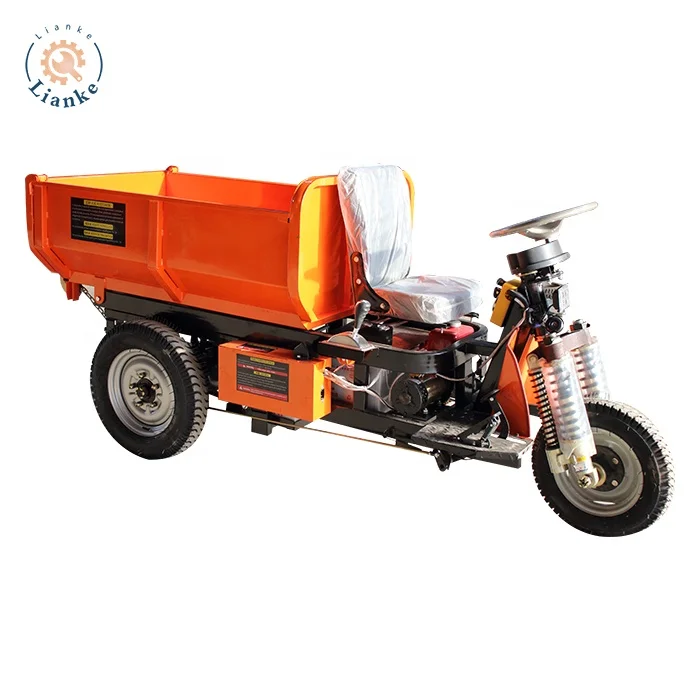

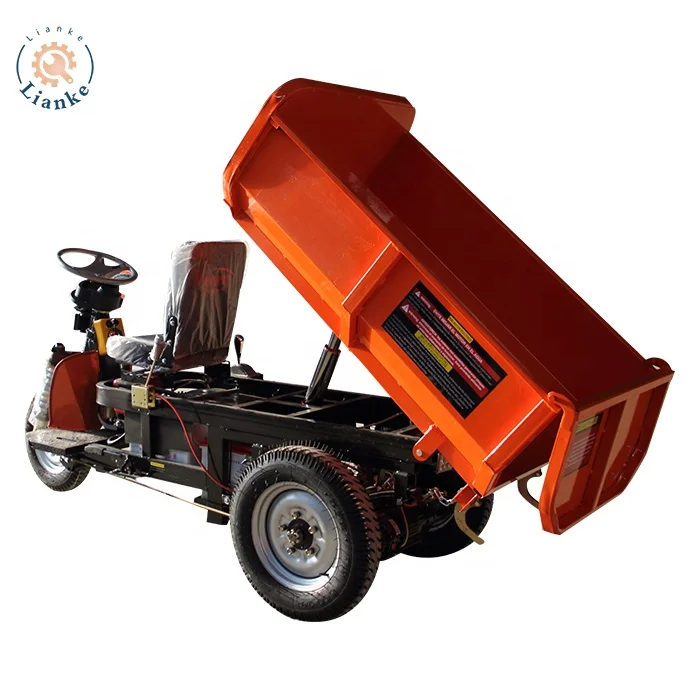

electric mini dumper is suitable for underground roadway mine, iron ore mine and rare metal mine. The truck has many advantages, such as high power, small footprint, compact sound, convenient and flexible operation, energy-saving and cost-saving, and convenient operation. The dump truck can be equipped with different engines according to the use environment and use, which can be customized according to customer requirements.
This LK135 electric dumper is the top-level model:
1. Direct plug rear axle +2500W brush motor;
2. Double row shock absorption;
3. 5 batteries constitute a group of batteries;
4. With high and low speed;
5. Heightening the cargo box.
Toutube video links:
https://youtu.be/Lz03XN8ZtB4 (LK135 Display around the appearance)
https://youtu.be/0t-_bg38mHA (LK135 driving and box board lifting and dropping display)
https://youtu.be/HQ1RINJ9Tbs (LK135 rear axle and motor display)
The main technical specifications of LK135 mini electric dumper(top-level) | ||||||
Loading capacity | 1000 KG | Net weight | 500 KG | |||
Front tire | 4.00-12 | Rear tire | 5.00-14 | |||
Overall size | 2800*1000*1230mm | Cargo box size | 1400*800*500mm | |||
Battery | 60V Lead-acid batteries 185-80AH, 12V*5 PCS=60V | |||||
Battery time | Charge time: First time for 12 hours, the next for 8 hours. Using time: 6 - 8 hours. | |||||
Driving motor power | 2500W Brush motor | |||||
Lifting motor power | 1000W | |||||
Color | Red, Yellow | |||||
Logo | We can customize VIN plate information and logo for container order. | |||||
Product Description
2500W brushed motor
The direct plug rear axle, fitted with a high and low speed, is suitable for mountain roads.
60V Lead-acid batteries 185-80AH,
12V*5 PCS=60V
The charger
Heightening the box board:
box board height 500 mm.
Ordinary box board height 400 mm.
Double row shock absorption:
1. The shock absorption effect is better.2. Extend the service life of the spring.
The main wiring harness of the dumper is wrapped with insulating cloth, which increases the safety of the wiring harness.
A:Controller B: Contactor
Front tire: 4.00-12
Huanyan Brand tire
Rear tire: 5.00-14
Huanyan Brand tire
Steering wheel type operation
Handle type operation
Straight type cargo box
This kind of cargo box can loading more, suit for have shape and regular goods,this way can get maximize the use of it.
This kind of cargo box can loading more, suit for have shape and regular goods,this way can get maximize the use of it.
Inclined type cargo boxThis kind of cargo box suit for no shape and irregular goods, such as ores, farm crops and fertilizer ect.
Customer Feedback
Our electric mini dumper belongs to cargo vehicles, mainly for loading rocks, minerals, soil, sands, cement, and other goods. It can be used in a variety of terrain, mainly is used in mine, to be used in farm is also no problem.
Packing & Delivery
LCL Delivery
For order one unit or order less container load we adopt standard wooden box packing, to convenient package we only remove the wheels.Other parts do not do any demolition, so when arrive you just need to assemble the wheels then can driving directly.
For order one unit or order less container load we adopt standard wooden box packing, to convenient package we only remove the wheels.Other parts do not do any demolition, so when arrive you just need to assemble the wheels then can driving directly.
FCL Delivery
For the order quantities more than 10 units, normally we advise to adopt full container load, full container shipment without any demolition, it‘s more convenient transportation and cost savings.One 20GP can hold 10 sets. One 40HC can hold 16 sets.
For the order quantities more than 10 units, normally we advise to adopt full container load, full container shipment without any demolition, it‘s more convenient transportation and cost savings.One 20GP can hold 10 sets. One 40HC can hold 16 sets.
