Характеристики
Product Description

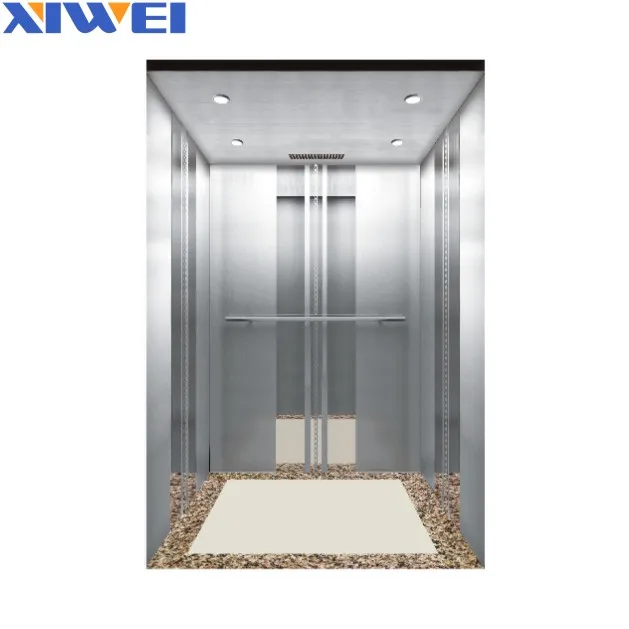

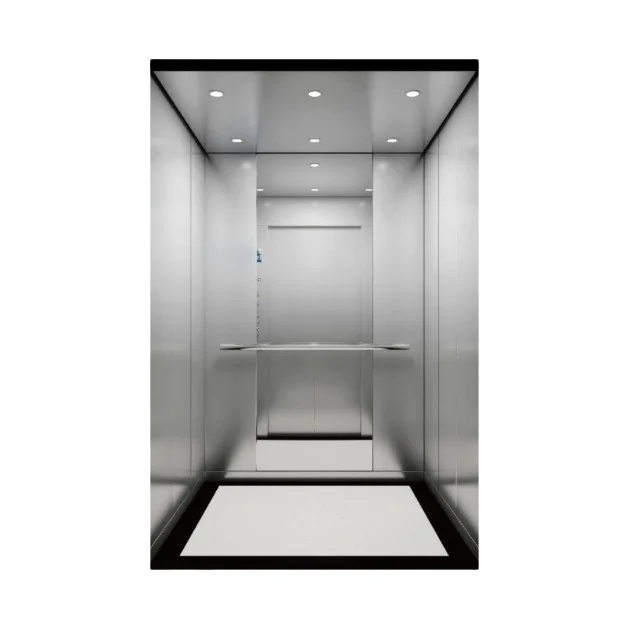

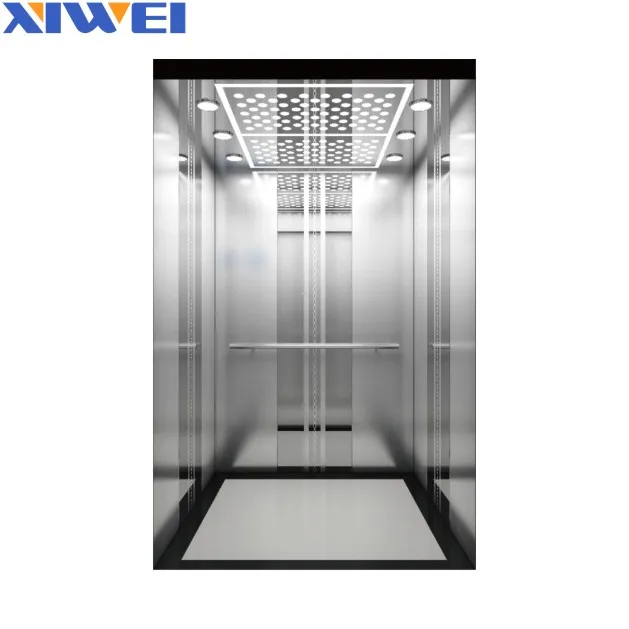

1. Cabin
XW-K06 (standard)
Ceiling: Hairline stainless steel frame, acrylic transparent palte, LED lights.
Cabin wall: Mirror, etching, hairline stainless steel
Handrail: Stainless steel round handrail
Floor: Artificial marble / PVC
XW-K07 (standard)
Ceiling: Hairline stainless steel frame, acrylic transparent palte, LED lights.
Cabin wall: Mirror, etching, hairline stainless steel
Handrail: Stainless steel round handrail
Floor: Artificial marble / PVC
2. Landing door
3. Ceiling
XW-DD01 (standard)
Hairline stainless steel frame, acrylic transparency, LED lights
XW-DD03 (standard)
Hairline stainless steel frame, acrylic transparency, LED lights
XW-DD06 (standard)
Hairline stainless steel frame, LED lights
4. Floor
XW-DB06 (standard)
PVC
XW-DB08 (standard)
Polished tile or PVC
XW-DB10 (standard)
Polished tile or PVC
5. COP, LOP and Handrail
XW-OK001 (standard)
Integrated typeHairline stainless steel
XW-CK013 / 015 (standard)
Hairline stainless steel
XW-F01 (standard)
Hairline stainless steel
The following is our standard elevator size.
If you have projects, please send me the specification, so we can calculate the detailed elevator size.
Machine room passenger lift standard parameter list: | ||||||||||||||||
Loading capacity | Speed | Standard cabin size | Standard shaft size | Pit depth | Overhead | |||||||||||
(kg) | Persons | (m/s) | Width (mm) | Depth (mm) | Width (mm) | Depth (mm) | (mm) | (mm) | ||||||||
630 | 8 | 1.0~2.5 | 1300 | 1200 | 1800 | 1800 | 1500 | 4200 | ||||||||
800 | 10 | 1.0~2.5 | 1400 | 1350 | 1900 | 2000 | 1500 | 4200 | ||||||||
1000 | 13 | 1.0~2.5 | 1600 | 1400 | 2100 | 2100 | 1500 | 4200 | ||||||||
1350 | 18 | 1.0~2.5 | 1900 | 1600 | 2400 | 2300 | 1500 | 4200 | ||||||||
1600 | 21 | 1.0~2.5 | 2000 | 1700 | 2500 | 2400 | 1500 | 4200 | ||||||||
Machine roomless passenger lift standard parameter list: | ||||||||||||||||
Loading capacity | Speed | Standard cabin size | Standard shaft size | Pit depth | Overhead | |||||||||||
(kg) | Persons | (m/s) | Width (mm) | Depth (mm) | Width (mm) | Depth (mm) | (mm) | (mm) | ||||||||
630 | 8 | 1.0~2.5 | 1300 | 1200 | 2100 | 1600 | 1500 | 4200 | ||||||||
800 | 10 | 1.0~2.5 | 1400 | 1350 | 2200 | 1800 | 1500 | 4200 | ||||||||
1000 | 13 | 1.0~2.5 | 1600 | 1400 | 2400 | 1900 | 1500 | 4200 | ||||||||
1350 | 18 | 1.0~2.5 | 1900 | 1600 | 2900 | 2000 | 1500 | 4200 | ||||||||
1600 | 21 | 1.0~2.5 | 2000 | 1700 | 3000 | 2100 | 1500 | 4200 | ||||||||
6. Main part photos
Traction system
Permanent-magnet synchronous gearless traction machine
Door machine system
VVVF door operator control system
Control system
Intelligent microcomputer control system
Related Products
1. Other products series
XW-V01 (standard)
Home Elevator
Integrated type ceiling: Stainless steel + LED LightsCabin: Mirror etched stainless steel, hairline stainless steel
Door: Stainless steel
Floor: PVC

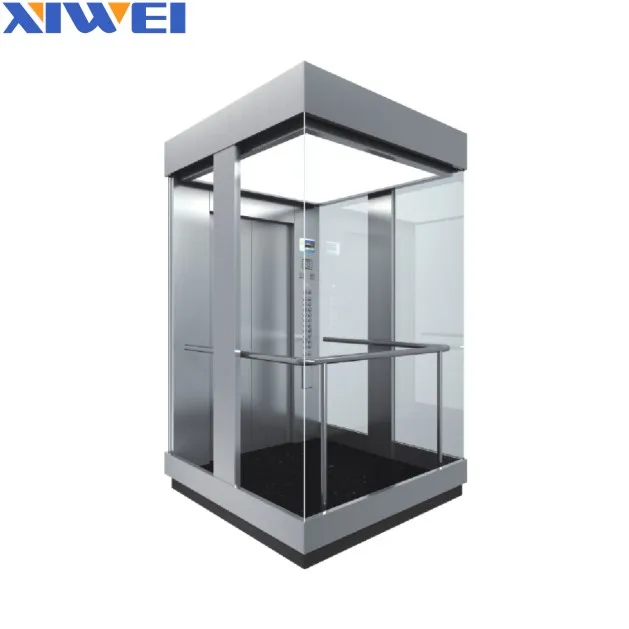

XW-GC03 (standard)
Panoramic Elevator
Upper and lower guard: Hairline stainless steelDecoration roof: Mirror stainless steel acrylic combination
Cabin wall: Laminated glass
Handrail: Stainless steel tube
Floor: PVC
XW-HC01 (standard)
Cargo Elevator
Ceiling: Paint steel (Light gray)Cabin wall: Paint steel (Light gray)
Cabin door: Paint steel (Light gray)
COP: Hairline stainless steel
Floor: Checked steel plate
Door opening type: Side opening
GRF
Escalator
Angle of inclination: 30°/ 35°Step width: 600mm, 800mm, 1000mm
Travellign height: ≥3000mm
2. More elevator cabin decoration design
XW-OK003 / 004 / 005 (optional)
XW-OK003: Mirror stainless steel
XW-OK004: Titanium gold
XW-OK005: Rose gold
XW-CK012 / 013 / 015 (standard)
XW-CK012: Hairline stainless steel
XW-CK013: Hairline stainless steel
XW-CK015: Hairline stainless steel
XW-F02 / 03 / 04 (optional)
XW-F02: Hairline stainless steel
XW-F03: Titanitum gold
XW-F04: Hairline stainless steel flat handrail
Our Company
XIWEI ELEVATOR JIANGSU CO., LTD
--Address: Siyang City of Jiangsu Province--Total area: 120,000m²--Office buidling area: 6,000m²
--Production workshop area: 30,000m²
--Test tower height: 87m
--6S management
:--Advanced automated production equipment
--Excellent teams who focus on product development and design, quality control and professional service
Our Certificate
Why us
Safe
Guarntee your every trip
Skillful
Apply the top-notch manufactory stills
Selected
Strict check on every working procedure
Superior
Guarantee zero defects on every accessory
Stable
Timely professional maintaining
Saving
Introduce the world leading energy saving technology
FAQ
Q1: What's the necessary information should be provided before purchasing an elevator?
1).How many people loading?
2).How many floors does the elevator travel? What's the traveling height?
3).What's the shaft size? Shaft width and shaft depth? overhead and pit size?
4).Is there a machine room on top of the shaft?
When we get the answers, we can design exact elevator and make an quotation to you.
Q2: How long is your delivery time?
Generally it is 30 days, but urgent production is also available.
Q3: What is your terms of payment?
a: T/T: 30% T/T in advance ,balance before shippment.
b: L/C at sight.
Q4: What's the packing size?
12-20 packages for each elevator, depends on different parameters.
1 set passenger elevator fit in 1*20ft container.
2~3 sets passenger elevators fit in 1*40ft container / 1*40HQ container.
Q5: Installation & Maintaining & Technical Support
The complete documents including Installation manual will be delivered along with the elevator in the container.
Remote technical support is available via email, whatsapp, wechat and etc.
If necessary , a techincian will be sent to assist you on the worksite upon your request.
Q6: The Spare Parts & Guaranty
We will provide you the free spare parts delivered along with the container.
If any parts get damaged due to quality issue within 12 months after B/L date. We will send new replacement once confirmed.
