3 набора садовых инструментов из розового золота
US $5.50-$7.00
2021 последняя версия Oem Ortur стационарная лазерная гравировальная машина Yrr для резки материнской
- Категория: Tool Sets >>>
- Поставщик: Shenzhen,Salon,Technologies,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.44 $* | 0.31 $* |
| Aug-18-2025 | 0.91 $* | 0.1 $* |
| Jul-18-2025 | 0.80 $* | 0.97 $* |
| Jun-18-2025 | 0.60 $* | 0.26 $* |
| May-18-2025 | 0.6 $* | 0.53 $* |
| Apr-18-2025 | 0.45 $* | 0.75 $* |
| Mar-18-2025 | 0.23 $* | 0.52 $* |
| Feb-18-2025 | 0.92 $* | 0.42 $* |
| Jan-18-2025 | 0.14 $* | 0.16 $* |
Характеристики
Product Description
Brief Introduction:
The Laser Master 2 - 7W is good at picture engraving.
The Laser Master 2 - 15W is the most cost-effective, available for both engraving and cutting.
The Laser Master 2 - 20W is higher power and supports a faster engraving and cutting.
Main Features:
Specialized Motherboard with 32Bits MCU
It could preprocess 32 instructions, supports baud rate as high as 921600, more powerful!
The Most Advanced 32Bits Laser Engraver Firmware
Ortur laser master firmware, smarter, faster, higher precision and easier to use.
Laser power range could be S0 - S1000, compared to 8bits desktop laser engravers, which only has S0 - S255, Ortur Laser Master
could control laser beam more accurately, could even use the high power laser unit to "draw" a picture on paper , that the 8bits
high power laser engravers could not do.
Engraving speed could be as high as 3000MM/Min. ( If do not consider the laser carving result, the velocity of movement could be
as high as 1000MM/S )
Active Position Protection
There is a G-sensor on the motherboard, if the machine detects unauthorized movement, the laser beam will stop.
Laser Beam Safety Guard
If your computer system halted or USB cable disconnected, led to that the laser engraver stops moving, the laser beam will stop,
to prevent fire.
Exposure Duration Detection and Limitation
If laser engraver is under control, but users forget to operate and keep the laser beam working, extra safety will cut off in case
the motor stopped moving, to prevent fire.
LaserGRBL ( free software ) supports Windows XP, 7, 8, 10. LaserGRBL is the most popular carving software in the world, could
import different format images, you could editing in PhotoShop, Inkscape, CAD, etc. and then connect to the engraver via laser
LaserGRBL for engraving and cutting.
LightBurn ( Not-free software, lightburnsoftware.com ) supports Windows, Mac OS, and Linux. It's the most popular paid carving
software in the world, very easy to use.
This laser engraver supports PWM mode.
Pre-assembled parts, just need 10 - 20 minutes to install the machine.

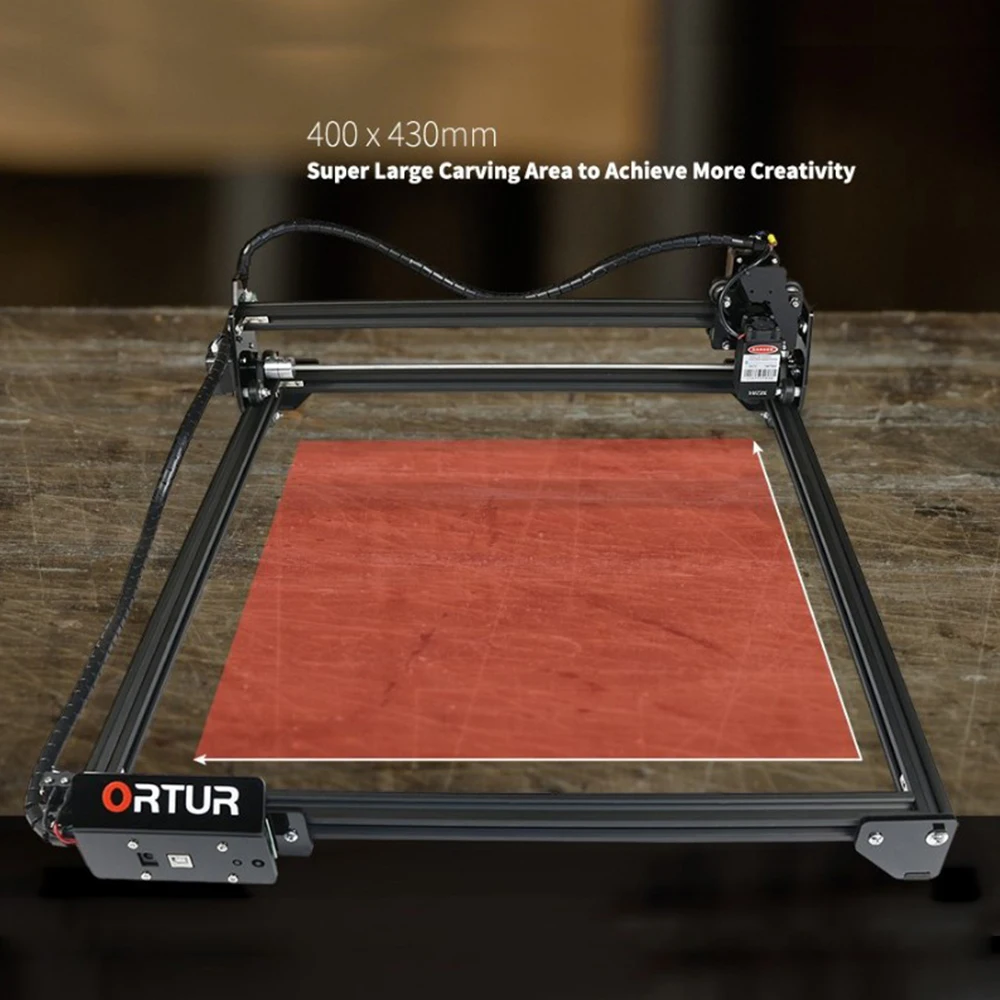

400 x 430 mm large engraving area.
Aluminum profile frame + structured cabling, solid structure, smooth operation, attractive appearance
Synchronizing shaft mechanical structure, avoid out-sync on two Y rails, during full speed engraving.
The Laser Master 2 - 7W is good at picture engraving.
The Laser Master 2 - 15W is the most cost-effective, available for both engraving and cutting.
The Laser Master 2 - 20W is higher power and supports a faster engraving and cutting.
Main Features:
Specialized Motherboard with 32Bits MCU
It could preprocess 32 instructions, supports baud rate as high as 921600, more powerful!
The Most Advanced 32Bits Laser Engraver Firmware
Ortur laser master firmware, smarter, faster, higher precision and easier to use.
Laser power range could be S0 - S1000, compared to 8bits desktop laser engravers, which only has S0 - S255, Ortur Laser Master
could control laser beam more accurately, could even use the high power laser unit to "draw" a picture on paper , that the 8bits
high power laser engravers could not do.
Engraving speed could be as high as 3000MM/Min. ( If do not consider the laser carving result, the velocity of movement could be
as high as 1000MM/S )
Active Position Protection
There is a G-sensor on the motherboard, if the machine detects unauthorized movement, the laser beam will stop.
Laser Beam Safety Guard
If your computer system halted or USB cable disconnected, led to that the laser engraver stops moving, the laser beam will stop,
to prevent fire.
Exposure Duration Detection and Limitation
If laser engraver is under control, but users forget to operate and keep the laser beam working, extra safety will cut off in case
the motor stopped moving, to prevent fire.
LaserGRBL ( free software ) supports Windows XP, 7, 8, 10. LaserGRBL is the most popular carving software in the world, could
import different format images, you could editing in PhotoShop, Inkscape, CAD, etc. and then connect to the engraver via laser
LaserGRBL for engraving and cutting.
LightBurn ( Not-free software, lightburnsoftware.com ) supports Windows, Mac OS, and Linux. It's the most popular paid carving
software in the world, very easy to use.
This laser engraver supports PWM mode.
Pre-assembled parts, just need 10 - 20 minutes to install the machine.
400 x 430 mm large engraving area.
Aluminum profile frame + structured cabling, solid structure, smooth operation, attractive appearance
Synchronizing shaft mechanical structure, avoid out-sync on two Y rails, during full speed engraving.
Specification
Specifications | ||||
Motherboard | OLM-MAX-V10 Motherboard, with 32Bits MCU | |||
Firmware | Ortur Laser Master V1.4 Firmware | |||
Safety Precautions | 1.Active Position Protection, 2.Exposure Duration Detection and Limitation, 3.Laser Beam Safety Guard. | |||
Frame Materials | Aluminum + Arylic | |||
Motors | NEMA 17 Stepper Motors | |||
Mechanical Precision | Y:12.5um，X:12.5um | |||
Pixel Accuracy | Adjustable (Default: 300 pixels per inch, about 0.81um Pixel Accuracy) | |||
Engraving Area | 400MM×430MM | |||
Available Laser Modules | LU1-2 (Electric Power: 7W, Luminous Power: 1,200-1,600mw) LU1-3 (Electric Power: 15W, Luminous Power: 4,000-4,500mw) LU1-4 (Electric Power: 20W, Luminous Power: 4,500-5,500mw) | |||
Wave Length | 445±5nm | |||
Focus | Adjustable Focus | |||
Default Focal Length | LU1-2: 58mm(from the heat sink to the object) LU1-3&LU1-4: 19mm (from lens to the object) | |||
Control Mode | PWM | |||
Power Rate | S0-S1,000 | |||
Engraving Speed | 0-3,000MM/Min | |||
Baud Rate | 115200 - 921600 (Default: 115200) | |||
Computer OS | Win XP, Win 7, Win 8, Win 10 (LaserGRBL) Mac and Linux (LightBurn) | |||
Control Softwares | LaserGRBL (free), LightBurn (Paid Software) | |||
Input Format | NC, DXF, BMP, JPG, PNG, SVG, etc. | |||
Available Materials of Engraving | Wood, Paperboard, Acrylic, Leather, Some Plastic(opaque), Power Coated Metal, etc. | |||
Available Materials of Cutting | Kraft Paper, Paper Board, Thin Plywood, KT Board, Felt Cloth, Leather, etc. | |||
Input Voltage | 110V-220V (Compatible) | |||
Power Adapter Output | 12V / 3A | |||
Operating Temp. | -10℃-30℃ | |||
Packing & Delivery

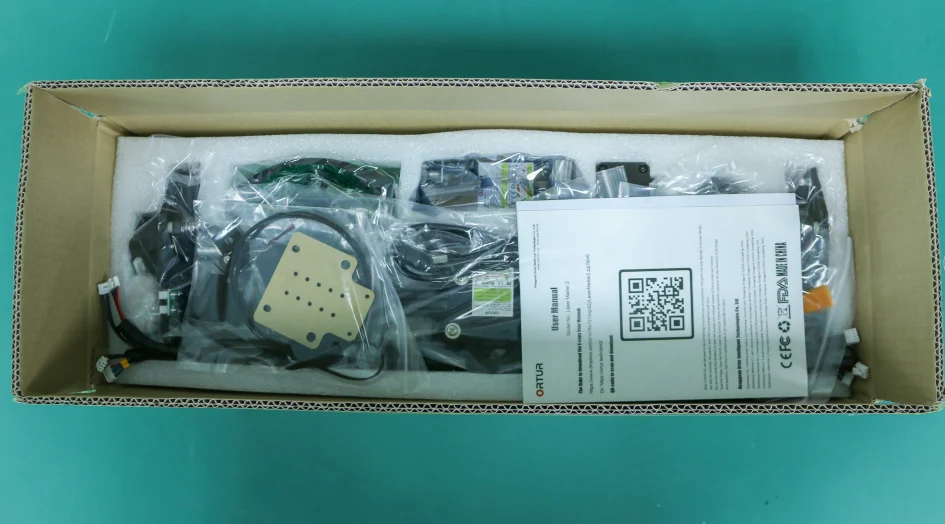

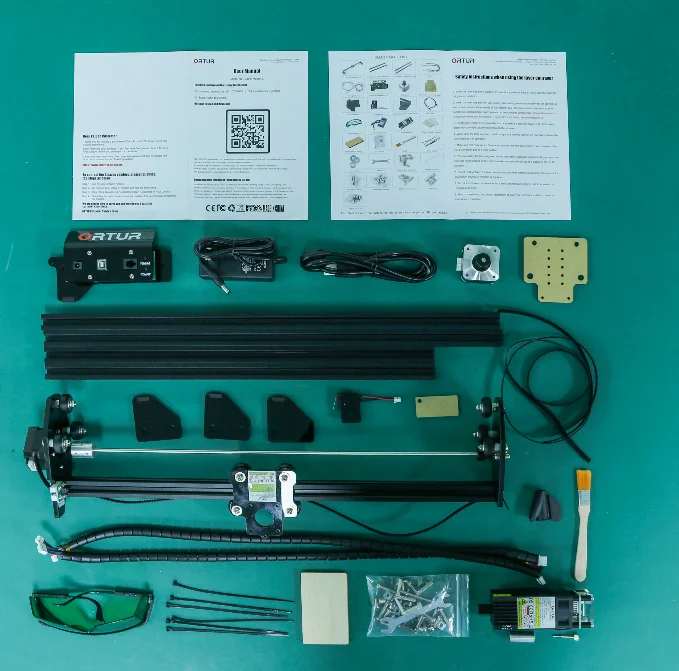

X-axis Aseembly+Y-axis Aseembly+Laser Module+Accessories, inserted in PE Foam, packed in a cardboard box.
Company Profile
Shenzhen Salon Technologies Co., Ltd, co-founded by Deepen Lake Electronics and Ruiyitong Technologies, is a high-tech enterprise, with the corporate culture:" Technologies Beautify Our Life".
Salon Technologies is a creactive supplier of innovative products, such as AR galsses, 3D Printers and so on. It's the main 3D Printers and Wearable Devices vendor of China. Salon Technologies has grown faster than the market in 2017, because our customers use innovation to bring progress to the world, and we design and build our products with this in mind, taking inspiration from the drive and imagination of the people who make things happen. Our technology helps those who do, do better...
Salon Technologies is a creactive supplier of innovative products, such as AR galsses, 3D Printers and so on. It's the main 3D Printers and Wearable Devices vendor of China. Salon Technologies has grown faster than the market in 2017, because our customers use innovation to bring progress to the world, and we design and build our products with this in mind, taking inspiration from the drive and imagination of the people who make things happen. Our technology helps those who do, do better...
FAQ
1. who are we?
We are based in Guangdong, China, start from 2013,sell to Domestic Market(46.00%),North America(18.00%),Western Europe(11.00%),Southeast Asia(6.00%),Northern Europe(4.00%),Oceania(3.00%),South America(2.00%),Southern Europe(2.00%),Eastern Asia(2.00%),Mid East(2.00%),Central America(1.00%),South Asia(1.00%),Eastern Europe(1.00%),Africa(1.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
3D Printers,3D Printer Filaments,Laser Engraver,CNC Machine,3D Printer Parts
4. why should you buy from us not from other suppliers?
A professional manufacturer of 3D Printers, Laser Engraver, integrating development and production together.
A group of conscientious employees,working in a comfortable and positive work atmosphere.
A aim to render customers the hassle-free services.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2013,sell to Domestic Market(46.00%),North America(18.00%),Western Europe(11.00%),Southeast Asia(6.00%),Northern Europe(4.00%),Oceania(3.00%),South America(2.00%),Southern Europe(2.00%),Eastern Asia(2.00%),Mid East(2.00%),Central America(1.00%),South Asia(1.00%),Eastern Europe(1.00%),Africa(1.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
3D Printers,3D Printer Filaments,Laser Engraver,CNC Machine,3D Printer Parts
4. why should you buy from us not from other suppliers?
A professional manufacturer of 3D Printers, Laser Engraver, integrating development and production together.
A group of conscientious employees,working in a comfortable and positive work atmosphere.
A aim to render customers the hassle-free services.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
