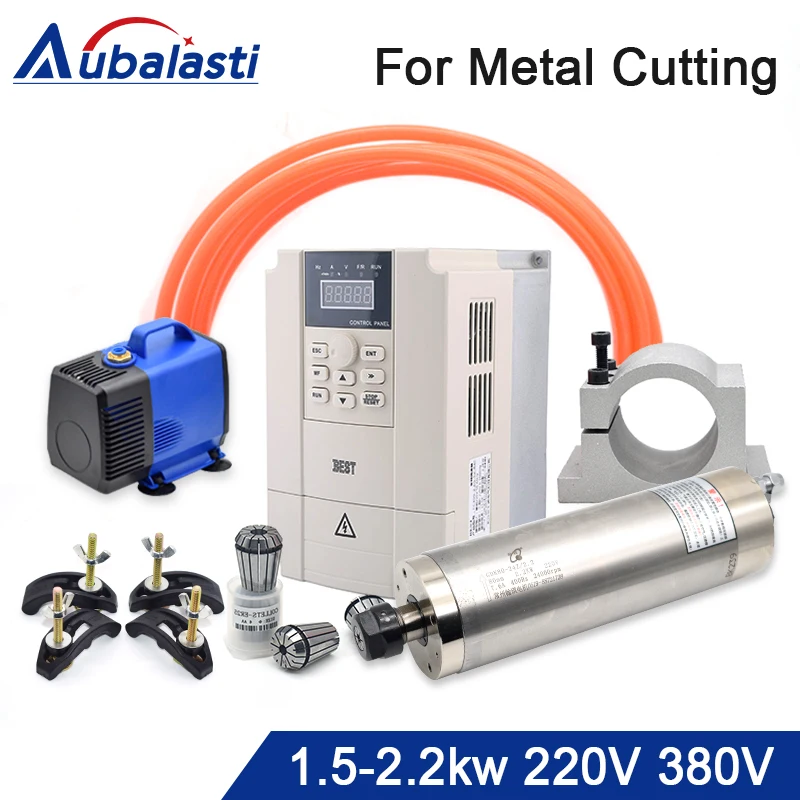

ЧПУ шпиндель 1.5kw 2.2kw резак по металлу с водяным охлаждением шпинделя 220V 380V инвертор ER16 ER20 для станка фрезерный станок маршрутизатор
- Категория: Шпиндель для станка >>>
- Поставщик: Shanghai,Wavetopsign,International,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.1 $* | 0.88 $* |
| Aug-18-2025 | 0.81 $* | 0.27 $* |
| Jul-18-2025 | 0.12 $* | 0.72 $* |
| Jun-18-2025 | 0.71 $* | 0.44 $* |
| May-18-2025 | 0.8 $* | 0.23 $* |
| Apr-18-2025 | 0.88 $* | 0.50 $* |
| Mar-18-2025 | 0.82 $* | 0.77 $* |
| Feb-18-2025 | 0.10 $* | 0.53 $* |
| Jan-18-2025 | 0.60 $* | 0.46 $* |
Характеристики
Main Application:
Metal engraving and milling, low speed and high torque. can engrave on gold,silver,copper, aluminium,steel,Pb etc soft metal surface working.

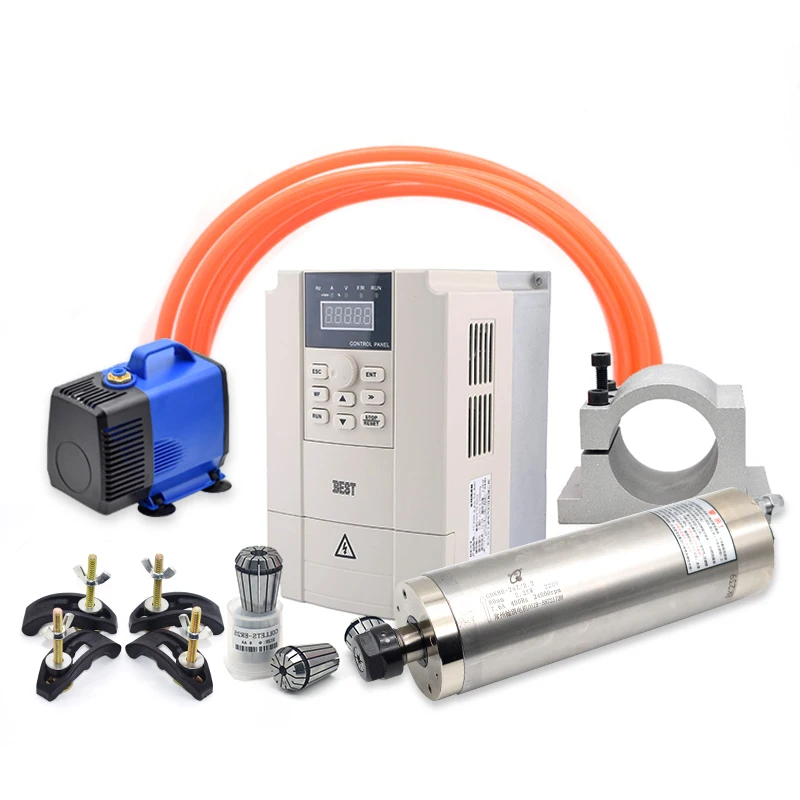

Product Features:

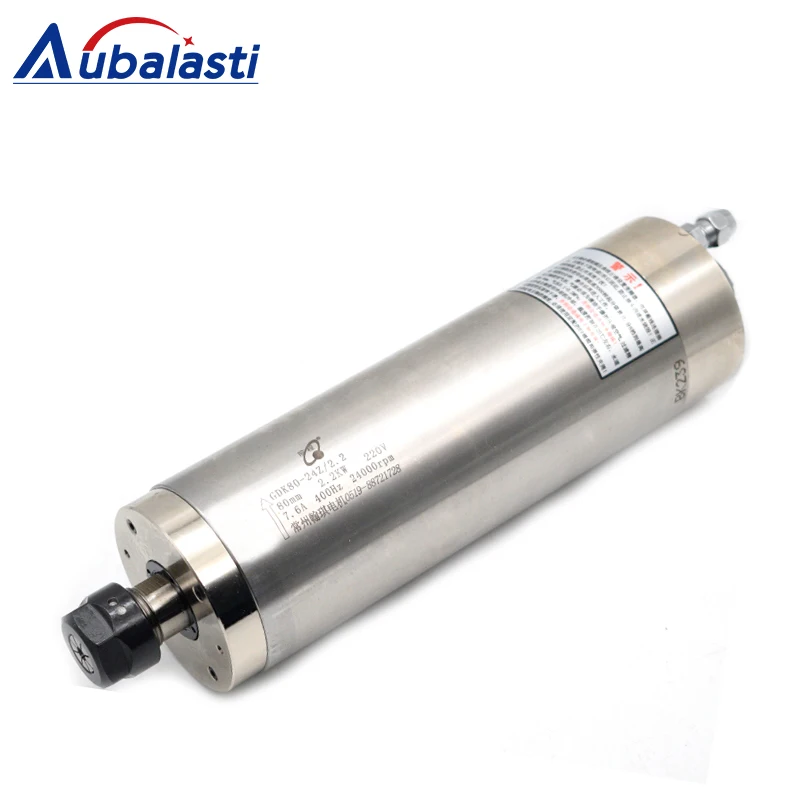

1. 1.5KW 380V (3A) / 220v (5.6A) ER16 0.6Nm Water Cooled Spindle 4bearings
2.2KW 380V (4.4A) / 220v (7.6A) ER20 0.8Nm Water Cooled Spindle 4bearings
2. 1.5kw/ 2.2kw 220V or 380V VFD Inverter
3. Quantity: 12Pcs(ER16) / 14Pcs (ER20)
4. 4Pcs Plate
Features:
1.1.5KW 380V (3A) / 220v (5.6A) ER16 0.6Nm 400HZ Water Cooled Spindle 4bearings
2.2KW 380V (4.4A) / 220v (7.6A) ER20 0.8Nm 400HZ Water Cooled Spindle 4bearings
2. P4 angular contact bearings ,2×7002C P4 DT & 2×7002C P4 DT,increase spindle life. (New type,4 bearings)
3. Longer length make the torque bigger,more powerful.
4. Carefull assembly make the spindle more precisional.
5. Precision 0.01mm.Coaxial degree less than 0.0025mm
6. We have certificates and high-quality products can stand the test! ! !
Parameters:
1. Speed Ways: Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.

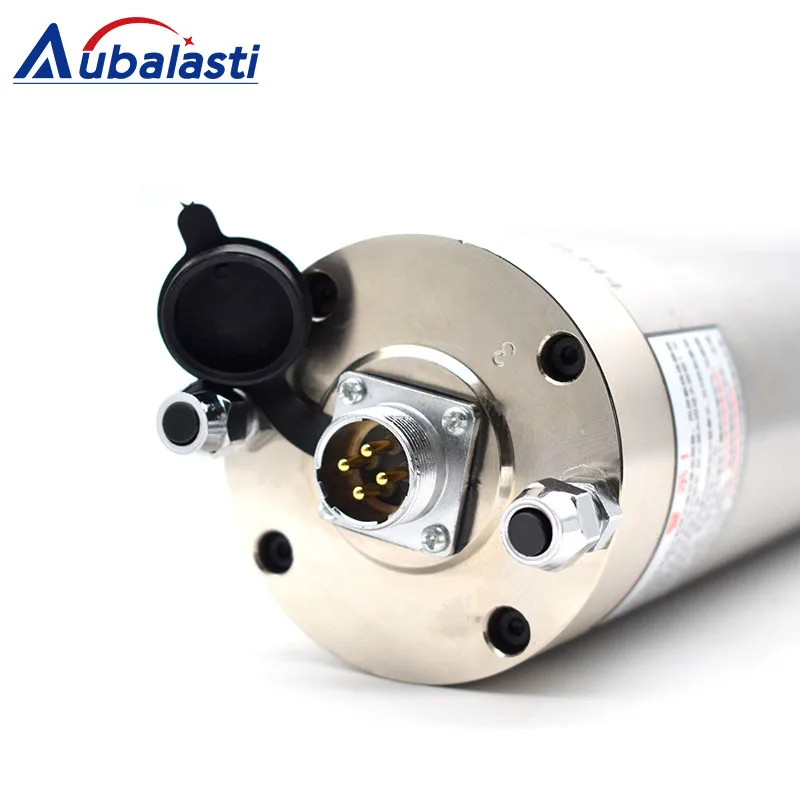

2. Cooling: Water cooling 4. Power Interface: Optional H17-4 pins waterproof air plug. The air plug marked "1", "2", "3", "4", "1", "2", "3" were connected to inverter (U, V, W),
3. Connected inverter ground. (Pay attention! Our spindle "4" connecting to GND, promised personal safety !!)
4. Power: 1.5kw / 2.2kw
5. Voltage: 220V 5.6A 380V 3A / 220V 7.6A 380V 4.4A
6. Frequency: 0-400Hz
7. Speed: 0-24000rpm
8. Runout Off: 0.01mm
9. 4pcs angular contact ball bearings
10. Bearing Type: 2 × 7002C P4 DT & 2 × 7000C P4 DT

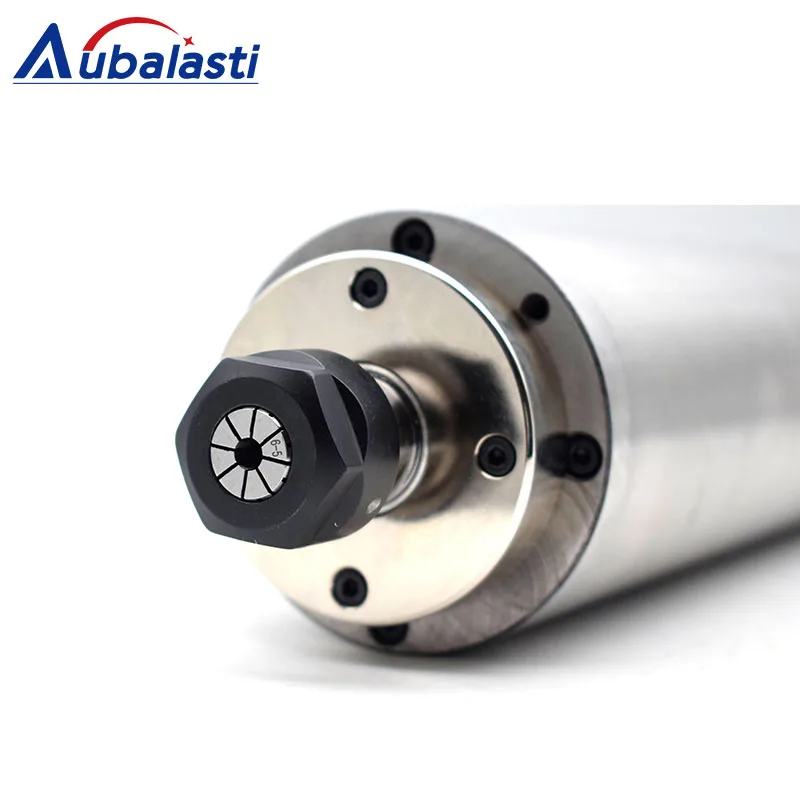

11. Water Cooling ER16 ER20 collet chuck
12. Grease Lubrication
Parameters:
Power: 1.5kw / 2.2kw
Input Voltage(Phase): 220v(1 Phase)/380v(3 Phase)
Output Voltage(Phase): 220v(3 Phase)/380v(3 Phase)
Input Frequency: 50/60Hz
Input Current: 220v(15A) 380v(8A)
Output Current: 220v(22A) 380v(12A)
Output Frequency: 400Hz
Control Method: V/F control; Open-loop flux vector control
Features:
1. Control Mode is SPWM,it is very easy to use and convenient
2. Protection functions are very strong,
3. Fin over-heat protection,
4. Overload protection,
5. Fuse protection,
6. Restart after instant stop,stall protection.
7. Powful function
Features:
1. Adopt full sandblasting appearance treatment
2. Slot design, easy to lock the spindle
3. The cast aluminum has higher precision and is more durable
4. Scientific casting, stronger earthquake resistance
Product Parameters:
Diameter: 80mm
Material: Cast Aluminium
1. Compared with the aluminium profile fixture,the accuracy is much higher , and it is hard to deform.
2. Inner wall is very smooth, outer walls is sandblasted, relatively fine uniform, but not very smooth.
3. Cast aluminium fixture is much heavier than aluminium profile fixture. Cast aluminium fixture is mainly used for fixation of ancillary products, thereby ensuring the verticality of balancing and ancillary products, ancillary products to improve running accuracy, reduce noise, reduce the accumulated error.
Features:
Type: ER16/ER20 High accuracy collet
Material: Steel
Quantity: 12Pcs(ER16) / 14Pcs (ER20)
Precision: ≤ 0.008mm
Hardened & Precision ground
Widely used in boring, milling, drilling, CNC milling machine wire tapping,engraving spindle machines,machining centers and other processing.
| Product | Metal Cutter Water Cooled Spindle |
| Power | 1.5kw/2.2kw |
| Voltage | 220V/380V |
Aubalasti informatio
ShangHai aubalasti International Technology Co., Ltd. - We strive to become a quality automation, CNC supplier , Our customers are mainly 3C manufacturers, advertising products manufacturers, currently we are the main providers of equipment: laser marking machine, laser welding machine, laser engraving and cutting machine, cnc machine, plasma cutting machine Laser processing machine: mainly used for cutting leather, PU Meanwhile, our company provides common machine parts to promote customers, accessories to provide customers more convenience to customers, machine using online repair 24 hours a day, problems You can catch photos and videos sent to E-mail.in to solve the problem faster. If you ask a question, we think that additional common questions and answers we put on our website at the site where you are initially looking for an answer can we evolve together with our customers You Currently we have many shortcomings, but we believe that the quality of our equipment is reliable and is industry leading efficiency.
Q1: Can you give us a better price?
A: The more products you buy, the more discounts you get.
Q2: Can I make a OEM order?
A: We can supply different sizes.our products can be customized.But you need to tell us more detailed requirements.
Q3: How does your factory do regarding quality control?
A: "Quality is priority." Our team always attach great importance to quality controlling from the very beginning to the verv end.
Q4: What's your MOQ order?
A: Usually it's a minimum order. If you need more, we can negotiate a discount.
Q5: How to find the right product?
A: You can provide us with photos or your requirements, and we can give you Suggestions as appropriate
Q6: What is the payment method?
1. Shipping Day : Within 1-2 days after receiving deposit.
2. Payment: Order Amount<=5000usd ,100% T/T in advance ,otherwise 30% T/T in advance.70% before shipping .
3. If there are quality problems within 7 days of receiving the goods, they can be replaced free of charge.
4. The contract is valid for 30 days
Q7: What is the strength of your company?
A: WaveTopSign brand has a history of 8 years, 8 years, we always adhere to the for clients to solve the problem of all kinds of industrial laser, uphold the principle of good faith, is willing to pay for the customer all the passion and wisdom, insist on the good prestige, the high quality, pragmatic principle, the concept of quality assurance, have professional technical team, can solve problems for customers in real time.
