Алмазная проволочная пила для гранитного мраморного
- Категория: Камень машины >>>
- Поставщик: Xiamen,Super,Harder,Diamond,Technology,Co.,ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 15470.41 $* | 16244.10 $* |
| Aug-19-2025 | 15340.66 $* | 16107.77 $* |
| Jul-19-2025 | 12870.40 $* | 13514.38 $* |
| Jun-19-2025 | 15080.90 $* | 15834.6 $* |
| May-19-2025 | 13130.57 $* | 13787.19 $* |
| Apr-19-2025 | 14820.68 $* | 15561.87 $* |
| Mar-19-2025 | 14690.64 $* | 15425.80 $* |
| Feb-19-2025 | 14560.65 $* | 15288.31 $* |
| Jan-19-2025 | 14430.43 $* | 15152.23 $* |
Характеристики
Application
Product Description
Product Feature:
1.Permanent converter
2.8P Motor
3.Full automatic
4.Cutting automatic
5.Double-control system
6.Ending cut automatically
2.8P Motor
3.Full automatic
4.Cutting automatic
5.Double-control system
6.Ending cut automatically
Product details introduction:
1. Being controlled by two sets of inverters and applying constant control principle, the moving speed of the machine can be adjusted automatically according to the changes of the cutting force to make sure the diamond wire saw be in the best cutting condition all the time.
2. The electric cabinet is placed separately. It is easy for maintenance.
3. The real-time parameters are displayed on the control platform, such as the set current of the main motor, the current and the rotation speed of the main motor, etc. It makes the operation and adjustment of the machine more convenient.
4. The machine can be operated manually and automatically. The manual and automatic functions can be shifted from each other. Under the automatic function, the machine can be unattended operated, and one worker is able to operate multiple machines.
5. The lateral position and the rotation angle of the cutting head can be adjusted manually. This design is more economic and practical and highly cost effective.
Model | Main Motor Power | Drive wheel diameter (mm) | Length of Wire (m) | Head lateral movement | Head rotation | Line Speed (m/s) | Rails | Dimension of machine | Net Weight |
CD-30MA-8P | 30KW | 5-40 | 360 | 0-30/40 | 3pcs,2M | 2000X1300X1450 | 2600kg | ||
CD-37MA-8P | 37KW | 650/800 | 20-80 | 1750mm | 360 | 0-30/40 | 3pcs,2M | 2000X1300X1450 | 2800kg |
CD-45MA-8P | 45KW | 650/800 | 20-100 | 1750mm | 360 | 0-30/40 | 3pcs,2M | 2000X1370X1510 | 3000kg |
CD-55MA-8P | 55KW | 650/800 | 20-120 | 2000mm | 360 | 0-30/40 | 3pcs,2M | 2000X1370X1510 | 3500kg |
CD-75MA-8P | 75KW | 800/1000 | 20-120 | 2000mm | 360 | 0-30/40 | 3pcs,2M | 2000X1450X1580 | 4300kg |
CD-90MA-8P | 90KW | 800/1000 | 20-150 | 2000mm | 360 | 0-30/40 | 3pcs,2M | 2000X1450X1580 | 4800kg |
Advanced Features as follow:
2.A new operating system makes all performance are stable and reliable.
3.Add a position-limit switch to make the main motor can only rotate + 180o.
4.A fault warning function is added to the control panel so that it becomes easier and save time to find out the faults.
5.Using frequency converter+PLC control, the motor can be stepless speed regulation.
6.Using digital communication, the control circuit is simple and the failure rate is low.
7.Control panel is fixed HMI screen.its waterproof and dust-proof, which also has dynamic display images and working information, like as input voltage, cutting data and working time.
8.Intelligent fault detection of equipment system, alarm protection and prompt solutions, timely treatment, user-friendly.
9.Using PID technology, machine can adjust feeding speed automatically according to the changing load of main motor, which keeps the wire tension constant and extend the wire life span.

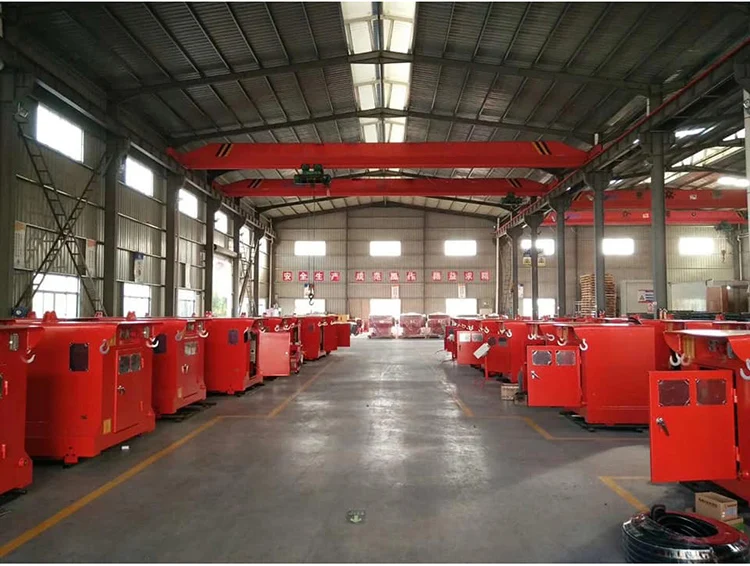

Factory Show
Our Service
1.Pre-Sales Service.
* Inquiry and consulting support.
* Sample testing support.
* Welcome view our Factory.
2. After-Sales Service.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Inquiry and consulting support.
* Sample testing support.
* Welcome view our Factory.
2. After-Sales Service.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
FAST DELIVERY TIME: 5-10DAYS, MOST OF ORDER THE LEAD TIME IS 7-10DAYS.
Company Profile
Brand core value:
innovative products, innovative technologies, innovative business models.
Enterprise spirit：
Innovation, innovation, re-innovation.
innovative products, innovative technologies, innovative business models.
Enterprise spirit：
Innovation, innovation, re-innovation.
Corporate mission:
Improve efficiency and reduce costs.
Improve efficiency and reduce costs.
Business philosophy:
The cooperative customers benefit first.
The cooperative customers benefit first.
About Us:
SuperHarder insists on applying military materials and secret military industrial technology to manufacturing diamond tools. Practice data proves that: Super Harder diamond tools can be applied to various kinds of reinforced concrete and geological strata.
SuperHarder is a giant of the Chinese diamond tool industry. It is the first that launch the personalized customization of diamond tool. We provide “one-on-one” professional design and individual service for customers so as to comprehensively meet customer’s needs for special diamond tools and effectively reduce production cost.
Exhibitions:
Successful Cases:
Glories of Company ( famous brand and letter of patent )
FAQ
Question1: There are many unqualified products in the market, how can you make sure your quality control?
Answer: We have set up a special qualified team to check all the products before packing and shipping out, and each of production process would be checked several times strictly. And we are willing to accept the sample order for quality checking.and we will full refund in case of any bad quality.
Question2. Are you a factory or trading company?
Answer: We are factory.
Question3. Can I place one small order for first time to test the quality?
Answer: Small order are also welcomed.
Question4.Can I visit your factory?
Answer: Your are welcomed to visit our factory，and we offer free hotel and free car
FOR MORE QUESTIONS,PLZ FEEL FREE TO CONTACT US. WE WILL TRY OUR BEST TO SOLVE ALL YOUR PROBLEMS.
Answer: We have set up a special qualified team to check all the products before packing and shipping out, and each of production process would be checked several times strictly. And we are willing to accept the sample order for quality checking.and we will full refund in case of any bad quality.
Question2. Are you a factory or trading company?
Answer: We are factory.
Question3. Can I place one small order for first time to test the quality?
Answer: Small order are also welcomed.
Question4.Can I visit your factory?
Answer: Your are welcomed to visit our factory，and we offer free hotel and free car
Question5: I want to be your agent, what is the conditions?
Answer: If you want to be our agent, the good capability of marketing is necessary, the other items we can settle down by negotiation
Answer: If you want to be our agent, the good capability of marketing is necessary, the other items we can settle down by negotiation
FOR MORE QUESTIONS,PLZ FEEL FREE TO CONTACT US. WE WILL TRY OUR BEST TO SOLVE ALL YOUR PROBLEMS.
