Листовая резка и ручная гибочная машина для листового металла листогибочный
- Категория: Press Brake >>>
- Поставщик: HSG,Laser,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 52360.70 $* | 54978.38 $* |
| Aug-18-2025 | 51920.40 $* | 54516.90 $* |
| Jul-18-2025 | 43560.90 $* | 45738.53 $* |
| Jun-18-2025 | 51040.2 $* | 53592.1 $* |
| May-18-2025 | 44440.88 $* | 46662.91 $* |
| Apr-18-2025 | 50160.25 $* | 52668.28 $* |
| Mar-18-2025 | 49720.87 $* | 52206.81 $* |
| Feb-18-2025 | 49280.60 $* | 51744.18 $* |
| Jan-18-2025 | 48840.41 $* | 51282.33 $* |
Характеристики
Sheet Metal Cutting And Bending Machine Metal Bending Press Brake
hsg Bending Machine Advantage：
1. DSVP-based Oil-electric Hybrid System
2. High-rigidFrame + Auto Deflection Compensation
3. Post-positioning System
4. Intelligent CNC System
5. Easy to Install and Operate, High Accuracy
6. Efficient but Power-saving
2. High-rigidFrame + Auto Deflection Compensation
3. Post-positioning System
4. Intelligent CNC System
5. Easy to Install and Operate, High Accuracy
6. Efficient but Power-saving
Product Description
High-rigid Frame + Auto Deflection Compensation
Optimize the shape of high-rigid frame, improve rigidity and full bending accuracy based on calculated Y value and accurate
workbench positioning. The angle tolerance of full bending workpiece is ±30’;
Calculate compensation by auto deflection compensation system through processing program based on length, thickness and angle of bending workpiece, match with reverse deformation while pressuring, and compensate for workbench deflection arising from work.

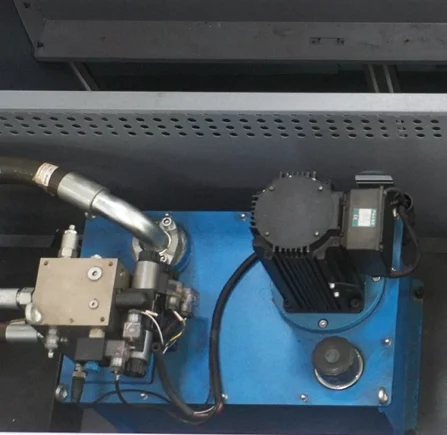

Efficient but Power-saving
2.5 times faster than same-grade hydraulic bending machines, higher efficient and take less time to get ready for work, much better using experience; Servo hydraulic hybrid drive system is power-consuming only when pressuring, and changes electric consumption based on workpiece size;STEP system calculates tonnage pressuring according to sheet length and thickness. Standby power loss accounts for 1% or less of total power; Advanced control system avoids extra wasteful practices and electric loss.
Electrical control system
Electrical components are imported brand, in line with international standards, safe and reliable, electric control cabinet cooling function with movable foot switch control station, with startup, shutdown and emergency stop functions;The wiring of the
electric cabinet is reasonable and clear, which is convenient for maintenance or troubleshooting.
electric cabinet is reasonable and clear, which is convenient for maintenance or troubleshooting.
Easy to Install and Operate, High Accuracy
Proficient skills unneeded while getting shapely bending, lower the professional threshold and labor costs;
Easy to install, firm and light, high operability;
German ELGO adopted, high bending accuracy guaranteed relying on micron-sized data, depth accuracy controlled as ±0.01mm.
Easy to install, firm and light, high operability;
German ELGO adopted, high bending accuracy guaranteed relying on micron-sized data, depth accuracy controlled as ±0.01mm.

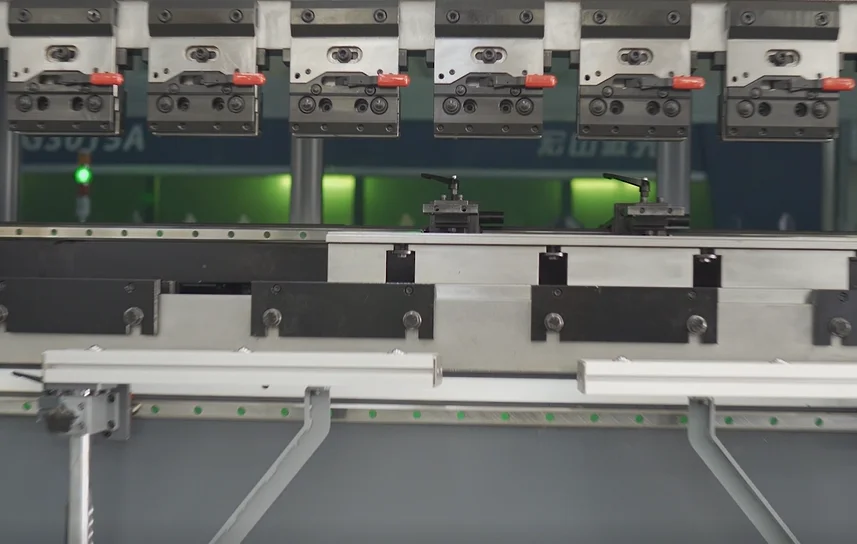

Efficient and Reliable Post-positioning System
Position after high-speed moving, X-axis: 500 mm/s, Z-axis: 700 mm/s, R-axis: 60 mm/s; length measured on X-axis: 600 mm;
High positioning accuracy, X-axis: ±0.01 mm, Z-axis: ±0.1 mm, R-axis: ±0.1 mm.
Note: Only applicable to HB1003/HB6020.
High positioning accuracy, X-axis: ±0.01 mm, Z-axis: ±0.1 mm, R-axis: ±0.1 mm.
Note: Only applicable to HB1003/HB6020.
Specification
Bending force | 500KN |
Working table length | 2050mm |
Height of worktable | 920mm |
Column spacing | 1600mm |
Throat depth | 320mm |
Slider stroke | 160mm |
Maximum opening height | 420mm |
Rapid descent | 180mm/s |
Return speed | 140mm/s |
Speed of work | 10mm/s |
Backgauge (x axis) stroke | 0-500mm |
X axis positioning accuracy | ±0.1mm |
X axis repeat positioning accuracy | ±0.02mm |
y-axis positioning accuracy | ±002mm |
Y-axis repeat positioning precision | ±0.02mm |
Degree R axis stroke | 150mm |
Working accuracy | Straight line: 10.2mm/m, angle: ±0.5mm/m |
Number of CNC axes | 4-axis |
main motor power | About 5KW |
Fuel tank capacity | 160L |
Dimensions | About 2400x1500x2480mm |
Whole equipment weight | About 4000KG |
Company Profile
HSG Laser Co., Ltd.
HSG Laser, founded in 2006, as a national hi-tech enterprise with an eye to R&D, production and sales of laser equipment, is now mainly dedicated to serve global customers with intelligent metal forming solutions. Starting from China, HSG Laser has expanded its service network to 100+ countries and regions after 14 years of high-quality development. It has two wholly-owned subsidiaries in global industrial powers, Germany and Japan, and creates its own high-end brand Xlase. In China, four standardized intelligent equipment manufacturing bases have been completely built in its headquarters (Foshan City), Puhang, Suzhou and Jinan. HSG frame also includes 2 domestic subsidiaries, 3 branches and 20 operation service centers.
HSG Laser, founded in 2006, as a national hi-tech enterprise with an eye to R&D, production and sales of laser equipment, is now mainly dedicated to serve global customers with intelligent metal forming solutions. Starting from China, HSG Laser has expanded its service network to 100+ countries and regions after 14 years of high-quality development. It has two wholly-owned subsidiaries in global industrial powers, Germany and Japan, and creates its own high-end brand Xlase. In China, four standardized intelligent equipment manufacturing bases have been completely built in its headquarters (Foshan City), Puhang, Suzhou and Jinan. HSG frame also includes 2 domestic subsidiaries, 3 branches and 20 operation service centers.
Certifications
After-Sales Service
Pre-sales Service
Pre-sales Technical Consultation
According to customer requirements, providing customers with product information, technical consultation, technical guidance,
assisting customers or customizing professional laser processing solutions for customers through a variety of channels such asnetwork, telephone, letter, and door-to-door service.
assisting customers or customizing professional laser processing solutions for customers through a variety of channels such asnetwork, telephone, letter, and door-to-door service.
After-Sales Service
24/7 Service
24/7 Service
Packing & Delivery
Our high-standard package, incl. aluminum foil, metal framework, fumigation wooden case, anti-rust oil+oilpaper, moisture-barrier bag, waterproof plastic film and filling foam, can satisfy ocean shipping criteria and will ensure that machines are transported to users safely.
FAQ
1. I knew nothing about this machine, what kind of machine i should choose?
-So easy . Just tell us what you want to do by using laser machine, then let us give you perfect solutions and suggestions.
2. What can it welding?
-Laser machine for metal usually deal with carbon steel, stainless steel, aluminum, brass and alloy.
3. How long is the warranty?
-We offer 1-year warranty.
4. Where is your headquarters?
-Our headquarters is in foshan, Guangdong Province, China.
5. Can I visit your factory?
-Of course.Please contact us any time . We will arrange in advance.
6. Do you have engineer to teach me/my workers?
-Yes, we offer free training for each customer. We promise to help until everything gets right.
Sheet Metal Cutting And Bending Machine Metal Bending Press Brake
