Заводская продукция высококачественные тепловые впитывающие материалы для
- Категория: Filters >>>
- Поставщик: Jiangsu,Crystal,River,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 24.40 $* | 25.56 $* |
| Aug-16-2025 | 24.50 $* | 25.20 $* |
| Jul-16-2025 | 20.86 $* | 21.92 $* |
| Jun-16-2025 | 23.57 $* | 24.16 $* |
| May-16-2025 | 20.48 $* | 21.73 $* |
| Apr-16-2025 | 23.52 $* | 24.75 $* |
| Mar-16-2025 | 23.99 $* | 24.23 $* |
| Feb-16-2025 | 22.32 $* | 23.56 $* |
| Jan-16-2025 | 22.71 $* | 23.24 $* |
Характеристики
Product Description

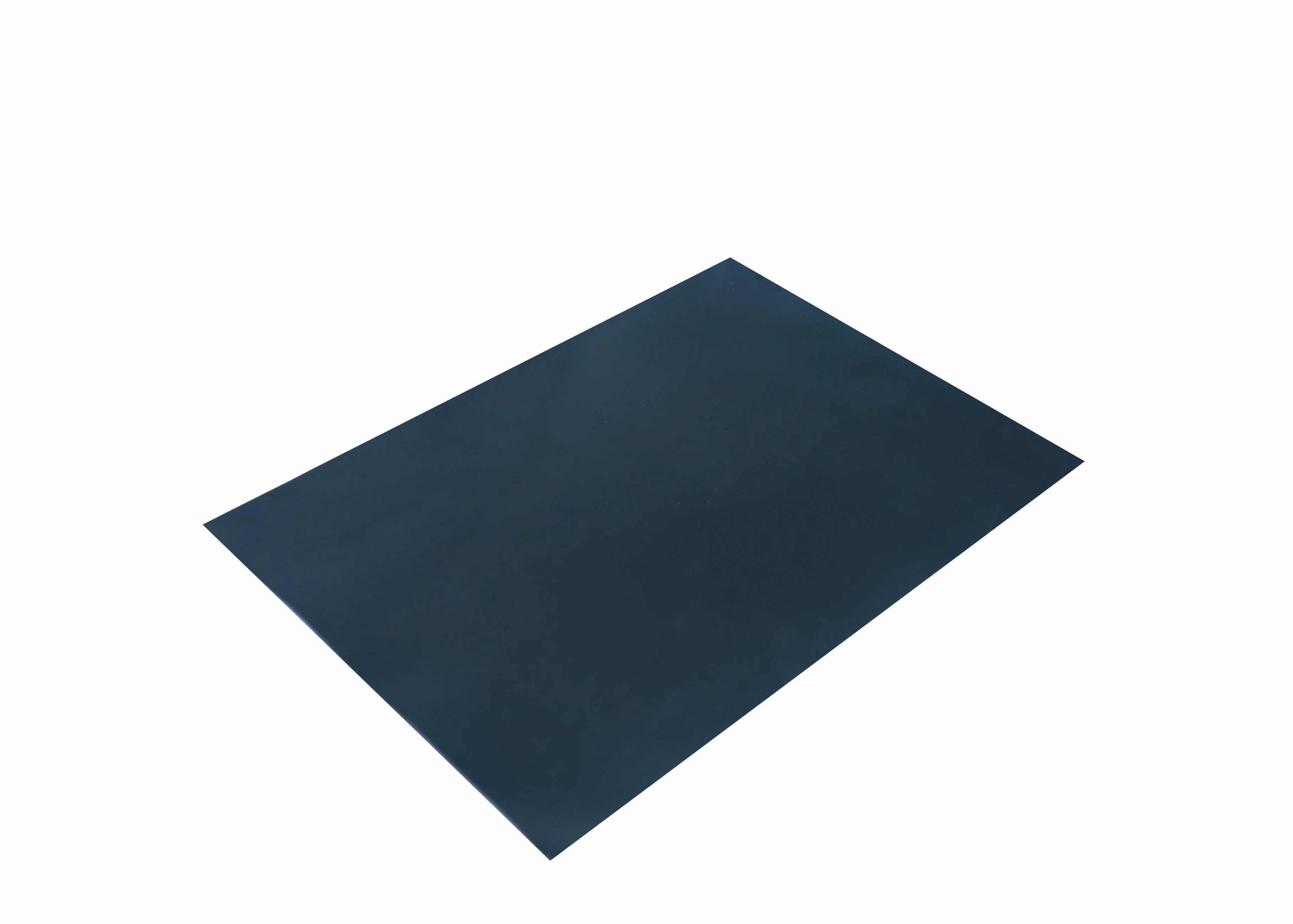

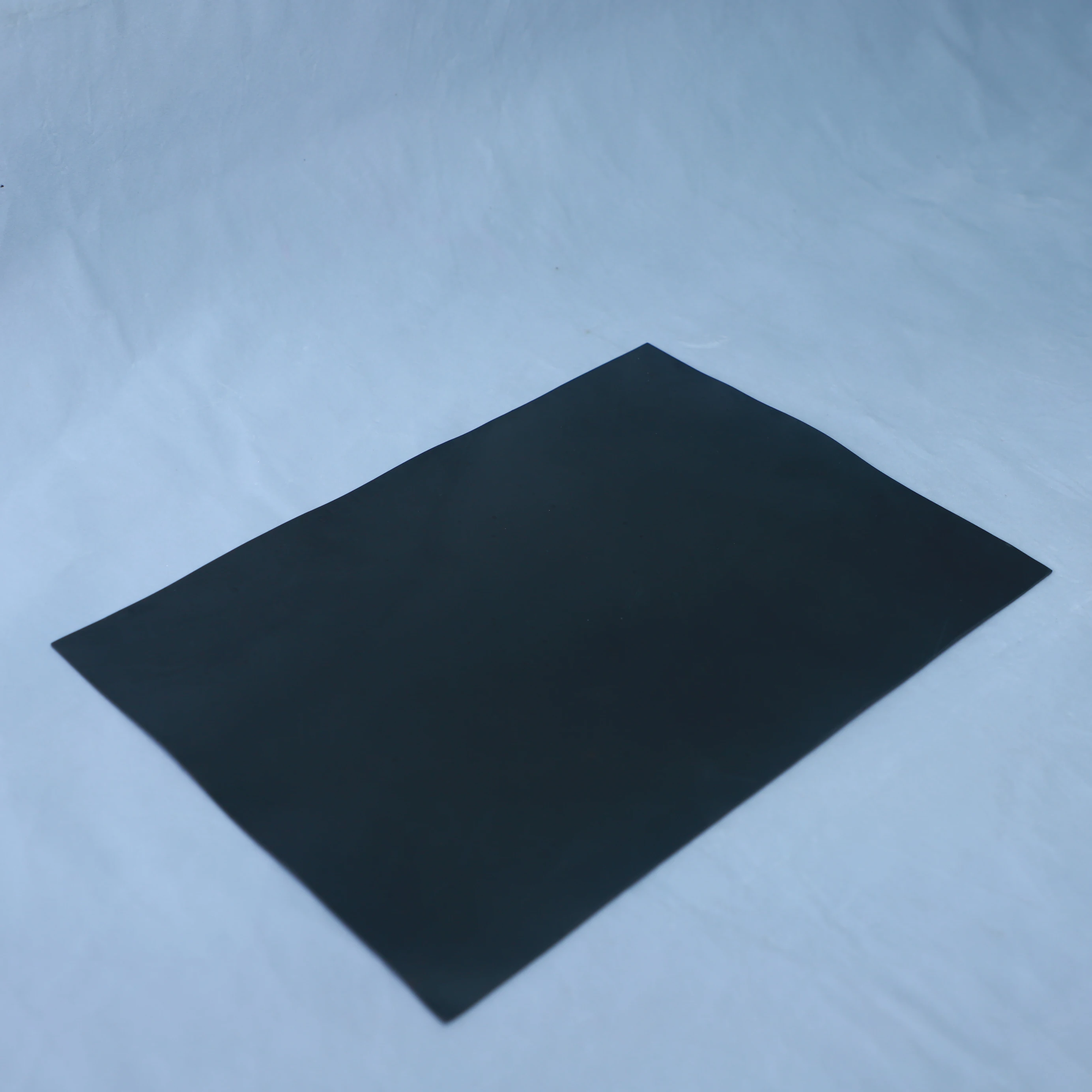

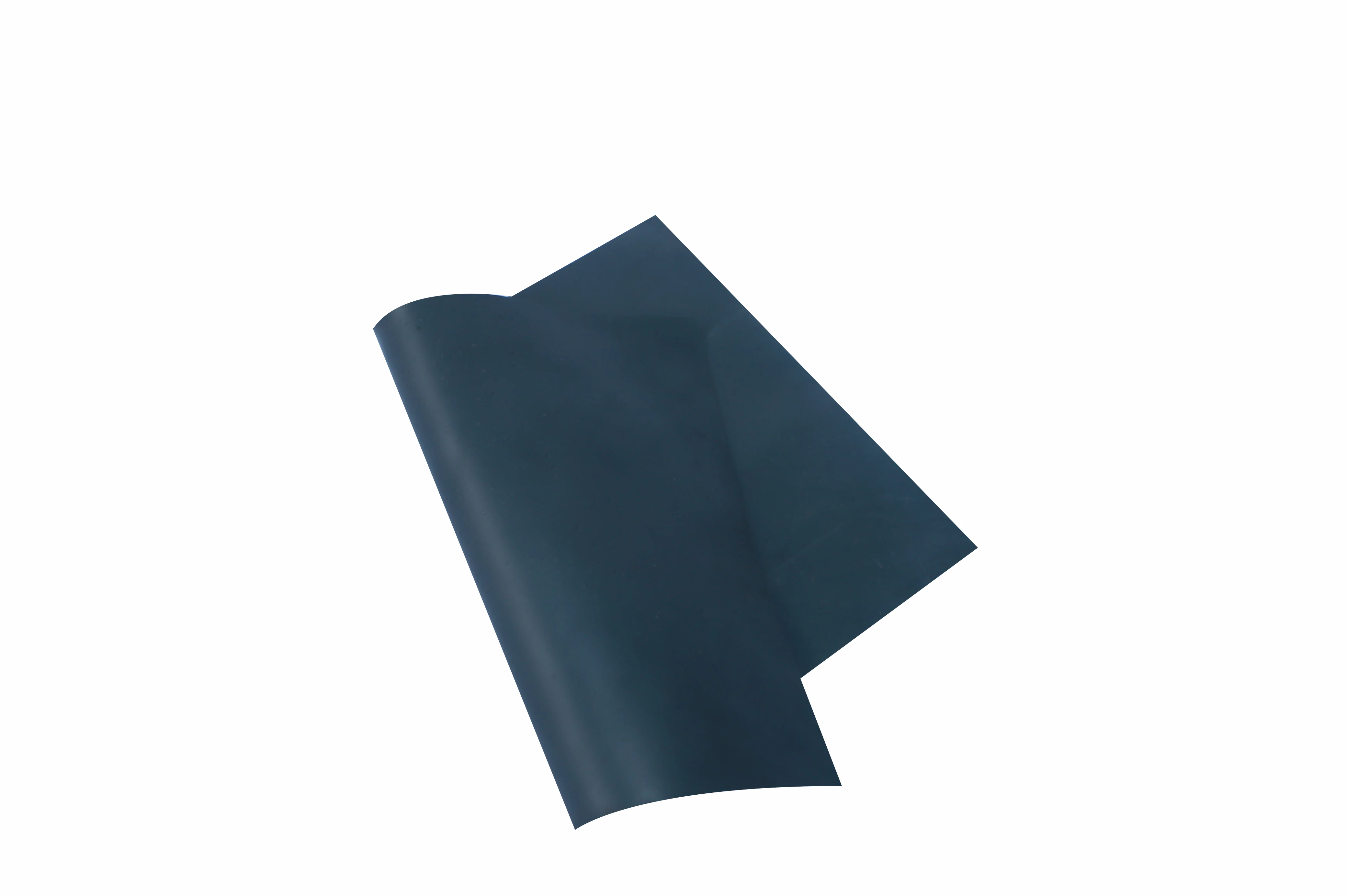

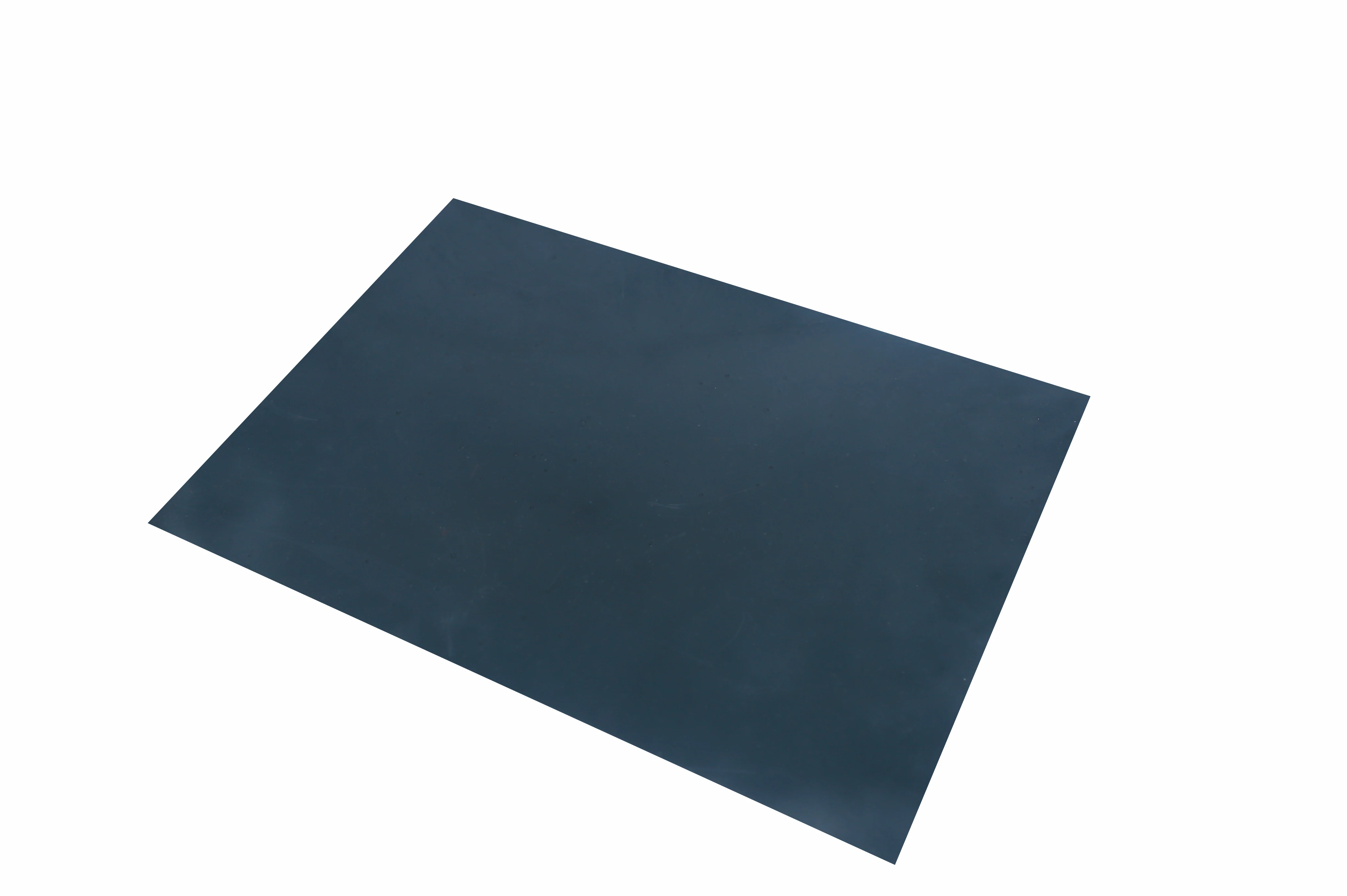

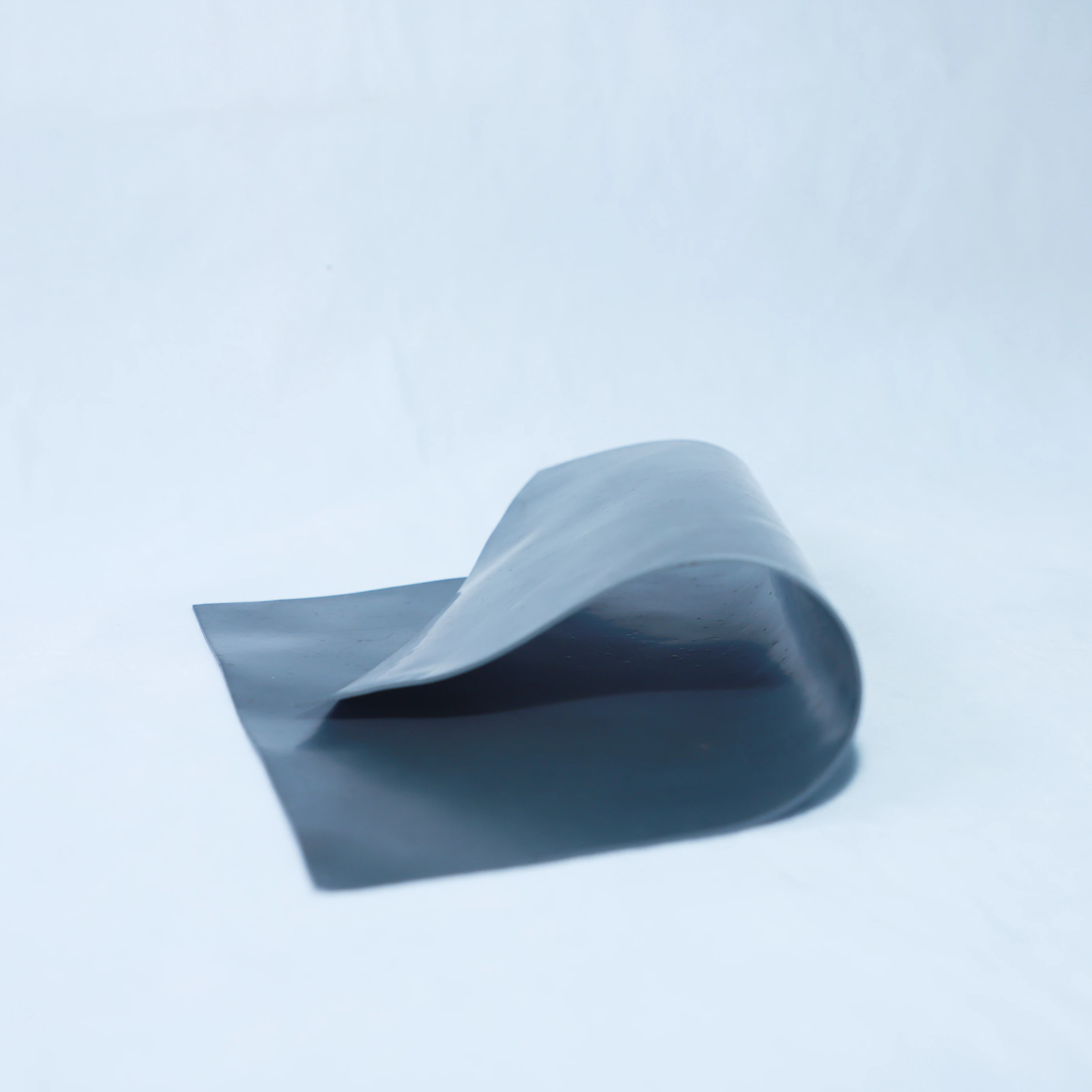

Heat transfer microwave absorbing materials
CRTM RFTM-300 series heat transfer microwave absorbing material is made of organic resin as the base material, adding material which has heat resistant, heat conductive and wave absorbing ability, and processed by special technology. Its unique product grain orientation makes this series of products can adapt to the different contact surface, so when it maximizes the heat conduction function, it also has the ability of absorbing electromagnetic wave . At the same time, this series of products is with lower hardness,it can achieve low interfacial thermal resistance at relatively low pressure. Also it can effectively remove air to achieve a good filling effect.
Specification
Product performance | Product model | Test standard | ||||
CR® RFTM-301 | CR® RFTM-302 | |||||
Color | Dark Grey | Black | visual | |||
Thickness，mm | 0.5-50 | 0.5-50 | ASTM D374 | |||
Hardness，Shore A , ±2 | 60 | 55 | ASTM D2240 | |||
Working Temperature ，℃ | -45-200 | -45-200 | / | |||
Flame retardant grade | V0 | V0 | UL-94 | |||
Electrical properties | Foamed silicone rubber | GJB2038A-2011 | ||||
Breakdown voltage ， KV | >1 | >1 | ASTM D149 | |||
Working Frequency ， GHz | 0.5-40 | 0.5-40 | / | |||
Absorptive efficiency ， -dB | 5-35 | 5-35 | / | |||
Volume resistivity ，Ω,cm | 8×106 | 8×106 | ASTM D257 | |||
Thermal performance | Polyurethane | GJB2038A-2011 | ||||
Thermal conductivity，W/(m.K) | 1.0 | 2.0 | Hot disk | |||
Thermal impedance ℃- in2/W @0.5mm , 50 ℃ , 10psi | 0.10 | 0.06 | ASTM D5470 | |||
Company Profile
ABOUT
Jiangsu Crystal River Electronic Technology Co., Ltd. (hereinafter referred to as Jinghe Technology), founded in April 2015. It’s located in Suqian city, Jiangsu Province, on the side of the beautiful Hongze Lake, it is located on 3/F Building A8, new material science and Technology Town, Suqian high-tech Industrial Development Zone,Suqian city, Jiangsu Province, China .with a plant area of about 2500 square meters. The company is a state-level high-tech enterprise which is committed to the R & D, production and sales of electromagnetic shielding materials, thermal conductive interface materials, electronic insulation materials and functional powder materials.
In addition to its own professional level and mature technology in the field of shielding, absorption and heat dissipation, Jinghe technology also maintains close cooperation with well-known manufacturers at domestic and abroad and scientific research institutions in excellent colleges and universities . Jinghe technology has always attached great importance to R & D investment and technological innovation. At present, it has four authorized invention patents, and has realized strategic cooperation with the research teams of Hehai University and Nanjing tech University . Relying on the talent and technology advantages of Hehai University and Nanjing tech University , a number of civil scientific research achievements have been industrialized through continuous R & D investment, and Jinghe Technology was awarded the title of national high-tech enterprise in 2017.
The company adheres to customer-centered, market demand-oriented, to provide users with excellent, fast, high-quality products and humanized services. The company will always adhere to the corporate culture of "innovation and growth, people-oriented, customer first, excellence and social responsibility". As an important domestic cooperation platform, it will be built into the largest R & D and production base of functional electronic materials in China.
In addition to its own professional level and mature technology in the field of shielding, absorption and heat dissipation, Jinghe technology also maintains close cooperation with well-known manufacturers at domestic and abroad and scientific research institutions in excellent colleges and universities . Jinghe technology has always attached great importance to R & D investment and technological innovation. At present, it has four authorized invention patents, and has realized strategic cooperation with the research teams of Hehai University and Nanjing tech University . Relying on the talent and technology advantages of Hehai University and Nanjing tech University , a number of civil scientific research achievements have been industrialized through continuous R & D investment, and Jinghe Technology was awarded the title of national high-tech enterprise in 2017.
The company adheres to customer-centered, market demand-oriented, to provide users with excellent, fast, high-quality products and humanized services. The company will always adhere to the corporate culture of "innovation and growth, people-oriented, customer first, excellence and social responsibility". As an important domestic cooperation platform, it will be built into the largest R & D and production base of functional electronic materials in China.
Packing & Delivery
To better ensure the safety of your goods,we put it into plastic sealed bag and packing with carton outside .
high quality elastomer silicone rubber microwave absorbing sheet neoprene elastomer electromagnetic absorbing pad
Delievery
FAQ
Q1. Are you a factory or trading company?
We are a professional manufacturer in shielding material.
Q2. What are your main products?
We are supplying EMI shielding material, Electronic insulating material,thermal conductive interface material, conductive silicone rubber sheets and functional powder.
Q3. What payment method will you accept?
TT is acceptable.
Q4. Can you provide sample or customized service?
We are pleased to provide you samples or customized service. Sample order is welcome.
Q5. What is the key differences and advantage that you have?
A. Effective communication, high efficiency and 24H online chatting
B. Fast delivery time and rapid speed for sample arrangement
C. Factory direct selling can offer high quality goods and very competitive price.
We are a professional manufacturer in shielding material.
Q2. What are your main products?
We are supplying EMI shielding material, Electronic insulating material,thermal conductive interface material, conductive silicone rubber sheets and functional powder.
Q3. What payment method will you accept?
TT is acceptable.
Q4. Can you provide sample or customized service?
We are pleased to provide you samples or customized service. Sample order is welcome.
Q5. What is the key differences and advantage that you have?
A. Effective communication, high efficiency and 24H online chatting
B. Fast delivery time and rapid speed for sample arrangement
C. Factory direct selling can offer high quality goods and very competitive price.
