Лидер продаж японские микрометры карбидный строительный измерительный инструмент
- Категория: Micrometers >>>
- Поставщик: Koueisangyou,Co,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.19 $* | 0.93 $* |
| Aug-19-2025 | 0.3 $* | 0.37 $* |
| Jul-19-2025 | 0.3 $* | 0.70 $* |
| Jun-19-2025 | 0.97 $* | 0.81 $* |
| May-19-2025 | 0.47 $* | 0.71 $* |
| Apr-19-2025 | 0.97 $* | 0.37 $* |
| Mar-19-2025 | 0.30 $* | 0.3 $* |
| Feb-19-2025 | 0.1 $* | 0.2 $* |
| Jan-19-2025 | 0.62 $* | 0.69 $* |
Характеристики
Products Description
Outside Micrometers Series 102
• Heat-insulated frame.
• Cut-away frame (behind anvil) for measuring in hard-to-reach places.
• A ratchet stop or a friction thimble for a constant measuring force.
• Measuring faces: Carbide.
• Heat-insulated frame.
• Cut-away frame (behind anvil) for measuring in hard-to-reach places.
• A ratchet stop or a friction thimble for a constant measuring force.
• Measuring faces: Carbide.
Rathcet Thimble Micrometer Series 102 Outside Micrometers
• More accurate in one-handed operation: inexperienced operators measure significantly more accurately with the new micrometer.
• Ratchet function works both from the thimble and the speeder.
• Rotating the thimble/ speeder when the workpiece is between the anvil and spindle causes the ratchet mechanism to operate and apply a constant measuring force to the workpiece.
• Clearly audible ratchet operation for reassurance that measurement is being performed at constant, preset force.
• The speeder is always available for quick rotation of spindle.
• A simple mechanism, which requires neither parts maintenance nor special technique, is employed in the constant-force device.
• Heat-insulated frame.
• Measuring faces: Carbide.
• More accurate in one-handed operation: inexperienced operators measure significantly more accurately with the new micrometer.
• Ratchet function works both from the thimble and the speeder.
• Rotating the thimble/ speeder when the workpiece is between the anvil and spindle causes the ratchet mechanism to operate and apply a constant measuring force to the workpiece.
• Clearly audible ratchet operation for reassurance that measurement is being performed at constant, preset force.
• The speeder is always available for quick rotation of spindle.
• A simple mechanism, which requires neither parts maintenance nor special technique, is employed in the constant-force device.
• Heat-insulated frame.
• Measuring faces: Carbide.
Specification
Metric
Order No. | Range (mm) | Graduation (mm) | Maximum permissible error J MPE* (µm) | Flatness (µm) | Parallelism (µm) | Constant-force device |
102-301 | 0 - 25 | 0.01 | ±2 | 0.6 | 2 | Rachet stop |
102-302 | 25 - 50 |
Order No. | Range (mm) | Graduation (mm) | Accuracy (mm) | Flatness (µm) | Parallelism (µm) | Constant-force device |
102-311 | 0 - 25 | 0.001 | ±1 | 0.3 | 1 | Ratchet stop |
102-313 | 13-14 | friction thimble | ||||
102-312 | 25 - 50 | Ratchet stop | ||||
102-303 | 50 - 75 | 0.01 | ±2 | 0.6 | 2 | |
102-304 | 75 - 100 | ±3 | 3 |
Metric
Order No. | Range (mm) | Models included |
102-911-40 | 0-100 (Four micrometers per set) | 102-301 |
102-302 | ||
102-303 | ||
102-304 | ||
3 micrometer standards |
Specifications
Metrci
Order No. | Range (mm) | Graduation (mm) | Accuracy (µm) | Mass (g) |

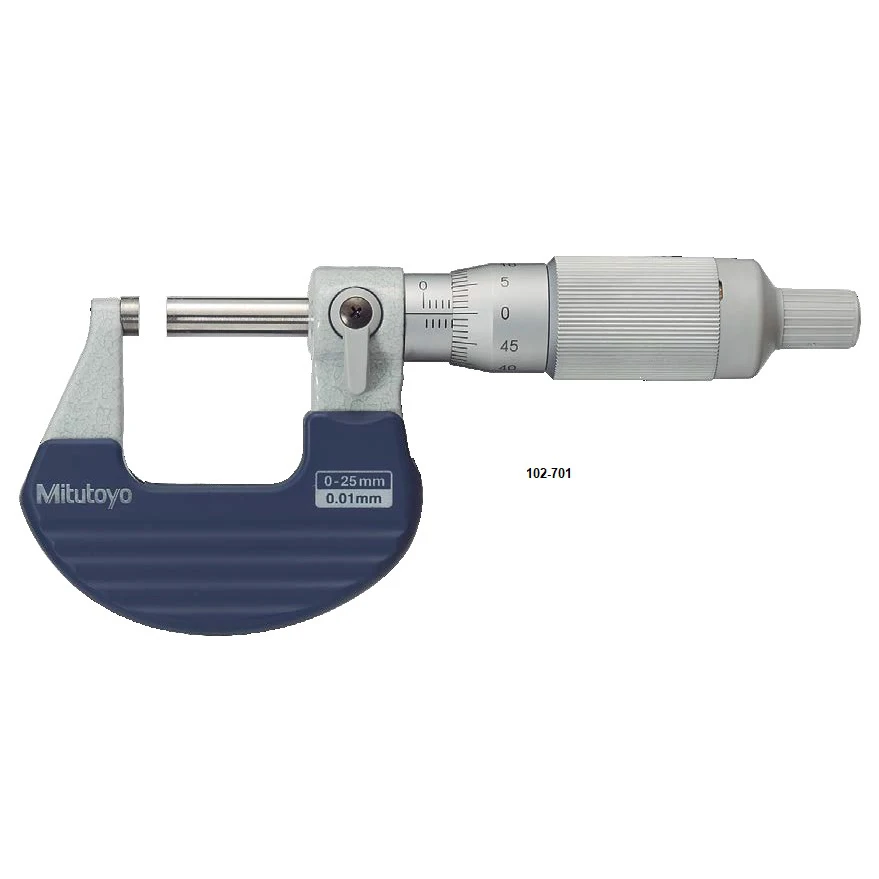

102-701 | 0-25 | 0.01 | ±2 | 180 |

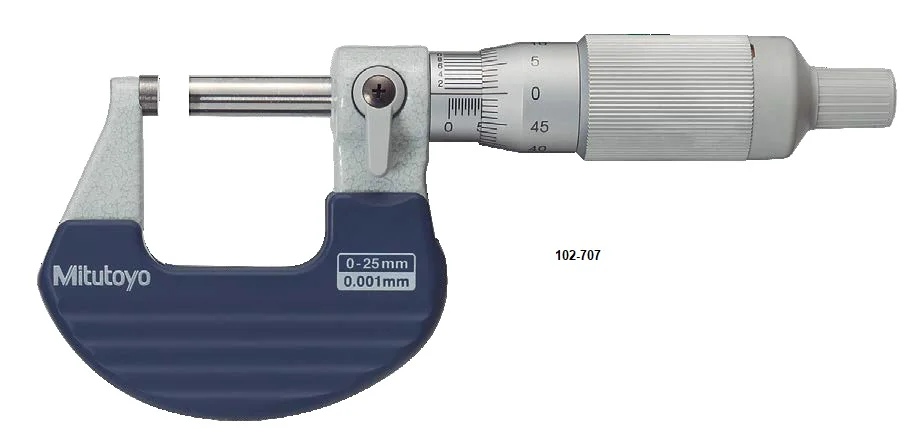

102-707 | 0.001 | |||
102-702 | 25-50 | 0.01 | 270 | |
102-708 | 0.001 |
Order No. | Range (in) | Graduation (in) | Accuracy (in) | Mass (g) |
102-717 | 0-1 | 0.0001 | ±0.0001 | 180 |
102-718 | 1-2 | 270 |
