Горячая Распродажа 2021 блок фильтров потолочного вентилятора FFU для системы


Поделиться:


Цена:200,00 $ - 280,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-19-2025 238.28 $* 250.86 $*
Aug-19-2025 236.14 $* 248.76 $*
Jul-19-2025 198.88 $* 208.15 $*
Jun-19-2025 232.11 $* 244.97 $*
May-19-2025 202.65 $* 212.56 $*
Apr-19-2025 228.40 $* 239.70 $*
Mar-19-2025 226.43 $* 237.12 $*
Feb-19-2025 224.56 $* 235.57 $*
Jan-19-2025 222.43 $* 233.87 $*

Характеристики

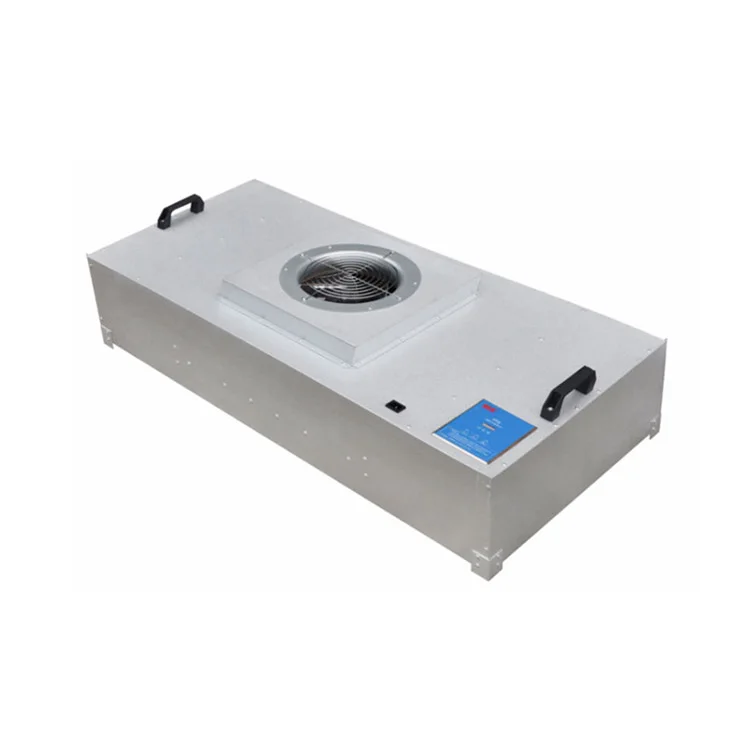

2021 Hot Sale Ceiling Fan Filter Unit FFU for Ventilation System


Products Description





Ordinary FFU

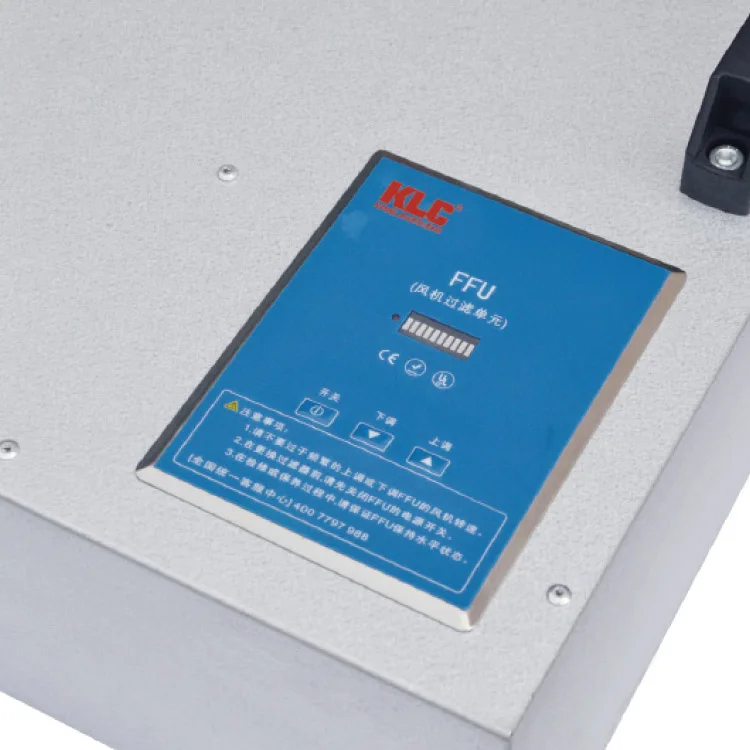

Control method: Group control or single control

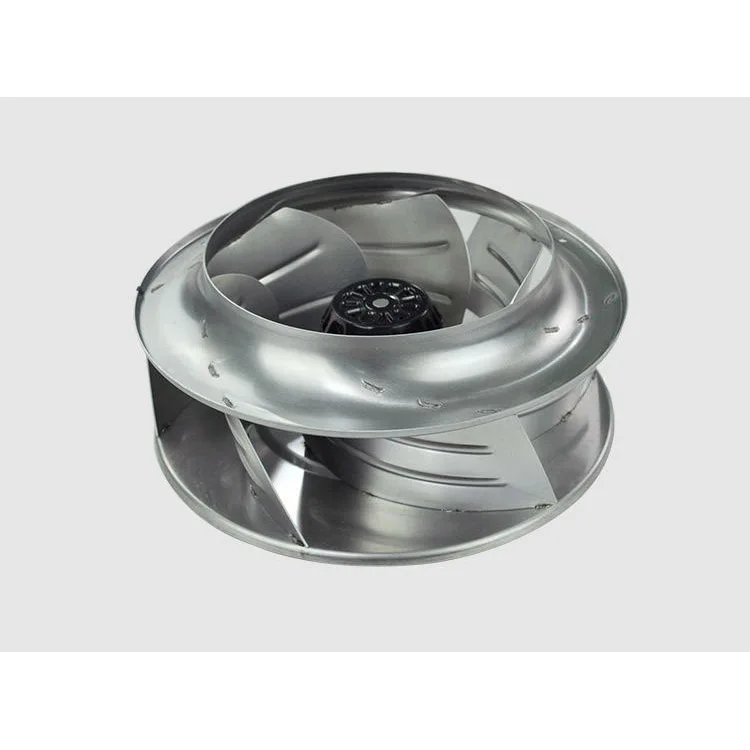

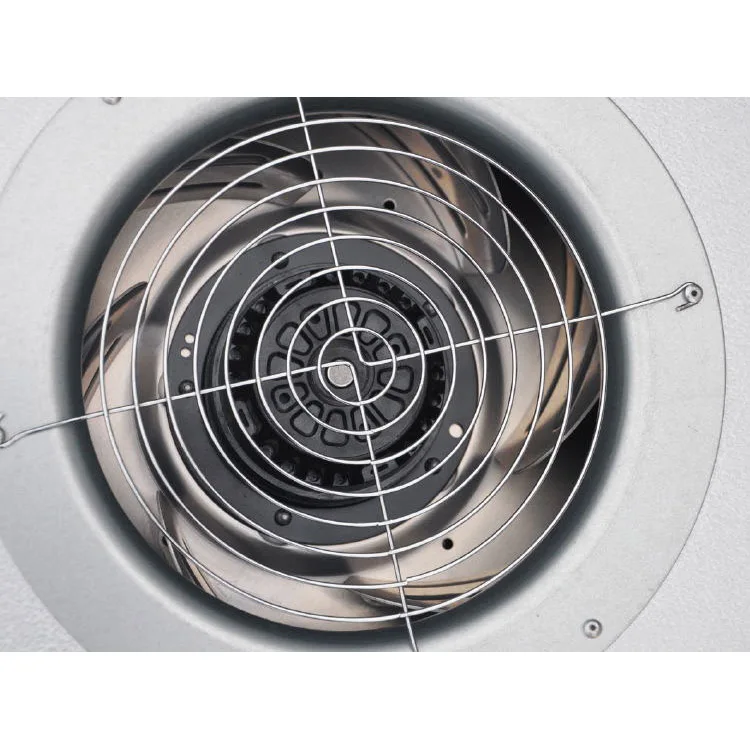

Fan: AC/EC
Cabinet material: Cold rolled steel with powder coated / Galvalume / Aluminum / Stainless steel
Air velocity(m/s): 0.35~0.55








FFU is generator set with motor inside which is used in the turbulent layer and laminar flow clean room. It has characteristic of continuous use. The wind speed can reach 0.45m/s ±20%

Strict monitoring
KLC FFU is tested according to the standard of ISO14644-1 before package.

Product feature
long-life span, low noise, small vibration, adjustable speed.
Can be controlled thousand unit together.


Custom Design




Specification


Model
FUAC-1
FUAC-2
FUAC-3
FUAC-4
Size (WxLxHmm)
575x875x375
575x1175x375
615x1225x375
875x1175x375
Air chamber material
Galvalume / aluminum / stainless steel
Air Flow (m³/h)
800~900
1000~1100
1100~1200
1600~1700
Air velocity (m/s)
0.35~0.55
0.35~0.55
0.35~0.55
0.35~0.55
Total pressure (Pa)
175
185
195
255
Power (W)
85
95
115
235
Weight (kg)
27
37
40
42
Noise dB
(1m below the HEPA filter)
55~63
Vibration (mm/s)
0.2~0.7
Power supply
220V 1PH 50/60Hz (330V 3PH 50/60Hz 110V 1PH 50/60Hz)
Control mode
3 levels adjustable manually or group control by computer
Options
DOP inject port / DOP sample port / differential pressure drop test port /
differential pressure drop alarm device
HEPA filter
Size (WxHxDmm)
570x870x69
570x1170x69
610x1220x69
870x1170x69
Efficiency
99.99% 0.3μm
Frame
High quality anodized aluminum
Initial
pressure drop
110Pa@0.45m/s±15%
Trait
PU foam endless gasket




Application
Semiconductor, electron, flat-panel display, disc-drive, manufacture and optics, bio-engineering, clean bench, clean room , or any other places.
