     Taizhou Tongfa Automobile Fitting  CO.,LTD.

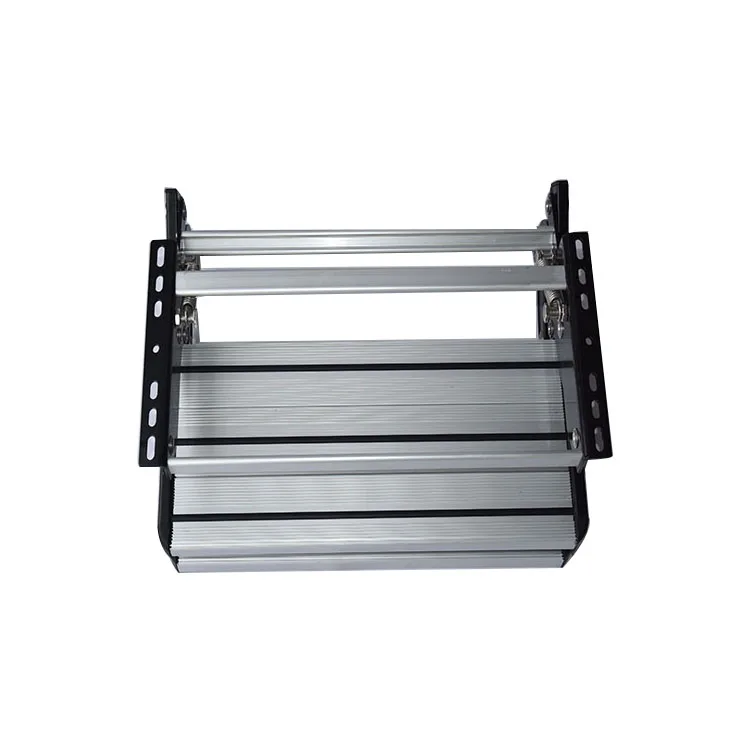

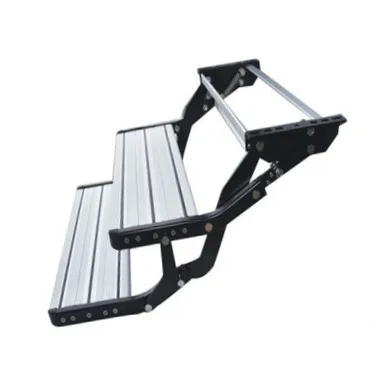

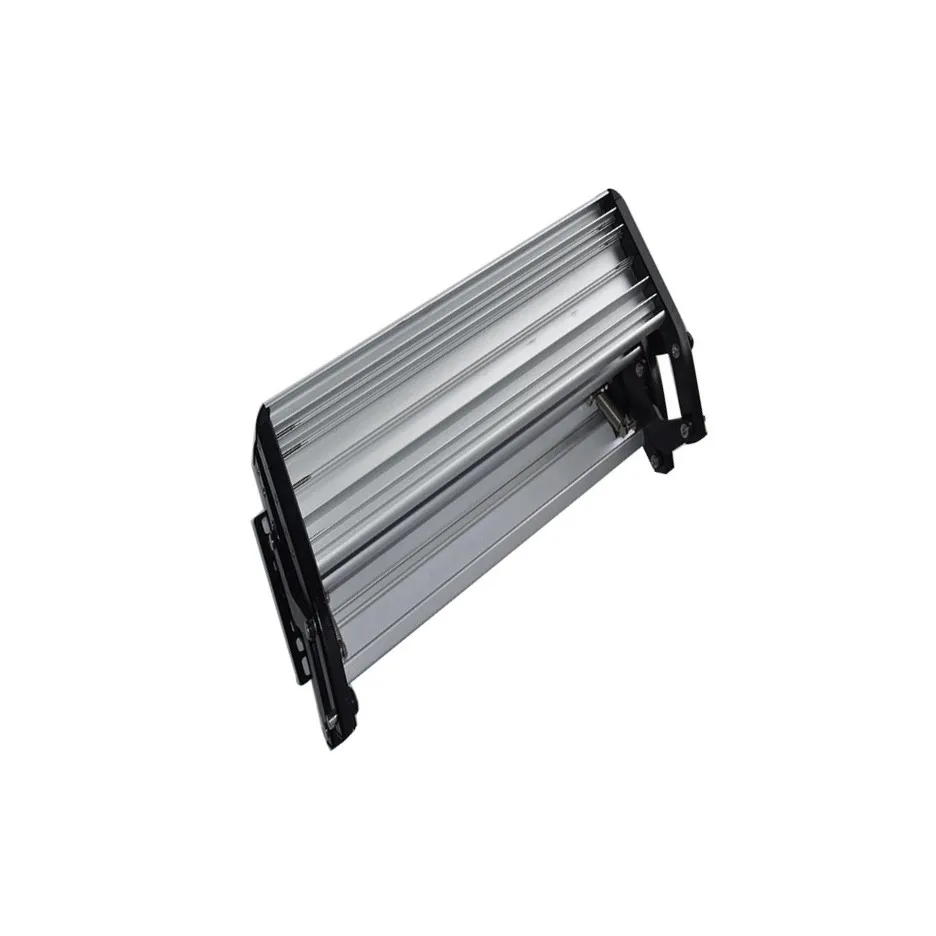

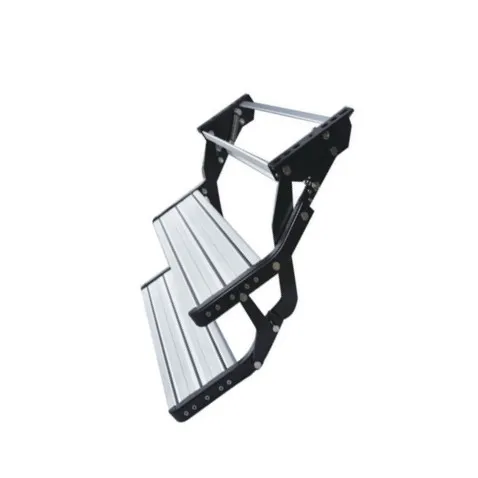

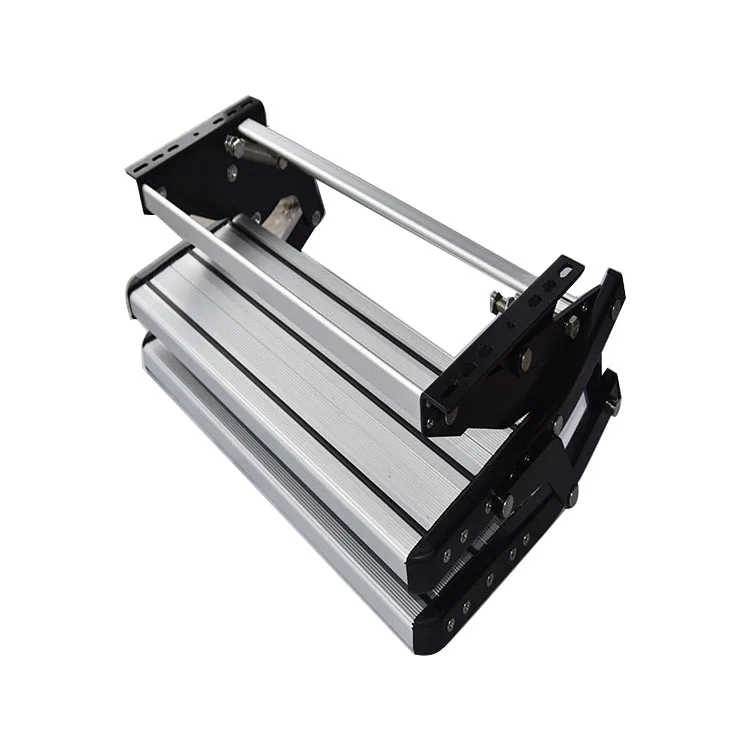

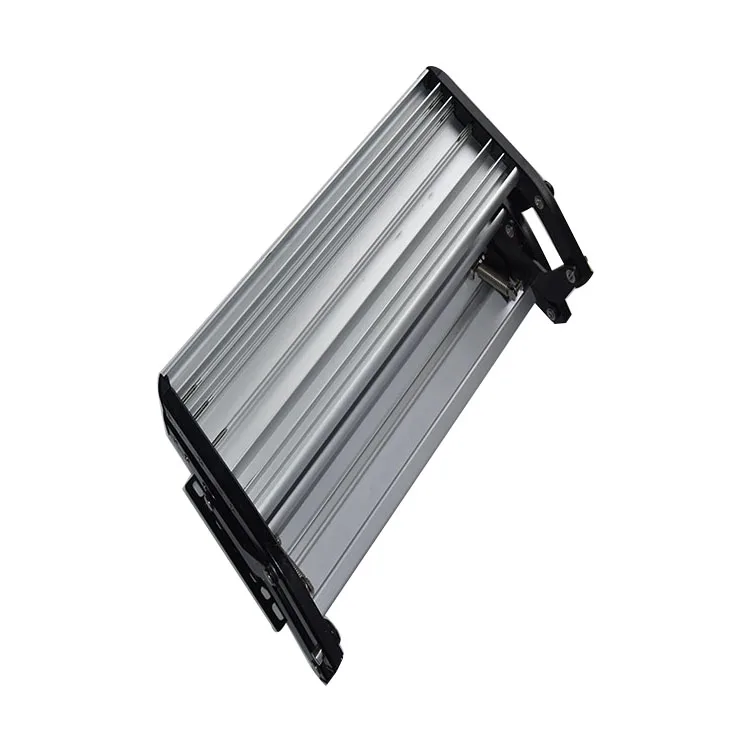

Manual folding step
Product features and main functions
1.  Structural parts: high-strength carbon steel.
2.  Tread: high-strength aluminum alloy profile with non-slip design on the surface.
3.  Hardware: SUS304 stainless steel.
4.  Appearance: black spraying of structural parts, anodized area on the pedal surface,It can also be customized in black according to customer requirements.
5.  Main functions: The product is ingeniously designed, concealed in installation, safe and reliable, it can easily bear 200KG. Can be installed on the chassis of any vehicle door or on the force-bearing parts, convenient for people to get on and off the car.





                                                                 specification

Specifications W	Clean pedal size (long--wide)	Spacing of mounting holes (W--20)
MS-F-450-S	450-210	430
MS-F-500-S	500-210	480
MS-F-550-S	550-210	530
MS-F-600-S	600-210	580
MS-F-450-D	450-210	430
MS-F-500-D	500-210	480
MS-F-550-D	550-210	530
MS-F-600-D	600-210	580

Specifications can be negotiated and customized according to user requirements.

W: the net size and length of the tread.

The specification

               S

MS-F-W-D

               T

Ms-f: represents the product code;

W: represents the length of the net step size;

S/D/T: represent the order of steps, single layer and double

Layer, three layer





Installation diagram

Single:

Double:

Product features and main functions

Structure: high strength carbon steel.

Tread plate: high strength aluminum alloy profile, with anti - slip surface design.

Five gold pieces: SUS304.

Appearance: the structure is sprayed black, and the surface of the pedal is anodized

Can also be customized according to customer requirements black.

Main function: this product design clever, install concealed, safe but

It can bear 200KG easily.Can be installed in any vehicle door chassis

Or mechanical parts, easy to get on and off the car.

High quality convenient ms-f manual folding step
