Однофазный многотарифный счетчик электроэнергии Acrel умный легко устанавливается на рельсы для проекта
- Категория: Energy Meters >>>
- Поставщик: Acrel,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.62 $* | 0.92 $* |
| Aug-19-2025 | 0.77 $* | 0.42 $* |
| Jul-19-2025 | 0.63 $* | 0.15 $* |
| Jun-19-2025 | 0.86 $* | 0.96 $* |
| May-19-2025 | 0.44 $* | 0.75 $* |
| Apr-19-2025 | 0.42 $* | 0.33 $* |
| Mar-19-2025 | 0.36 $* | 0.16 $* |
| Feb-19-2025 | 0.54 $* | 0.0 $* |
| Jan-19-2025 | 0.54 $* | 0.34 $* |
Характеристики
Product Description
ADL200 Single Phase Energy Meter
Active kWh(positive and negative in total),Frozen data
U、I、P、Q、S、PF、F
8 digits LCD display,background light
3 keys to communication and set parameters
Active pulse output
RS485 interface,Modbus-RTU,DL/T645-97,DL/T645-07 protocol
U、I、P、Q、S、PF、F
8 digits LCD display,background light
3 keys to communication and set parameters
Active pulse output
RS485 interface,Modbus-RTU,DL/T645-97,DL/T645-07 protocol
Rated U and I
Voltage：AC220V
Current：10(80)A
Voltage：AC220V
Current：10(80)A
Communication
RS485(Modbus-RTU)
Display
8 digits LCD display U, I, P, Q, PF, kWh, Power measure (999999.99kWh)
RS485(Modbus-RTU)
Display
8 digits LCD display U, I, P, Q, PF, kWh, Power measure (999999.99kWh)
Accuracy
kWh Class 1
Frequency
50HZ
Consumption
<10VA(Each phase)
Installation
kWh Class 1
Frequency
50HZ
Consumption
<10VA(Each phase)

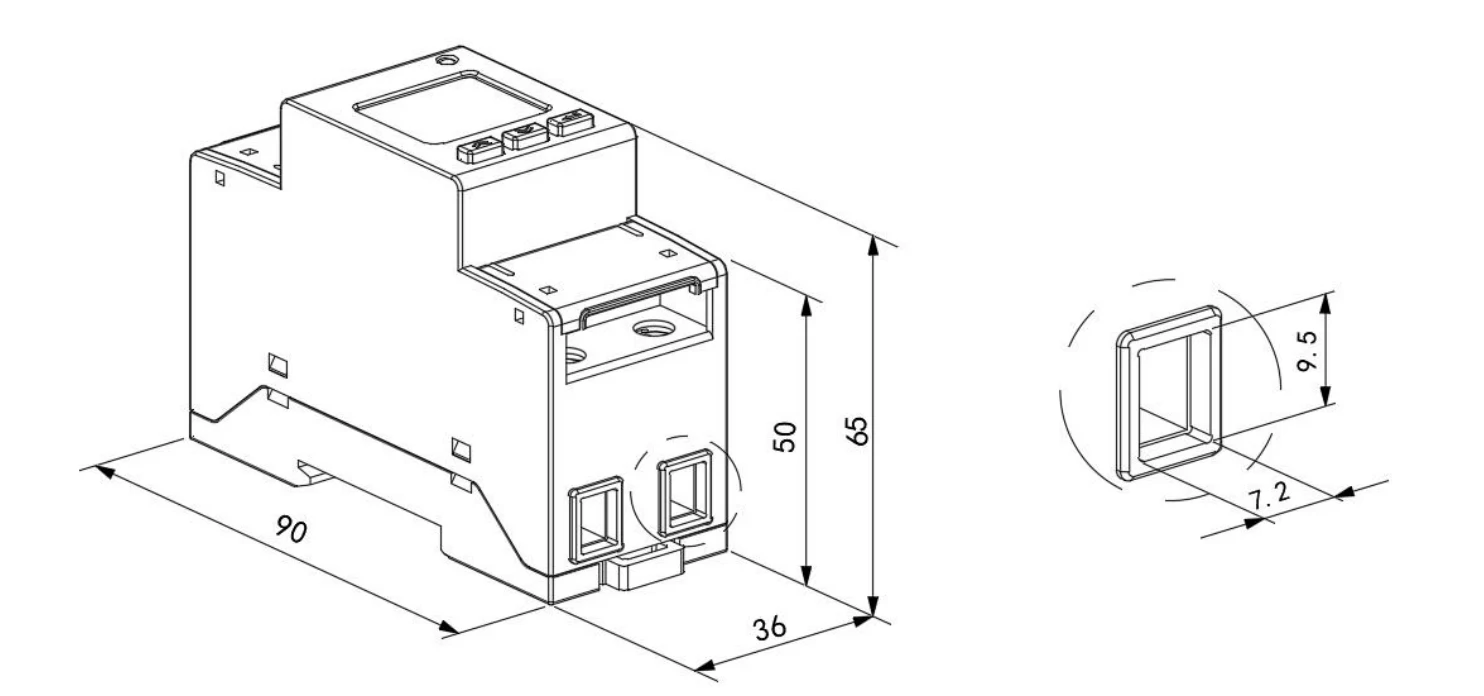

Dimension
90*36*65mm
Installation
Din rail 35mm

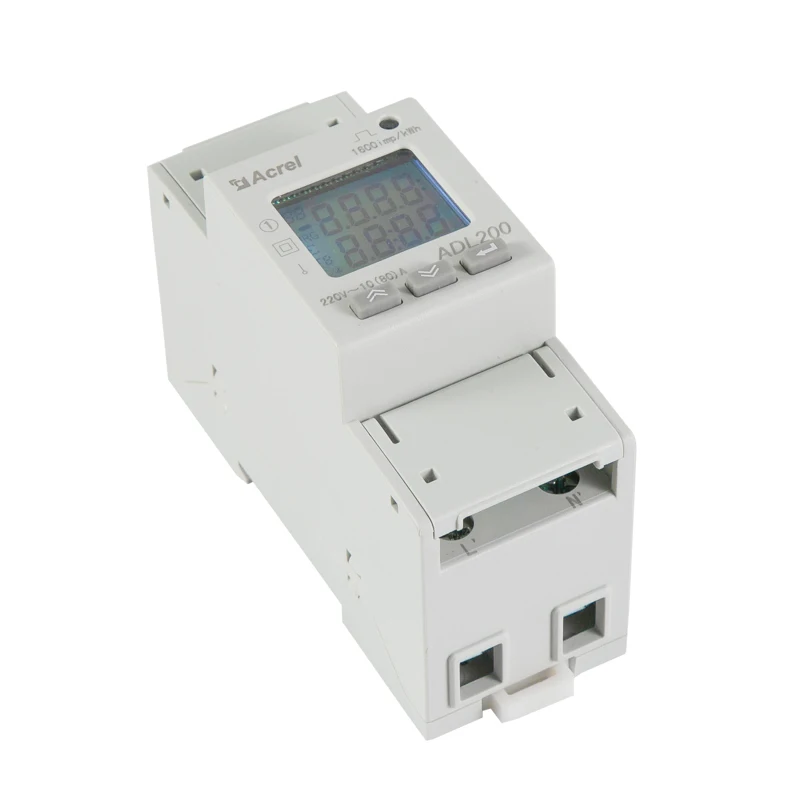

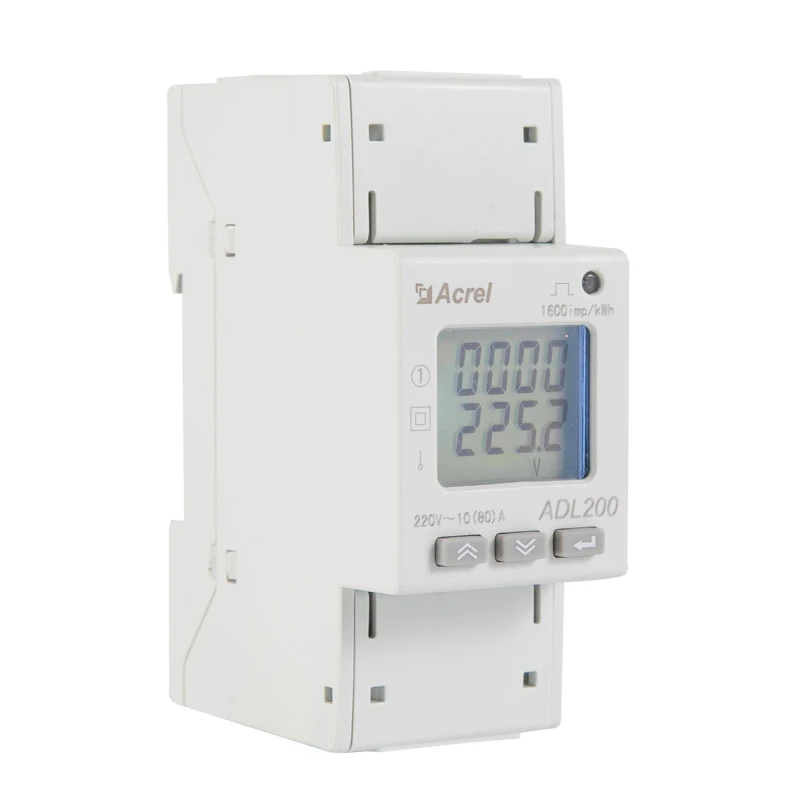

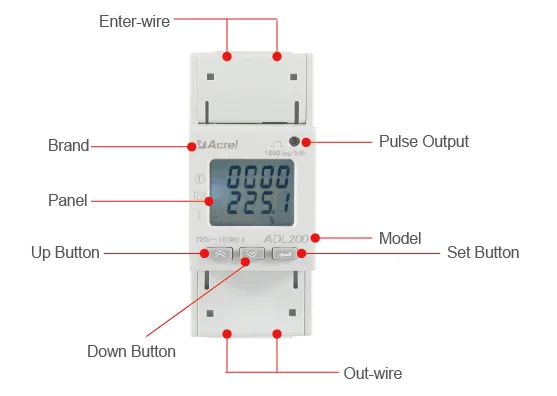

Details Images
Specification
Specification | single phase | ||
Voltage | Reference voltage | 220V | |
Consumption | <10VA | ||
Accuracy class | Error±0.2% | ||
Current | Input current | 10(80)A | |
Consumption | <4VA | ||
Starting current | 0.004Ib | ||
Power | Active, reactive, apparent power, error±0.5℅ | ||
Frequency | 50Hz（Error±0.2%） | ||
Measuring performance | Accuracy | 1 | |
Clock accuracy | error≤0.5s/d | ||
Pulse | Pulse Width | 80±20ms | |
Pulse constant | 1000impkWh | ||
Communication | Interface and communication | RS485：Modbus RTU | |
Medium | Shielded twisted pair(STP) | ||
Protocol | Modbus-RTU,DL/T645-97,DL/T645-07 | ||

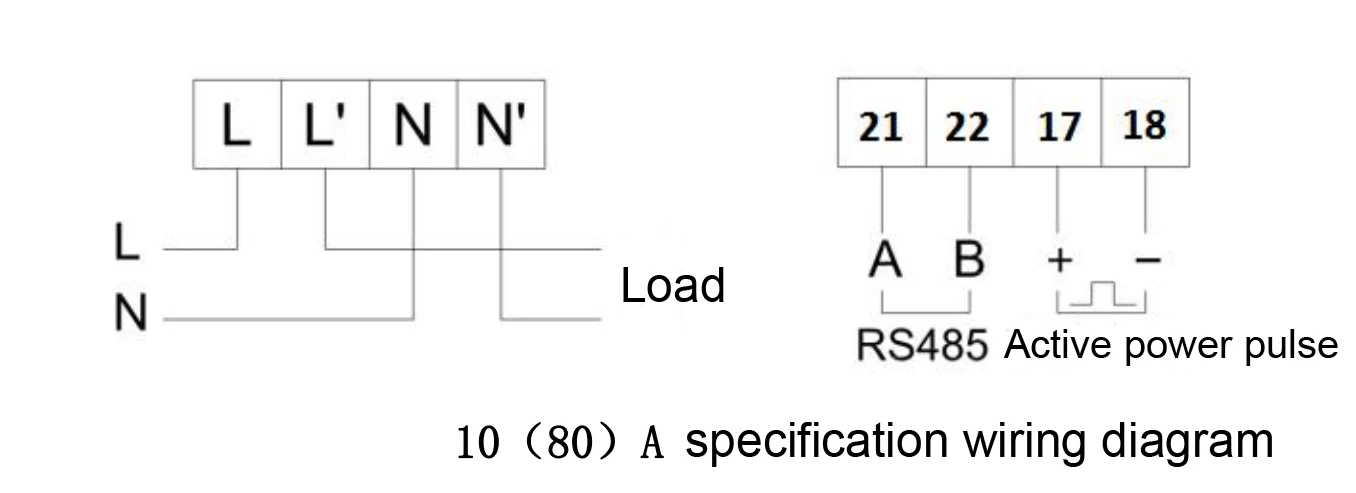

Typical Connection
Certificates
Company Profile
