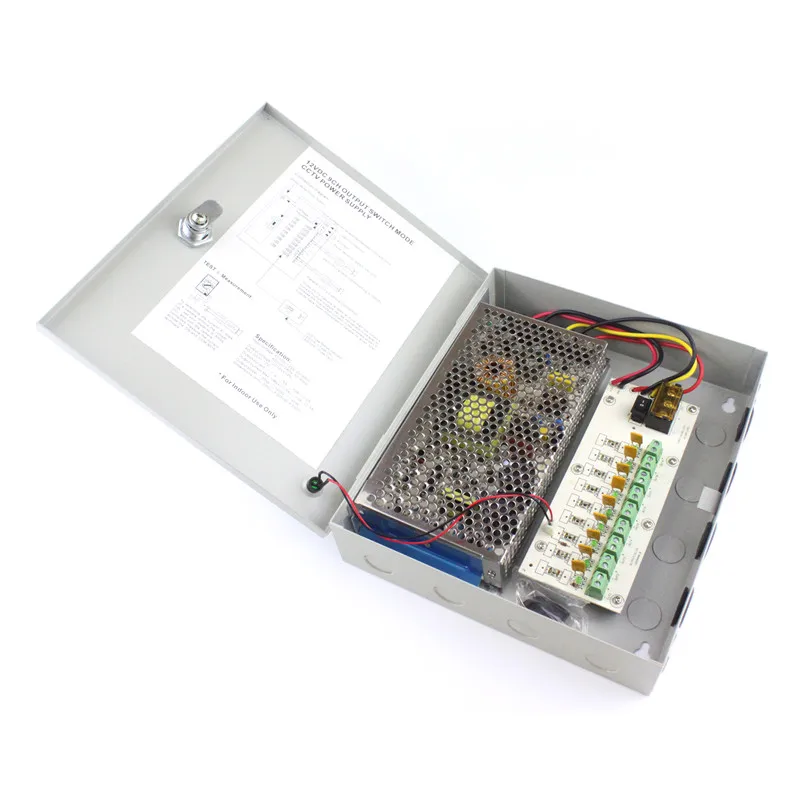

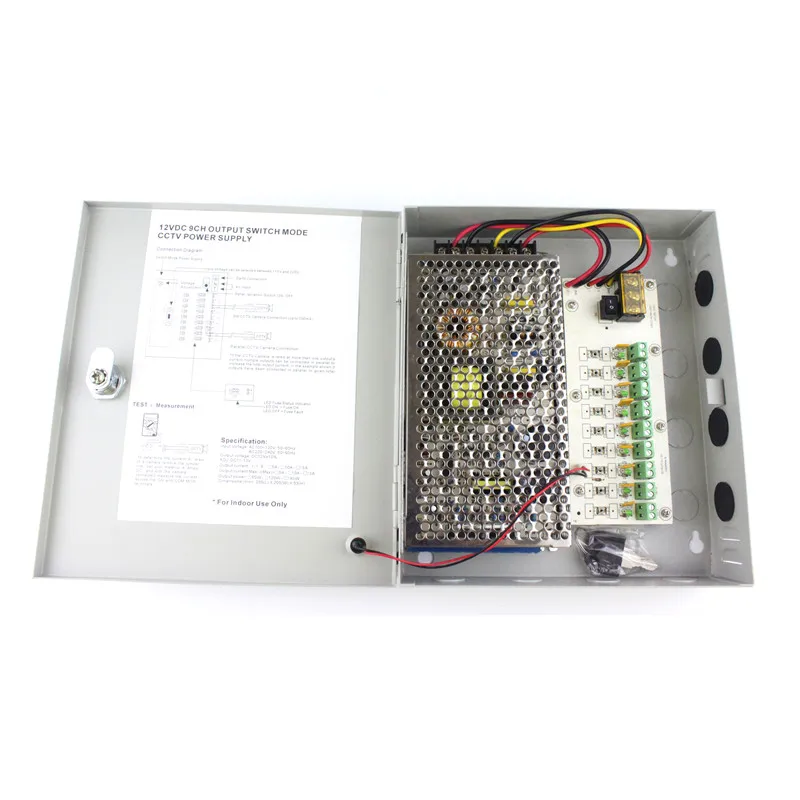

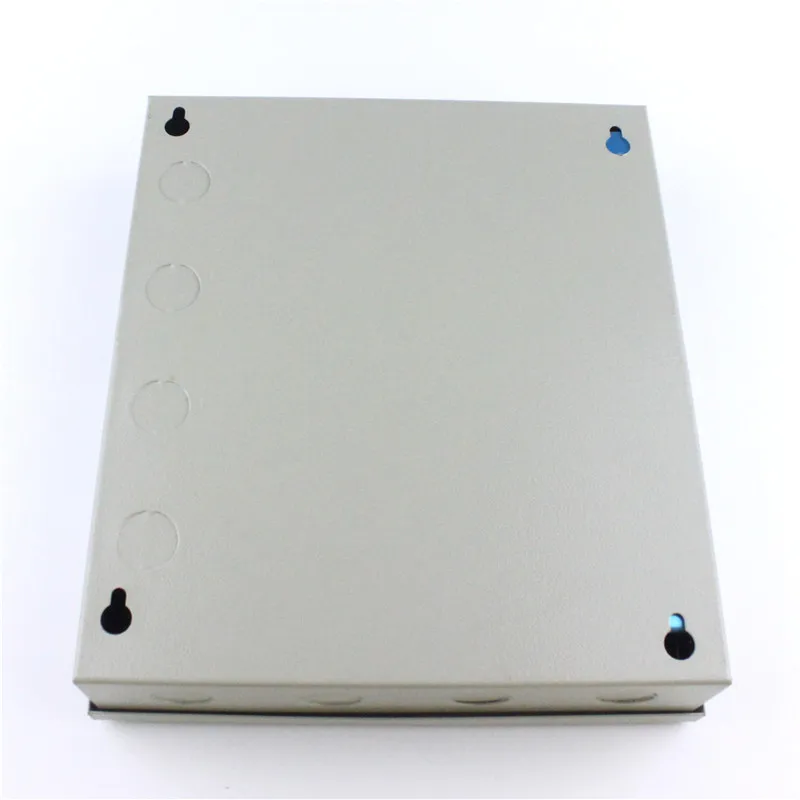

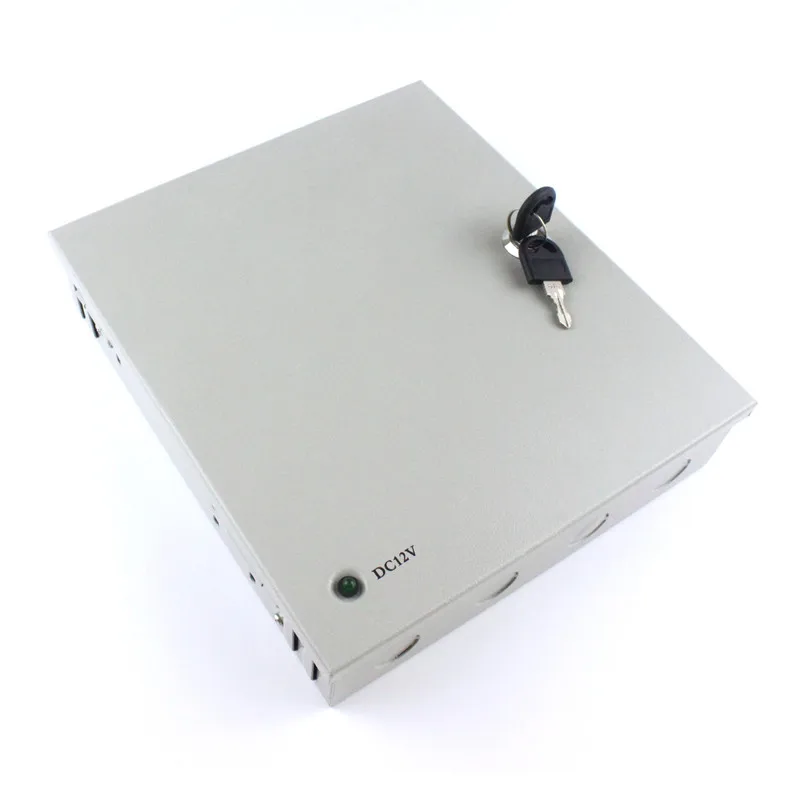

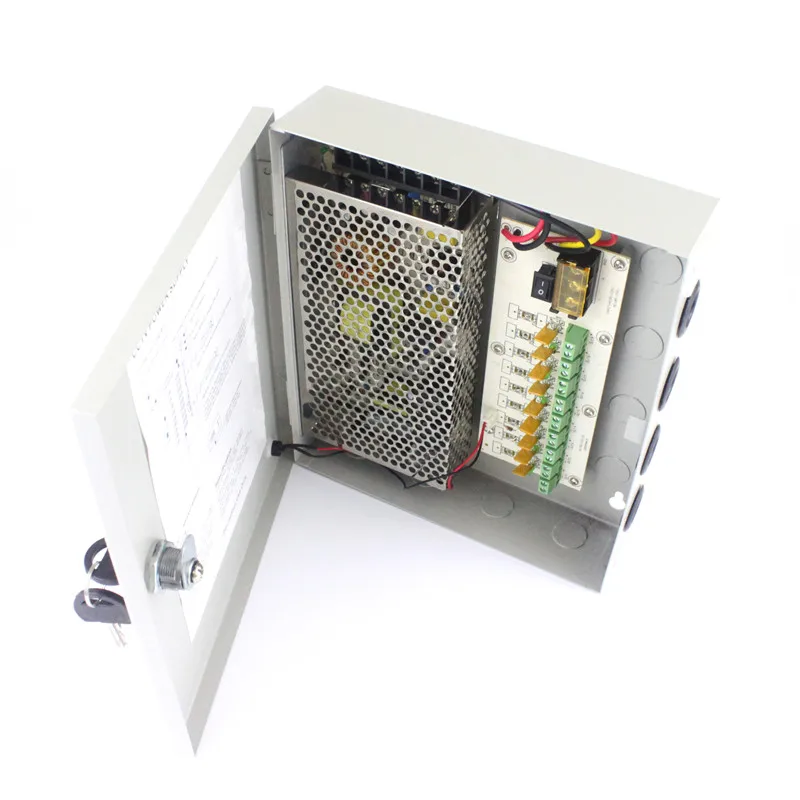

Китайская Фабрика экспортирует напряжение WIFICCTV 12 В 10 А 120 Вт 9 линейный

MODEL

GF120-9H-AM

GF-120224WS

GF-240124WS

OUTPUT

DC VOLTAGE

9V

12V

24V

OUTPUT POWER

18W

24W

24W

CURRENT RANGE

2A

2A

1A

RIPPLE &NOISE(max)

100mVp-p

120mVp-p

200mVp-p

VOLTAGE TOLERANCE

±5.0%

CONNECTOR

5.5 x2.5, 5.5 x2.1,3.5 x1.35,4.1 x1.7, micro 5pin, mini USB,USB

DC CABLE

1.15Mor customized requirement

INPUT

AC CABLE

US UKAUEU KR IN etc.

VOLTAGE RANGE

110-240VAC

AC CURRENTfTyp.)

0.5A/240VAC

FREQUENCY RANGE

47-63HZ

EFFICIENCYfTyp.)

82%

82%

83%

INRUSH CURRENTfTyp.)

COLD START 15A/115VAC 30AQ30VAC

LEAKAGE CURRENT

<0.25mA/240VAC

PROTECTION

OVER LOAD

115%-135% of rated power; Pulsing hicuupshut down.auto recovery

OVER VOLTAGE

Rated output voltage of 105%-150% start overvoltage protecion

Protection: burst mode.load of abnormal conditions removed the automatic recovery

SHORT CIRCUIT

voltage off and reset input for recovers

ENVIRONMENT

WORKING TEMP.

-0*C - +45*C (Refer to output load derating curve)

WORKING HUMIDITY

20 - 90% RH non-condensing

STORAGE TEMP.,HUMIDITY

-20*C~+85*C 10-95% RH

TEMP. COEFFICIENT

=0.05%^C

COOLING METHOD

BY FREE AIR CONVECTION

SAFTY&EMC

ISOLATION RESISTANCE

P-S>50Mohm at 500V DC

WITHSTAND VOLTAGE

3KV,10mA60S

OTHERS

DIMENSION

L83*W45*H69MM(EU)

WEIGHT

0.11Kg,100PCS/Carton

SHELL MATERIAL

Black plastic
