Гидравлический шланговый обжимной станок YONG FENG Y120
US $1950-$4100
Оборудование для обработки резиновых изделий конвейерной ленты и резки полипропиленовых/ПВХ/полиуретановых
- Категория: Rubber Product Making Machinery >>>
- Поставщик: Quzhou,Taiwei,Precise,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.54 $* | 0.9 $* |
| Aug-20-2025 | 0.5 $* | 0.51 $* |
| Jul-20-2025 | 0.73 $* | 0.2 $* |
| Jun-20-2025 | 0.13 $* | 0.23 $* |
| May-20-2025 | 0.55 $* | 0.35 $* |
| Apr-20-2025 | 0.86 $* | 0.10 $* |
| Mar-20-2025 | 0.6 $* | 0.12 $* |
| Feb-20-2025 | 0.82 $* | 0.75 $* |
| Jan-20-2025 | 0.32 $* | 0.97 $* |
Характеристики
Product Overview

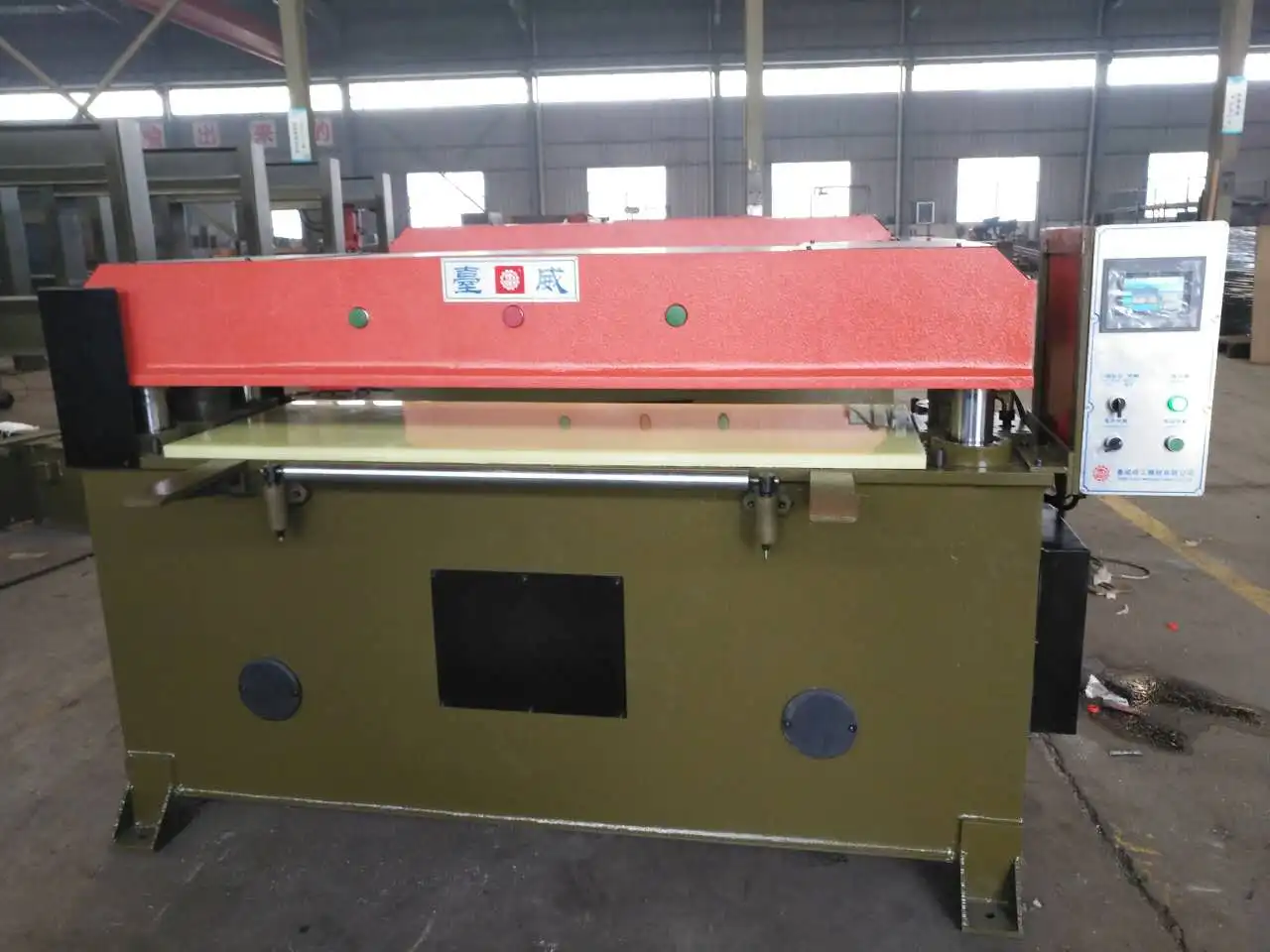

Precise Four-column Hydraulic Cutting Machine
This machine is suitable for die cutting and forming of leather, plastic, textile, asbestos, rubber, cardboard, cork and other materials. It is widely used in cutting and forming operations of non-metallic materials such as shoes, handbags, toys, silk flowers, sponges, plastics, automobiles and other industries and packaging materials.
FEATURES AT A GLANCE

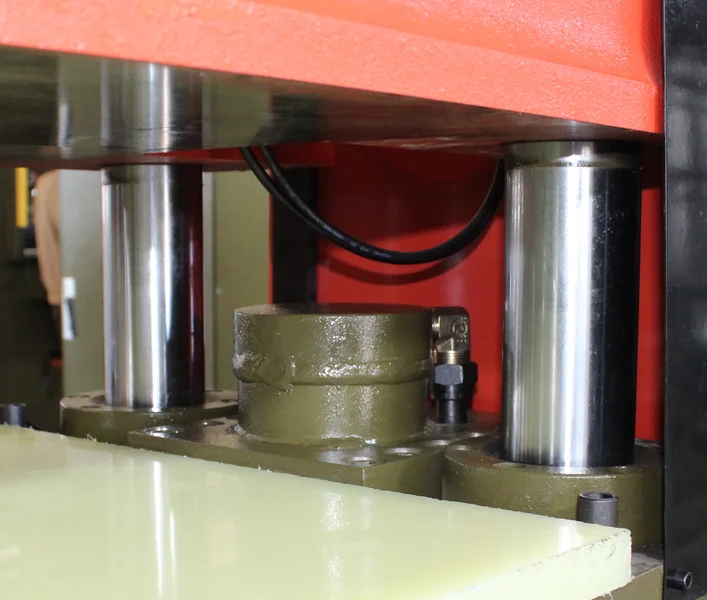

1. This machine is widely used for cutting various non-metallic materials by forming cutters. 2. Double oil cylinders, precision double crank connecting rod balance mechanism, to ensure that the cutting depth of each cutting position is exactly the same. 3. The unique setting structure, matched with the cutting knife and cutting depth setting, makes the stroke adjustment simple and accurate. 4. When the cutting pressure plate contacts the die, it will automatically cut slowly, so that there is no size error between the uppermost layer and the lowermost layer of the cutting material. 5. The central oil supply automatic lubrication system ensures the accuracy of the machine and prolongs the service life of the machine. 6. Special specifications can be customized.
PRODUCT SPECIFICATIONS
Model | TW-530P | TW-540P | TW-550P | TW-560P | TW-580P | TW-5100P |
Max. Cutting Force(T) | 30(249kN) | 40(392kN) | 50(490kN) | 60(588kN) | 80(784kN) | 100(980kN) |
Travel (mm) | 50-200 | 50-200 | 50-200 | 50-200 | 50-200 | 50-200 |
Working Table Size (mm) | 1600x530 | 1600x630 | 1600x830 | 1600x930 | 1600x930 | 1600x930 |

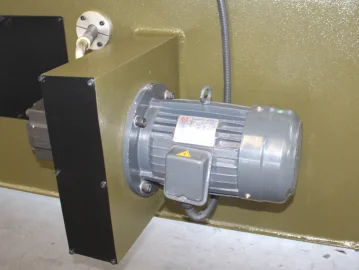

Main Motor Power (kW) | 2.2 | 3 | 4 | 4 | 5.5 | 7.5 |
Weight (approx) (KG) | 2100 | 2480 | 3500 | 3700 | 4800 | 5500 |
PRODUCT CONFIGURATION
CHANGCHAI high power engine
Imported EATON control valve
Japan Shimadzu hydraulic motor
SALES AND SERVICE NETWORK
