Хорошее качество объемный цементный порошковый прицеп 3 оси 30 куб. М

Цена:19 000,00 $*

Количество:

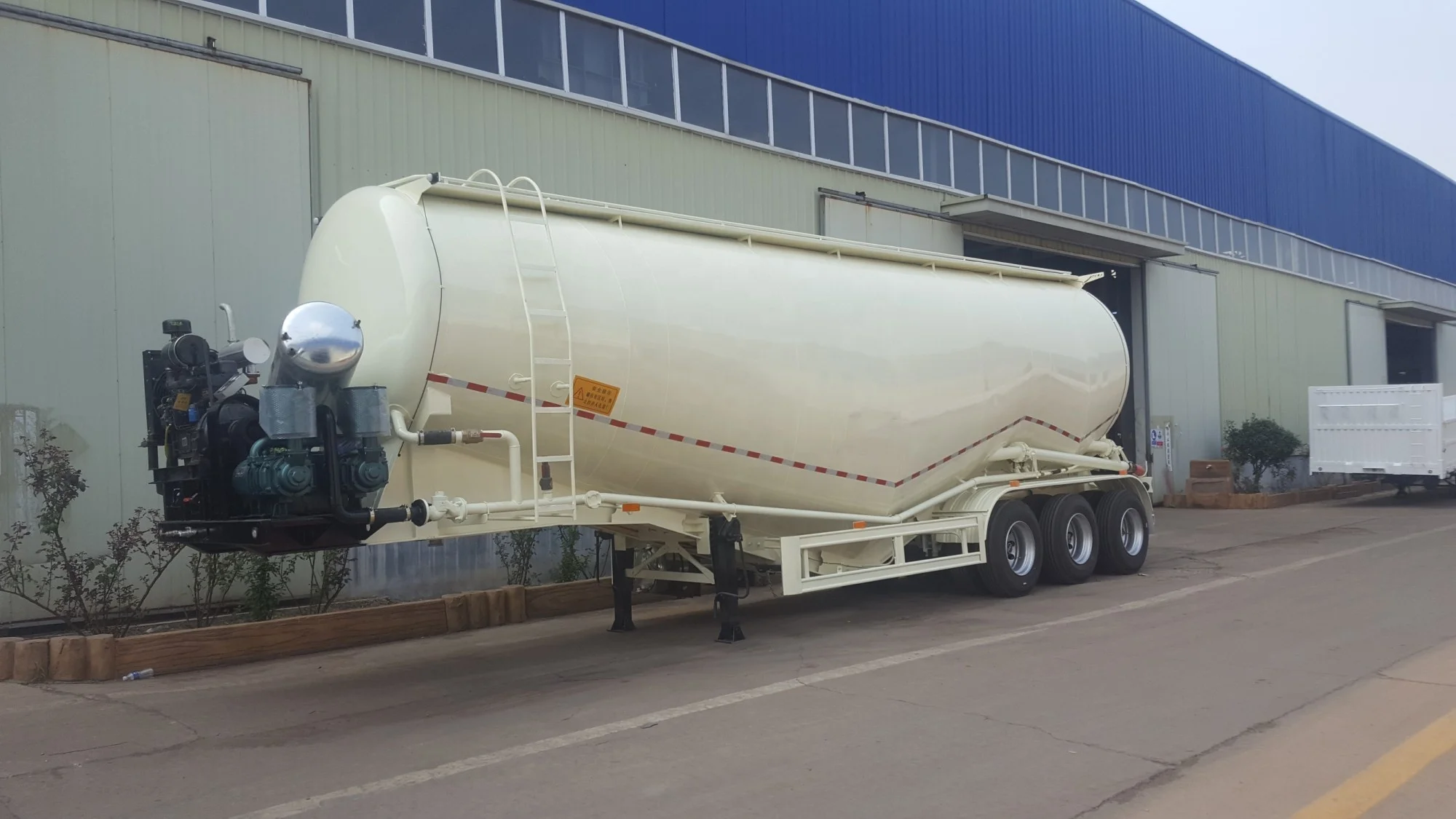

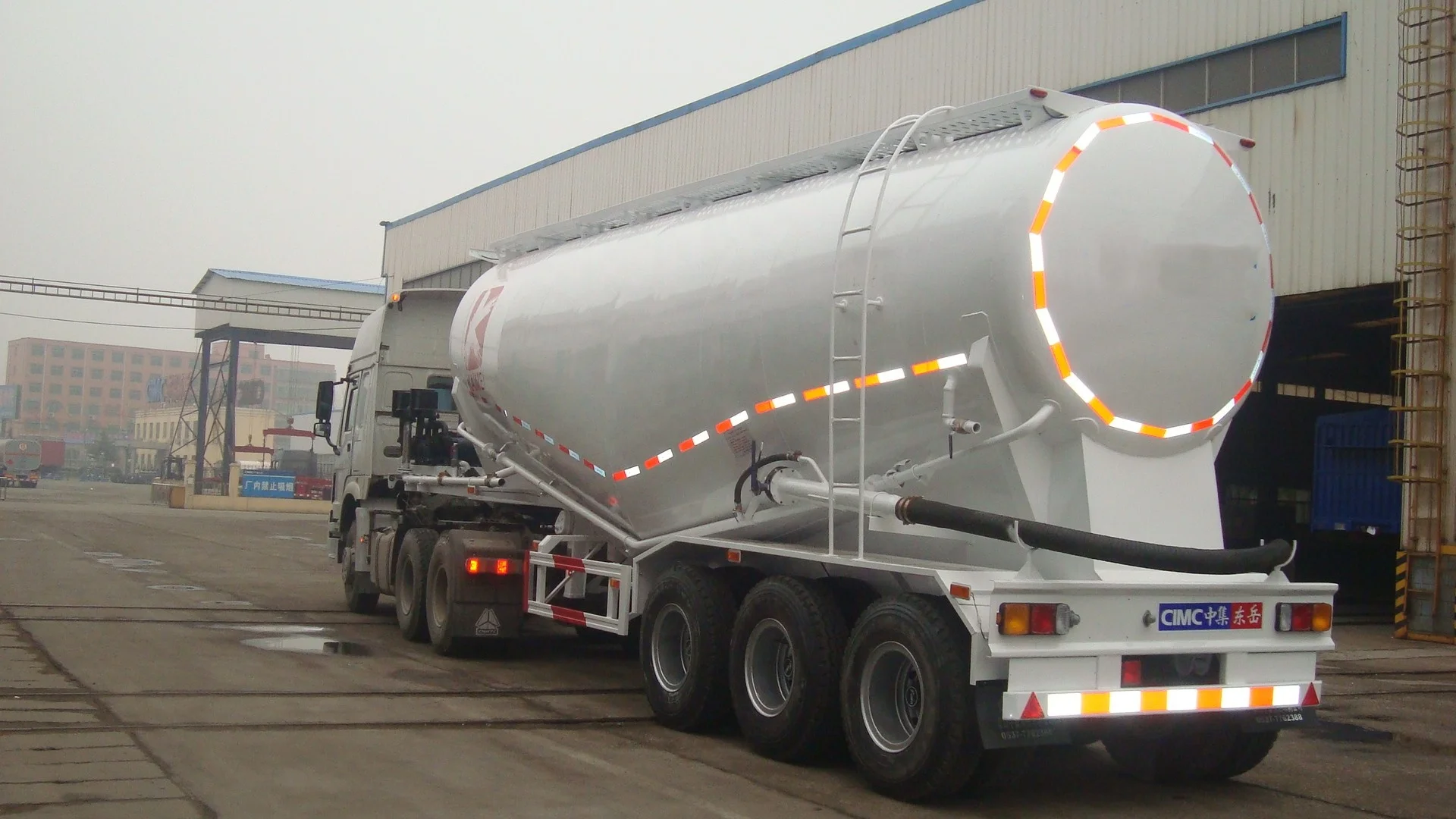

Bulk Powder Tank Trailer 3 axles 20-50ton

Products Description

Rim	8.00-20/8.5-20/8.8-20/9.0-22.5 China Brand
Tire	12R22.5/11R22.5/13R22.5/11.00R20/12.00R20( brand can be Optional)

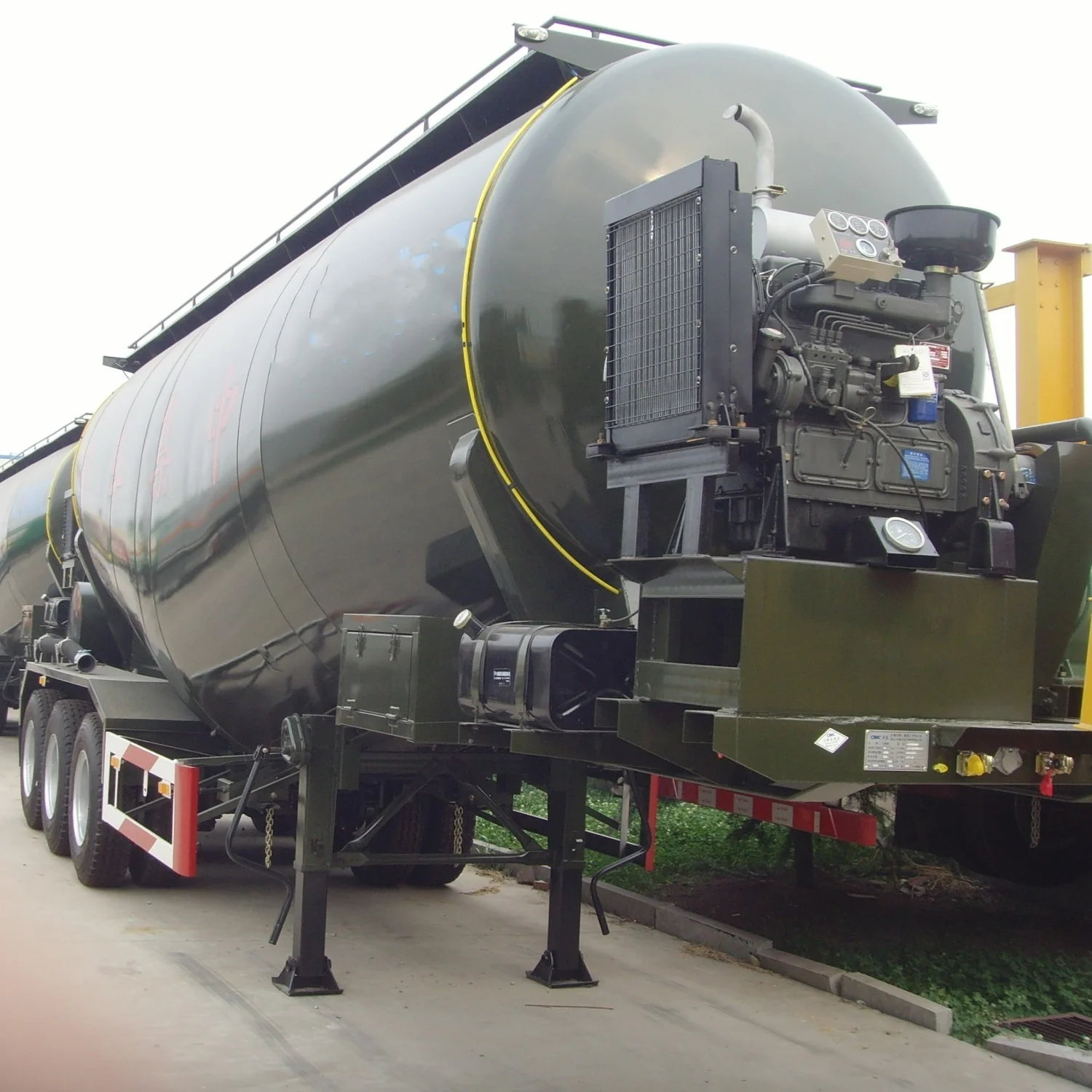

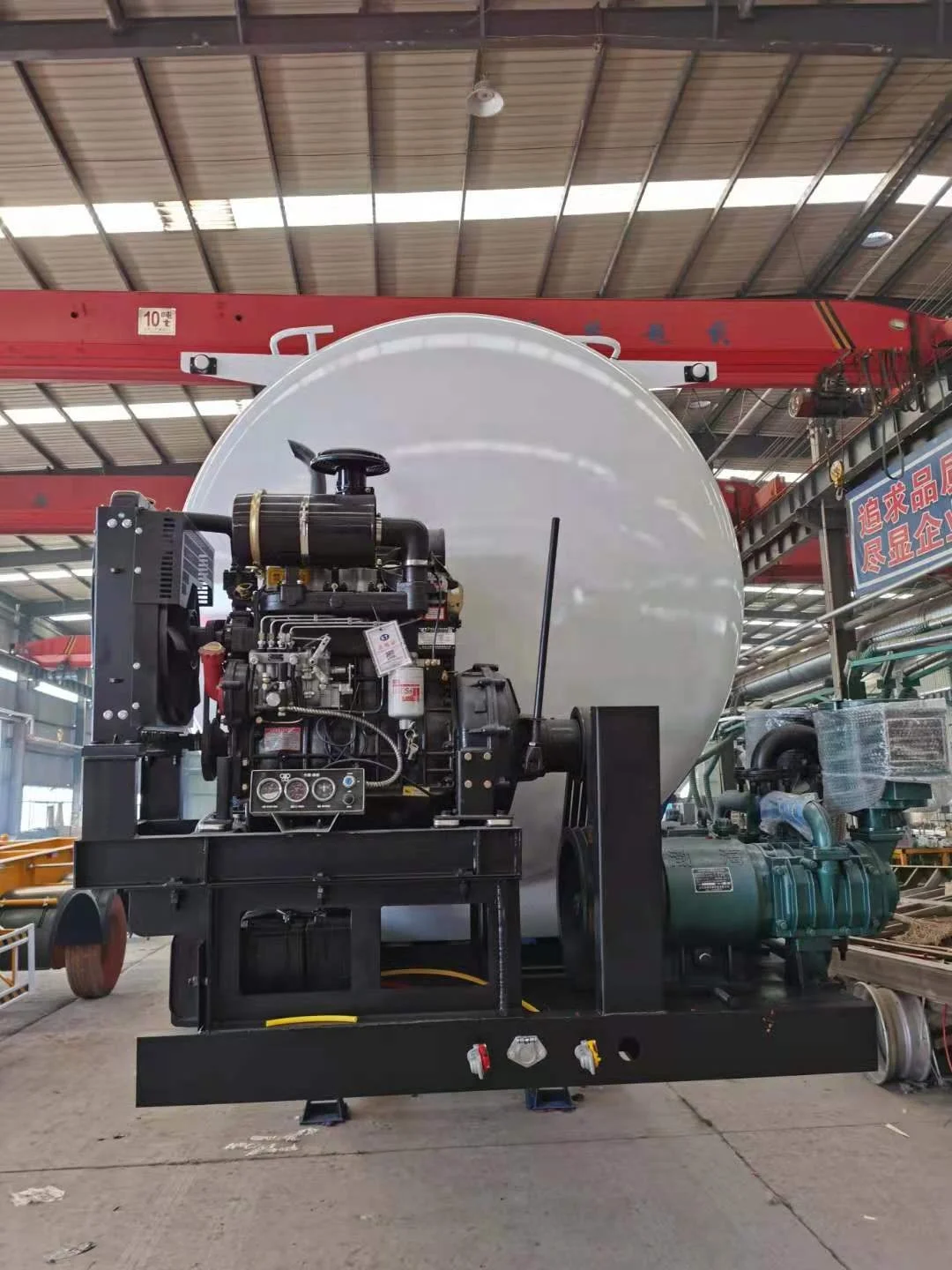

Engine	Weichai 4105 Engine
Manhole Cover	500mm carbon steel or aluminum alloy manhole
Bottom Valve	3''/ 4” disc valve
Discharging Valve	Diameter is 3 or 4 inch
Discharging Pipe	4” rubber hose, 2 pcs, 6m/each
Air compressor	10 m3,12m3
Diesel Engine	Weichai Huafeng, Tianhe 4102/4105
Main Beam	Welding design or Special design, connected by bolts and nuts. Material:Q345 carbon steel Height 500mm, Upper Thickness 14~18mm, Middle Thickness 8~12mm, Down Thickness 16~20mm
Axle	2 or 3 axles, BPW/FUWA brand(Optional)
Landing Gear	JOST(D200T)or China brand 28T(Two speed)
Brake System	WABCO Valve with big chamber
King Pin	JOST 2.00 or 3.5 inch bolt-in king pin
Suspension	Mechanical suspension or Air suspension
Leaf Spring((mm)	90(W)×13(Thickness)×10(Layer) or 100×12×12
Rear ladder	Dismountable
Lights	Turning Light, Side Marker Light, Tail Light
Voltage(v)	24v
Receptacle	7 ways (7 wire harness)
Painting	Complete Chassis sand blasting to clean rust,1coat of anticorrosive prime, 2 coats of final paint
ABS	Optional
Accessories	One standard tool box
Shipping Terms	By Bulk Cargo Carrier, RORO or 40HQ Containers
