Экструзионная и концентрирующая машина Garcinia
- Категория: Extractor >>>
- Поставщик: Wenxiong,Holding,Group,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 23800.14 $* | 24990.52 $* |
| Aug-18-2025 | 23600.53 $* | 24780.98 $* |
| Jul-18-2025 | 19800.61 $* | 20790.15 $* |
| Jun-18-2025 | 23200.68 $* | 24360.38 $* |
| May-18-2025 | 20200.35 $* | 21210.4 $* |
| Apr-18-2025 | 22800.33 $* | 23940.93 $* |
| Mar-18-2025 | 22600.41 $* | 23730.63 $* |
| Feb-18-2025 | 22400.93 $* | 23520.11 $* |
| Jan-18-2025 | 22200.64 $* | 23310.71 $* |
Характеристики
Products Description
Usage:
This machine is widely used in studying the parameter for new process R&D、pilot plant、new medicine research for the herbs extractor process. plat volatile oil in the university、labs etc.
Characteristic:
This machine have complete multi- functional, it can be used to extractor the volatile oil、water extractor、solvent extractor、steam distill、thermal reflux、solvent recovery and alcoholsediment process etc.
The evaporate tank have the special ointment collect unit , so the final concentration ointment density can reach to 1.4.

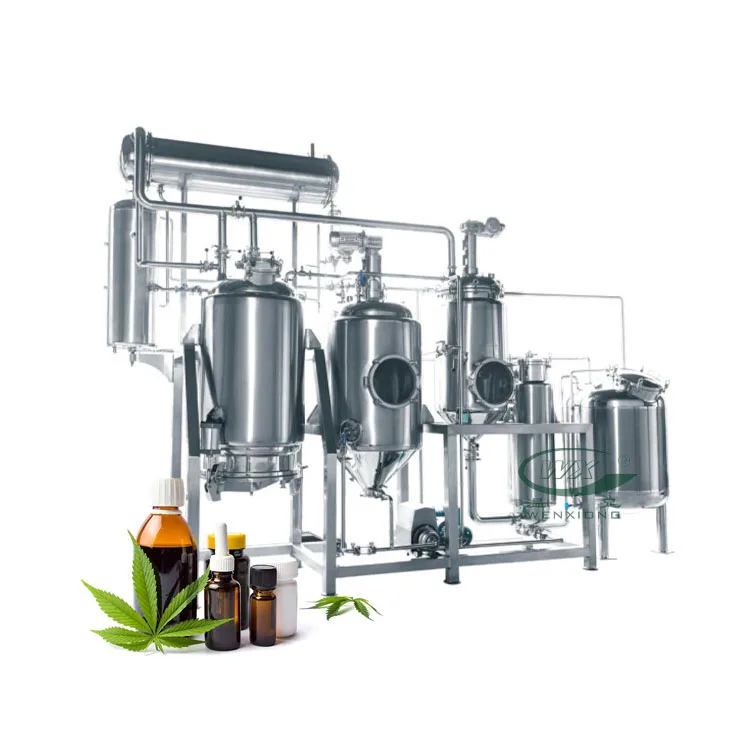

Machine composite:

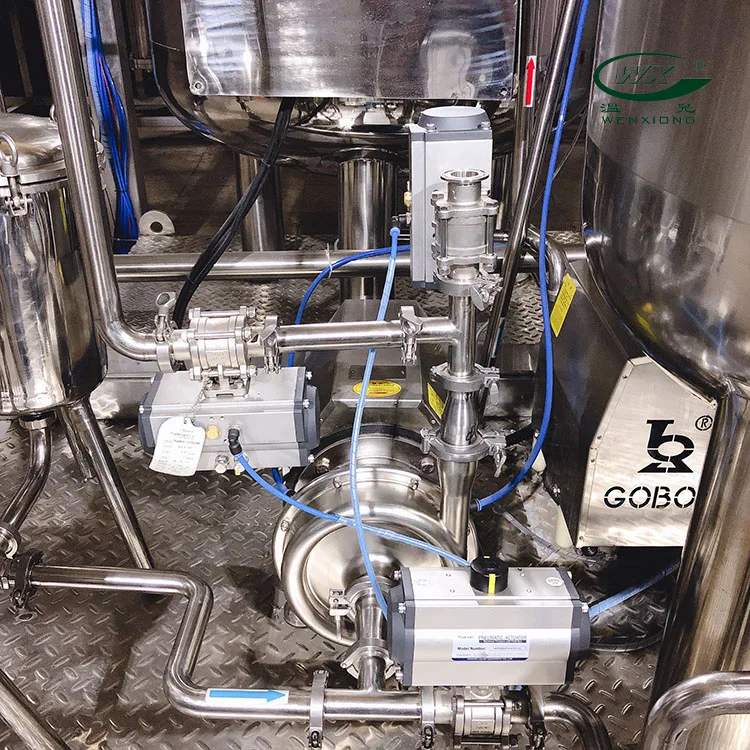

This machine including the following units: extractor tank, sediment tank, single effect concentrator, condenser, oil/water separater, vacuum pump, sanitary pump, pipeline and control panel. all system use SS support frame.
Machine operation mode:
Manual operation & automatic operation.
Patent Of Invention
1.Name of invention patent: Single effect concentrator.
2.Name of invention patent: Oil water separator.
3.Name of invention patent: Automatic control multi-function extraction and concentration unit.
Patent number: ZL 2005 2 0072749.3
2.Name of invention patent: Oil water separator.
Patent number: ZL 2005 2 0073076.3
3.Name of invention patent: Automatic control multi-function extraction and concentration unit.
Patent number: ZL 2005 2 0073074.4
Data
DNT-500 | DNT-100 | DNT-200 | DNT-300 | DNT-500 | ||||||||
Extractor tank | Toltal volume(L) | 65 | 110 | 220 | 350 | 620 | ||||||
Heating area(㎡） | 0.3 | 0.52 | 0.96 | 1.12 | 1.5 | |||||||
Jacket pressure(Mpa) | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | |||||||
Inside pressure(Mpa) | Atm | Atm | Atm | Atm | Atm | |||||||
Sediment tank | Toltal volume(L) | 65 | 130 | 230 | 350 | 620 | ||||||
Heating area(㎡） | 0.5 | 0.7 | 1.5 | 2.0 | 2.9 | |||||||
Motor power(kw) | 0.37 | 0.37 | 0.75 | 0.75 | 0.75 | |||||||
Single effect concentrator | Heating area(㎡） | 0.5 | 0.85 | 1.5 | 2.3 | 3.2 | ||||||
Cooling area(㎡) | 1.7 | 2.0 | 4.0 | 5.0 | 10 | |||||||
Motor power(kw) | 0.37 | 0.37 | 0.37 | 0.37 | 0.37 | |||||||
Vacuum pump power(kw) | 1.5 | 1.5 | 2.2 | 2.2 | 3.0 | |||||||
Sanitary pump power(kw) | 0.37 | 0.37 | 0.37 | 0.37 | 0.37 | |||||||
Steam consumption(kg/h) | 50 | 100 | 150 | 200 | 250 | |||||||
Dimension(L*W*H)(m) | 1.95*0.8*1.8 | 2.45*0.8*2.35 | 2.8*0.975*2.5 | 3.2*1.05*2.6 | 3.5*1.3*3.05 | |||||||
Above model just for reference, we can be done according to client's URS | ||||||||||||
Company Profile
WENXIONG HOLDING GROUP
We was founded in 2002, We are a high-tech enterprise in Zhejiang province. We specilize in the design, production and installation of phermaceutical machnery, chemical machinery, dairy & food machinery, sanitary fuid equipment and intelligent control system for Traditional Chinese medicine (TOM).
We are the member of "China Association for Pharmaceutical equipment".
We are the member of "China Association for Pharmaceutical equipment".
Company main products and services:
extractor and concentrator equipments, vacuum belt drying equipmenst, purifying and distillation equipment, chemiacal equipments and other non-standard equipments, pumps, fluid pipe fittings and also can provide users with automatic control DCS, Warehouse Management System WMS, manufacturing execution system MES overall planning and design, euipment installation and commissioning services, and undertake turnkey projects.

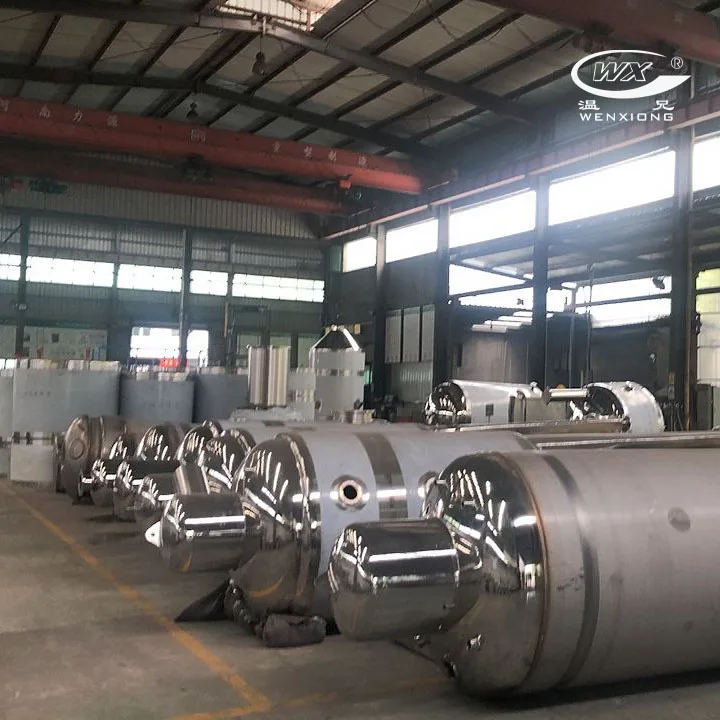

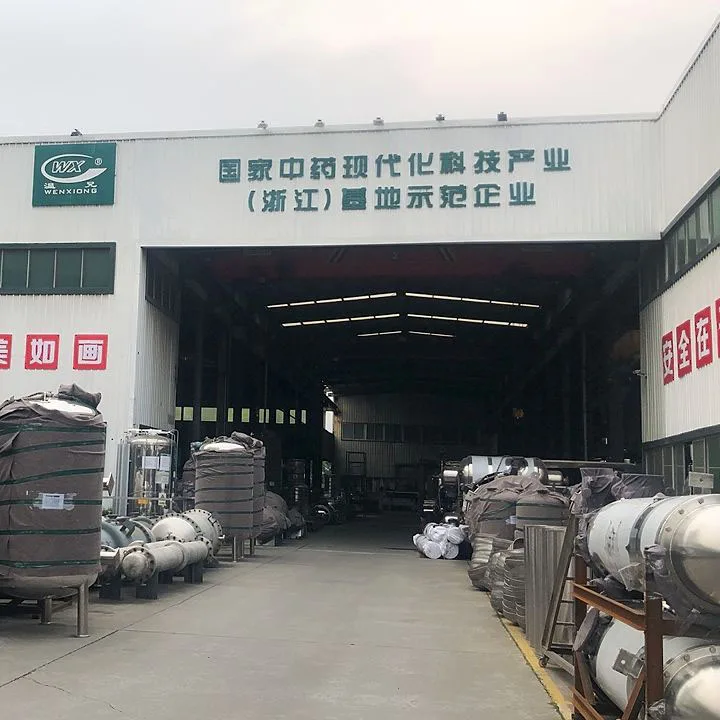

Office and Manufacturing Workshop
Company personnel: there are more than 200 employees (1 Professor, 5 senior engineers, 16 engineers, 46 technicians, 2 senior technicians, 1 technician and 12 senior workers)
Certificates and Honors
Certified by ISO9001 and ISO14000.
We have got 3 invention patents and 45 new practical letters patents in pharmaceutical machinery, three national key new products, one National Torch Program project, One national technology innovation fund project for small and medium-sized science and technology enterprises, onekey innovation fund project.
Customer Case
