Ручка из ковкого чугуна червячный Шестеренчатый клапан-бабочка dn350
- Категория: Butterfly Valves >>>
- Поставщик: Tianjin,Worlds,Valve,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 11.32 $* | 11.87 $* |
| Jul-20-2025 | 9.31 $* | 9.88 $* |
| Jun-20-2025 | 11.27 $* | 11.32 $* |
| May-20-2025 | 11.16 $* | 11.90 $* |
| Apr-20-2025 | 9.39 $* | 9.75 $* |
| Mar-20-2025 | 11.20 $* | 11.86 $* |
| Feb-20-2025 | 11.17 $* | 11.66 $* |
| Jan-20-2025 | 11.67 $* | 11.41 $* |
Характеристики

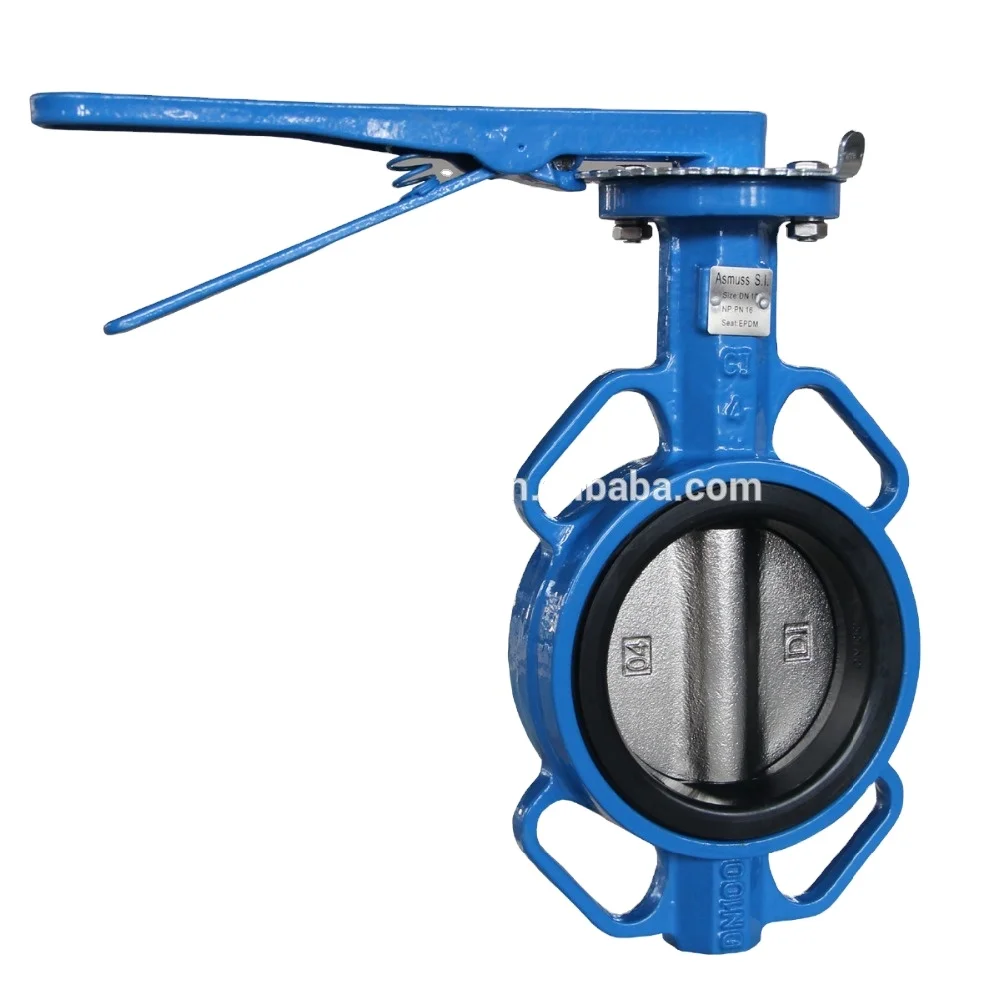

ductile iron material handle wheel worm gear operated wafer butterfly valve dn350 pn16
flanged butterfly valve,gear type butterfly valve,groove ends butterfly valve,grooved butterfly valve,industrial butterfly valve,industrial valve price,lug butterfly valve,lug type butterfly valve,ptfe butterfly valve,ptfe flange butterfly valve,ptfe lug butterfly valve,ptfe wafer butterfly valve,u type butterfly valve,wafer butterfly valve.wafer type butterfly valve,worm gear butterfly valve
Product Description
Technical Parameters:
Size | DN50-DN300 | DN50-DN300 |
Working pressure | 16Bar | 10Bar |
Shell | 24Bar | 15Bar |
Seal(Air) | 6Bar | 6Bar |
Operating Temperature | -45℃~+150℃ | |
Operating Environment | Ballast and bilge system Chemical processing Desalination plants Drilling rigs Drinking water Dry powder Food and beverage Gas plants HAVC Mining industry Paper industry Sand handling Seawater Sugar industry Thermo technical water treatment Waste water | |

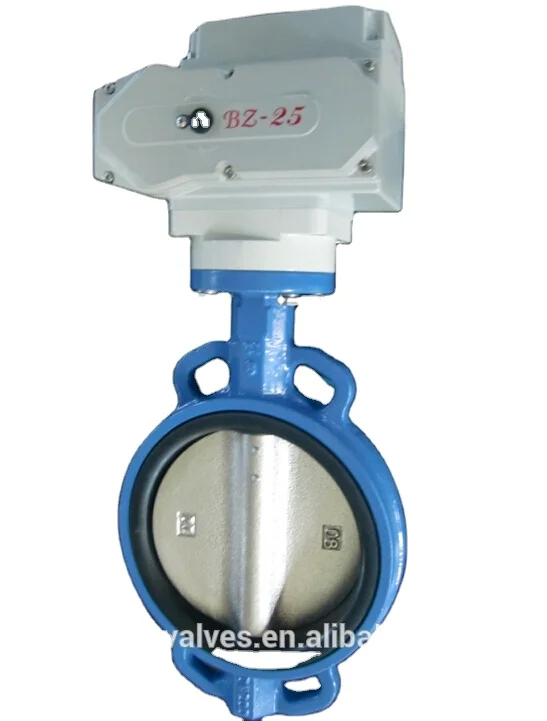

Driving method | Hand Lever Worm Gear Electric Pneumatic | |
Executive Standard:
Design Standard | EN 593 , MSS SP67 API 609 BS5155 |
Inspection & Test | API 598 ISO 5208 EN 12266 |
End Standard | ANSI B16.1 CL. 125LB & B16.5 CL. 150LB AS 2129 Table D & E BS 10 Table D & E DIN 2501 PN6, PN10 & PN16 EN 1092 PN6, PN10 & PN16 ISO 2531 PN6, PN10 & PN16 ISO 7005 PN6, PN10 & PN16 KS B 1511 / JIS B 2210 5K & 10K MSS SP44 CL. 150LB AWWA C207 SABS 1123 Table 1000/3 & Table 1600/3 |
Face to Face | ISO 5752 , EN 558 , MSS SP67 and API 609 DIN3202 |
Top Flange | ISO 5211 |
Main Material:
Name | Material |
Body | Cast Iron Ductile Iron Carbon Steel Stainless Steel AL-Bronze |
Disc | Ductile Iron Carbon Steel Stainless Steel AL-Bronze |
Shaft | Stainless Steel Monel K500 |
Seat | BUNA NBR EPDM VITON PTFE HEPDM Neoprene Hypalon Natural rubber |
PACKING & SHIPPING
COMPANY PROFILE
TIANJIN WORLDS VALVE CO., LTD.is located at TIAN JIN BIN HAI where is only 3 kilometers away from
Tianjin Xingang Port,TIANJIN WORLDS VALVE CO.,LTD. is a specialized manufacture enterprise that
focuses producing, installing, sale and service. The main products include Center Line Butterfly Valve,
Flanged Butterfly Valve, Metal Butterfly Valve, Check Valve, Gate Valve, Waterpower Control Valve,
Microresistance Slow Close Check Valve, Multi-function Pump Control Valve and their series products.
Moreover, we can produce control valve and pressure reducing valve that are different materials, pressures,
specifications, actuation ways. Our products include more than 50 serials and 1200 species, and the annual
production output is more than 8.000 metric tons. WORLDS valves have been selling well all over China and
exporting to Europe, America and other countries and areas, which are used widely in water supply and
drainage, electric power, petrol chemical industry, metallurgy and other trades. Our products are quite
creative, good quality, cheap price and excellent credit, so customers trust our products.
