Пневматический легкий стальной зажим для киля плоскогубцы заклепочные щипцы воздухообжимные гипсокартона

Описание и отзывы

Трекер стоимости

Характеристики

MODEL	TY86120
RIVET CAPACITY	16 Gauge Aluminium Sheet *2 19 Gauge Galvanized Sheet *2 20 Gauge Mild Steel Sheet *2
MAX PULL FORCE	1,300 lb
STROKE	90mm (3.5 in.)
AIR CONSUMPTION	4 CFM @ 90PSI
WEIGHT	1.37kg(3.0 lbs)
PUNCHED JOINT SIZE	2.8*7.5 mm
SKU	770009
AIR INLET	1/4 “
REC AIR HOSE	3/8”
LENGTH W/O JAW	180mm ( 7 in. )

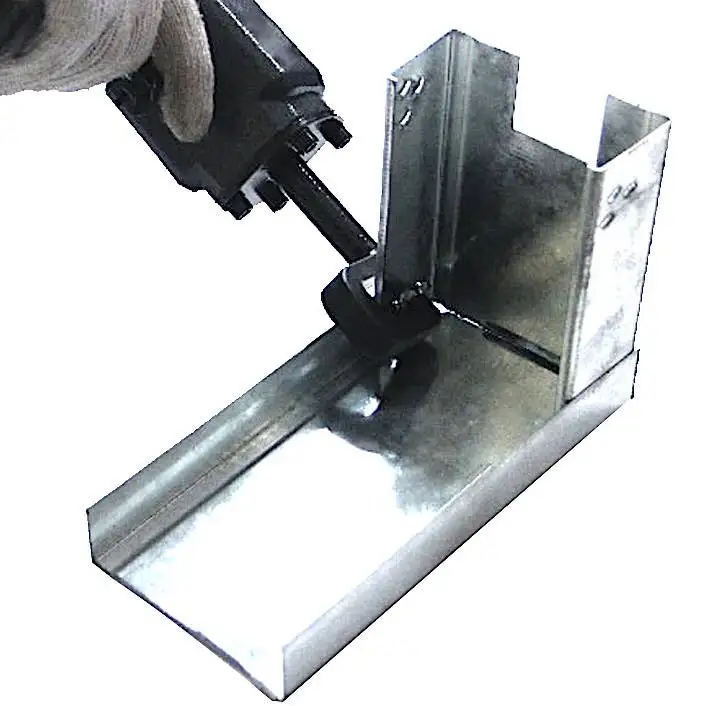

Sheet Metal Clinching is a process used to join two or more layers (Thin and ductile) of material . It is a high-speed mechanical fastening process for point joining sheet material, typically steels and aluminium alloys. It is a single-step technique, generally using a semi-tubular rivet to clinch the sheets in a mechanical joint. Neither pre-drilled holes nor rivets are required, allowing the joint to be made rapidly in one operation.The semi-tubular punch drives into the materials to be joined to form a mechanical interlock. In a word, the punch will have the layers,normally two, pierced and riveted. The punched hole size for this model is 2.5*7.5mm.

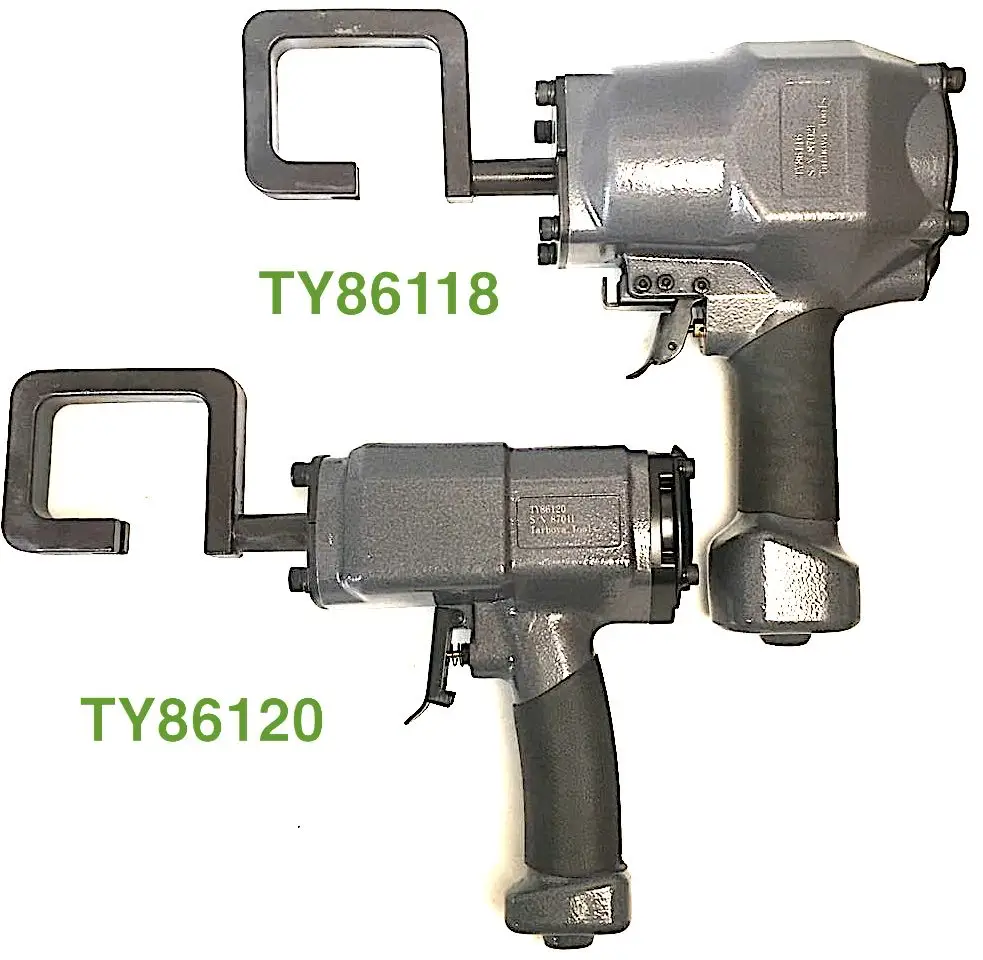

With reference to the sheet metal clinching tools, we have two models as follows.

Tarboya Catalog fastening tools brochure can be downloaded from www.tarboya.com



At Tarboya, we bring you only two things: great products and exceptional service. Whenever you are using your pneumatic tools , we make sure you have the technology you need to be safe and efficient. Tarboya supplies both Russia pneumatics and ordinary air tools. Our team, capable of designing, developing, CNC modification and production, supports multiple industries with innovative, high quality air tools and accessories for the most demanding applications. Tarboya’s export starts in Mid 2018, our Alibaba shop was incepted in 2019 but we   a-r-e   d-i-f-f-e-r-e-n-t !

Wait.. Are you kidding me? What the f**k Tarboya, you are only 2 years old and even do not know the ABCs of air tools.

Before 2018, we are doing inland sales. That is the point. Our production and marketing team have been in air tools line for more than 10 years. These backbones have in-depth knowledge and knows air tools very well.

You will find Tarboya owner’s manual, here in Tarboya we name it Passport, is not the simply exploded view or general safety rules translated by Google, but the detailed technical description and operating instructions accurately written.

We assure you only the best designs, materials and production methods are used to make the tools that carry the Tarboya Name.

Quality tool, favorable price, professional papers, swift after-sale service. These are the very four Tarboya wanna to put in your hand.

Tarboya warrants TY86120 Pneumatic Clinching Tools will not have any material or manufacturing defects for the period of 12 months from the date of delivery. The warranty for flawless function of the goods and the materials used is granted for the period of 12 months from the date of delivery of the goods.

Tarboya undertakes to remove any possible defects covered by the warranty free of charge and without undue delay, so that the buyer of the goods can use the product properly. Should the buyer exercise rights arising form the liability for the defects which are not covered by the warranty, he/she shall pay all related costs.

Tarboya’s  warranty shall be deemed void in the event of:

• Improper use of the machine,


• Use contrary to national or international standards,


• Incorrect installation,


• Faulty supply of compressed air or its poor quality


• Serious deficiencies in maintenance,


• Unauthorized modifications and/or interventions,


• Total or partial non-compliance with the instructions included in the manual


• Exceptional events, natural disasters and others.
