OEM MegaRAID 12 ГБ/сек. 24 порта 4gb SATA и SAS LSI 9361-24i
- Категория: Other Computer Parts >>>
- Поставщик: Shenzhen,Cloud,Storage,Information,Consulting,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 880.19 $* | 898.98 $* |
| Jul-17-2025 | 714.8 $* | 728.64 $* |
| Jun-17-2025 | 866.7 $* | 883.50 $* |
| May-17-2025 | 859.2 $* | 876.38 $* |
| Apr-17-2025 | 686.32 $* | 700.3 $* |
| Mar-17-2025 | 845.2 $* | 862.91 $* |
| Feb-17-2025 | 839.24 $* | 856.61 $* |
| Jan-17-2025 | 832.67 $* | 849.35 $* |
Характеристики
Product Description
Solution Provided：Twenty-four-port internal SAS/SATA RAID solution for high-density and mainstream servers and storage systems
Physical Dimensions：requiring high drive count support inside the box.
MD2 low profile (6.600” x 2.712”)/( 167.65 mm x 68.90 mm)
*Top edge connector cable exit extends into full height card area.
Connectors：Six SFF8643 x4
Device Support：Up to 240 SAS and/or SATA devices
Host Bus Type：x8 lane PCI Express 3.0 compliant
Data Transfer Rates：Up to 12 Gb/s per port
I/O Processor/SAS Controller：SAS3324 dual core RAID on Chip (ROC)
Key RAID Data Protection
Features：
• RAID levels 0, 1, 5, and 6
• RAID spans 10, 50, and 60
• Online Capacity Expansion (OCE)
• Online RAID Level Migration (RLM)
• Auto resume after loss of system power during array rebuild or reconstruction (RLM)
• Single controller multipathing
• Load balancing
• Configurable stripe size up to 1 MB
• Fast initialization for quick array setup
• Check Consistency for background data integrity
• SSD support with SSD Guard technology
• Patrol read for media scanning and repairing
• 64 logical drive support
• DDF compliant Configuration on Disk (COD)
• S.M.A.R.T. support
• Global and dedicated Hot Spare with Revertible Hot Spare support
- Automatic rebuild
- Enclosure affinity
- Emergency SATA hot spare for SAS arrays
• Enclosure management
– SES (inband)
– SGPIO (sideband)
• DataBolt bandwidth optimizer technology support for compatible expander-based enclosures
• Shielded state drive diagnostic technology
Operating Temperature:
Maximum ambient: Controller Card: 55°C, with optional CacheVault accessory (CVPM02): 55°C
Operating Voltage:+3.3V, +12V
MTBF (Calculated):>3,000,000 hours at 40°C
Hardware Warranty:3 years
MegaRAID Management
Suite:
• LSA (LSI Storage Authority)
• MegaRAID Storage Manager
• StorCLI (command-line interface)
• CTRL-R (BIOS configuration utility)
• HII (UEFI Human Interface Infrastructure)
SSD Optimization：
MegaRAID CacheCade Pro 2.0 Software leverages SSDs in front of HDD volumes to create high-capacity, high_x005fperformance controller cache pools (Optional Upgrade)
Regulatory Certifications：
FCC、CE、KCC
OS Support：Microsoft Windows, Linux (Oracle, SuSE , Red Hat), Solaris, VMware, FreeBSD, CentOS, Canonical, Citrix, FreeBSD,
Fedora, Debian See www.broadcom.com/support/download-search for details on versions. Contact Oracle support for
Oracle driver or software support
Physical Dimensions：requiring high drive count support inside the box.
MD2 low profile (6.600” x 2.712”)/( 167.65 mm x 68.90 mm)
*Top edge connector cable exit extends into full height card area.
Connectors：Six SFF8643 x4
Device Support：Up to 240 SAS and/or SATA devices
Host Bus Type：x8 lane PCI Express 3.0 compliant
Data Transfer Rates：Up to 12 Gb/s per port
I/O Processor/SAS Controller：SAS3324 dual core RAID on Chip (ROC)
Key RAID Data Protection
Features：
• RAID levels 0, 1, 5, and 6
• RAID spans 10, 50, and 60
• Online Capacity Expansion (OCE)
• Online RAID Level Migration (RLM)
• Auto resume after loss of system power during array rebuild or reconstruction (RLM)
• Single controller multipathing
• Load balancing
• Configurable stripe size up to 1 MB
• Fast initialization for quick array setup
• Check Consistency for background data integrity
• SSD support with SSD Guard technology
• Patrol read for media scanning and repairing
• 64 logical drive support
• DDF compliant Configuration on Disk (COD)
• S.M.A.R.T. support
• Global and dedicated Hot Spare with Revertible Hot Spare support
- Automatic rebuild
- Enclosure affinity
- Emergency SATA hot spare for SAS arrays
• Enclosure management
– SES (inband)
– SGPIO (sideband)
• DataBolt bandwidth optimizer technology support for compatible expander-based enclosures
• Shielded state drive diagnostic technology
Operating Temperature:
Maximum ambient: Controller Card: 55°C, with optional CacheVault accessory (CVPM02): 55°C
Operating Voltage:+3.3V, +12V
MTBF (Calculated):>3,000,000 hours at 40°C
Hardware Warranty:3 years
MegaRAID Management
Suite:
• LSA (LSI Storage Authority)
• MegaRAID Storage Manager
• StorCLI (command-line interface)
• CTRL-R (BIOS configuration utility)
• HII (UEFI Human Interface Infrastructure)
SSD Optimization：
MegaRAID CacheCade Pro 2.0 Software leverages SSDs in front of HDD volumes to create high-capacity, high_x005fperformance controller cache pools (Optional Upgrade)
Regulatory Certifications：
FCC、CE、KCC
OS Support：Microsoft Windows, Linux (Oracle, SuSE , Red Hat), Solaris, VMware, FreeBSD, CentOS, Canonical, Citrix, FreeBSD,
Fedora, Debian See www.broadcom.com/support/download-search for details on versions. Contact Oracle support for
Oracle driver or software support
Key Features
• High performance 12 Gb/s data
transfer rates
• Twenty-four internal 12 Gb/s
SATA+SAS ports

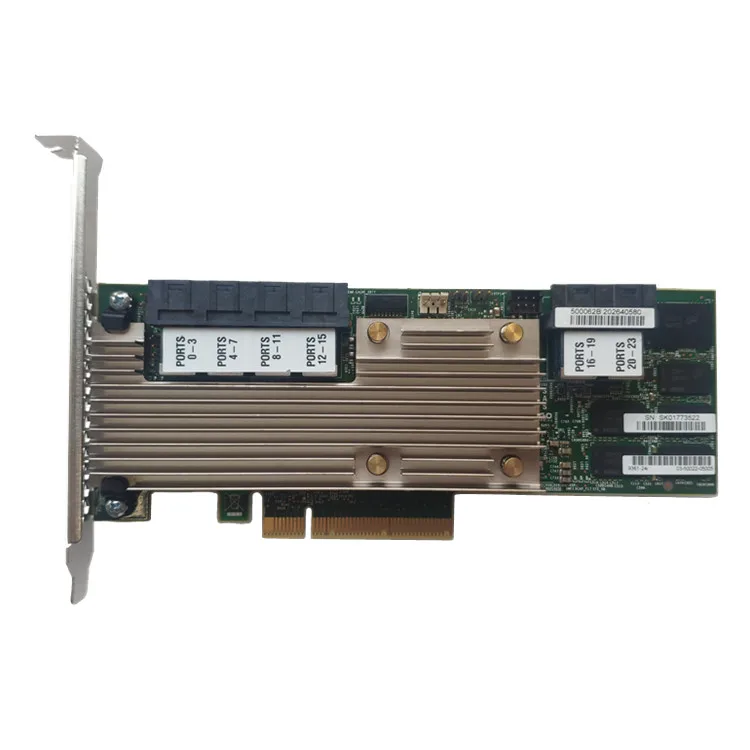

• Six mini-SAS SFF8643 internal
connectors
• SAS3324 RAID-on-Chip
− Dual-core 1.2 GHz PowerPC 476
− 24 Native 12 Gb/s SAS/SATA
ports
• PCI Express 3.0 host interface
• 4 GB DDR3 cache memory
• RAID levels 0, 1, 5, 6, 10, 50, and 60
• Support for CacheVault flash cache
• High performance 12 Gb/s data
transfer rates
• Twenty-four internal 12 Gb/s
SATA+SAS ports
• Six mini-SAS SFF8643 internal
connectors
• SAS3324 RAID-on-Chip
− Dual-core 1.2 GHz PowerPC 476
− 24 Native 12 Gb/s SAS/SATA
ports
• PCI Express 3.0 host interface
• 4 GB DDR3 cache memory
• RAID levels 0, 1, 5, 6, 10, 50, and 60
• Support for CacheVault flash cache
