Introduction
Product Description
1). Kneading machine does very well in mixing, kneading, crushing and dispersing for high-viscosity liquid materials, with no dead point.
2). Two sigma or Z-type blades.
3). Equipped with inverter for frequency control.
4). Vacuum and high pressure are available.
5). The cylinder is opened hydraulically.
6). Discharge mode: Hydraulic tilting, Bottom pumping,or Screwing.
7). With jacket outside of the cylinder, for heating or cooling.
8). Heating mode: Hot oil, Electric or Steam.
9). All the parts that contact with material are made of stainless steel.

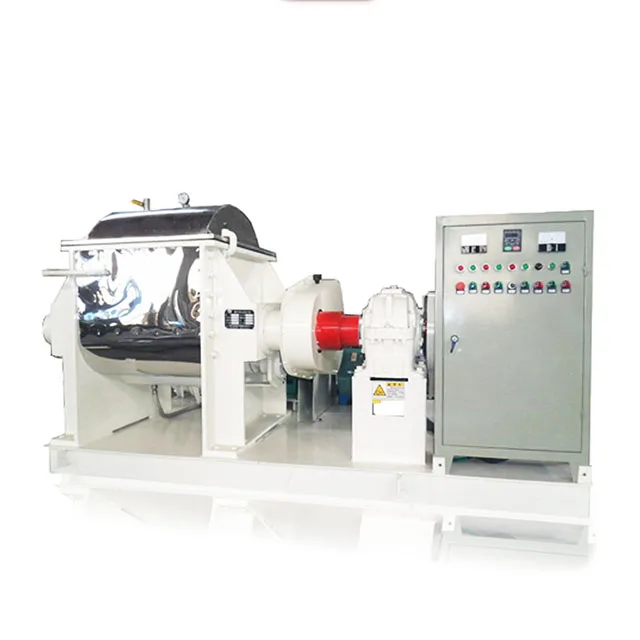

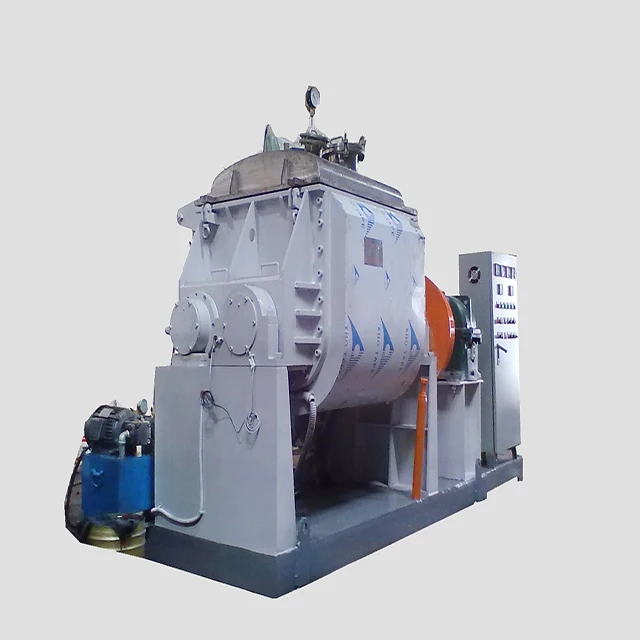

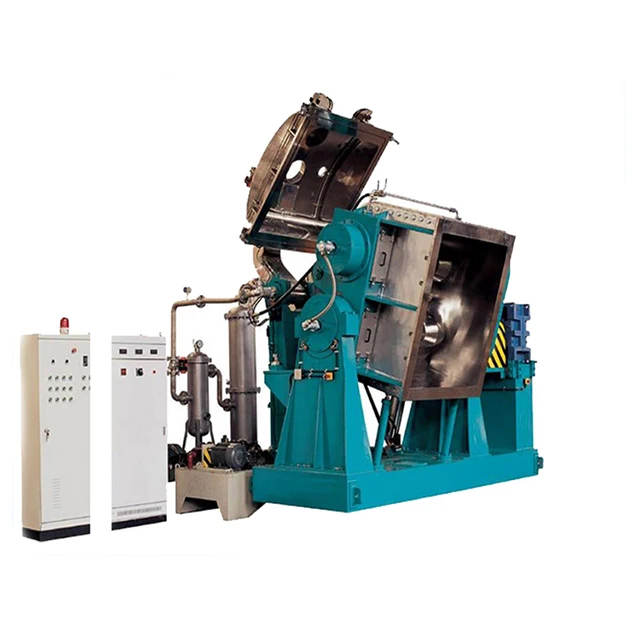

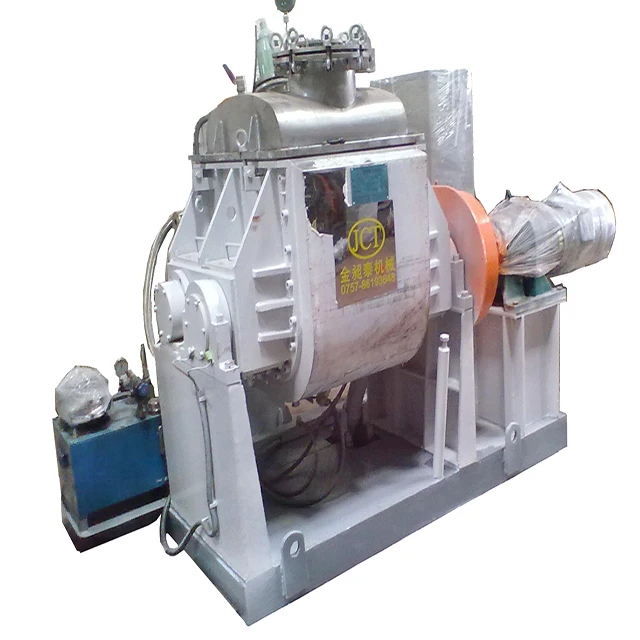

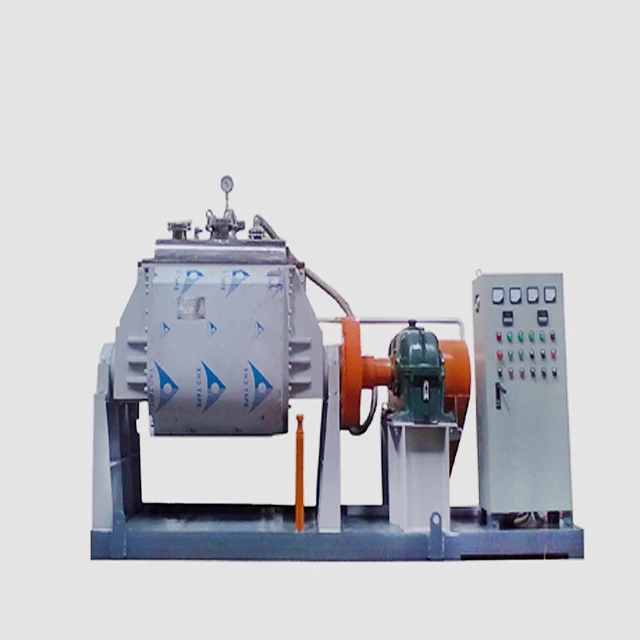

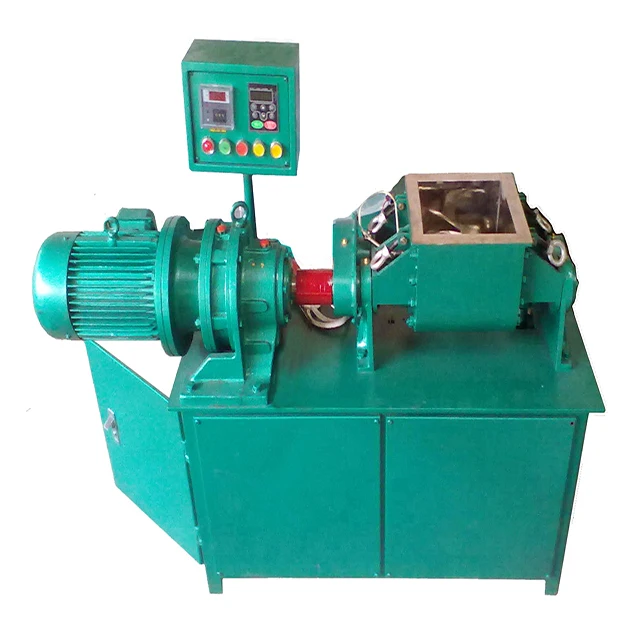

JCT vacuum kneading machine.
JCT Jacketed Heating Vacuum Kneading Machine (NHZ-600)
4.Technical parameters
Model
| Chamber Volum(L) | Drive motor power (KW) | Mixing Speed (rpm) | Discharge mode | Heating | |||||
Full volume | Feeding amount | Paddle fast / slow paddle | Optional parameters | Optional parameters | ||||||
NHZ-5 | 5 | 3 | 2.2-4 | 75/50 | Manual / Hydraulic tilting | Running Hot oil | Electrical heating | Pressure Steam | ||
NHZ-20 | 20 | 12 | 3-5.5 | 63/42 | ||||||
NHZ-50 | 50 | 30 | 4-7.5 | 63/42 | ||||||
NHZ-100 | 100 | 60 | 5.5-7.5 | 43/29 | ||||||
NHZ-200 | 200 | 120 | 7.5-15 | 43/29 | Hydraulic tilting | The bottom pumping | Screw extruding | |||
NHZ-300 | 300 | 180 | 11-18.5 | 43/29 | ||||||
NHZ-500 | 500 | 300 | 18.5-30 | 43/29 | ||||||
NHZ-1000 | 1000 | 600 | 22-55 | 32/22 | ||||||
NHZ-1500 | 1500 | 900 | 30-90 | 32/22 | ||||||
NHZ-2000 | 2000 | 1200 | 45-110 | 32/22 | ||||||
NHZ-3000 | 3000 | 1800 | 55-130 | 33/22 | ||||||
Remarks: 1,Temperature range: 0-300°, 2, Pressure range:-0.1-0.6MPa, 3,Inverter for frequency control if necessory. | ||||||||||
Available products:
1. Unsaturated resins, alkyd resins, acrylic resins, polyurethane and other complete sets of production equipment;
2. Latex, white latex, rubber coating, film coating, all-purpose adhesive and other complete sets of production equipment;
3. Glass, plastic, silicone rubber, sealants and other sets of production equipment;
4. Raw rubber sets of production equipment;
5. Silicone waste pyrolysis recycling old solvent distillation recovery sets of production equipment;
6. Hot melt adhesive sets of production equipment;
7. Various types of powder mixing auger sets of production equipment;
8. Various non-standard chemical equipment design, production and installation.
