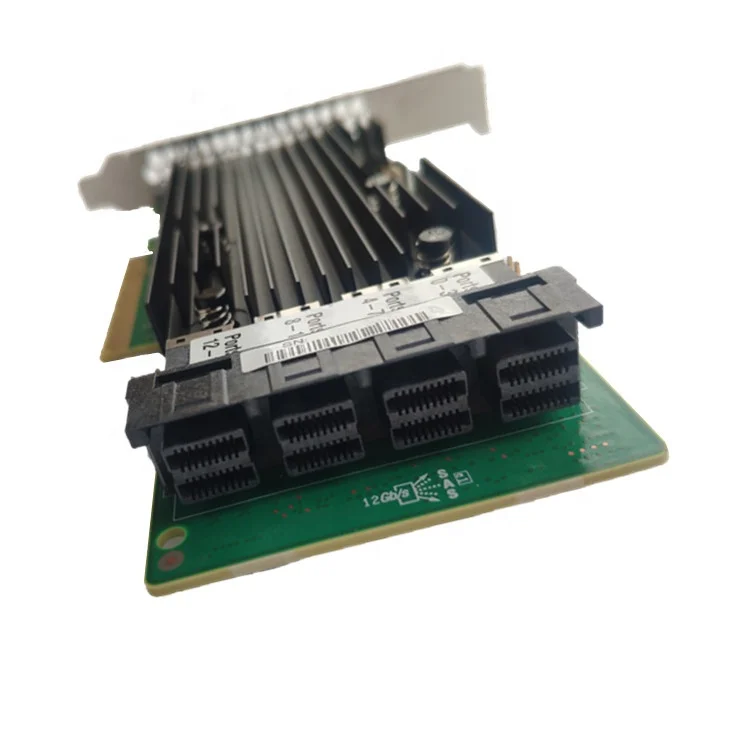

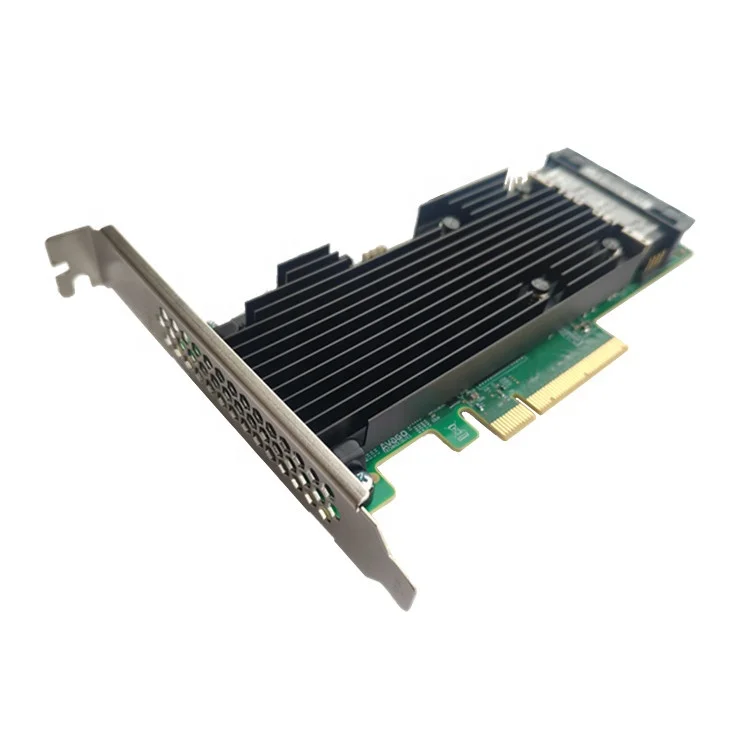

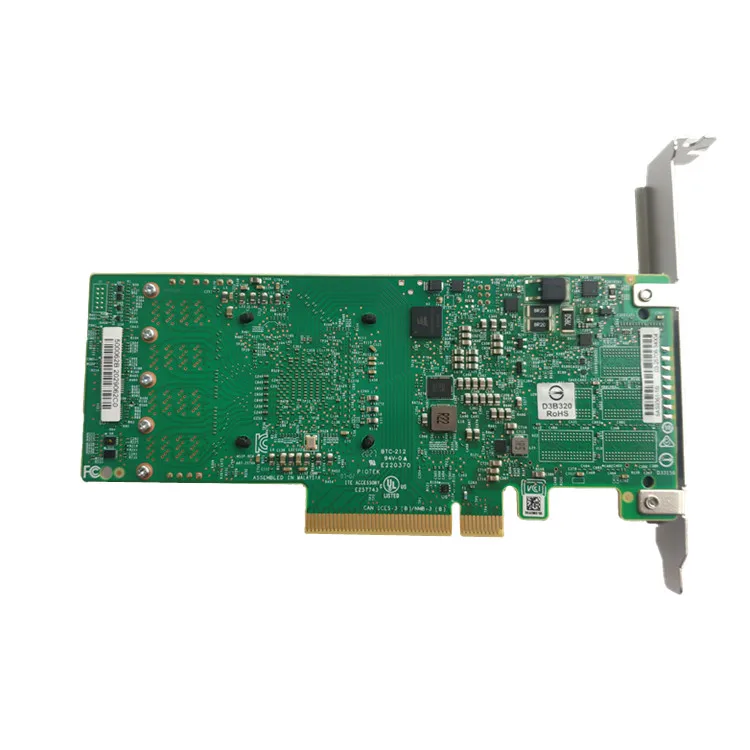

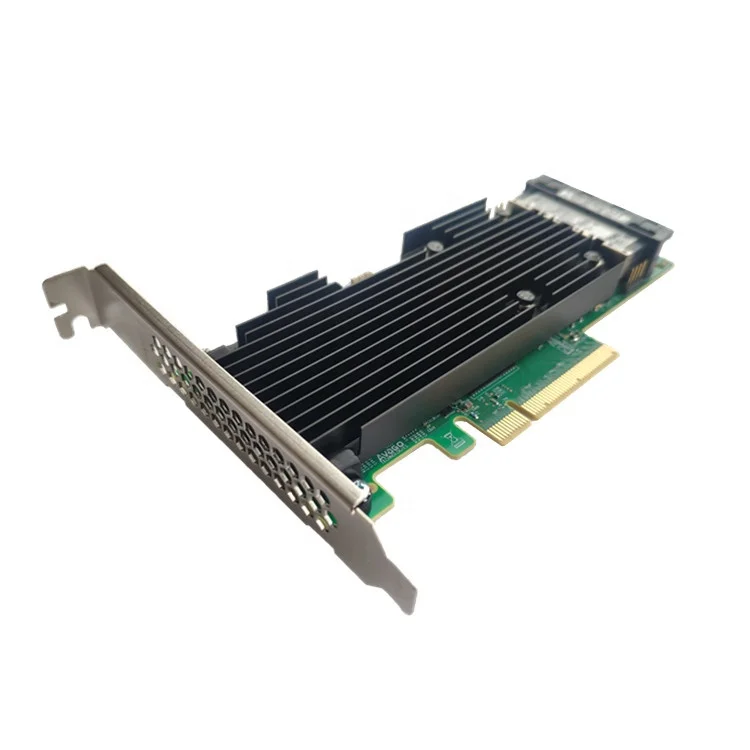

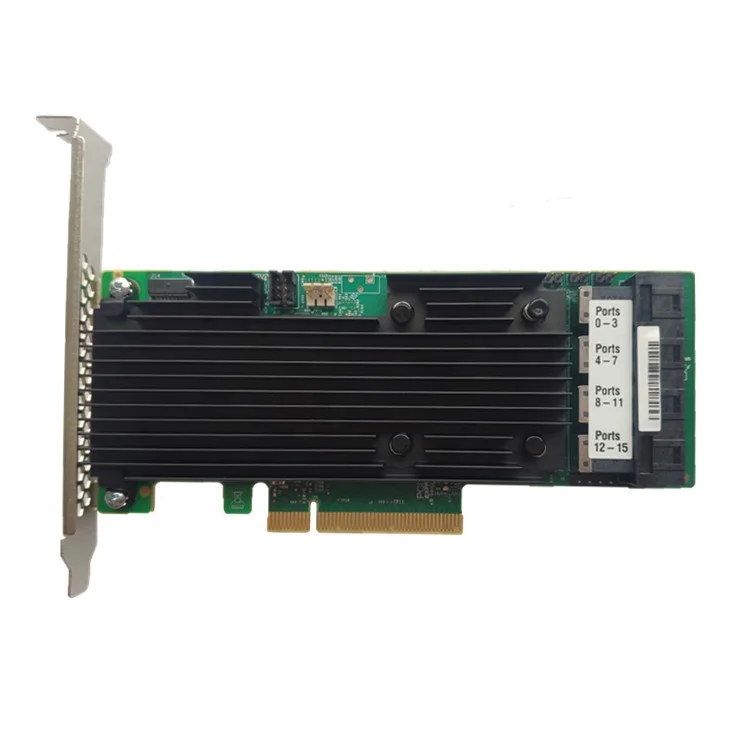

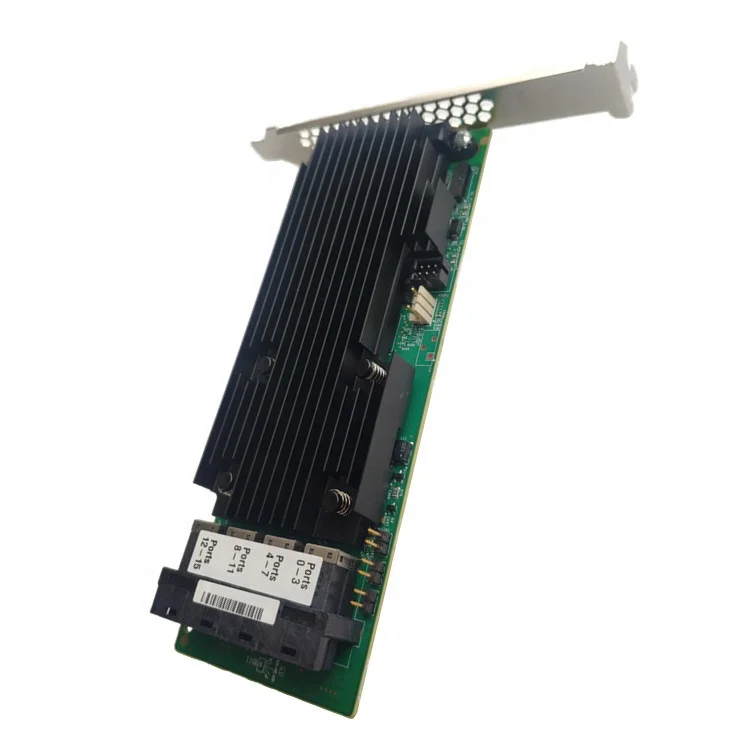

LSI logic MegaRAID 12 ГБ/сек. 16 порт SATA и SAS 9361-16i
- Категория: Other Computer Parts >>>
- Поставщик: Shenzhen,Cloud,Storage,Information,Consulting,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 834.63 $* | 851.60 $* |
| Jul-18-2025 | 677.96 $* | 691.45 $* |
| Jun-18-2025 | 821.18 $* | 837.62 $* |
| May-18-2025 | 815.57 $* | 831.84 $* |
| Apr-18-2025 | 650.24 $* | 663.47 $* |
| Mar-18-2025 | 802.13 $* | 818.77 $* |
| Feb-18-2025 | 795.20 $* | 811.32 $* |
| Jan-18-2025 | 788.34 $* | 804.34 $* |
Характеристики
Product Description
Solution Provided： Sixteen-port internal SAS/SATA RAID solution for high-density and mainstream servers and storage systems requiring
high drive count support inside the box.
Physical Dimensions ：MD2 low profile (6.127” x 2.712”)/(155.65 mm x 68.90 mm)
Connectors ：Four SFF8643 x4 (Horizontal Mount)
Device Support Up to 240 SAS and/or SATA devices
Host Bus Type： x8 lane PCI Express 3.0 compliant
Data Transfer Rates： Up to 12Gb/s per port
I/O Processor / SAS Controller ：SAS3316 dual core RAID on Chip (ROC)
Key RAID Data Protection
Features：
• RAID levels 0, 1, 5, and 6
• RAID spans 10, 50, and 60
• Online Capacity Expansion (OCE)
• Online RAID Level Migration (RLM)
• Auto resume after loss of system power during array rebuild or reconstruction (RLM)
• Single controller Multipathing
• Load Balancing
• Configurable stripe size up to 1MB
• Fast initialization for quick array setup
• Check Consistency for background data integrity
• SSD Support with SSD Guard technology
• Patrol read for media scanning and repairing
• 64 logical drive support
• DDF compliant Configuration on Disk (COD)
• S.M.A.R.T support
• Global and dedicated Hot Spare with Revertible Hot Spare support
- Automatic rebuild
- Enclosure affinity
- Emergency SATA hot spare for SAS arrays
• Enclosure management
– SES (inband)
– SGPIO (sideband)
• Databolt bandwidth optimizer technology support for compatible expander-based enclosures
• Shielded state drive diagnostic technology
Operating Temperature ：Maximum ambient: Controller Card: 55°C, with optional CacheVault accessory (CVPM02): 55°C
Operating Voltage： +3.3V, +12V
MTBF (Calculated) ：>2,500,000 hours at 40°C
Hardware Warranty ：3 years
MegaRAID Management
Suite
• MegaRAID Storage Manager
• StorCLI (command-line interface)
• CTRL-R (BIOS configuration utility)
• HII (UEFI Human Interface Infrastructure)
SSD Optimization MegaRAID CacheCade Pro 2.0 Software leverages SSDs in front of HDD volumes to create high-capacity, high-perfor_x005fmance controller cache pools (Optional Upgrade)
Regulatory Certifications
FCC、CE、KCC
OS Support
Microsoft Windows, Linux (Oracle, SuSE , Red Hat), Solaris, VMware, FreeBSD, CentOS, Canonical, Citrix, FreeBSD,
Fedora, Debian See www.avagotech.com/support/download-search for details on versions. Contact Oracle support for
Oracle driver or software support.
high drive count support inside the box.
Physical Dimensions ：MD2 low profile (6.127” x 2.712”)/(155.65 mm x 68.90 mm)
Connectors ：Four SFF8643 x4 (Horizontal Mount)
Device Support Up to 240 SAS and/or SATA devices
Host Bus Type： x8 lane PCI Express 3.0 compliant
Data Transfer Rates： Up to 12Gb/s per port
I/O Processor / SAS Controller ：SAS3316 dual core RAID on Chip (ROC)
Key RAID Data Protection
Features：
• RAID levels 0, 1, 5, and 6
• RAID spans 10, 50, and 60
• Online Capacity Expansion (OCE)
• Online RAID Level Migration (RLM)
• Auto resume after loss of system power during array rebuild or reconstruction (RLM)
• Single controller Multipathing
• Load Balancing
• Configurable stripe size up to 1MB
• Fast initialization for quick array setup
• Check Consistency for background data integrity
• SSD Support with SSD Guard technology
• Patrol read for media scanning and repairing
• 64 logical drive support
• DDF compliant Configuration on Disk (COD)
• S.M.A.R.T support
• Global and dedicated Hot Spare with Revertible Hot Spare support
- Automatic rebuild
- Enclosure affinity
- Emergency SATA hot spare for SAS arrays
• Enclosure management
– SES (inband)
– SGPIO (sideband)
• Databolt bandwidth optimizer technology support for compatible expander-based enclosures
• Shielded state drive diagnostic technology
Operating Temperature ：Maximum ambient: Controller Card: 55°C, with optional CacheVault accessory (CVPM02): 55°C
Operating Voltage： +3.3V, +12V
MTBF (Calculated) ：>2,500,000 hours at 40°C
Hardware Warranty ：3 years
MegaRAID Management
Suite
• MegaRAID Storage Manager
• StorCLI (command-line interface)
• CTRL-R (BIOS configuration utility)
• HII (UEFI Human Interface Infrastructure)
SSD Optimization MegaRAID CacheCade Pro 2.0 Software leverages SSDs in front of HDD volumes to create high-capacity, high-perfor_x005fmance controller cache pools (Optional Upgrade)
Regulatory Certifications
FCC、CE、KCC
OS Support
Microsoft Windows, Linux (Oracle, SuSE , Red Hat), Solaris, VMware, FreeBSD, CentOS, Canonical, Citrix, FreeBSD,
Fedora, Debian See www.avagotech.com/support/download-search for details on versions. Contact Oracle support for
Oracle driver or software support.
Key Features
• High performance 12Gb/s data
transfer rates
• Sixteen internal 12Gb/s SATA+SAS
ports
• Four mini-SAS SFF8643 internal
connectors (horizontal mount)
• SAS3316 RAID-on-Chip
- Dual-core 1.2GHz PowerPC 476
- 16 Native 12Gb/s SAS/SATA ports
• PCI Express 3.0 host interface
• 2GB DDR3 cache memory
• RAID levels 0, 1, 5, 6, 10, 50, and 60
• Support for CacheVault fl ash cache
• High performance 12Gb/s data
transfer rates
• Sixteen internal 12Gb/s SATA+SAS
ports
• Four mini-SAS SFF8643 internal
connectors (horizontal mount)
• SAS3316 RAID-on-Chip
- Dual-core 1.2GHz PowerPC 476
- 16 Native 12Gb/s SAS/SATA ports
• PCI Express 3.0 host interface
• 2GB DDR3 cache memory
• RAID levels 0, 1, 5, 6, 10, 50, and 60
• Support for CacheVault fl ash cache
