Линейное вибрационное сито для сои
- Категория: Vibrating Screen >>>
- Поставщик: Xinxiang,Dahan,Vibrating,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 1726.48 $* | 1812.36 $* |
| Aug-16-2025 | 1711.5 $* | 1797.46 $* |
| Jul-16-2025 | 1436.79 $* | 1508.88 $* |
| Jun-16-2025 | 1682.91 $* | 1766.61 $* |
| May-16-2025 | 1465.43 $* | 1538.99 $* |
| Apr-16-2025 | 1653.66 $* | 1736.28 $* |
| Mar-16-2025 | 1639.33 $* | 1721.13 $* |
| Feb-16-2025 | 1624.42 $* | 1705.2 $* |
| Jan-16-2025 | 1610.70 $* | 1691.32 $* |
Характеристики
Product Description
Name | Soybean Linear Vibration Sieve Wheat Vibrator Screen Sieve Machine | |||
HS CODE | 847982 | |||
It is proundly created for handling fine materials. It can efficiently screen foreign matters, filter impurities, and grade materials to ensure high quality products. Each machine can achieve six levels of sieving with more precision. | ||||
Usage | sifing, grading, filtering | |||
Application | powder, flour, granule, bulk solids, liquid | |||
Optional Materials | Carbon Steel, Stainless Steel 304/316 | |||
Optional Layers | 1~5 layers | |||
Diameter range | 400mm~2000mm | |||
Mesh range | 2~500mesh | |||
Customized Machine | all parts can be customized | |||
Delivery time | 7-10 days | |||
Keyword | Vibrating Sieve Shaker |

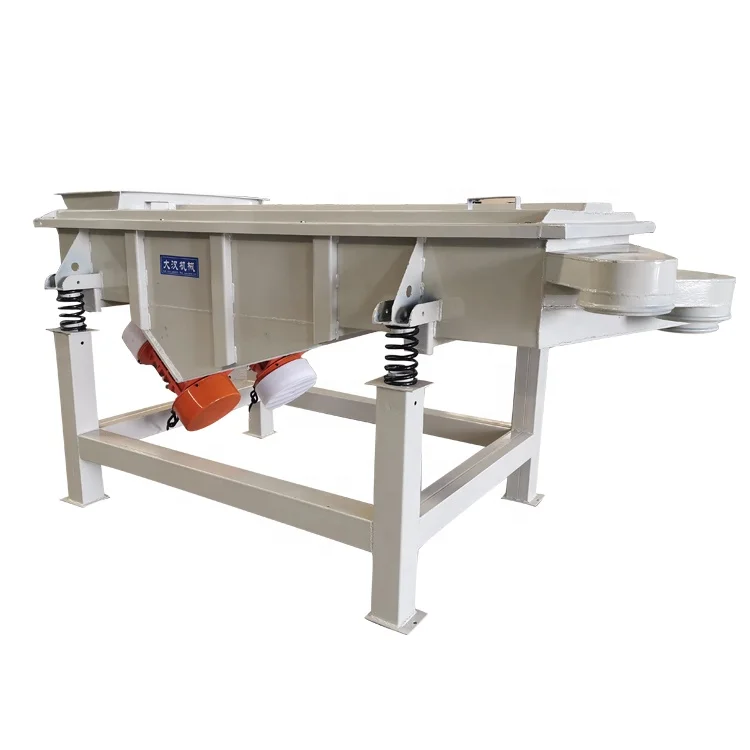

Linear Vibrating Screen
Soybean Linear Vibration Sieve Wheat Vibrator Screen Sieve Machine vibration motor excitation as the source of vibration,so that the material was tossed in the sieve,while forward in a straight line material evenly into the screening machine feeder feed port,multi-layer mesh specifications of sieve,sieve material,respectively,discharged from their exports.With low power consumption,high yield, simple structure,easy maintenance,fully enclosed structure,no dust,automatic nesting,more suitable for pipeline operations.
Working principle
Soybean Linear Vibration Sieve Wheat Vibrator Screen Sieve Machine use vibration motor as vibration source,the materials is rosed and moved in the straight at the same time.The materials are entered into entrance equality,and then go through screen to create the material with different sizes,which was discharged,from different gates.It is suitable for low consuming,high output,and simple structure,easily maintain all-closed structure,no powder dispersed,automobile discharged.PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Specification
Model | Screen Size(mm) | Layers | Mesh Size (mesh) | Capacity (t/h) | Double-amplitude (mm) | Power (kw) | Vibrating direction angle |
DZSF520 | 500*2000 | 1-7 | 2-200 | 0.03-5 | 4-7 | 2*(0.37-0.75) | 45-60 |
DZSF525 | 500*2500 | 0.06-15 | 4-8 | 2*(0.37-0.75) | |||
DZSF530 | 500*3000 | 0.06-18 | 5-8 | 2*(0.37-0.75) | |||
DZSF1020 | 1000*2000 | 0.07-20 | 4-8 | 2*(0.37-1.1) | |||
DZSF1025 | 1000*2500 | 0.07-15 | 5-8 | 2*(0.37-1.1) | |||
DZSF1030 | 1000*3000 | 0.1-20 | 6-8 | 2*(0.37-1.1) | |||
DZSF1224 | 1200*2400 | 0.1-23 | 6-8 | 2*(0.37-1.5) |
Detailed Images
Application
Chemical industry:resin,coating,drug industry,cosmetic,oil,Herbal powder,ect.
The food industry:sugar,gourmet powder,salt,fruit juice,starch,milk powder,food,soyabean milk,egg powder,rice, soy,fish meal,pineapple juice,etc.Metals,metallurgical
The food industry:sugar,gourmet powder,salt,fruit juice,starch,milk powder,food,soyabean milk,egg powder,rice, soy,fish meal,pineapple juice,etc.Metals,metallurgical
Mining:aluminte powder,lead powder,copper powder,ore,allor powder,electrode powder,abrasive powder,refraclory materials,kaolin,lime,aluminium oxide,quartz sand,ect.
Related Products
Company Profile
The Xinxiang Dahan vibrating machinery co.,Ltd. is specialized in the vibrating screen equipment,
vibration machinery series products manufacturer,from the design and production to sales provide a complete assembly line service,committed to solve all kinds of sieving problem,after years of development process of the introduction of foreign advanced technology to improve the original screen,and upgrades,for customer screening requirements in terms ally developed into a professional manufacturing enterprise in the industry of xinxiang vibrating screen.
Packing & Delivery
FAQ
Pls provide the following information for us.
1. material name_____,the density_____(kg/m3), water content_____(%).
2. the necessary capacity _____kg/h you required3. Machine material. Pls choose one:
a. All stainless steel 304
b. All carbon steel
c. The contacting part is stainless steel, the other parts is carbon steel.
4. the dimension _____of the machine can be designed for you.
5. Additional parts ,like the mobile wheel, removing-dust hole and noise-proof base,can be easily fixed and maintained.
6. How many _____ layers you need?
7. Pls inform the voltage&frequency_____ in your city.
