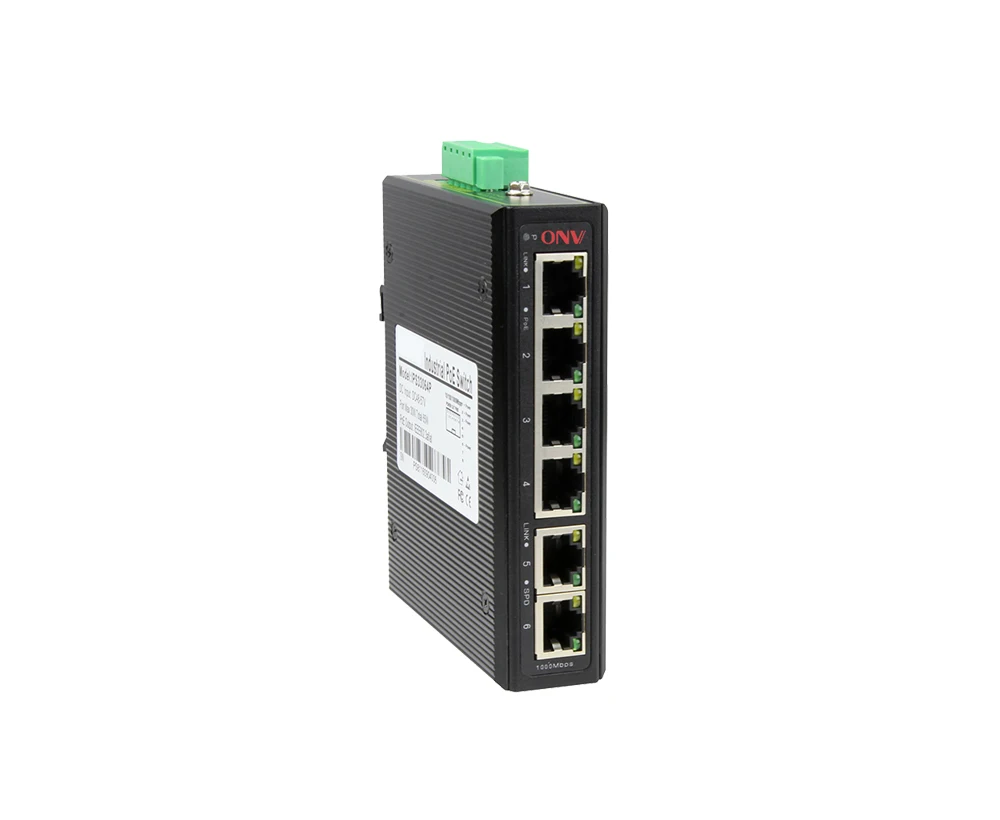

ONV hot selling IPS33064P unmanaged industrial POE switch 6 port
The ONV-IPS33064P series is a full gigabit industrial PoE switch independently developed by ONV. It has 6*10/100/1000Base-T RJ45 ports. Port 1-4 can support IEEE 802.3af/at PoE standard, single-port PoE power up to 30W, and the maximum PoE output power of the host is 60W (at-120W).
Gigabit wire speed forwarding
— All series supports full gigabit Ethernet ports, high speed and high bandwidth connection to meet the needs of various scenarios.
— Support non-blocking wire-speed forwarding. Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.
Powerful port lightning protection, wide voltage input
— Contact discharge 8KV, air discharge 15KV; port lightning protection common-mode 4KV, differential mode 2KV;
— Industrial dual power input
— DC INPUT: 47V-58V, non-PoE DC INPUT: 12-48V.
Intelligent PoE power supply
— 4*10/100/1000Base-T RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
— IEEE 802.3af/at PoE standard, without damaging non-PoE devices.
— Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
Stable and reliable
— Low power consumption, No fan low noise, aluminum shell.
— CCC,CE, FCC, RoHS.
— The user-friendly panel, it can show the device status through the LED indicator of PWR,SYS, Link,L/A, PoE.
Model | ONV-IPS33064P | ONV-IPS33064P-at | ||
Interface Characteristics | ||||
Fixed Port | 4*10/100/1000Base-T PoE ports (Data/Power) 2*10/100/1000Base-T uplink RJ45 ports (Data) 2 sets of V+, V- redundant DC power port (5P Phoenix terminal) | |||
Ethernet Port | 10/100/1000Base-T,Auto-sensing,Full/half duplex MDI/MDI-X self-adaption | |||
Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) | |||
SFP Slot Port | Gigabit SFP optical fiber interface, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC) | |||
Optical Cable | Multimode: 850nm 0 ~ 550M, singlemode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM. | |||
Chip Parameter | ||||
Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X, IEEE802.3x | |||
Forwarding Mode | Store and Forward(Full Wire Speed) | |||
Switching Capacity | 16Gbps | |||
Forwarding Rate@64byte | 8.93Mpps | |||
MAC | 8K | |||
Buffer Memory | 2M | |||
Jumbo Frame | 9.2K | |||
LED Indicator | Power: PWR (green);Network :Link, Link/Act (yellow); PoE : PoE (green) | |||
PoE & Power | ||||
PoE Port | Port 1 to 4 IEEE802.3af/at @ POE | |||
Power Supply Pin | 1/2 (+), 3/6 (-) | |||
Max Power Per Port | 30W; IEEE802.3af/at | |||
Total PWR / Input Voltage | 60W/48VDC | 120W/48VDC | ||
Power Consumption | Standby:<4W;Full load:<60W | Standby:<5W;Full load:<120W | ||
Working Voltage | 48-57VDC; 5P industrial Phoenix terminal, anti-reverse protection. | |||
Power Supply | No, optional 48V/60W or 48V/120W industrial power supply | |||
Physical Parameter | ||||
Operation TEMP / Humidity | -40~+80°C;5%~90% RH Non condensing | |||
Storage TEMP / Humidity | -40~+85°C;5%~95% RH Non condensing | |||
Dimension (L*W*H) | 119*100*30mm | |||
Net /Gross Weight | <0.6kg / <0.8kg | |||

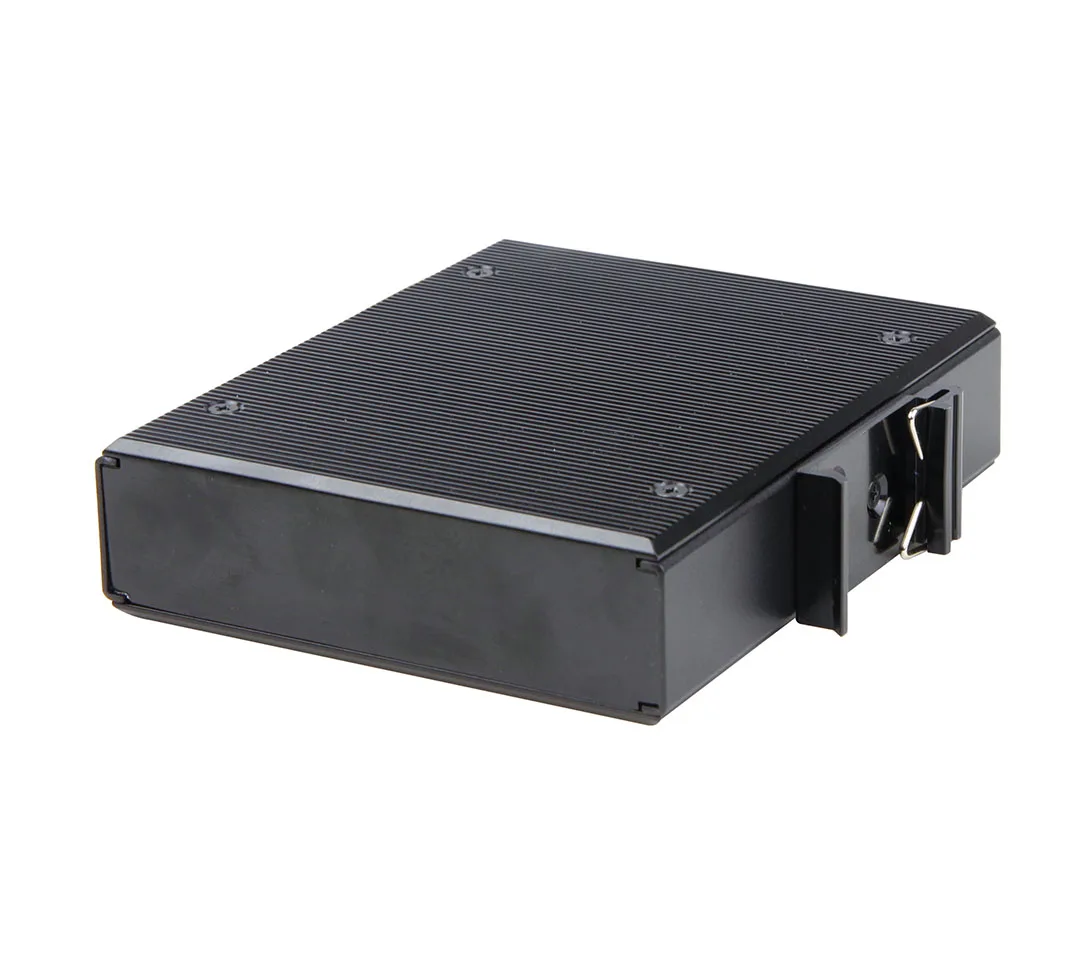

Installation | Desktop, DIN rail | |||
Certification & Warranty | ||||
Lightning protection / protection level | Lightning protection: 6KV 8/20us; Protection level: IP40 IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge IEC61000-4-3(RS):10V/m(80~1000MHz) IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz) IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s IEC61000-4-9(pulsed magnet field):1000A/m IEC61000-4-10(damped oscillation):30A/m 1MHz IEC61000-4-12/18(shockwave):CM 2.5kV,DM 1kV IEC61000-4-16(common-mode transmission):30V; 300V,1s FCC Part 15/CISPR22(EN55022):Class A IEC61000-6-2(Common Industrial Standard) | |||
Mechanical Properties | IEC60068-2-6 (anti vibration),IEC60068-2-27 (anti shock),IEC60068-2-32 (free fall) | |||
Certification | CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS; | |||
Warranty | 5 years , lifelong maintenance. | |||
Model | Description | Recommended power supply | ||||
ONV-IPS33064P | Unmanaged industrial PoE fiber switch with 4*10/100/1000M RJ45 ports and 2*10/100/1000M uplink SFP slot ports, Port 1-4 can support IEEE802.3af/at PoE. Support DC dual power supply input and DIN rail mounting. | 60W | ||||
ONV-IPS33064P-at | 120W | |||||
Note: Industrial PoE switch does not match the SFP optical module and power supply. | ||||||
PACKING LIST | CONTENT | QTY | UNIT |
6-port full gigabit industrial PoE fiber switch | 1 | SET | |
User Guide | 1 | PC | |
Warranty Card | 1 | PC |
