3 оси ЧПУ маршрутизатор пульт дистанционного

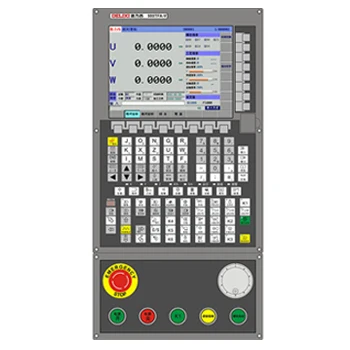

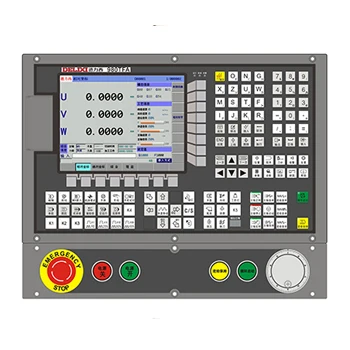

 DELIXI CNC CONTROLLER

High-performance industrial-grade ARM architecture processor, Cortex-A5 architecture;

There are 3 feed axes as standard, 1 axis can be set as C/S axis, 1 way (0-10V) spindle speed control;
1ms interpolation cycle, minimum control accuracy of 0.1u, maximum movement speed of 60M;
The adaptive servo spindle can realize spindle orientation, C/S axis interpolation, and has the function of handwheel trial cutting;
Built-in PLC, ladder diagram online display and editing, real-time monitoring, custom M code function;

Support A macro program and B macro program;
G71 groove machining cycle command, support ellipse interpolation, cylindrical interpolation function;
36/31 input and output IO; output IO has over-temperature, overload, and short-circuit protection functions;
Support servo turret, four-station electric turret, hydraulic turret, etc.;
