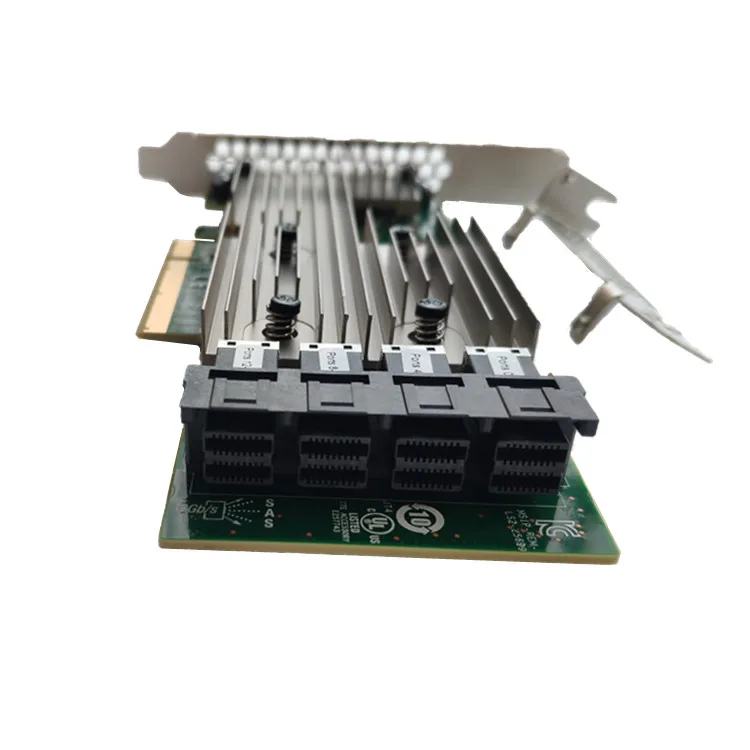

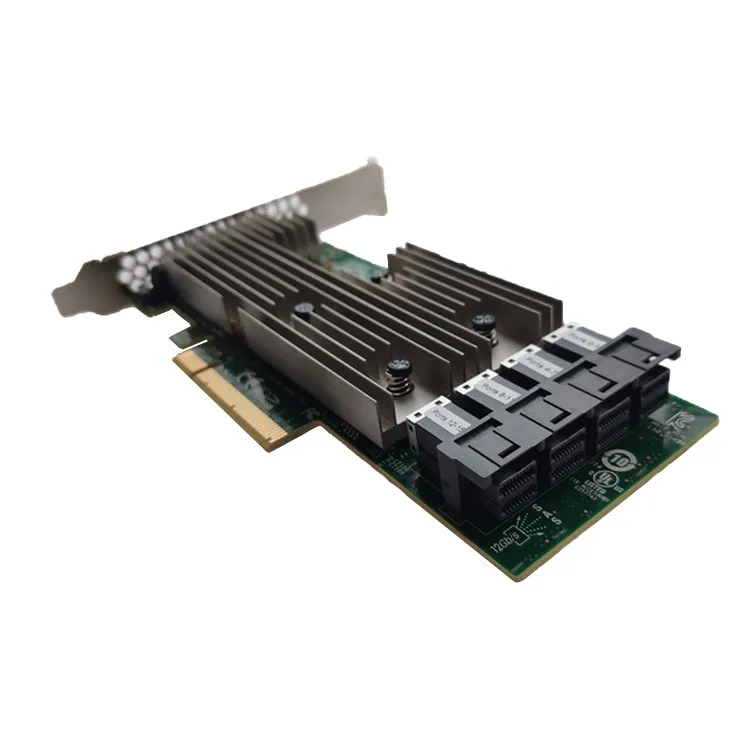

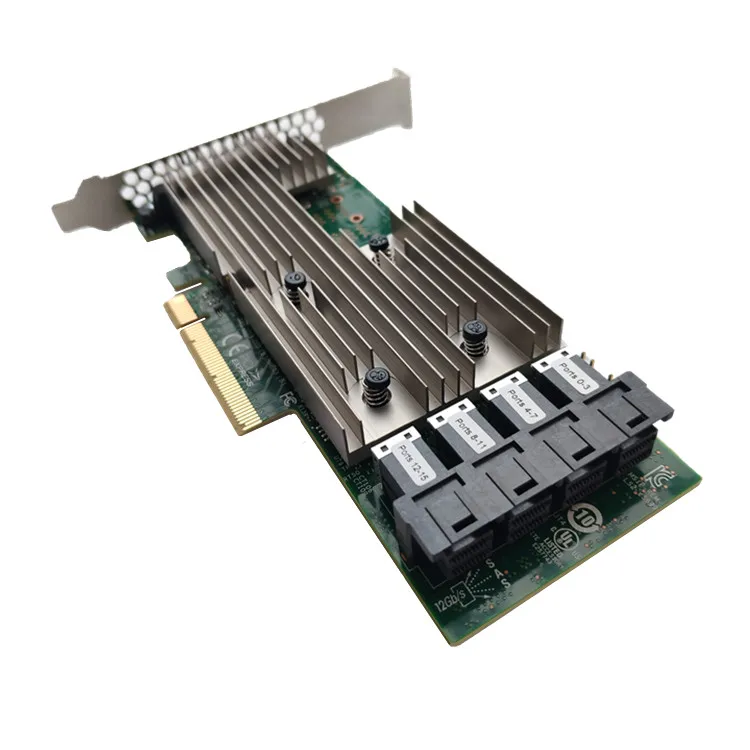

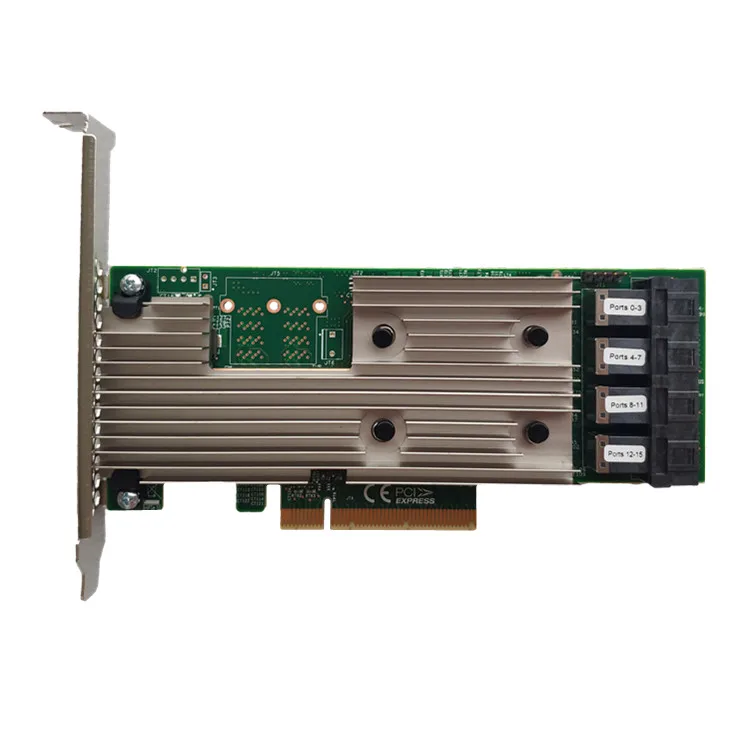

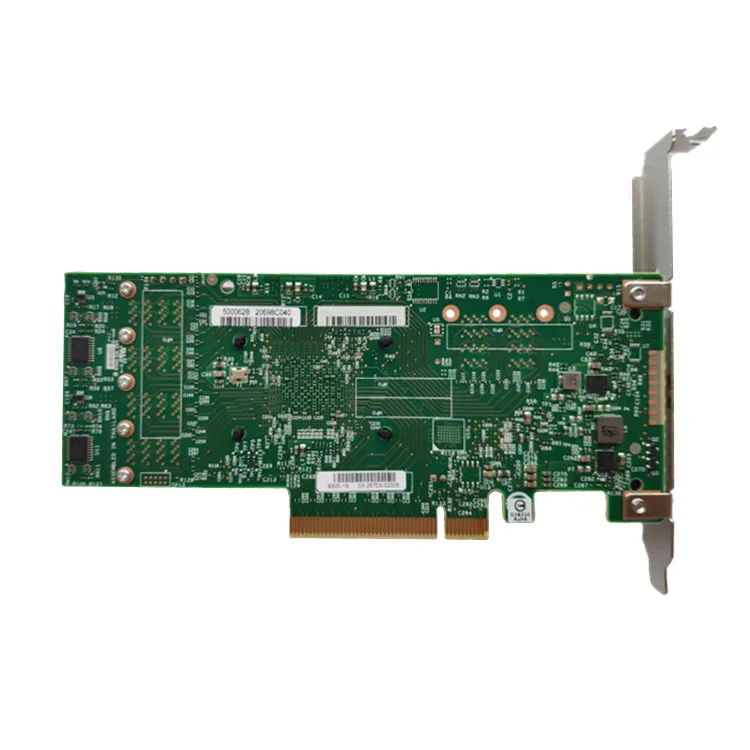

LSI logic MegaRAID 12 ГБ/сек. 16 порт SATA и SAS 9305-16i надписью
- Категория: Other Computer Parts >>>
- Поставщик: Shenzhen,Cloud,Storage,Information,Consulting,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.61 $* | 0.18 $* |
| Aug-18-2025 | 0.59 $* | 0.25 $* |
| Jul-18-2025 | 0.22 $* | 0.49 $* |
| Jun-18-2025 | 0.97 $* | 0.67 $* |
| May-18-2025 | 0.47 $* | 0.83 $* |
| Apr-18-2025 | 0.73 $* | 0.18 $* |
| Mar-18-2025 | 0.57 $* | 0.71 $* |
| Feb-18-2025 | 0.84 $* | 0.57 $* |
| Jan-18-2025 | 0.66 $* | 0.13 $* |
Характеристики
Product Description
IO Controller | SAS 3224/ Fusion MPT 2.5 |
Port Count | 16-port, internal |
Connectors | Mini-SAS HD SFF8643 Four (x4) |
Storage Connectivity Data Transfer Rates | 12Gb/s SAS 3.0 Compliant |
SAS Bandwidth | 1200 MB/s per port (each direction) |
Port Configurations | 16 ea, x1 ports (individual drives) 4 ea, x4 wide ports，2 ea, x8 wide ports |
Host Bus | x8 lane, PCIe 3.0 |
PCI Data Burst Transfer Rates | Half Duplex x8, PCIe 3.0, 8000 MB/s |
Form Factor | Low Profile |
Physical Dimensions | 6.127” x 2.712”(155.65 mm x 68.90 mm) |
Brackets | Low Profile & Full Height |
Cable Support | Passive Copper |
LED Management | Reference SFF-8485 (SGPIO) compliant |
Operating Voltage | +12V +/-8%; 3.3V +/-9% |
Power** | Typical：16.2W |
Device Support | 1024 Non-RAID devices |
Environmental | Operating: 0°C to 55°C Storage: -45°C to 105°C 5 to 90% non-condensing |
Airflow | 200 LFM |
MTBF | >3,500,000 hours at 40°C |
Regulatory Certifications | FCC、CE、KCC |
OS Support | Microsoft Windows, Linux (Oracle, SuSE , Red Hat), Solaris, VMware, FreeBSD, CentOS, Canonical, Citrix, FreeBSD, Fedora, Debian |
See http | //www.avagotech.com/support/download-search for details on versions. Contact Oracle support for Oracle driver or software support.. |
Warranty | 3 years |
Key Features
•Support for 16 internal, or 12Gb/S SAS and SATA ports
•Eight lanes, PCI Express 3.0 Host Interface
•Supports SSDs and HDDs and tapedrives
•High performance with 12Gb/s datatransfer rates and multiple SAS cores
–Up to 1.5 million IOPs @ 4KB block size
–Up to 6.5 GB/s sequential read throughput
•Support for 16 internal, or 12Gb/S SAS and SATA ports
•Eight lanes, PCI Express 3.0 Host Interface
•Supports SSDs and HDDs and tapedrives
•High performance with 12Gb/s datatransfer rates and multiple SAS cores
–Up to 1.5 million IOPs @ 4KB block size
–Up to 6.5 GB/s sequential read throughput
