Лиза -- HFU640UY400H13 высокая пропускная способность pp плиссированный фильтр для воды/фильтрующий элемент
- Категория: Water Filter >>>
- Поставщик: Xinxiang,Lifeierte,Filter,Corp.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.76 $* | 0.2 $* |
| Aug-19-2025 | 0.15 $* | 0.75 $* |
| Jul-19-2025 | 0.40 $* | 0.17 $* |
| Jun-19-2025 | 0.74 $* | 0.59 $* |
| May-19-2025 | 0.1 $* | 0.67 $* |
| Apr-19-2025 | 0.31 $* | 0.69 $* |
| Mar-19-2025 | 0.24 $* | 0.97 $* |
| Feb-19-2025 | 0.58 $* | 0.51 $* |
| Jan-19-2025 | 0.84 $* | 0.1 $* |
Характеристики
Product introduction

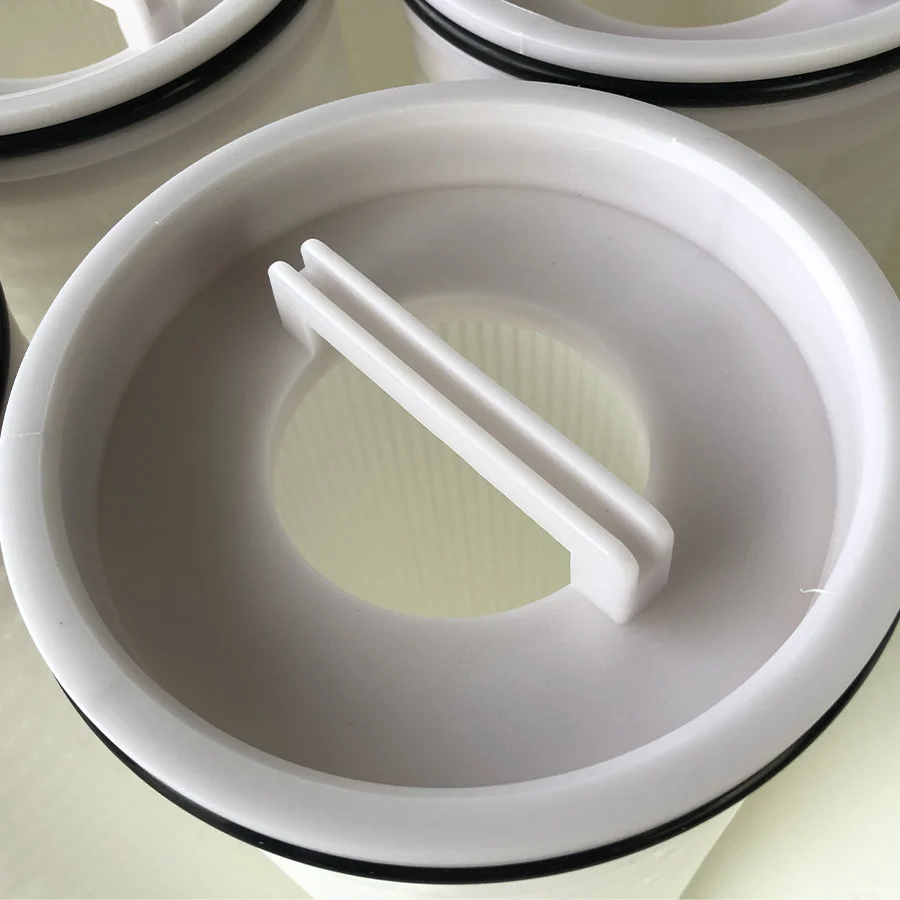

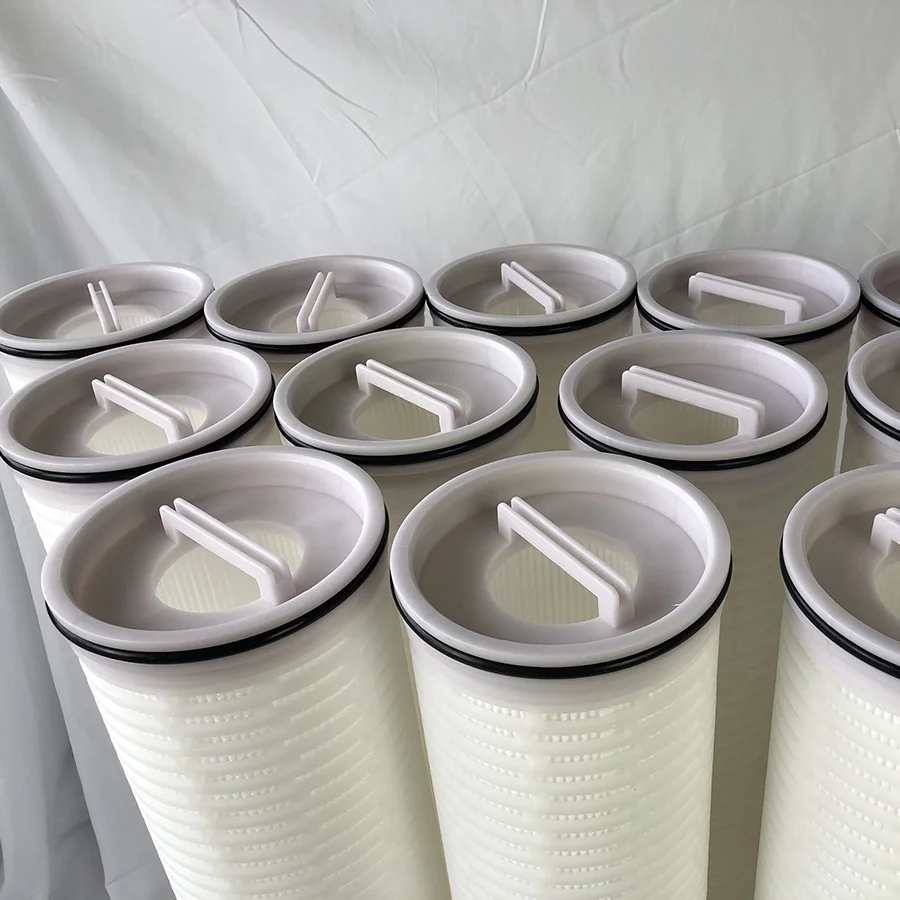

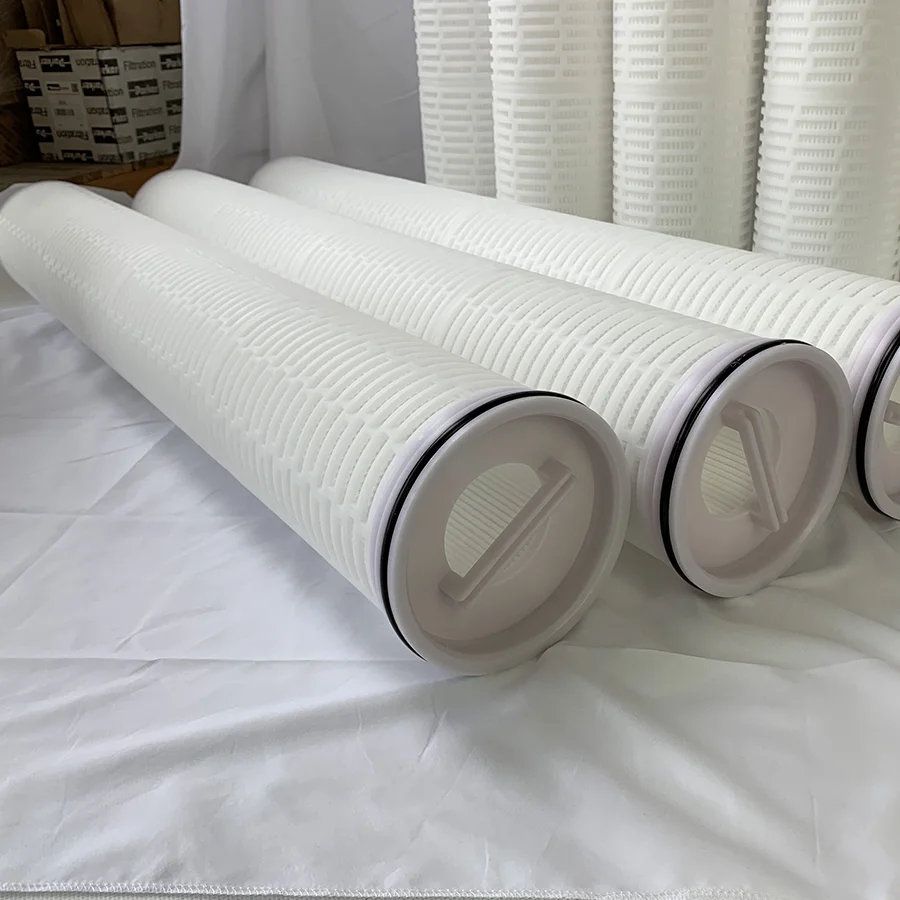

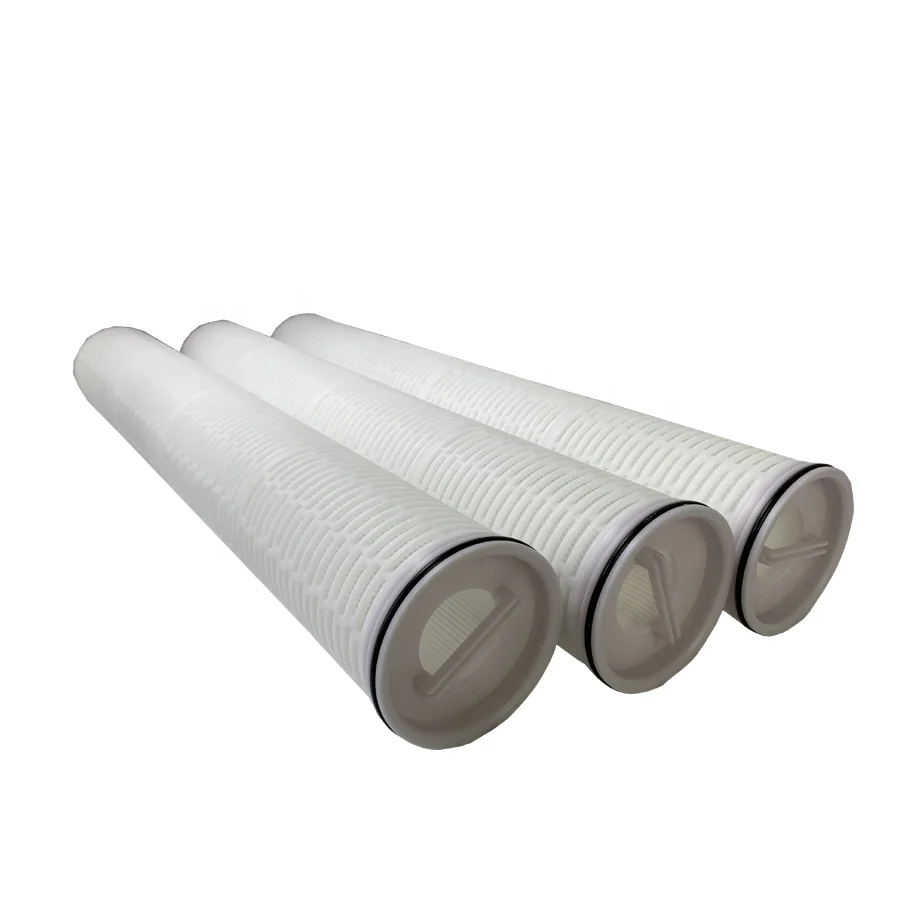

The high-flow folding filter uses deep fine polypropylene or glass fiber membrane as the filter material. It has a large diameter of 6 inches / 152mm, no central rod, one-way opening, and specially designed inside-to-outside filter direction to ensure all pollution. The particles are trapped inside the filter element. The ultra-large flow design significantly reduces the amount of filter cartridges and filter housing , greatly reducing equipment input costs and labor costs.
Features:
High filtration area, large flow
The filter element has a large effective filtration area, low pressure drop and large flow.
Large dirt holding capacity and long life
The deep fine membrane material is used to scientifically design the multi-layer gradient pore filter structure, which makes the filter element have the characteristics of high dirt concentration, thereby prolonging the service life of the filter element and saving the user cost.
A variety of specifications can be selected]
A wide range of filtration accuracy from 0.5μm to 100μm is available to meet different filtration levels. The length
specifications can be selected from 20", 40", and 60".
High filtration area, large flow
The filter element has a large effective filtration area, low pressure drop and large flow.
Large dirt holding capacity and long life
The deep fine membrane material is used to scientifically design the multi-layer gradient pore filter structure, which makes the filter element have the characteristics of high dirt concentration, thereby prolonging the service life of the filter element and saving the user cost.
A variety of specifications can be selected]
A wide range of filtration accuracy from 0.5μm to 100μm is available to meet different filtration levels. The length
specifications can be selected from 20", 40", and 60".
Technical principle
Product Specifications:
Product Size
[Outer diameter]: Ø 152mm
[length]: 20 ”, 40 ”, 60 ”
Structural materials
[ Filter media ]: PP / glass fiber
[Shell/Center Rod/End Cover]: PP
[ Sealing material ]: silicone rubber, ethylene propylene rubber, fluoro rubber, Teflon fluoro rubber
Technical performance
[Maximum operating temperature]: 80 ° C
[Maximum working pressure difference]: 3 bar@ 21°C
Product Size
[Outer diameter]: Ø 152mm
[length]: 20 ”, 40 ”, 60 ”
Structural materials
[ Filter media ]: PP / glass fiber
[Shell/Center Rod/End Cover]: PP
[ Sealing material ]: silicone rubber, ethylene propylene rubber, fluoro rubber, Teflon fluoro rubber
Technical performance
[Maximum operating temperature]: 80 ° C
[Maximum working pressure difference]: 3 bar@ 21°C
Relevant models
HFU620UY200H4
HFU620UY200H4W
HFU620UY400H
HFU620UY400H1
HFU620UY400H4
HFU620UY400H4W
HFU620UY700H1
HFU620UY700H13
HFU640UY200H4
HFU640UY200H4
HFU640UY200H4W
HFU640UY200HW
HFU640UY200J
HFU640UY400H
HFU640UY400H1
HFU640UY400H13
HFU640UY400H13W
HFU660UY200H4W
HFU660UY200H4W
HFU660UY200HW
PFTM1-20U-HFH13
PFTM1-40U-HFH13
PFTM1-60U-HFH13
HF40PP005
HF40PP010
HF40PP040
HF40PP070
HF40PP100
HF30PP005
HF30PP005
HF30PP010
HF30PP030
HF30PP070
HF30PP100
HF20PP005
HF20PP005
HF20PP010
HF20PP020
HF20PP070
HF20PP100
RFP010-40
RFP050-40
RFP100-40
RFP500-40
RFP1000-40
RFP010-30
RFP050-30
RFP100-30
RFP500-30
RFP1000-30
RFP010-20
RFP050-20
RFP100-20
RFP500-20
RFP1000-20
