FZ-180B автоматическая упаковочная машина для игральных

FZ-180B автоматическая упаковочная машина для игральных

Категория: Boxing Machines >>>
Поставщик: Wenzhou,Xinguang,International,Trade,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	0.80 $*	0.31 $*
Aug-17-2025	0.90 $*	0.25 $*
Jul-17-2025	0.25 $*	0.92 $*
Jun-17-2025	0.2 $*	0.77 $*
May-17-2025	0.61 $*	0.3 $*
Apr-17-2025	0.21 $*	0.31 $*
Mar-17-2025	0.74 $*	0.1 $*
Feb-17-2025	0.55 $*	0.38 $*
Jan-17-2025	0.83 $*	0.63 $*

Характеристики

Our Services

As distributor, our most advantage is competitive price and effective aftersale service.

we offer on-the-spot serivice within 24 hours worldwide

Your one stop solution for Printing&Packaging

Packing Machine

Product Description

Function and Characteristics

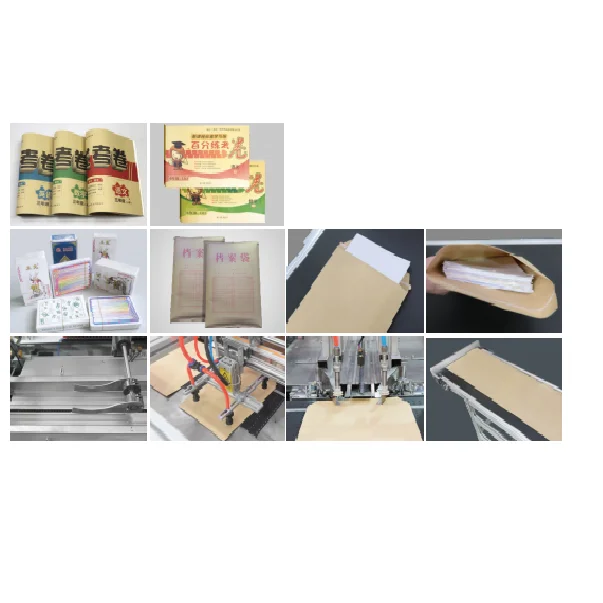

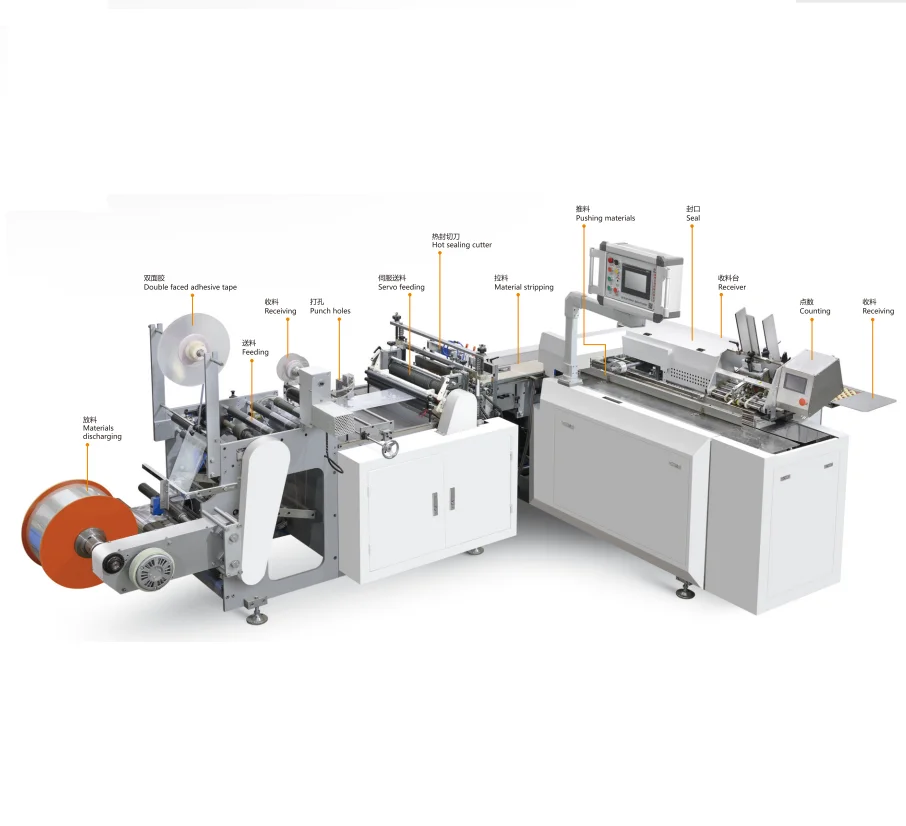

The machine is a dedicated device for fully automatic bag packing for product card, postcard, red packet, manual, certificate of honor, comic book,document bag, warranty card, envelope, shingle, notebook, hangtag, insole and heterogenic product. It has such functions as folding in half, bag making, counting, trimming, gilding, labeling, sticking adhesive label, bagging and hot sealing and cutting.
The whole action is of moderm movement module control with PLC multiaxial servo execution to realize memory function of PLC specification and dimension data. Convenient data commissioning, simple and reasonable structure, accurate and fast positioning as well as automatic transport and counting of finished products exist.

Main technical Parameter

Max speed	2600-3700/(pcs/h)
Max size of packing	200x 260mm
Min size of packing	85x 100mm
Thickness of packing	25mm
Film thickness	0.025-0.04mm
Max. diameter of film	280mm
Motor power	12Kw
Pump power	2.2Kw
Machine weight	2200Kg
Dimension of machine	5200x 4500x 1550mm


Model	650GS	800GS	1100GS
A	650-100	800-100	1100-100
B	500-60	800-60	800-60
Size of two-sides glue box and folded box
Model	650GS	800GS	1100GS
A	500-100	800-150	1100-250
B	400-60	800-60	800-60
H	150-20	150-20	150-20
Size of bottom-locked carton and folding carton
Model	650GS	800GS	1100GS
A	650-146	800-146	1100-250
B	450-60	700-60	1700-80
H	180-20	180-20	100-25
Size of 4 corners box and folding box
Model	650GS	800GS	1100GS
A	500-120	800-120	1100-120
B	400-120	800-130	800-130
C	150-20	150-30	150-30
Size of 6 folds box and folding box
Model	650GS	800GS	1100GS
A	500-120	800-120	1100-250
B	400-100	800-130	800-130
C	150-30	150-30	150-30
