18650 26650 вертикальный цилиндрический 5V2A3A6A 512-канал литиевая батарея пропускная способность
- Категория: Battery Testers >>>
- Поставщик: Kexin,Electronic,Technology,(dongguan),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.72 $* | 0.99 $* |
| Aug-19-2025 | 0.73 $* | 0.49 $* |
| Jul-19-2025 | 0.81 $* | 0.86 $* |
| Jun-19-2025 | 0.21 $* | 0.32 $* |
| May-19-2025 | 0.77 $* | 0.26 $* |
| Apr-19-2025 | 0.43 $* | 0.89 $* |
| Mar-19-2025 | 0.9 $* | 0.30 $* |
| Feb-19-2025 | 0.8 $* | 0.84 $* |
| Jan-19-2025 | 0.99 $* | 0.12 $* |
Характеристики
Specification

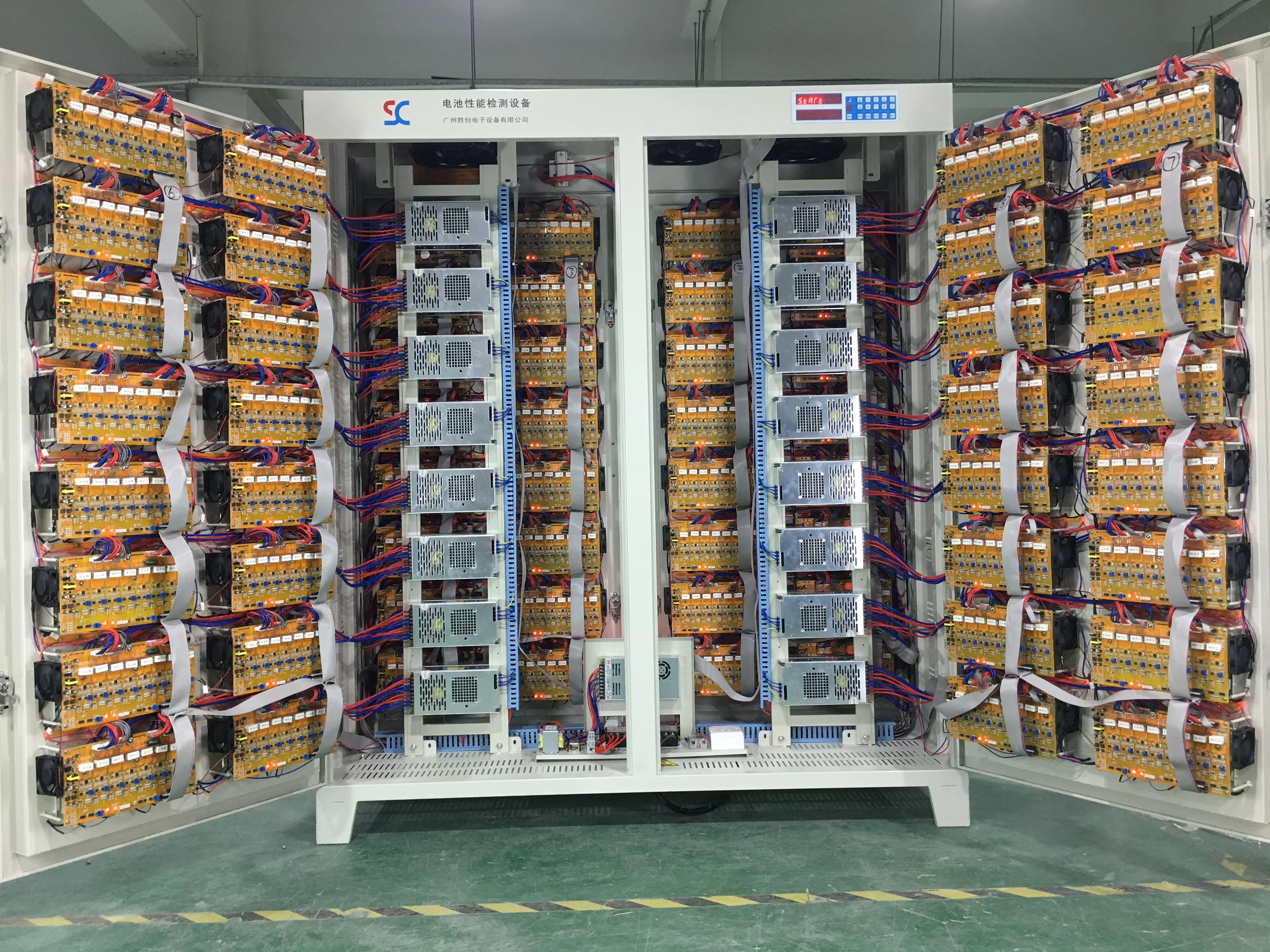

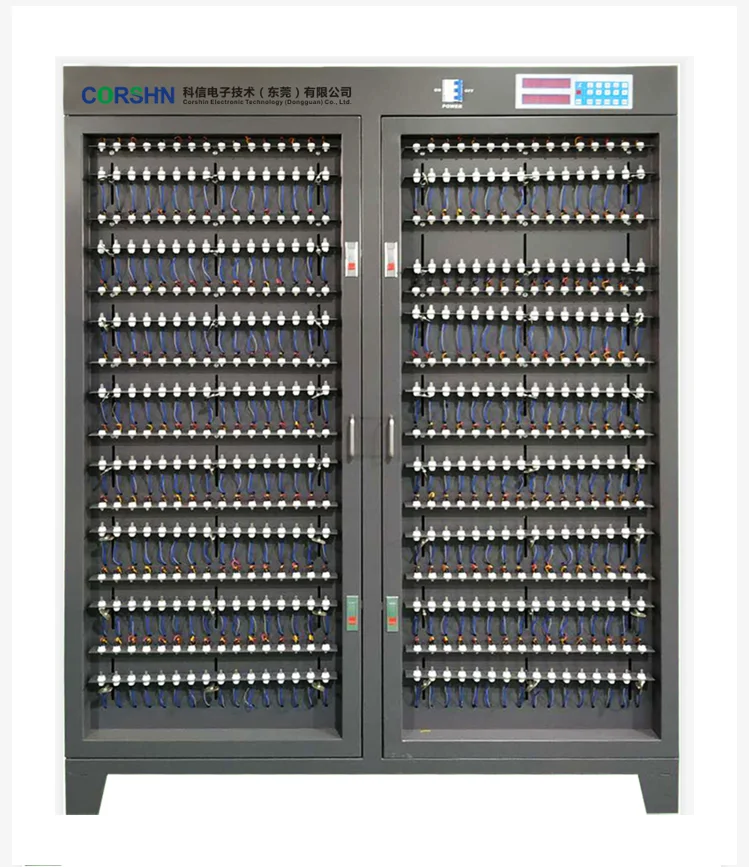

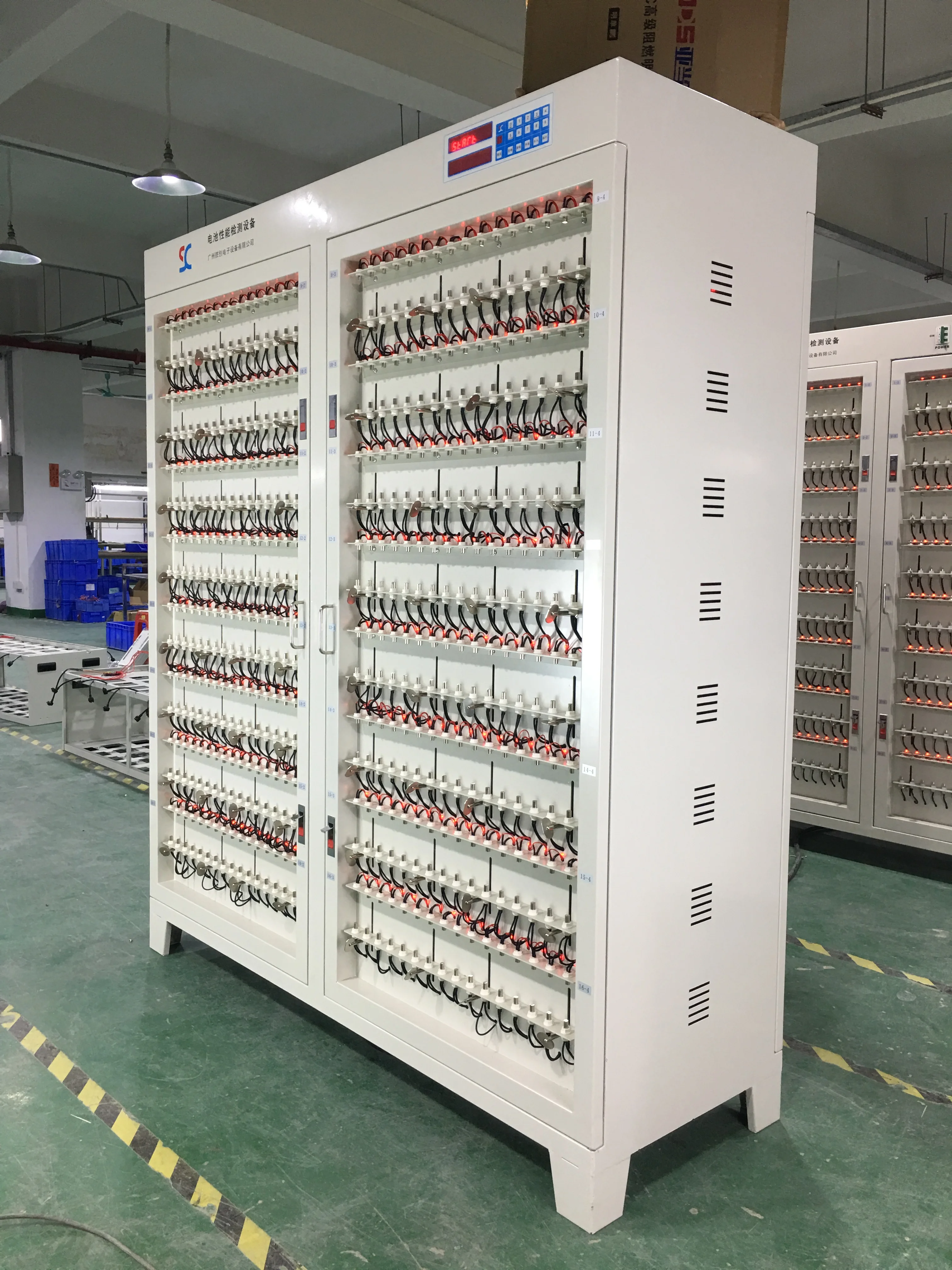

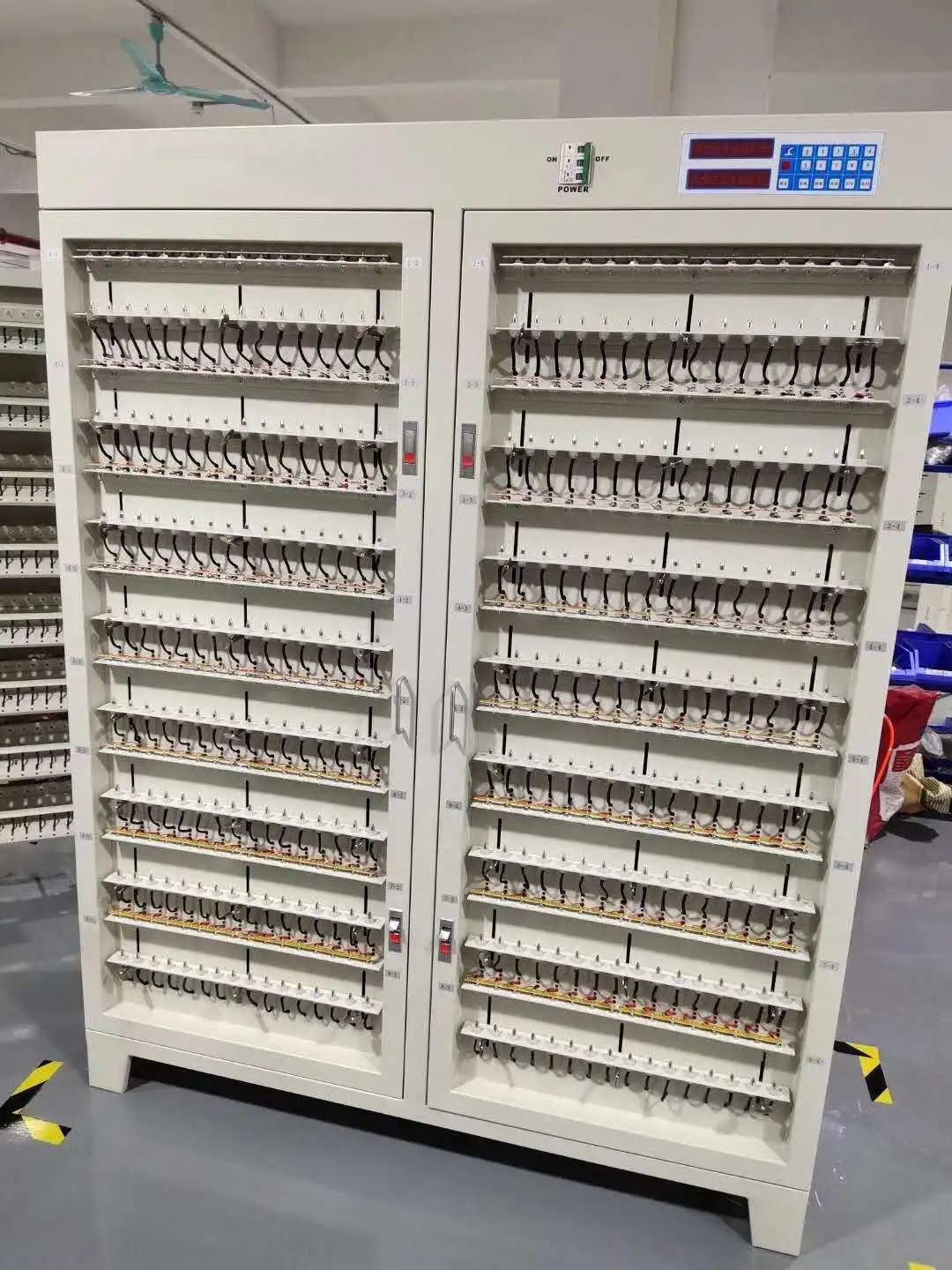

Battery performance inspection equipment (Four wire method) | ||
Equipment structure | ||
Device channel number | The whole machine has a total of 512 channels | |
Size (width * depth * height) cm | 143*50*184/160*55*184 | |
Chassis color | Off-white as standard | |

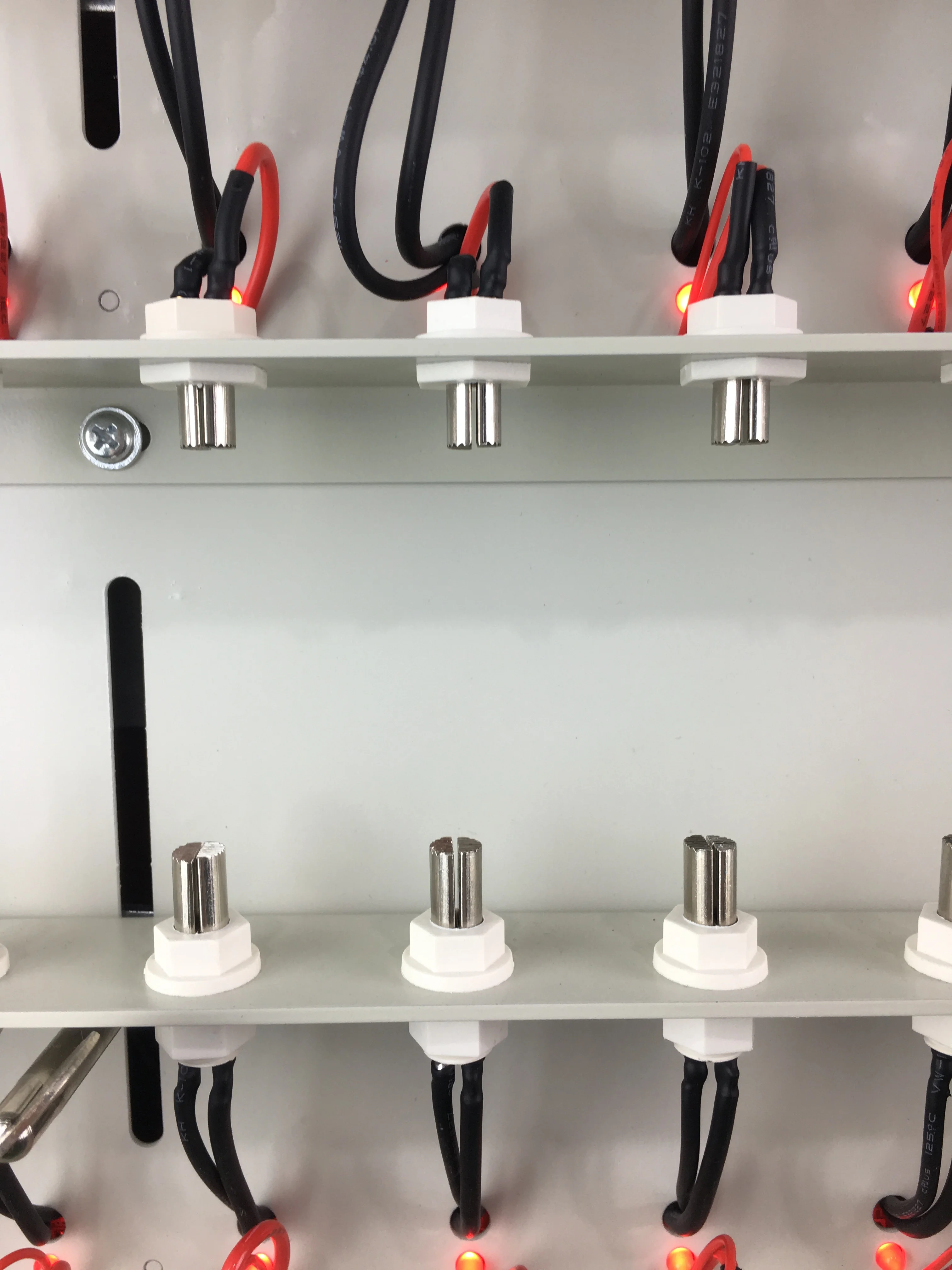

Fixture form | Cylinder four-wire method fixture | |
Center distance of fixture | 35MM | |
Support battery height | Adjustable within the range of 10-100MM | |
Power supply | Three-phase five-wire system AC380V±10%, 50HZ | |
Working power consumption | ≤9KW | |
working environment | Temperature 0-40 degrees, relative humidity ≤80% | |
Cooling method | Natural intake, upward exhaust | |
Channel parameters | ||
Voltage measurement range | 0-5V, resolution 1MV | |
Battery voltage range | Punch 0-4.5V: put 4.5-2V | |
Constant voltage range | 2.5V-4.5V | |
Voltage accuracy | ±(1‰ reading+1‰ full scale) | |
Current range | 20MA-2A, resolution (R) 1MA | |
Current accuracy | ±(1‰ reading+1‰ full scale) | |
Software function | ||
way to control | The computer is connected to the equipment, and the whole cabinet is controlled | |
communication method | RS485, baud rate 57600 | |
Process settings | Up to 32 steps and 256 cycles can be set | |
Charging mode | Constant current | |
Charging cut-off condition | Voltage, current, time, capacity | |
Discharge mode | Constant current | |
Discharge cut-off condition | Voltage, time, capacity | |
Protective function | Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity, etc. | |
time limit | Arbitrarily set within 0-30000 minutes | |
Time accuracy | ≤±1‰ | |
Sampling inspection cycle | ≤8S | |
Minimum data recording frequency | ≤8S | |
Product Description
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Cosun electronic technology (Dongguan) Co. , Ltd. ("Corshin")-new energy lithium battery assembly (Pack) equipment manufacturing and technical service provider Corshin is a research and development, design, production, sales, technical service training as one of the high-tech enterprises. The R & D Team is made up of advanced talents who have been grinding in the field of new energy lithium battery equipment for more than ten years. With the professional technical level and perfect sales, after-service management, the rapid rise in the industry. For the new energy lithium battery assembly and manufacturing areas to make a huge contribution! Corshin now provides lithium battery PACK equipment: capacity tester, automatic core sorting machine (support customization) , high-speed coated barley paper machine, automatic spot welding machine, finished product tester, battery core components capacitance equipment, finished product aging testing equipment, etc. , for the majority of new energy
Production workshop
FAQ
Q1: What company do we belong to?
A1: We are a manufacturer and a trader.
Q2: How long is our delivery time?
Q3: How to order?
A3: Please mail your order or request to us, and tell us the following information: shipping details, including company name, address, person, phone number, quantity.
Q4: How many discounts are available for ordering products?
A1: We are a manufacturer and a trader.
Q2: How long is our delivery time?
A2: This depends on the quantity of the goods you ordered, we have stock, usually 15-20 days delivery time.
Q3: How to order?
A3: Please mail your order or request to us, and tell us the following information: shipping details, including company name, address, person, phone number, quantity.
Q4: How many discounts are available for ordering products?
A4: As long as you provide us with your demand, we will give you the best price.
