Wholesale Agriculture Chinese Tunnel Plastic Film Single-span Greenhouse
Product Description
Item name | Single span greenhouse |
Span width | 6m-10m as customer requirements |
Length | 20m to 100m, etc. |
Structure | Hot galvanized steel frames |
Greenhouse cover | 120-200 micron PE/PO film, anti-uv and anti-fog |
Equipped systems | Side ventilation, cooling systems, warming system, irrigation system and hydroponic systems for vegetables, etc. |
Single-span film greenhouse is applied to the cultivation of vegetables and other economic crops, effectively prevent natural disasters and improve unit area output and income.
It's advantage is easy assembly, lower investment and high output.
It's advantage is easy assembly, lower investment and high output.
Single span greenhouse characteristic
1.Simple structure in all types of greenhouses ,easy in installation and maintiation.
2. Excellent hot galvanized steel structures and accessories, anti-corrosion, 15 year using life .
3.Proprietary technology in PE film , Famous brand, thinner more durable.Guaranteed 5 years using life.
4. Ventilation and insect nets can give your planting under comfortable situation. Increasing yield.
5. Cucumbers, tomatoes, yield per 1000㎡ normally more than 10000kg
2. Excellent hot galvanized steel structures and accessories, anti-corrosion, 15 year using life .
3.Proprietary technology in PE film , Famous brand, thinner more durable.Guaranteed 5 years using life.
4. Ventilation and insect nets can give your planting under comfortable situation. Increasing yield.
5. Cucumbers, tomatoes, yield per 1000㎡ normally more than 10000kg
Different types of single span greenhouse can be supplied, customized type with drawing is also accepted.
The following is several kinds of single-span greenhouse.

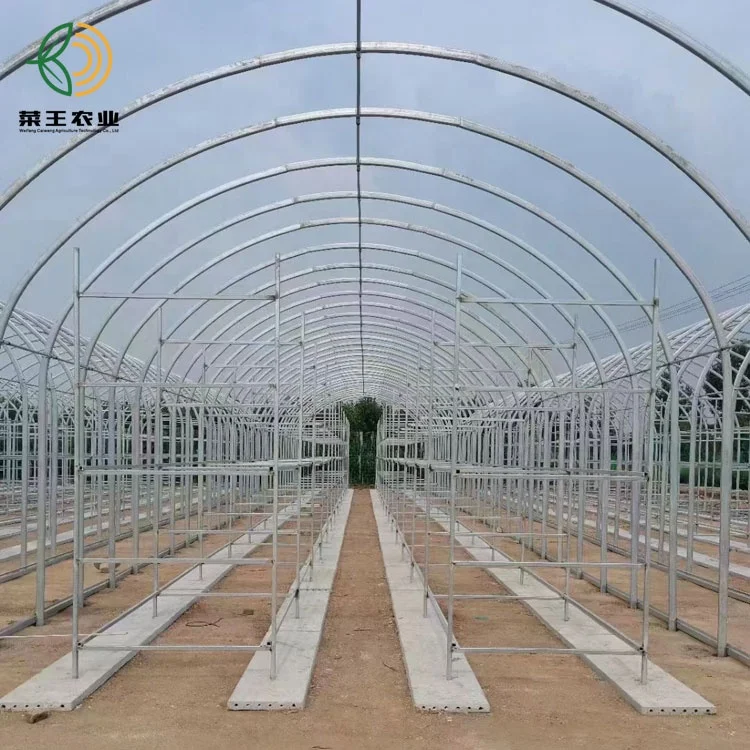

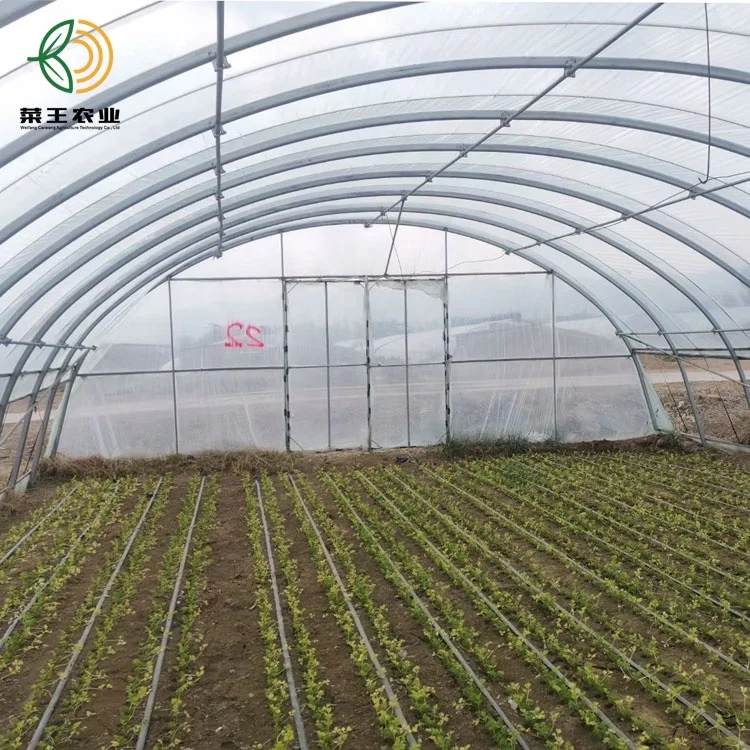

This is simple single span greenhouse, round tunnel, the main frames is inserted into ground about 50cm.
You can grow all vegetables in the greenhouse in Winter, Spring and Autumn.

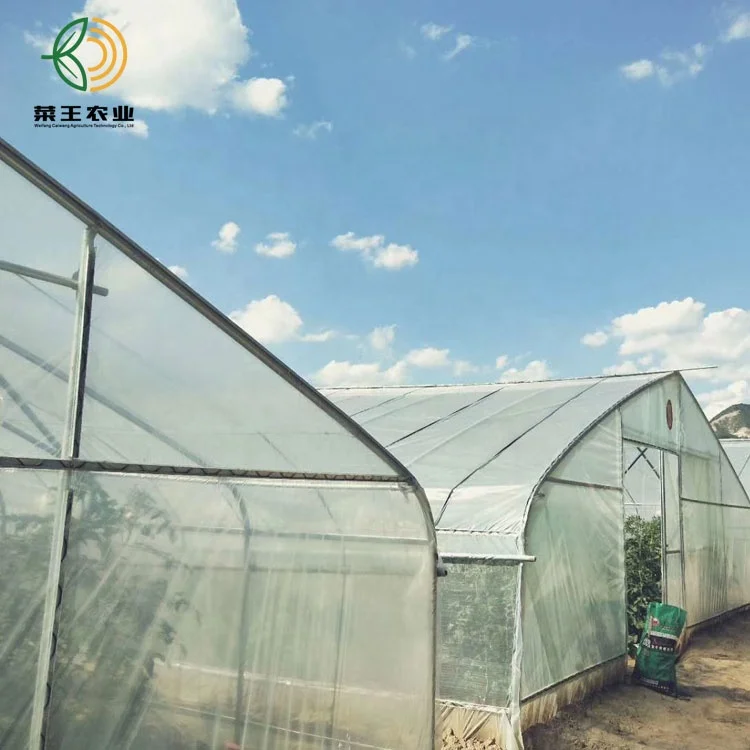

There is a sharp top for this single span greenhouse, it is more beautiful and commonly used now.
If exhaust fan and cooling pad equipped, you can plant vegetables in four seasons.

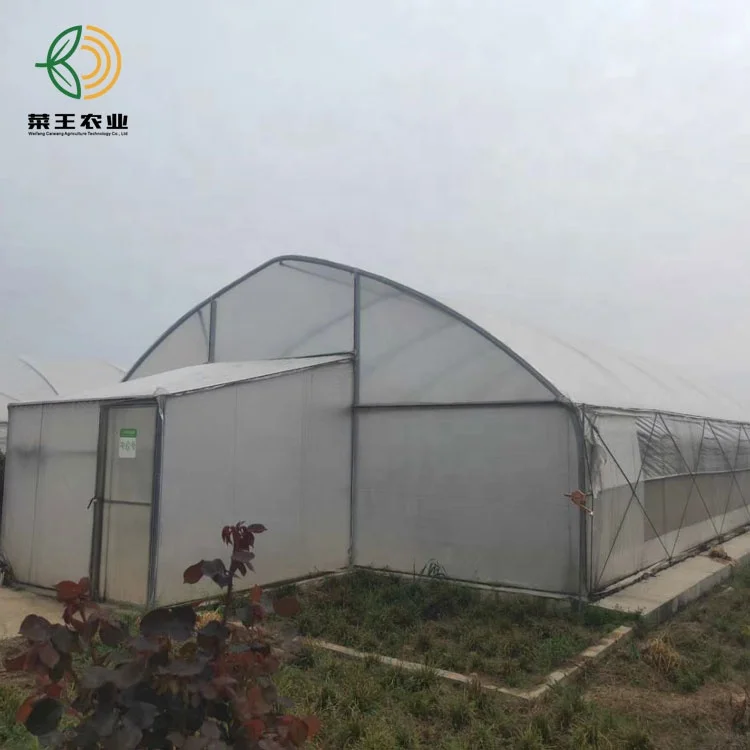

Buffer room is used to prevent insects going into the greenhouse, and also have a function for warming in winter.
For commercial agriculture, the outside shading system can cool down the air in summer for better growing condition.
This is sawtooth type single span greenhouse, the top and side ventilation can increase the air circulation.
The eave height is 3-3.5m, total height is about 5m, so it is commonly used for tomatoes, cucumber, peppers growing.
Composition of greenhouse
Material standards: The main frame design
conforms to the "GB 50017-2003 Steel Structure Design Code", the steel material conforms to the "GB700-88 Carbon Structural
Steel", and the steel and accessories must conform to the "GB/T13912-2002 Metal Cover-Steel Product Thermal Technical Requirement
for Galvanized Layer "Hot-dip galvanized anti-corrosion, smooth and flat surface, thickness of galvanized layer ≥40µm;
Steel", and the steel and accessories must conform to the "GB/T13912-2002 Metal Cover-Steel Product Thermal Technical Requirement
for Galvanized Layer "Hot-dip galvanized anti-corrosion, smooth and flat surface, thickness of galvanized layer ≥40µm;
The greenhouse is covered by PEP film.
Film thickness: 120/150 /200 micron.
Light transmission: ≥ 90%
Diffusion: ≤ 20% UV
transmission: 300-390%
Diffusion: ≤ 20% UV
transmission: 300-390%
The plastic film is fixed by lock channel system, including aluminum lock channel and Zip spring.
Sides Ventilation: The greenhouse 2 sides
can be rolled up & down by manual or
electric roll up machine through a round metal tube which we named it roll tube. The 40/60 mesh insect net will be offered to prevent the insects entering into greenhouse if side ventilation window opened.
Top vent : customized, saw tooth type ventilation top can also be offered.
Top vent : customized, saw tooth type ventilation top can also be offered.
Cooling pad ( Optional)
If you want to achieve 4 season planting for vegetables, it is better to add the cooling system.
Outside is Aluminum frame, height is 1.5m with thickness 100-150mm, including the upper/down pipes and pumps.
Outside is Aluminum frame, height is 1.5m with thickness 100-150mm, including the upper/down pipes and pumps.
The pads and fans are used together to realize the functions of cooling and ventilation.
Size: Exhaust Hammer Fans in 1380*1380*400 mm with wind volume 44000 m3/h.
Size: Exhaust Hammer Fans in 1380*1380*400 mm with wind volume 44000 m3/h.
Company Profile
Weifang Caiwang Agricultural Technology Co.,Ltd. is located in Weifang city. It is a comprehensive company that integrates agricultural technology R&D, hydroponic cultivation, greenhouse design and construction, agricultural materials supply, and agricultural technology services. We can design economically reasonable and energy-saving greenhouses, such as multi-span greenhouses (glass, PC board, PO film), solar greenhouses and simple arch sheds according to the requirements of customers according to customer's local climate conditions.
Our own technical team dedicate to provide you with quality service from design to production. Constantly research and develop new products and technologies in the industry enhance the core competitiveness of enterprises. Continuously improve the quality of products and services. Committed to the development of high-tech agriculture. We warmly welcome customers from all over the world for cooperation.
Certifications
FAQ
1. Are u a manufacturer or a trade company?
We are an integrated manufacturing with our own planting base and processing factory.
2. What is MOQ ?
In general, the minimum order is 500sqm, which can be negotiated online.
3. What is your payment term?
For first cooperation, it's better to do T/T or L/C, after we trust more each other, we negotiate terms suitable for each
other, details can be discussed online.
4. How to install greenhouse?
First we prepare the material and export. After your customs clearing, we send engineers or all workers to guide to install. If you want to save money, we only send engineers, and you match local workers. If you think it is hard to do, we also can send engineers and workers to install for you.
5. When installing, what cost should we pay?
Our engineers and workers visas and round-trip tickets, their foods and accommodation, their communication fees.
2. What is MOQ ?
In general, the minimum order is 500sqm, which can be negotiated online.
3. What is your payment term?
For first cooperation, it's better to do T/T or L/C, after we trust more each other, we negotiate terms suitable for each
other, details can be discussed online.
4. How to install greenhouse?
First we prepare the material and export. After your customs clearing, we send engineers or all workers to guide to install. If you want to save money, we only send engineers, and you match local workers. If you think it is hard to do, we also can send engineers and workers to install for you.
5. When installing, what cost should we pay?
Our engineers and workers visas and round-trip tickets, their foods and accommodation, their communication fees.
