Характеристики

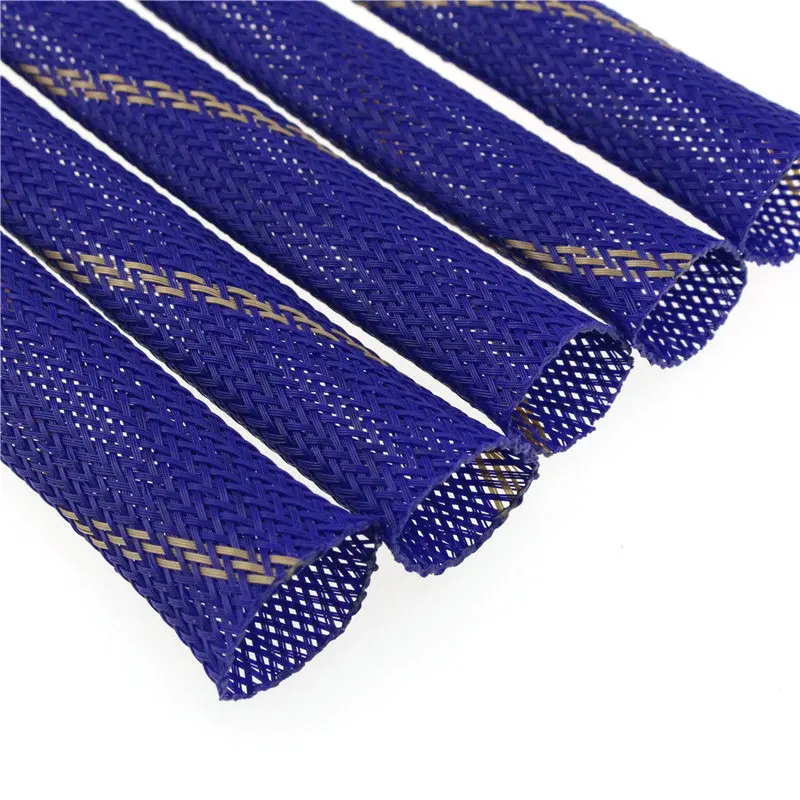

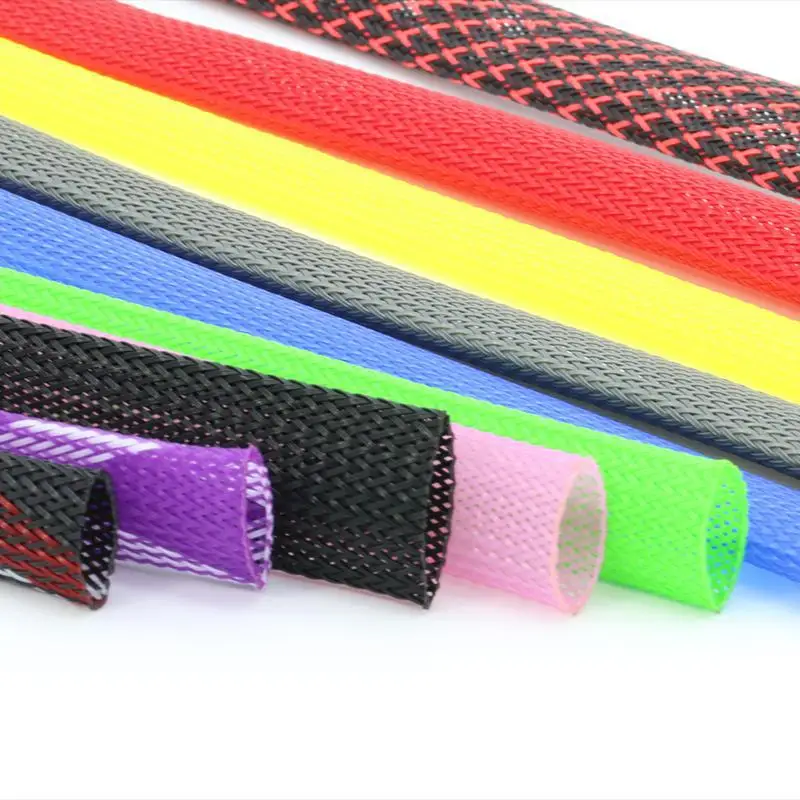

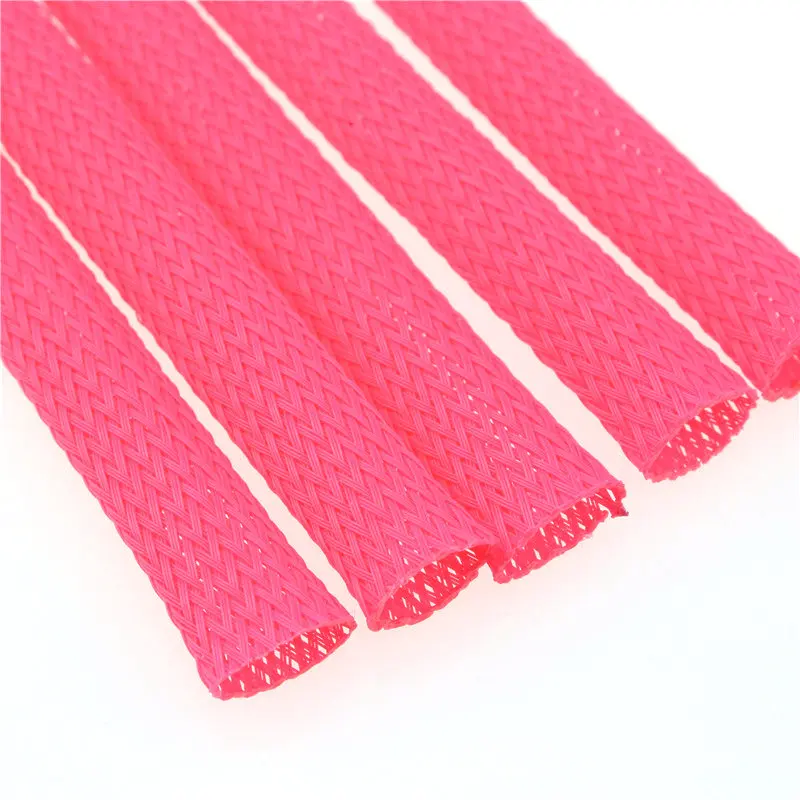

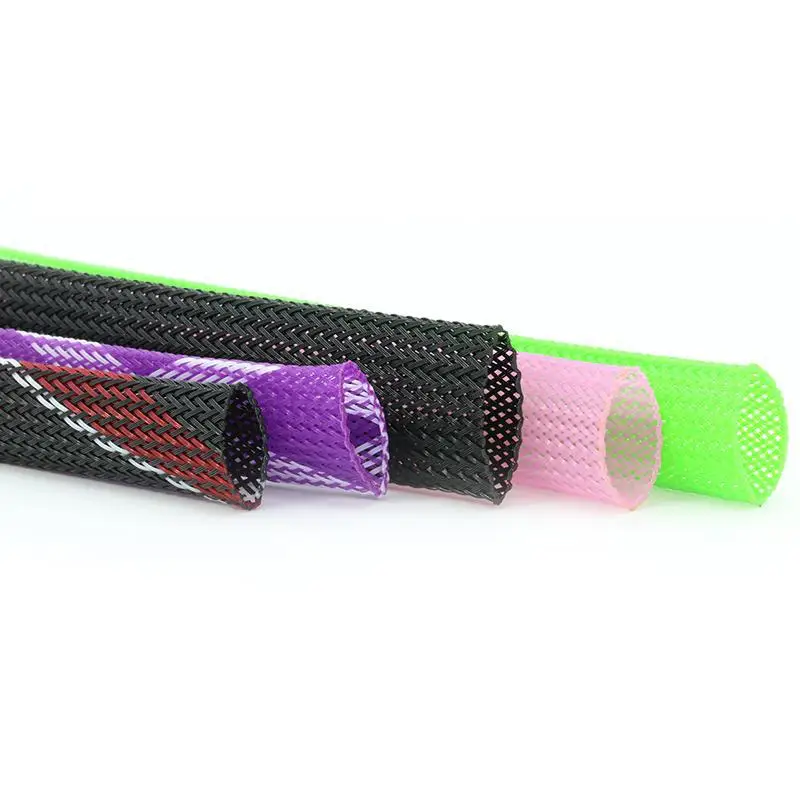

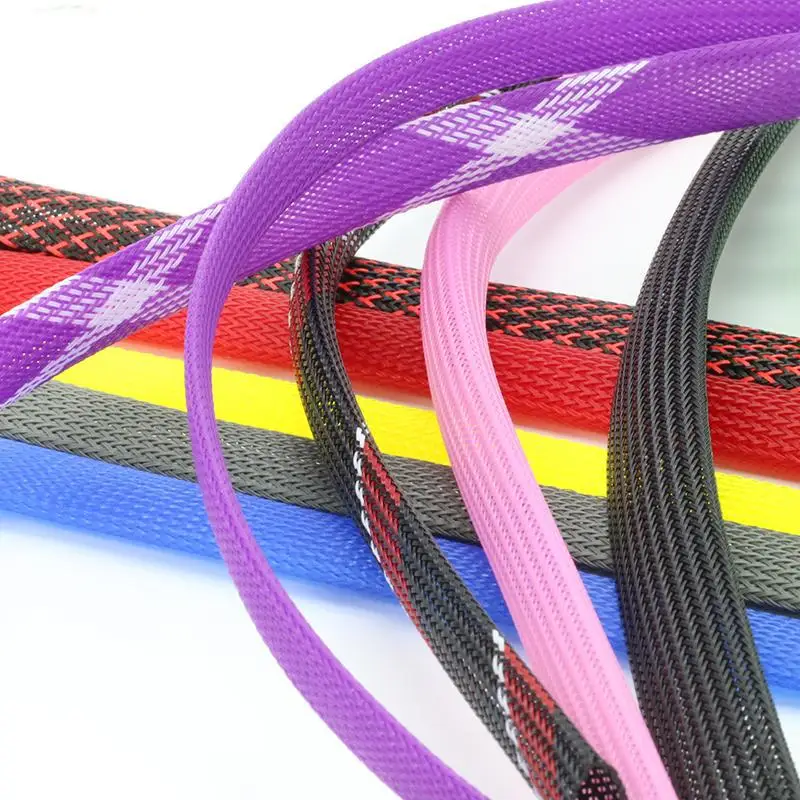

Polyester Expandable Braided Cable Sleeve
Braided cable sleeve made of 0.25mm thick PET monofilament.The special braid construction permits the sleeving to be expanded by up to 150%, with high abrasion resistance, allow quick and easy fitting over irregular components.
The pet monofilament are very flexible,flame retardant,UV resistance,resist most of oils, common fuels and solvents. It keep high performance in wide operating temperature range.
Polyester braided sleeving popular used in electronics, automotive, marine and industrial wire harnessing applications where cost efficiency and durability are critical.
Feactures and benefits
1.Made of polyester monofilament
2.Flame retardant
3.Extremely lightweight
4..Keeps it's flexibility under a wide range of temperatures
5.Economical & easy to install
6.Resists gasoline, chemicals & cleaning Solvents
7.Expands Up to 150% of Initial Diameter
8.Cut & Abrasion Resistant
Physical Properties
| Product | Polyester Expandable Braided Cable Sleeve |
| Mtaerial | PET monofilament |
| Working temperature | -50℃ to 150℃ |
| Melt Point | 240+(-)10℃ |
| Flammability | VW-1 |
| Size range | 2mm~100mm |
| Stnard color | Black,white,grey |
| Custom color | Available |
| Certificated | ROHS,Reach,Halogen free |
| Cutting tool | Hot knife |
Application
MJ flexo pet widely use for whenever a higher expansion rate is required,it is a general purpose protective wire covering for industrial cable,A/V cable,Hdmwire harness,pneumatic hoses, hydraulic lines and highly polished or threaded machine parts.
Specification
| Part No | Standard Size | Expanded Range | Standard Color | Packing Length (m/spool) | ||
| inch | mm | Min(I) | Max(O) | |||
| MJ-PEBS-003 | 1/8" | 3mm | 1mm | 6mm | Black | 1000m/spool |
| MJ-PEBS-006 | 1/4" | 6mm | 3mm | 9mm | 500m/spool | |
| MJ-PEBS-008 | 5/16" | 8mm | 5mm | 12mm | 350m/spool | |
| MJ-PEBS-010 | 3/8" | 10mm | 7mm | 17mm | 350m/spool | |
| MJ-PEBS-012 | 1/2" | 12mm | 8mm | 20mm | 300m/spool | |
| MJ-PEBS-016 | 5/8" | 16mm | 10mm | 27mm | 250m/spool | |
| MJ-PEBS-020 | 3/4" | 20mm | 14mm | 30mm | 200m/spool | |
| MJ-PEBS-025 | 1" | 25mm | 18mm | 33mm | 200m/spool | |
| MJ-PEBS-032 | 1-1/4" | 32mm | 20mm | 50mm | 150m/spool | |
| MJ-PEBS-038 | 1-1/2" | 38mm | 30mm | 60mm | 100m/spool | |
| MJ-PEBS-045 | 1-3/4" | 45mm | 35mm | 75mm | 100m/spool | |
| MJ-PEBS-050 | 2" | 50mm | 40mm | 80mm | 100m/spool | |
| MJ-PEBS-064 | 2-1/2" | 64mm | 45mm | 105mm | 100m/spool | |
| MJ-PEBS-076 | 3" | 76mm | 64mm | 120mm | 100m/spool | |
Why Choose us
Fully integrated company-product development,manufacturing,distribution,marketing
One stop cable management solution– you can find everything you need to protect you wire at MJ
Customer satisfaction guarantee– quick ordering process,direct contact,quick availability,every customer is a partner in our mission!
Multi-certification– ISO9001:2016,ISO14001:2015,IATF16949:2016,ROHS,Reach,etc
Unparalleled customer service /Free technical guidance
Value added services– ODM service,pre-cutting service,customized packing and enclosures, and more
FAQ
- QWhat is the MOQ ?
- A500 M for our own available designs
- QCan I mix different designs?
- ASure!
- QCan I get a lower price if I order large quantities?
- AYes, cheaper prices with more bigger size orders.
- QCan I add or delete items from my order if I change my mind ?
- AYes, but you need to tell us asap. If your order has been done in our production line, we cannot change it. It is about 2 days after confirming the order.
- QCan I get the pre-production sample ?
- AYes, we will send you pp sample, after you confirm, then we will start production.
- QWhen you ship my order?
- ANormaly 7-10 days receiving your payment, but it can be negotiated based on order qty and production schedule.
- QHow about the quality guarantee period?
- AOne year!
- QHow can you guarantee the production quality ?
- AOur production quality follows ROHS,Reach,Halogen Free,CSA standards,We have 10 years experience of QC team. We have strictly quality control system in our production process. We have 4 times inspection for each finished product before package Third part inspection accepxable.
