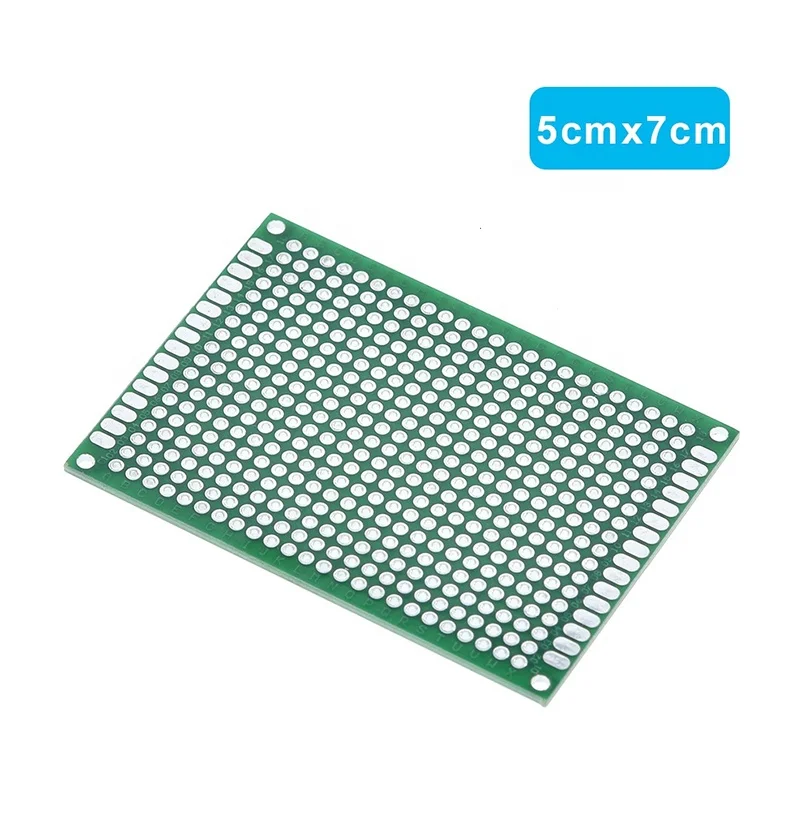

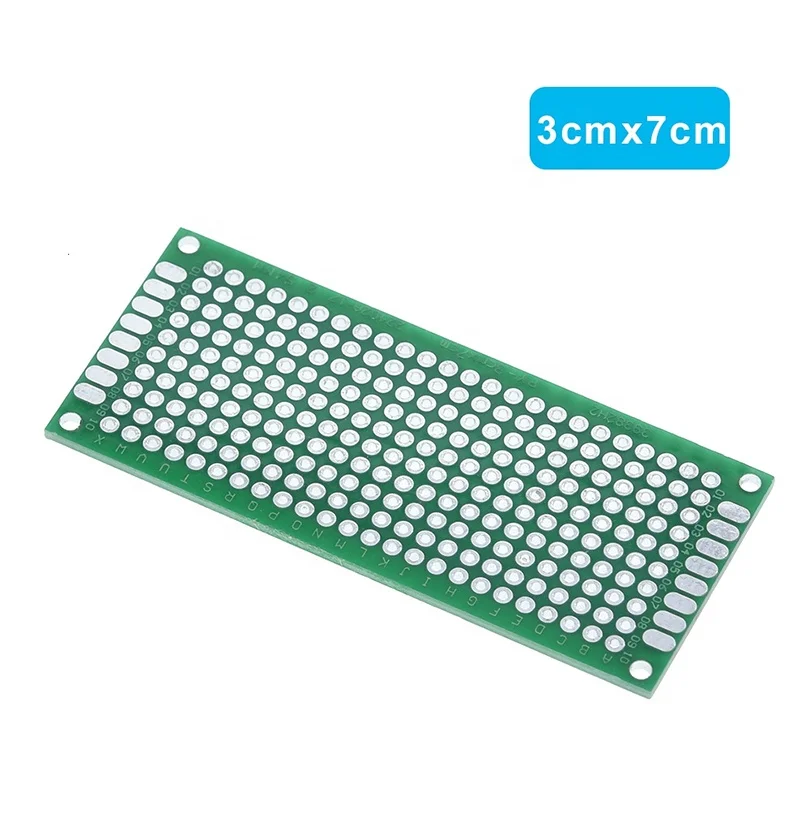

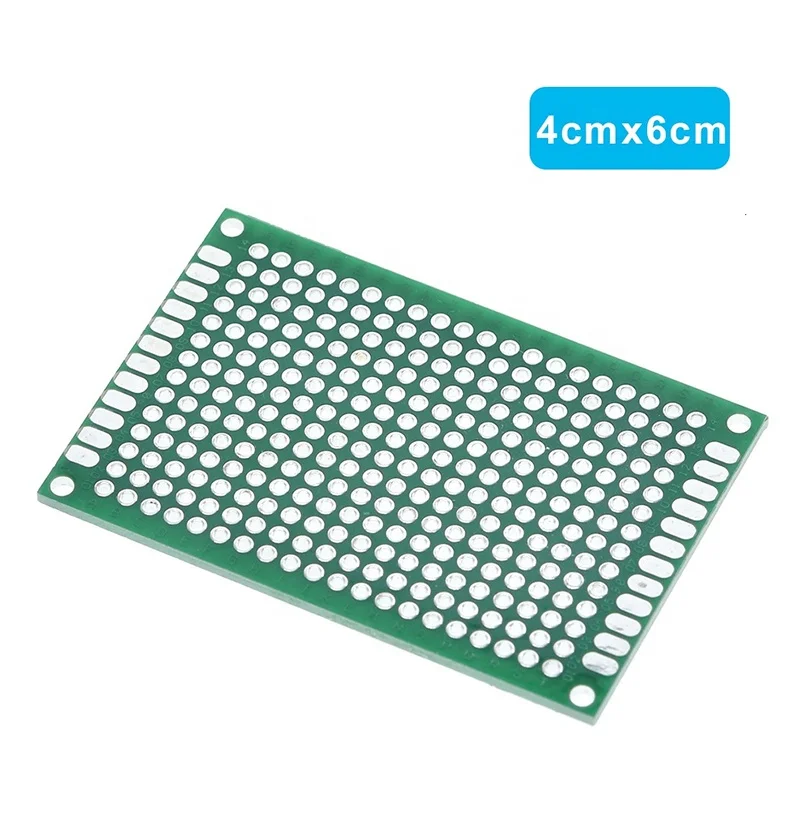

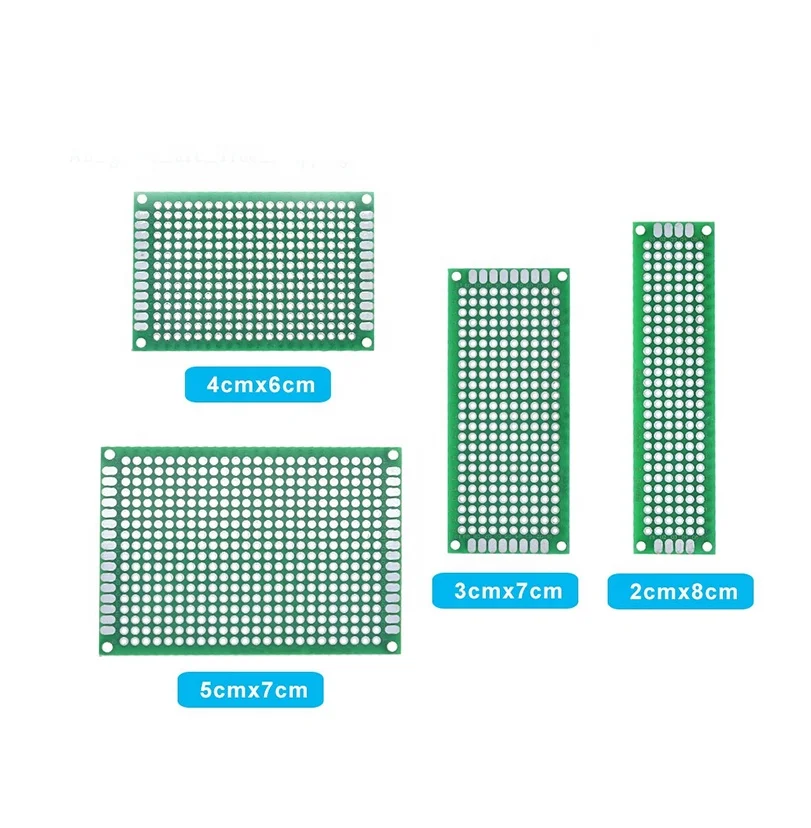

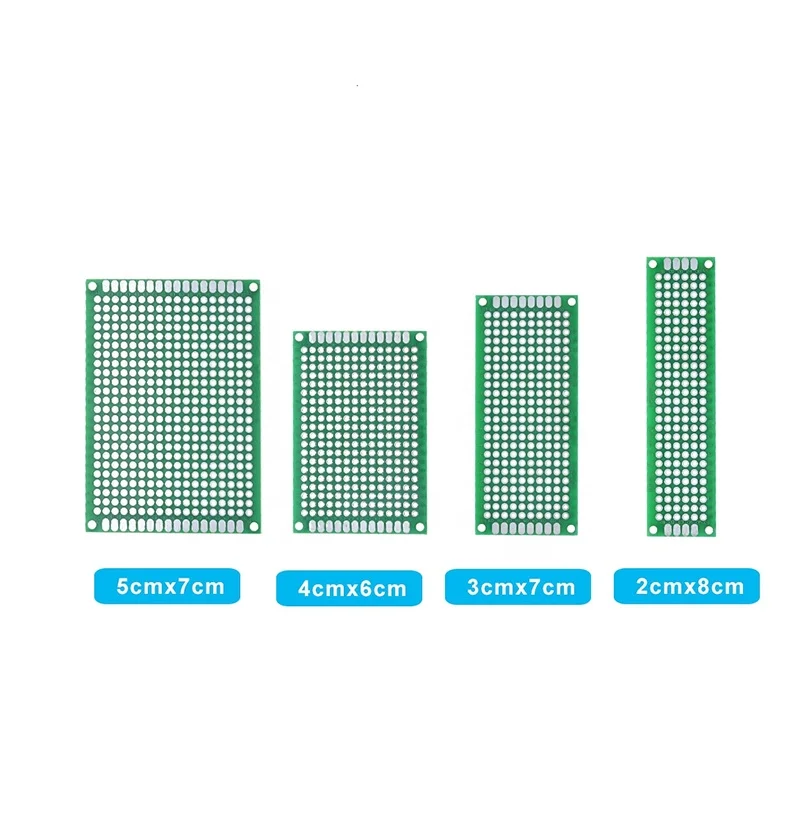

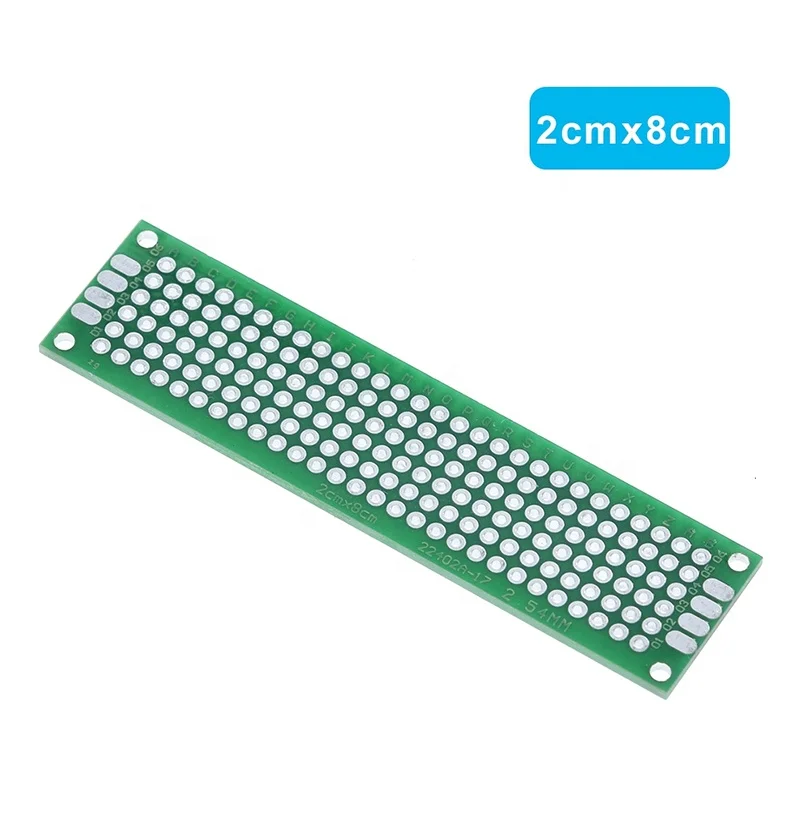

Китайская двухсторонняя электронная печатная плата Fr4 1 6
- Категория: Multilayer PCB >>>
- Поставщик: Shenzhen,Xinweisai,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.95 $* | 0.42 $* |
| Aug-19-2025 | 0.18 $* | 0.34 $* |
| Jul-19-2025 | 0.95 $* | 0.62 $* |
| Jun-19-2025 | 0.28 $* | 0.75 $* |
| May-19-2025 | 0.6 $* | 0.23 $* |
| Apr-19-2025 | 0.51 $* | 0.28 $* |
| Mar-19-2025 | 0.6 $* | 0.18 $* |
| Feb-19-2025 | 0.12 $* | 0.14 $* |
| Jan-19-2025 | 0.92 $* | 0.83 $* |
Характеристики
Product Information
Item | Manufacturer Capability | Min. Track Space | 0.075mm |
Layer | 1-30 Layers | External Cu Thickness | 18um-210um(HOZ-6OZ) |
Material Type | FR4, High-TG,Halogen Free, Rogers, Aluminum Base | Internal Cu Thickness | 18um-210um(HOZ-6OZ) |
Max. Panel Dimension | 646*1200mm | Drilling Bit Size | 0.15-6.5mm |
Outline Tolerance | ±0.1mm | Finished Hole Dimension | 0.1-6mm |
Board Thickness | 0.6mm-6mm | Hole Tolerance | ±0.05mm |
Board Thickness Tolerance | ±10% | Hole Position Tolerance | ±0.05mm |
Dielectric Thickness | 0.075mm-2mm | Laser Drilling Hole Size | 0.075mm |
Min. Track Width | 0.075mm | Aspect Ration | 10:01 |
More Favorable Price 、More Detailed Introduction、More Quality Service
Please Contact us
