Водонепроницаемая плата IC из цинкового сплава карта NFC ISO1443A и считыватель доступа по отпечатку

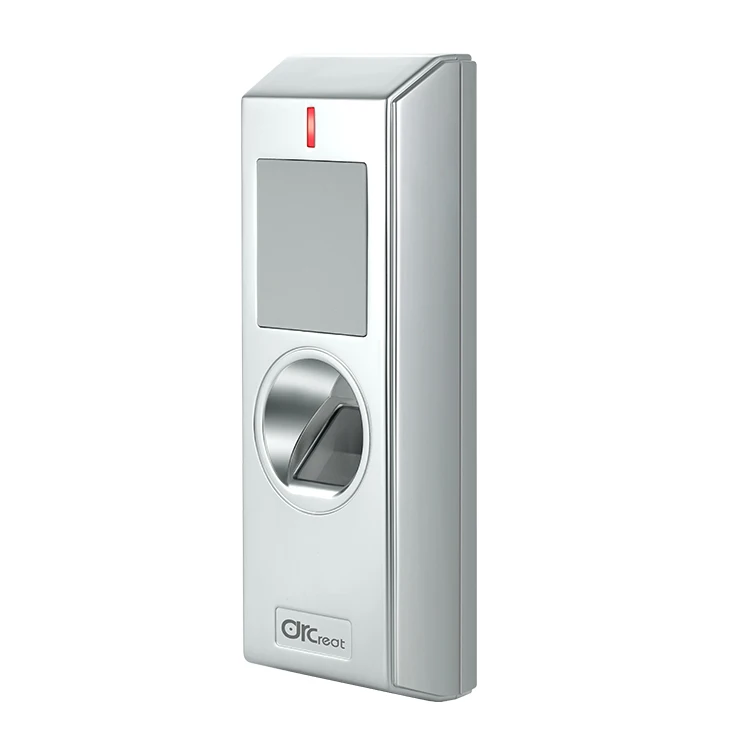

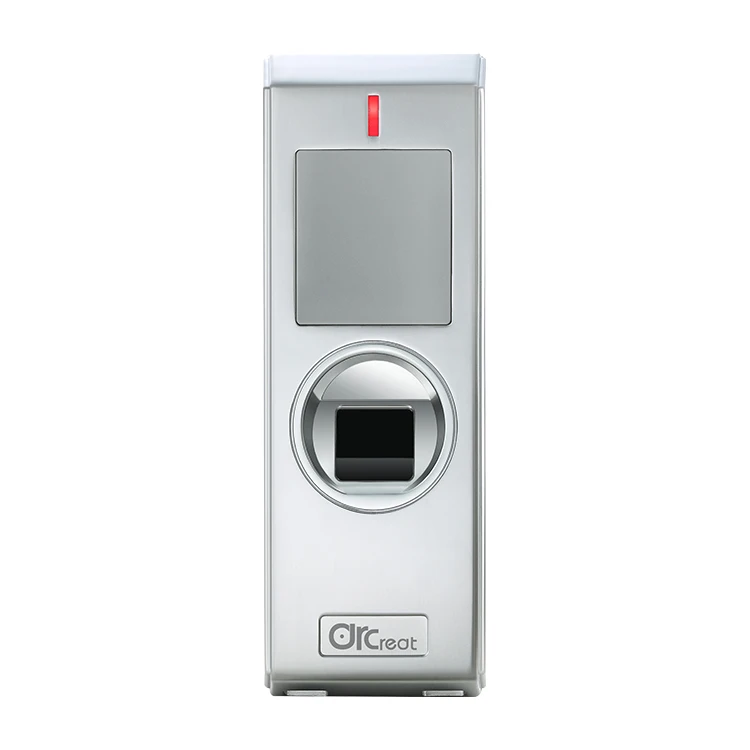

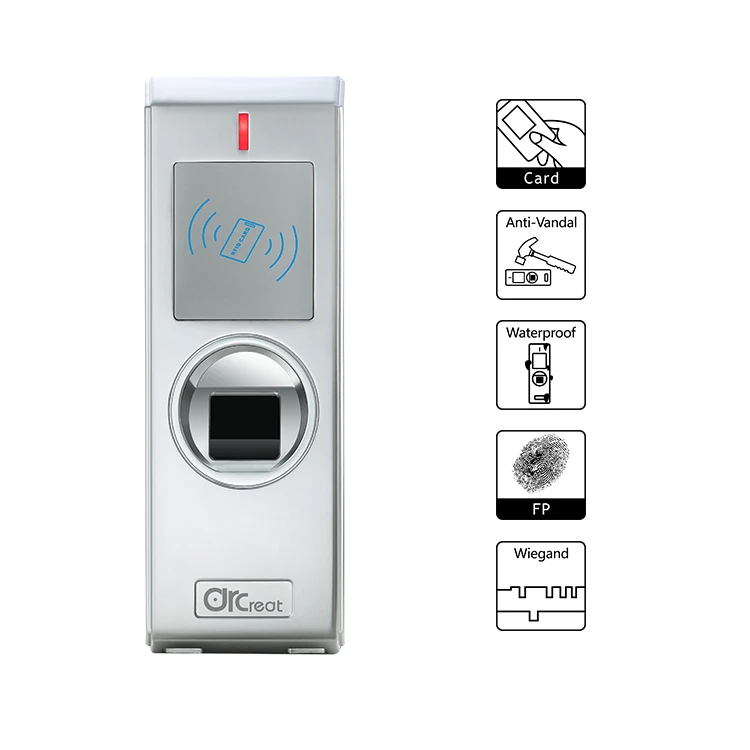

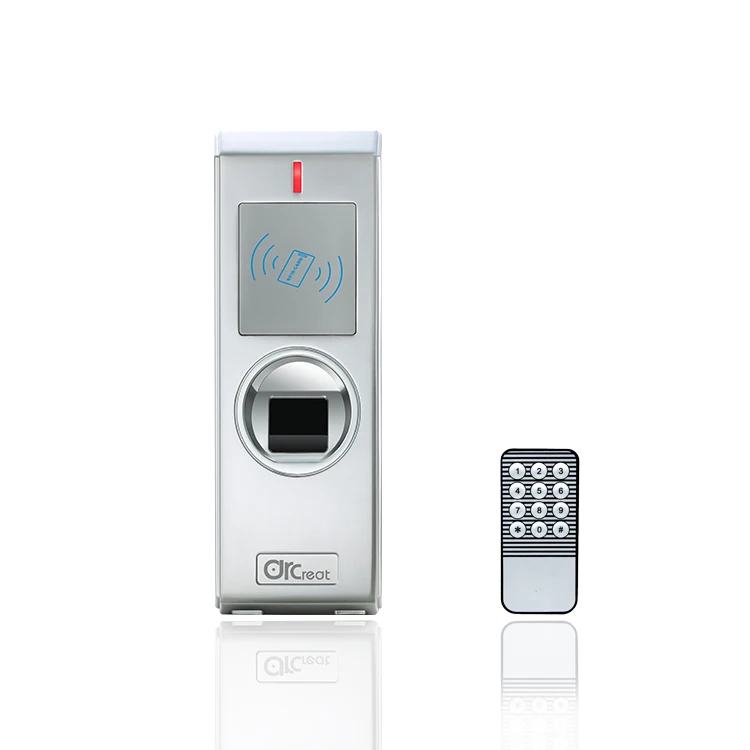

 AF1 Metal fingerprrint waterproof access control/reader

Key Features

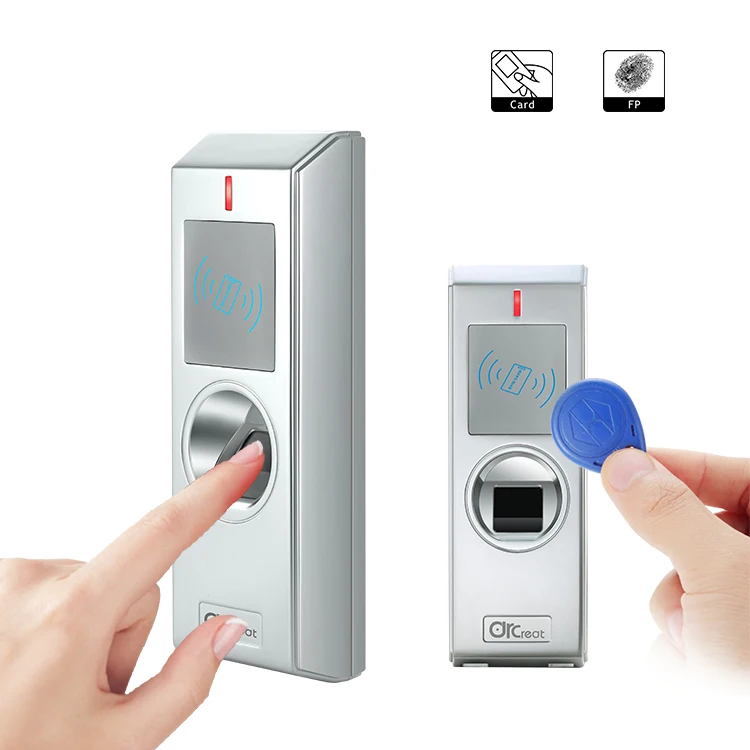

♦ AF1 is a new generation Fingerprint & proximity card access control/reader which allows                 entry via Fingerprint or a proximity EM or EM&HID or Mifare card.And Support Multi-cards open

♦ Support access through mobile phone NFC

♦ Support external wiegand 26-44 reader & can be used as wiegand reader itself
♦ Access permission management: allow to access/forbid to access can be set
♦ The users can set the wiegand format 26-44 themselves ( factory default: wiegand 26)
♦ Additional functions:anti-tamper,safe mode,alarm mode,interlock,relay switch mode etc.
♦ Support administrator cards and fingerprints
♦ Easy installation and operation

Specification

Operating Voltage :DC12V±25%
Operating Current :<150mA

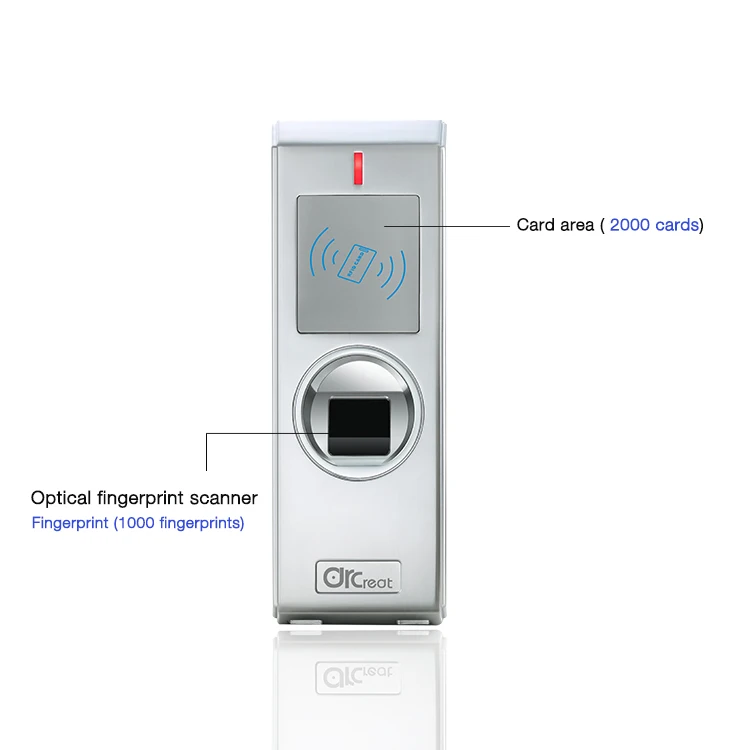

User Capacity :1000 fingerprint users & 2000 card users
Proximity Card: EM or EM&HID or Mifare
Reading range :3-5cm
Wiegand range :Wiegand 26-44 input & output
Operating temperature: -30~60℃
Operating Humidity: 10%-99%
Dimension :136×47×26mm
Weight: 0.41kg
