IEMAI высокая температура 3D принтер с 120 горячей камерой для PEI 9085 аэрокосмической HT PEEK
- Категория: Digital Printers >>>
- Поставщик: Dongguan,Imai,Intelligent,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.4 $* | 0.12 $* |
| Aug-19-2025 | 0.79 $* | 0.87 $* |
| Jul-19-2025 | 0.0 $* | 0.36 $* |
| Jun-19-2025 | 0.3 $* | 0.94 $* |
| May-19-2025 | 0.83 $* | 0.24 $* |
| Apr-19-2025 | 0.1 $* | 0.63 $* |
| Mar-19-2025 | 0.11 $* | 0.90 $* |
| Feb-19-2025 | 0.26 $* | 0.19 $* |
| Jan-19-2025 | 0.13 $* | 0.31 $* |
Характеристики
Specification
Build Volume：310 x 310 x 410mm | Hot Bed Temperature: Up to 170°C |
Printing Temperature: Up to 500 °C | Chamber Temperature: 120°C |
Extrusion System：Dual Extruder | Material: PEEK, CF-PEEK, PEKK, CF-PEKK, PEI 1010/9085, PPSU, PC, CF-PC, PA, CF-PA, GF-PA, ASA, ABS, CF-ABS, PETG, HIPS, TPU, PLA, CF-PLA, PVA.. |
Principle: Fused Filament Fabrication (FFF) | File Type: STL, OBJ, 3MF, GCODE |
Filament Diameter: 1.75 mm Layer | Data Transmission: SD Card, WIFI, USB |
Thickness: 0.05 – 0.3 mm Position | Machine Size: 702 x 542 x 790 mm |
Resolution: X/Y: 12.5 μm Z: 1.25 μm | Net Weight: 122 KG (Printer) + 77 KG (Pedestal) |
Supplied Software:IEMAI 3D EXPERT | Gross Weight: 150KG + 105KG (Pedestal) |
Other Software: Cura, Simplify3D | Power: 200~250 V, 50~60 Hz 3000W (Printer) 100~250 V, 50~60 Hz 50W (Pedestal) |
WIFI Control | Dual Extruder Modularization (Individual Lifting Nozzle) |
Power Failure Recovery | Filament Absent Warning |
Auto-Shut Down System | Moisture Proof Filament Box (10 to 15 % humidity level) |
Products Details
1.Mositure Proof Filament Box
Still worried about your filament storing? We provided you a perfect solution for you. Our Filament Box can provide a hudmity as low as 10-15% hudmity rate and able to store up to 20 rolls of filament.
You can also stored your tools in the drawer which provide you an ideal spot for you to keep both tools and filament.
1 | Drawer Tool |
2 | Filament Moisture Proof Cabinet |
3 | Maintain As Low As 10-15% Humid Level |
2.Using High Precision Ball Screws, Linear Guides, High Precision Stepper Motor And Closed Loop Control Motor For Transmission.
4.High Build Plate Temperature Increase The Layer Adhesion Between Prototype And Build Plate
6.Support Printing Of Water-Soluble Support Such As ABS+HIPS
3.Hot Chamber: Dual Hot Air Circulation System, High Thermal Insulation, More Uniform Temperature , All Parts Are Made Of High Resistance In Temperature Which Increase Service Life
4.High Build Plate Temperature Increase The Layer Adhesion Between Prototype And Build Plate
5.Power Failure Recovery: Do Not Need To Worry About Your Sudden Circuit Break, Our Printer Will Record Down Where It Stop And Continue.
6.Support Printing Of Water-Soluble Support Such As ABS+HIPS
Individual Lifting Nozzle Allows Simple Printing To Avoid Stringings To Happens During the Changing Of Nozzle.
This also prevent the other nozzle from scratching the prototype and thereby damage the sufaces.
7.Dual Extruder Modularization
You can have a quick replacement of printer just in few minutes time.
Simply Screw The Two Screws And Connect With The Plug For Simple Maintaince.

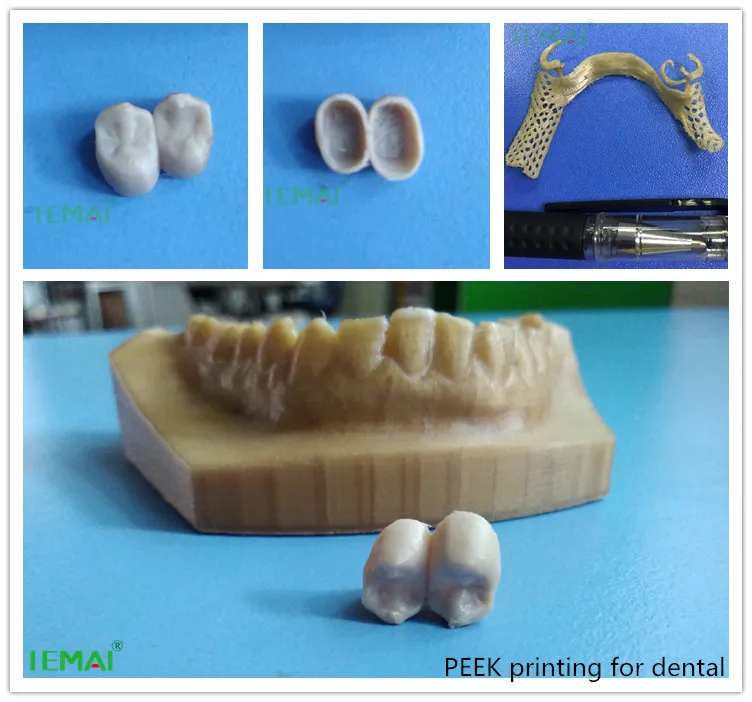

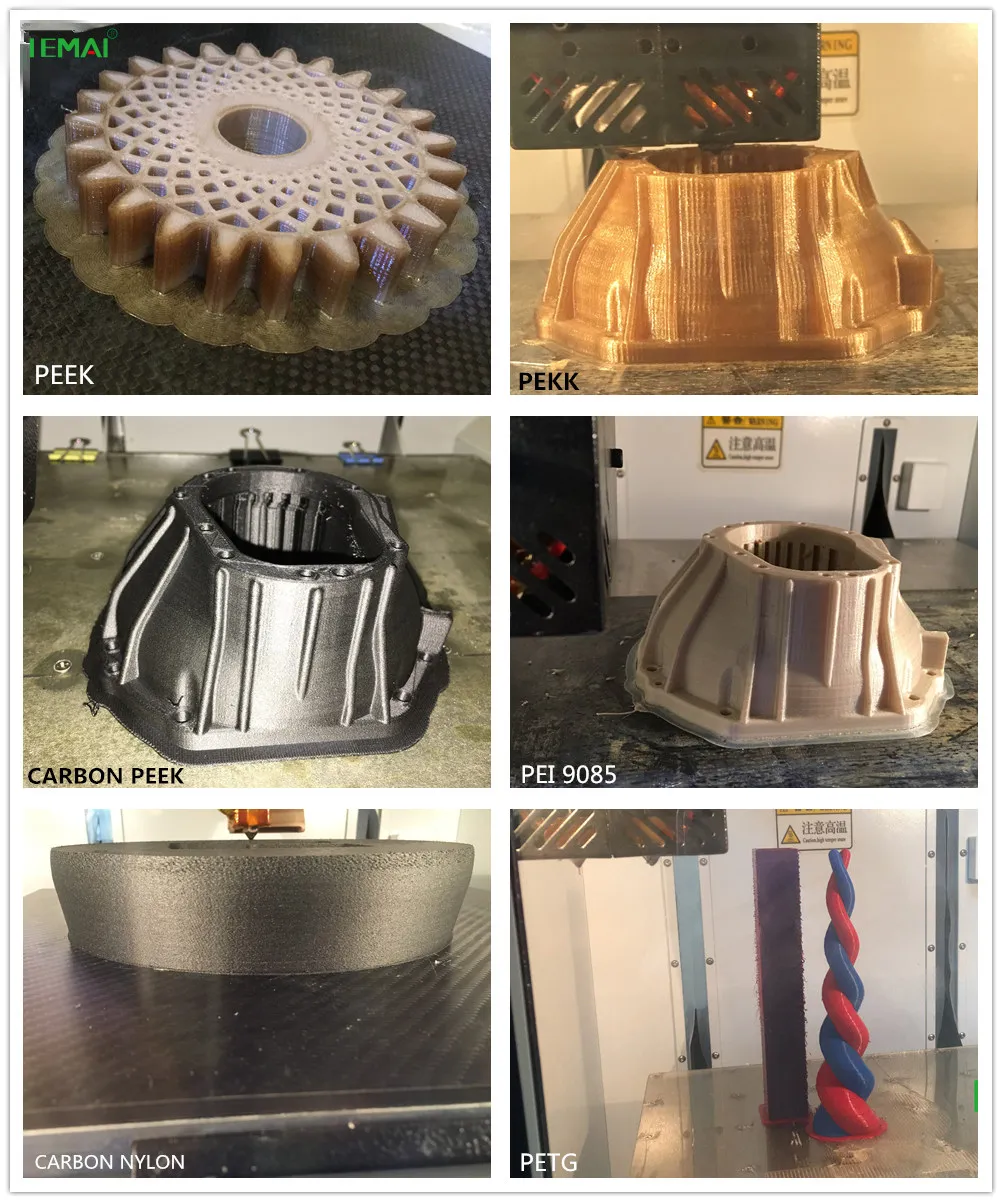

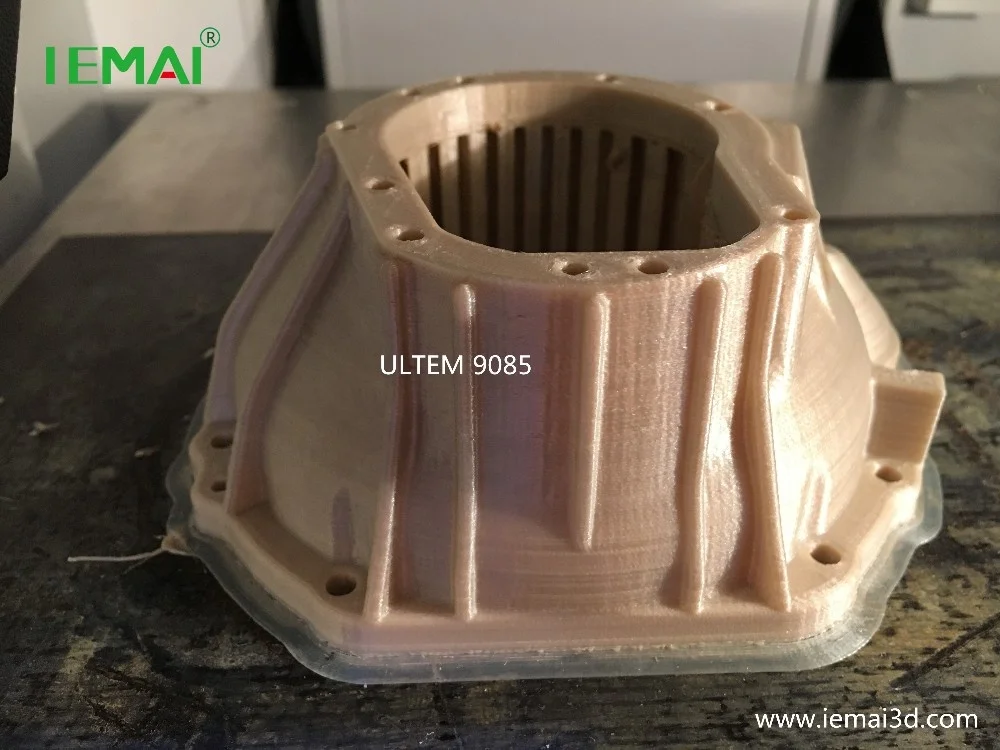

Priting samples
Company Profile
Dongguan Iemai Intelligent Technology Co.,Ltd is a high technological enterprise which specialized in producing 3D printers and 3D filaments in the Pearl River Delta of China. IEMAI 3D develops, manufactures, and sells high performance functional materials and Industrial 3D printing solutions.
IEMAI is committed to the highest manufacturing design and quality standards where all 3D printers have received ROHS and CE certifications. IEMAI is committed to the research and development of core technology, and we have software copyright and invention patents.
Today, IEMAI's 3D printing solutions cover the aerospace, automotive, oil and gas, medical, dental and electronics manufacturing industries.
Our Main products:
1. Large printing size industrial series: YM-NT-750, YM-NT-1000.
2. High performance materials high temperature 3D printing series: MAGIC-HT-M, MAGIC-HT-L, MAGIC-HT-PRO, MAGIC-HT-MAX, YM-HT-750.
3. Desktop 3D printers: MAGIC-L , YMS600.
4. 3D Letter printing machine: YM-AUTO-600, YM-4020 , YM6010/UV.
5. 3D printing consumables, including PEEK, PEI ( ULTEM ) , PPSU , PLA, ABS, PETG, PC, CARBON FIBER, TPU , TPE, PVA, HIPS, METAL,PA6, etc..
IEMAI is committed to the highest manufacturing design and quality standards where all 3D printers have received ROHS and CE certifications. IEMAI is committed to the research and development of core technology, and we have software copyright and invention patents.
Today, IEMAI's 3D printing solutions cover the aerospace, automotive, oil and gas, medical, dental and electronics manufacturing industries.
Our Main products:
1. Large printing size industrial series: YM-NT-750, YM-NT-1000.
2. High performance materials high temperature 3D printing series: MAGIC-HT-M, MAGIC-HT-L, MAGIC-HT-PRO, MAGIC-HT-MAX, YM-HT-750.
3. Desktop 3D printers: MAGIC-L , YMS600.
4. 3D Letter printing machine: YM-AUTO-600, YM-4020 , YM6010/UV.
5. 3D printing consumables, including PEEK, PEI ( ULTEM ) , PPSU , PLA, ABS, PETG, PC, CARBON FIBER, TPU , TPE, PVA, HIPS, METAL,PA6, etc..
6. Lampshade 3D printer LAMPRO-600.
7. 3D filament extrusion machine line.
Our certification:
* 10+ Patents.
* CE , Rohs certification.
* 1 software copyright
* trademark
Our certification:
* 10+ Patents.
* CE , Rohs certification.
* 1 software copyright
* trademark
Recommend Products

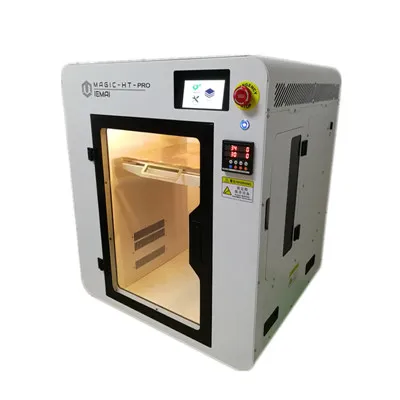

Professional PEEK 3D printer
MAGIC-HT-PRO
Dual 450℃ liquid cooling extruder
120 ℃ chamber
170℃ hotbed
Max build volume 31*31*48cm
Large format 500℃ 3D printer
MAGIC-HT-MAX
Dual 50℃ liquid cooling extruder
150 ℃ chamber
180℃ hotbed
Max build volume 500*500*700mm
150 ℃ chamber
180℃ hotbed
Max build volume 500*500*700mm
Big format 3D printer
YM-NT-1000
Max build volume 100*100*100cm
Dual extruders
Precision ball screws, linear guides, closed loop motors
Small and low cost PEEK 3D printer
MAGIC-HT-M
Max build size 220*220*220mm
Single 450℃ nozzles
Carbon fiber printing plate
Ball screws and linear guide
FAQ
QNS: Are You Manufacturer
ANS : Yes, we are manufacture, our factory located at DongGuan City, GuangDong Province. Free feel to visit us.
QNS: Can I Choose My Own Customized Printer
ANS: Denfinetly yes, do let us know your requirement, and we will OED/ODM Service
QNS: Can you print and send us samples?
ANS: Yes,we provide sample printing service,and will also make video via printing your samples
ANS: Yes,we provide sample printing service,and will also make video via printing your samples
for you.
QNS:Can you provide overseas service?
ANS: Yes, our products have spread all over the world, we can provide you with worry-free after-
sales service. sales staff will be 24 hours online.
