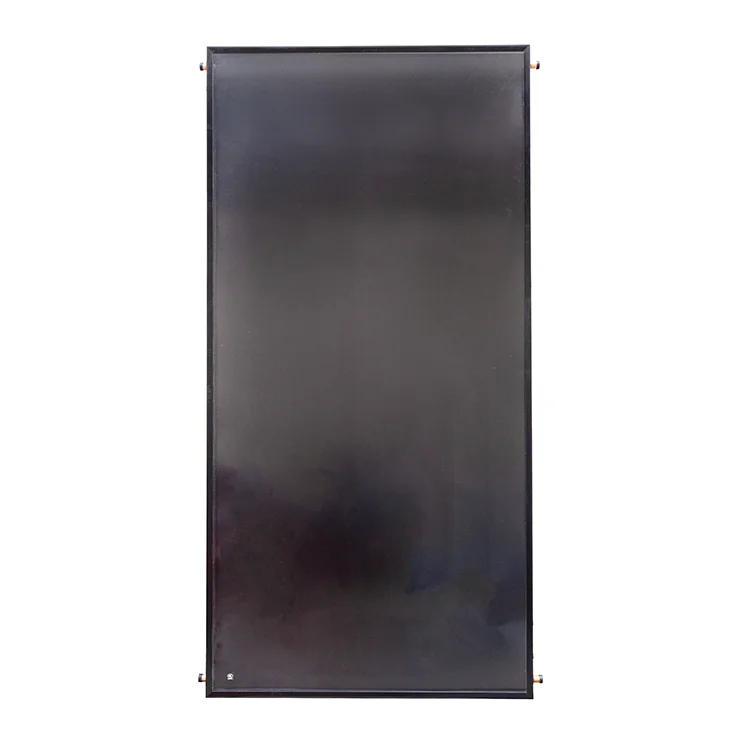

Подогрев панели солнечных батарей с синим и черным покрытием поглотитель плоских пластин
- Категория: >>>
- Поставщик: Zhejiang,Kesun,New,Energy,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 214.34 $* | 225.64 $* |
| Aug-15-2025 | 212.3 $* | 223.52 $* |
| Jul-15-2025 | 178.47 $* | 187.69 $* |
| Jun-15-2025 | 209.69 $* | 219.66 $* |
| May-15-2025 | 182.49 $* | 191.71 $* |
| Apr-15-2025 | 205.63 $* | 215.31 $* |
| Mar-15-2025 | 203.75 $* | 213.73 $* |
| Feb-15-2025 | 202.22 $* | 212.69 $* |
| Jan-15-2025 | 200.0 $* | 210.6 $* |
Характеристики
Flat Plate pressure solar water heater | ||||||||||||||||||
Water Tank | Material of Inner Tank | 1.2mm thickness SUS304-2B food grade type Diameter: 360mm | ||||||||||||||||
Material of outer Tank | 0.41mm thickness Stainless steel Diameter: 460mm | |||||||||||||||||
Thick insulation | Polyurethane foam(Bayer,Germany), 50mm thickness, density: 35kg/m3 | |||||||||||||||||
Heat Preservation Period | 72 Hours | |||||||||||||||||
Welding Method | Argon Arc Welding | |||||||||||||||||
Flat Plate | Model NO. | ENSUN-FPC | ||||||||||||||||
Dimension L*W*T (mm) | 2000*1000*100 | |||||||||||||||||
Cross Area (M2) | 2 | |||||||||||||||||
Efficiency Area (M2) | 1.82 | |||||||||||||||||
Gross Weight of Collector(KG) | 55±3 | |||||||||||||||||
Transparent Cover | ||||||||||||||||||
Number of Cover (pc) | 1 | |||||||||||||||||
Dimension L*W (mm) | 1975*975 | |||||||||||||||||
Cover Material | Float Glass/Low-iron Glass | |||||||||||||||||
Cover Thickness (mm) | 4 | |||||||||||||||||
Cover Transmission | 89%-91.4% | |||||||||||||||||

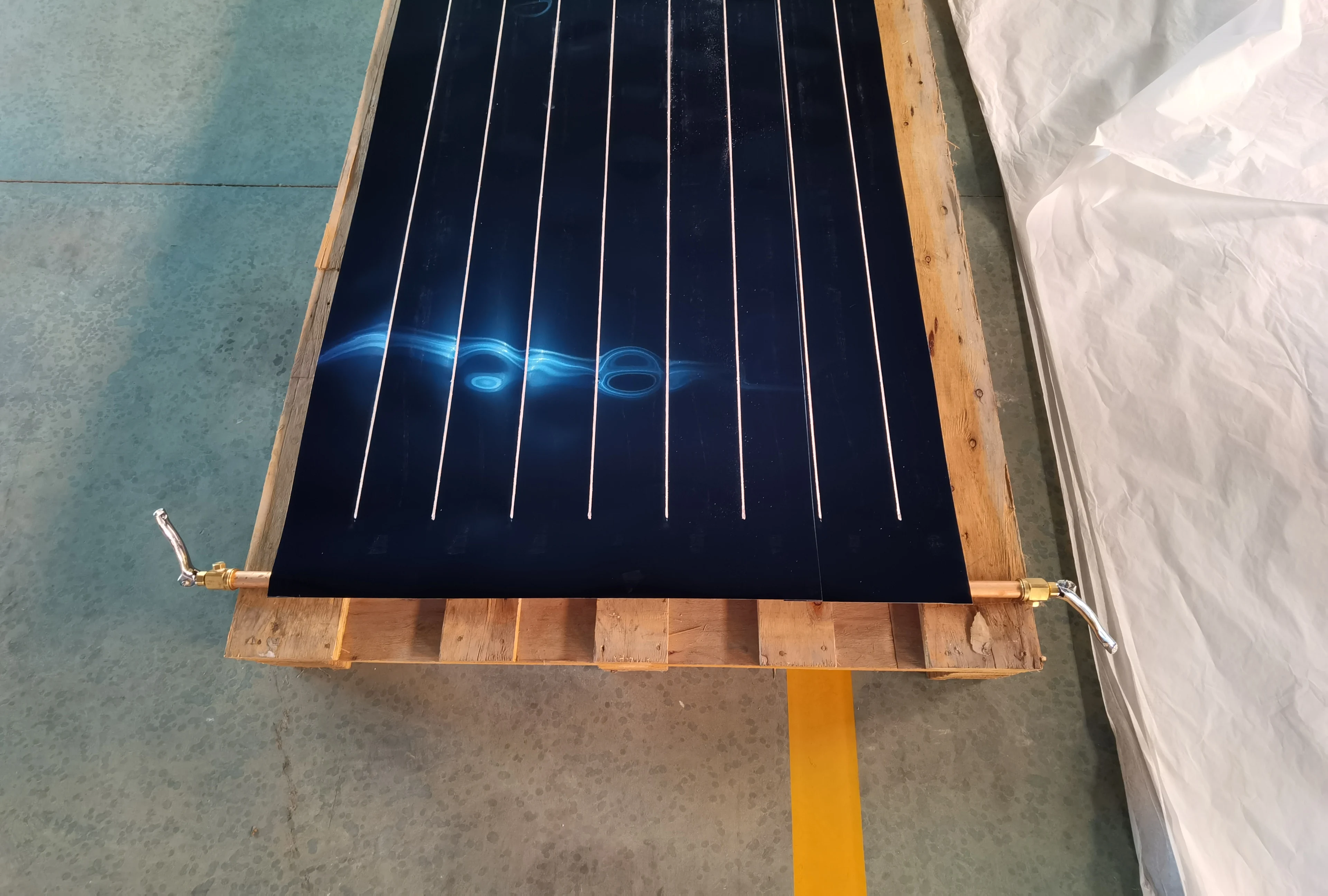

Absorber | ||||||||||||||||||
Dimension L*W (mm) | 1840*956 | |||||||||||||||||
Material | Red copper | |||||||||||||||||
Surface Treatment | Blue Titanium | |||||||||||||||||
Construction Type | Fin and Tube (Ultrasonic Welding) | |||||||||||||||||
Header Material | Copper TP2 | |||||||||||||||||
Header Tube Size (mm) | Φ25*1060*0.8 2 pcs | |||||||||||||||||
Riser Tube Material | Copper TP2 | |||||||||||||||||
Riser Tube Size | Φ10*1886*0.6 8 pcs | |||||||||||||||||
Fill Capacity | 1.8L Including Header Pipe | |||||||||||||||||
Thermal Insulation | ||||||||||||||||||
Insulation Material | 60K * 50mm Rock Wool | |||||||||||||||||
Insulation Thickness | Polyurethane (side) | |||||||||||||||||
Conductivity (W/mK) | ≦ 0.032 under 75℃ | |||||||||||||||||
Casing | ||||||||||||||||||
Frame Material | Aluminum Alloy | |||||||||||||||||
Frame Color | Silver Color | |||||||||||||||||
Back Plate | 0.5 mm Galvanized Steel | |||||||||||||||||
Max Operation Temperature | 200℃ | |||||||||||||||||
Maximum Pressure (Mpa) | 1.4 | |||||||||||||||||
Sealing Material | EPDM | |||||||||||||||||
Limitation of Operation | ||||||||||||||||||
Max. Working Temperature | 120℃ | |||||||||||||||||
Max. Working Pressure | 1.2 Mpa | |||||||||||||||||
Recommended Circulation Flow | Propylene Glycol&water mixture | |||||||||||||||||
Resistance to freezing | ≧ -40℃ | |||||||||||||||||
Frame | Material | Stainless Steel Thickness: 1.2mm | ||||||||||||||||
Angle | 38° | |||||||||||||||||
Bolts & Nuts | Stainless Steel | |||||||||||||||||
Others | Optional Parts | MG Rod (include), T/P Valve (include) | ||||||||||||||||
Hot water outlet: | 3/4" external thread down position, material with SS304 | |||||||||||||||||
Cold water inlet: | 3/4" upper side position, material with SS304 | |||||||||||||||||
Products Description
Flat Plate Solar Water Heater Production Line
Pre-sale Service
1. Sample can be offered with sample charge and courier fee by buyer's side.
2. We have full stock,and can deliver within short time.Many styles for you to choose.
3. OEM and ODM order are accepted, Any kind of logo printing or design are available.
4. Good Quality+Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
5. All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can
totally believe our service.
6. We have rich experience of design, manufacture and sell solar water heater,
we cherish every order from our honor.
2. We have full stock,and can deliver within short time.Many styles for you to choose.
3. OEM and ODM order are accepted, Any kind of logo printing or design are available.
4. Good Quality+Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
5. All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can
totally believe our service.
6. We have rich experience of design, manufacture and sell solar water heater,
we cherish every order from our honor.
After you choose
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-2 working day after your payment,
3. Email you the tracking no, and help to chase the parcels until it arrive you.
After-sale service
2. Check quality again, then send out to you at 1-2 working day after your payment,
3. Email you the tracking no, and help to chase the parcels until it arrive you.
After-sale service
After-sale service
1. We are very glad that customer give us some suggestion for price and products.
2. If any question,please contact with us freely by E-mail or Telephone.
2. If any question,please contact with us freely by E-mail or Telephone.
Contact Us
HAINING ENSUN SOLAR TECHNOLOGY CO.,LTD
ZHEJIANG KESUN NEW ENERGY CO., LTD
OFFICE: 0086 573 87898856 FAX: 0086 573 87898856
WEBSITE: www.ensunchina.com.cn www.ensunsolar.cn
ADDRESS: No2, Building 1, Jinniu Rd, Jianshan New Industry District, Haining, Zhejiang, China
Kesun Innovative Solution! Quality is the requirement of God!
ZHEJIANG KESUN NEW ENERGY CO., LTD
OFFICE: 0086 573 87898856 FAX: 0086 573 87898856
WEBSITE: www.ensunchina.com.cn www.ensunsolar.cn
ADDRESS: No2, Building 1, Jinniu Rd, Jianshan New Industry District, Haining, Zhejiang, China
Kesun Innovative Solution! Quality is the requirement of God!
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2010,sell to North America(72.00%),South America(15.00%),Eastern
Europe(4.00%),Africa(3.00%),Eastern Asia(3.00%),Mid East(00.00%),Central America(00.00%),South Asia(00.00%). There are total about
11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Compact Non Pressure Solar Water Heater,Compact High Pressure Solar Water Heater,Heat Pipe Solar Collector
4. why should you buy from us not from other suppliers?
We are the professional factory for solar water heaters,more than 10 years for production and design. the big advantages on the
pressure tank,no matter the stainless steel inner tank or Enamel tank.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Cash;
Language Spoken:English,Chinese,Spanish,Russian
We are based in Zhejiang, China, start from 2010,sell to North America(72.00%),South America(15.00%),Eastern
Europe(4.00%),Africa(3.00%),Eastern Asia(3.00%),Mid East(00.00%),Central America(00.00%),South Asia(00.00%). There are total about
11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Compact Non Pressure Solar Water Heater,Compact High Pressure Solar Water Heater,Heat Pipe Solar Collector
4. why should you buy from us not from other suppliers?
We are the professional factory for solar water heaters,more than 10 years for production and design. the big advantages on the
pressure tank,no matter the stainless steel inner tank or Enamel tank.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Cash;
Language Spoken:English,Chinese,Spanish,Russian
