Удлинитель HDMI Corkiit 150m/492ft HDbaset 4K60hz 4:4:4 POC
- Категория: Other Audio & Video Accessories >>>
- Поставщик: Shenzhen,Keqi,Electronics,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.14 $* | 0.8 $* |
| Aug-18-2025 | 0.3 $* | 0.93 $* |
| Jul-18-2025 | 0.90 $* | 0.19 $* |
| Jun-18-2025 | 0.59 $* | 0.32 $* |
| May-18-2025 | 0.12 $* | 0.32 $* |
| Apr-18-2025 | 0.67 $* | 0.44 $* |
| Mar-18-2025 | 0.61 $* | 0.50 $* |
| Feb-18-2025 | 0.78 $* | 0.4 $* |
| Jan-18-2025 | 0.6 $* | 0.22 $* |
Характеристики
Product Description
Product Name :

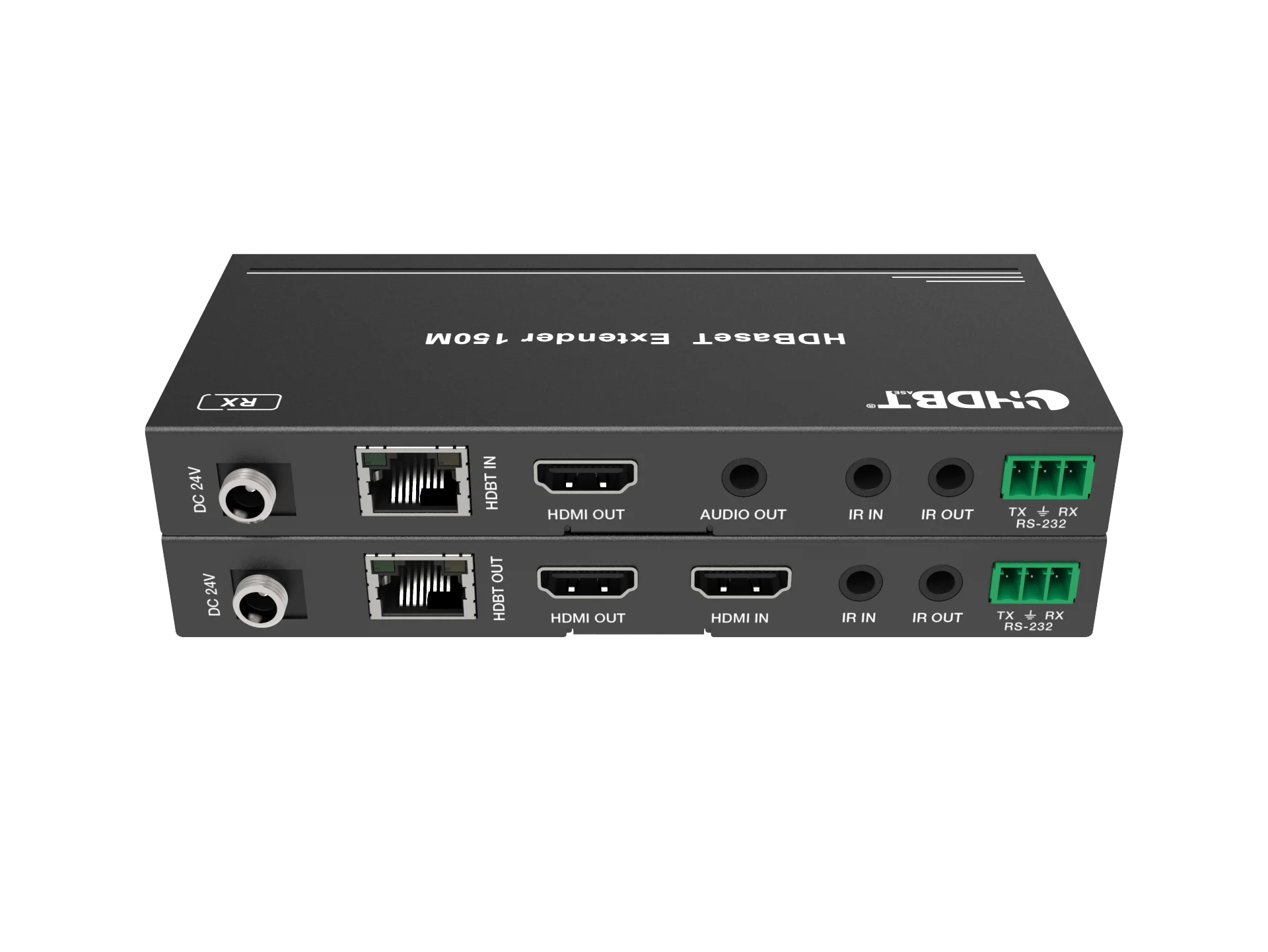

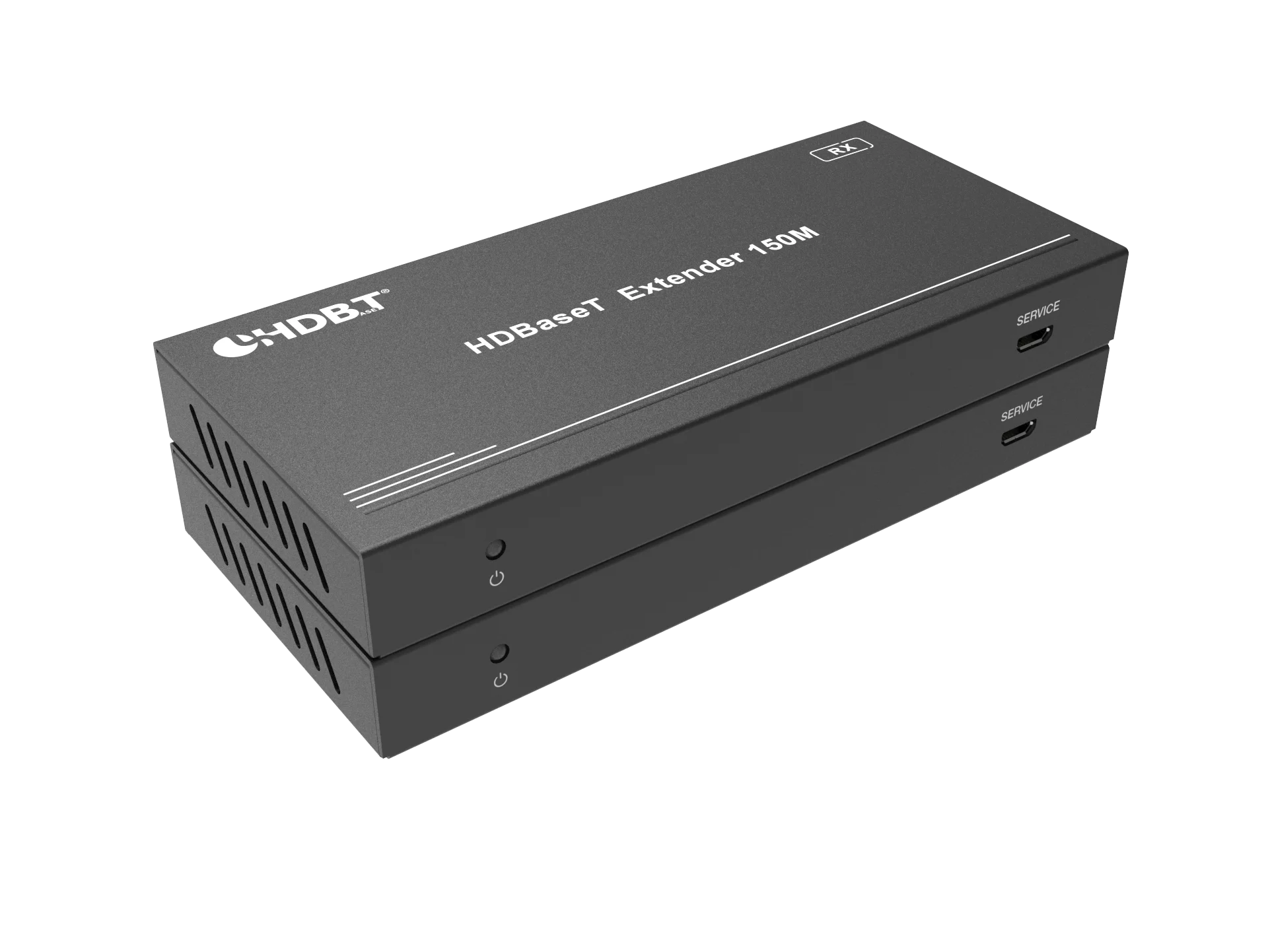

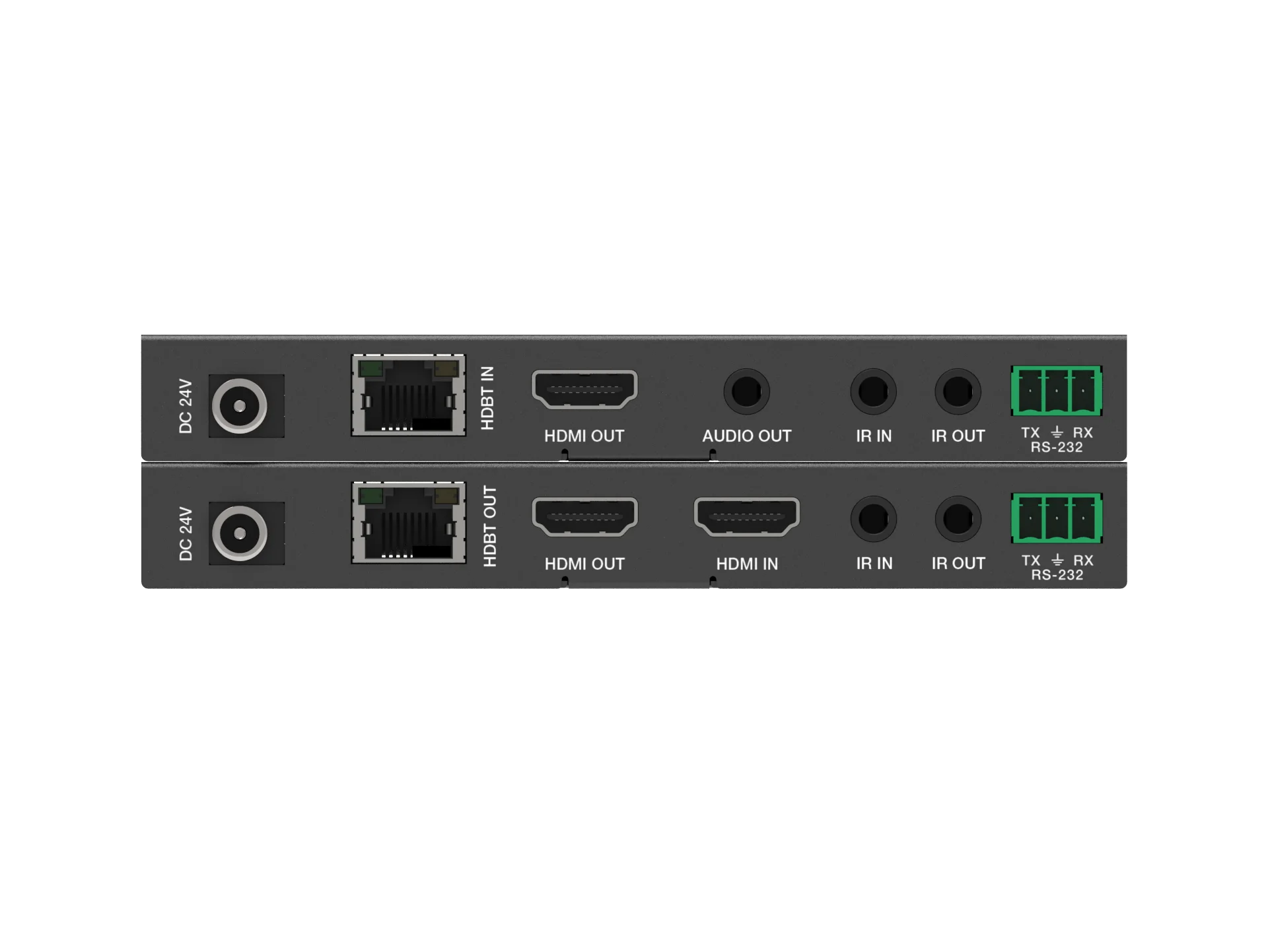

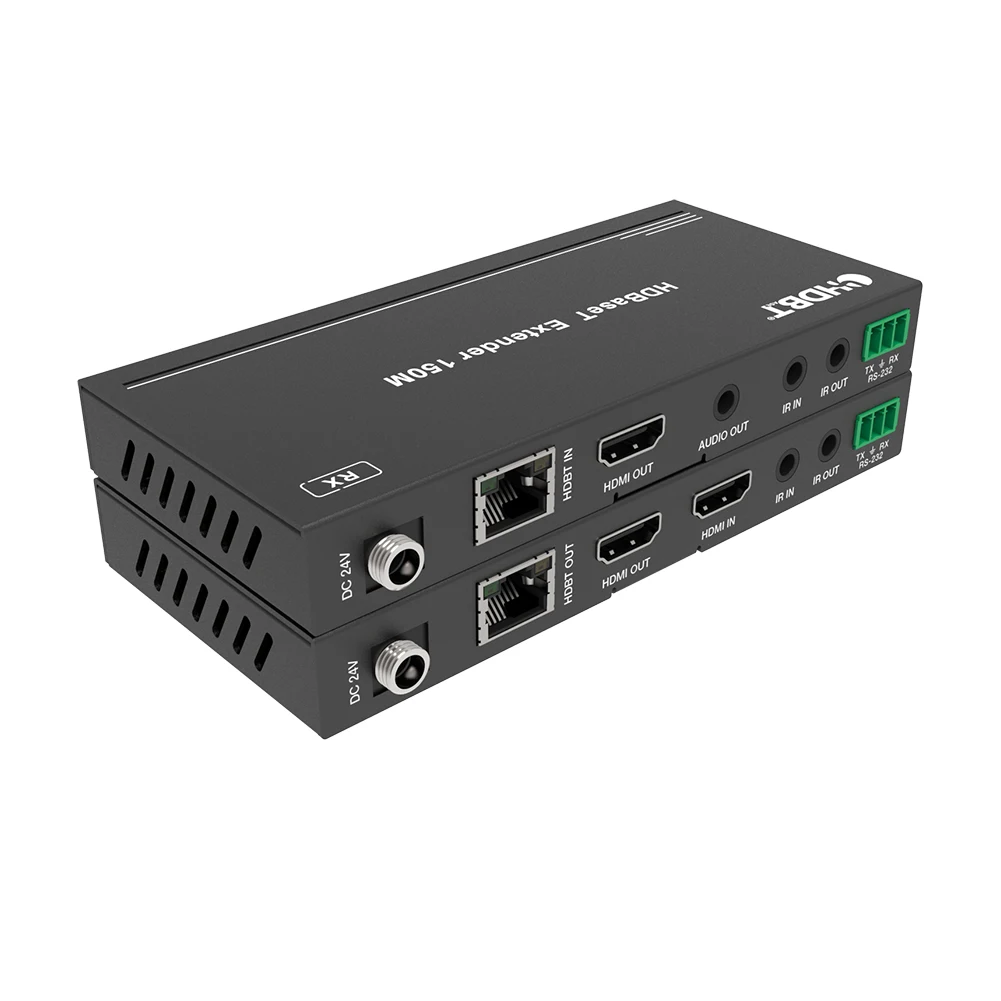

Corkiit 150m/492ft HDbaset extender 4K60hz 4:4:4 POC 150m HDMI extender
Features:
1. HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
2. Support 18Gbps video bandwidth
3. The maximum extended transmission distance via a single Cat5e/6 cable:
394ft / 120 meters for 4K2K signal;
492ft / 150 meters for 1080P signal
4. Support one HDMI loop output on the transmitter
5. De-embeded audio to analog stereo output on receiver
6. With bi-directional IR, RS-232 and CEC pass-through
7. HDR, HDR10+, Dolby Vision and HLG function supported
8. Support PoC (Power over Cable) function
9. Compact design for easy and flexible installation
Introduction :
This 18Gbps HDMI Extender can extend high definition video / audio signal,
RS-232, bi-directional IR, and the distance is up to 492ft / 150 meters between
transmitter and receiver via a single CAT cable. It supports resolution up to
4K2K@60Hz 4:4:4, 18Gbps and HDCP 2.2. One HDMI loop port is available
for output. It also supports de-embeded audio for L/R audio output and PoC
function. In addition, the extender is equipped with two-way IR pass-through
which allows for source and display control.

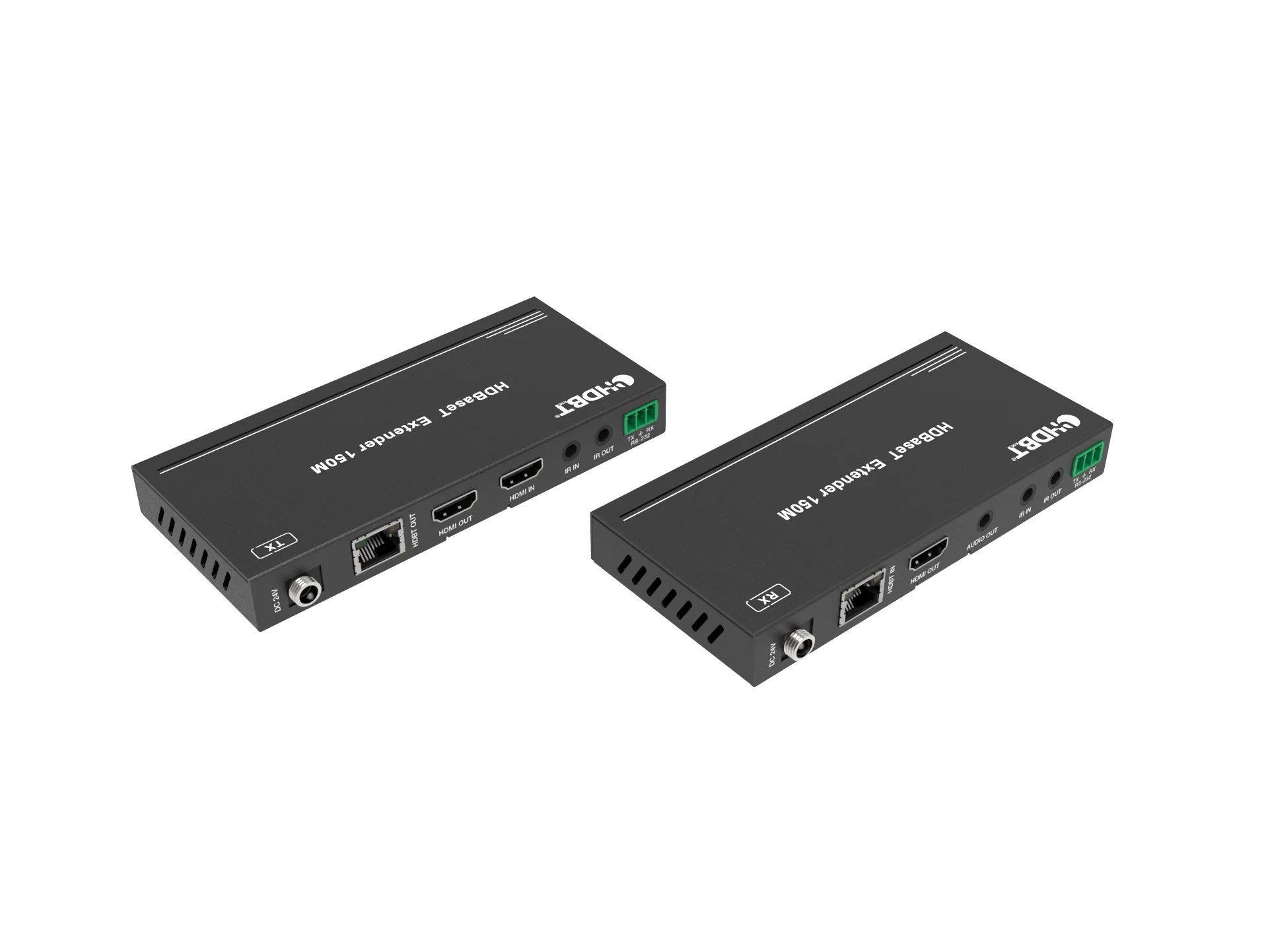

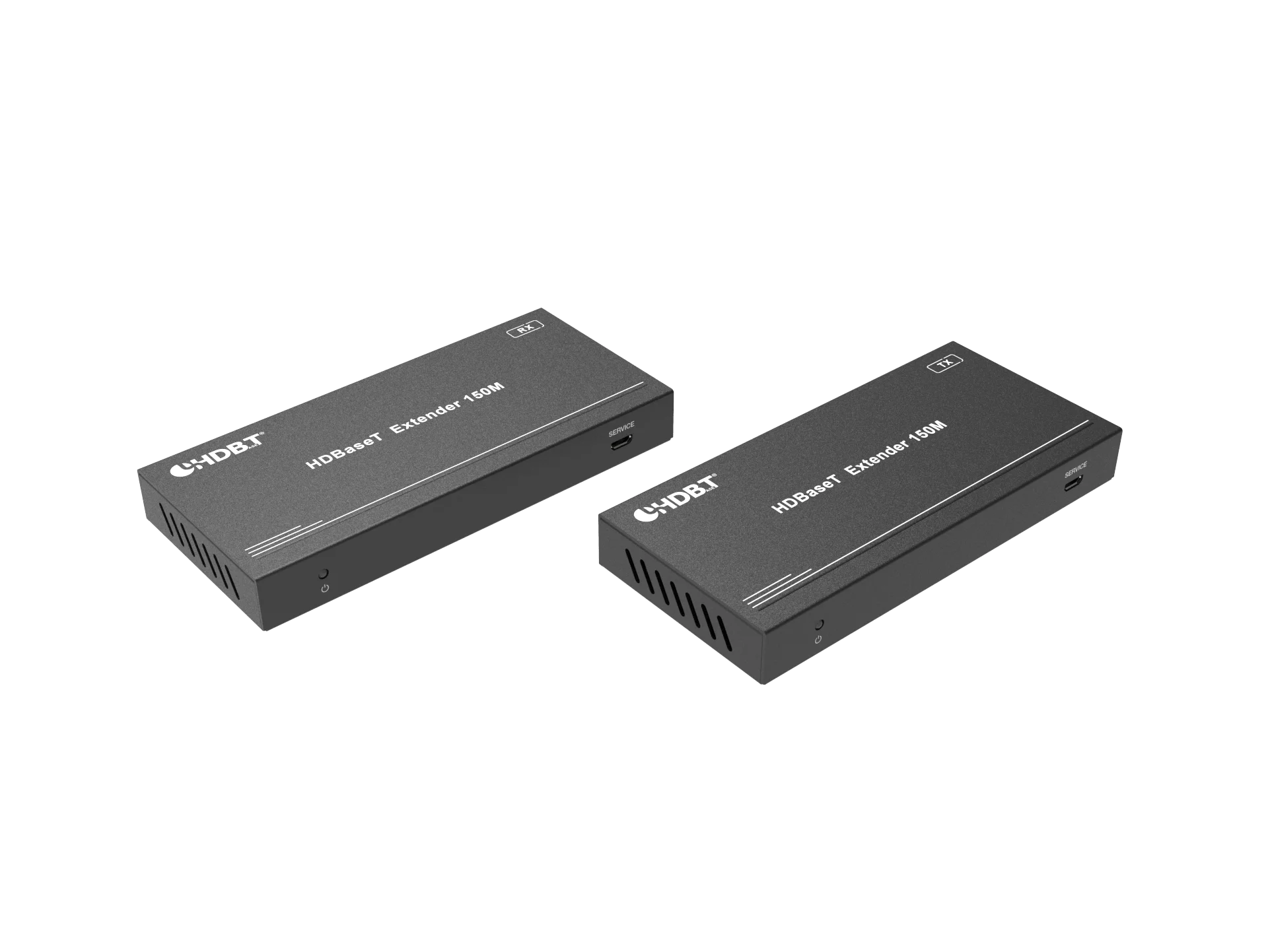

This HDMI extender includes two units: transmitter unit and receiver unit. The
transmitter unit is responsible for capturing HDMI input signal and carrying
the signal via one cost effective Cat5e/6 cable, and transmitting / emitting IR
control signals. The receiver unit is responsible for receiving the HDMI signal
and transmitting / emitting IR control signal.
The extender offers the most convenient solution for HDMI extension via a
single Cat5e/6 with long distance capability, and is the perfect solution for
any application.
Package Contents
![QQ20210413153426]()
Packaging & Shipping
Packing List :
1) 1x HDbaset Matrix
2) 1x 24V/8A Power Supply
3) 1x Power Cord
4) 1x Master Remote Control
5) 16x IR Transmitter cable
6) 16x IR Receiver cable
7) 2x Rack-mount ears (19” Rack-Mountable)
8) 1x Serial Cable (9-pin RS232 to 3-pin phoenix connector)
9) 16x HDbaset POC receivers(can choose quantity)
About Shipping,if in stock,prepare only need 1-2 days,ship need 3-5 days.
Our Services
Company Information
FAQ
1.Q : How long time ship to USA ?
A : It usually takes 5 days to reach your address via DHL.
2.Q : Are you a factory or sales agent ?
A : We doing factory in shenzhen over 9 years,not agent.
3. Q : Can I use our own brand stickers for our small quantity orders ?
A : Yes you can but need you provide the stickers to us.
4. Q : Can I pay in with PayPal ?
A : Yes we support PayPal .
5. Q : Does this matrix support third-party control ?
A : Yes it support.
