220 В Вибрационный двигатель для машины
US $22.00-$45.00
SCB1030L-28F цены по прейскуранту завода-изготовителя матовый монета тактильная вибрации DC 3V 10 мм микро-моторы для Носимых
- Категория: Вибрационный Мотор >>>
- Поставщик: Guangdong,Saibow,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.51 $* | 0.55 $* |
| Aug-18-2025 | 0.45 $* | 0.57 $* |
| Jul-18-2025 | 0.65 $* | 0.75 $* |
| Jun-18-2025 | 0.9 $* | 0.77 $* |
| May-18-2025 | 0.51 $* | 0.70 $* |
| Apr-18-2025 | 0.37 $* | 0.35 $* |
| Mar-18-2025 | 0.76 $* | 0.3 $* |
| Feb-18-2025 | 0.11 $* | 0.97 $* |
| Jan-18-2025 | 0.51 $* | 0.91 $* |
Характеристики

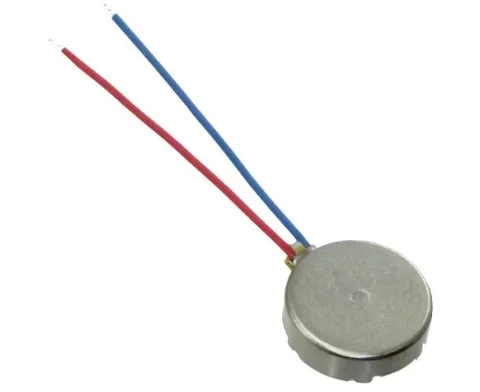

SCB1030L-28F Factory Price Brushed Coin Vibration DC 3V 10mm Micro Motors for Wearable Device
Product Description
SCB1030L-28F coin vibration motor is a popular 3 V leaded design. If requested, we can supply it with a variety of connectors mounted to its wire leads. If you require a different connector to be used, please send us the data sheet and we will advise you if we can connect it. Custom wire lengths are also possible. This coin vibrator motor is supplied with a self adhesive double stick pad which may be used to permanently mount the motor to the PCB or to the wall of your devices housing.
Electrical Date
Show Me All Products (Shown below are only five models of them: SCB1030F-23F; SCB1030L-28F; SCB1034F-25L; SCB1034L-18F; SCB1020L-95F. If you want to know about other models, please email us.)
SAIBOW P/N | Tech. Type | Motor Size | Voltage | Current | Response Time | Rated speed (rpm) | Vibe Force (G) | ||||
Dia (mm) | Thickness (mm) | Operating | Rated (ma) MAX | Rise Time (ms) | Fall Time (ms) | ||||||
SCB1030F-23F | BRUSH | 10 | 3 | 2.5~3.5 Vdc | 85 | 90 | 50 | 13,500 | 0.9 | ||
SCB1030L-28F | BRUSH | 10 | 3 | 2.7~3.3 Vdc | 85 | 90 | 50 | 13,500 | 1.3 | ||
SCB1034F-25L | BRUSH | 10 | 3.4 | 1.2~1.8 Vdc | 40 | 90 | 50 | 9,000 | 0.5 | ||
SCB1034L-18F | BRUSH | 10 | 3.4 | 2.7~3.3 Vdc | 85 | 90 | 50 | 13,500 | 1.5 | ||
SCB1020L-95F | BRUSH | 12 | 3 | 2.7~3.3 Vdc | 90 | 90 | 50 | 9,000 | 1.1 | ||
The “typical current” is the average current from 20 motors selected at random from a given production lot. Copies of the test report showing the data collected for all 20 motors are available upon request.

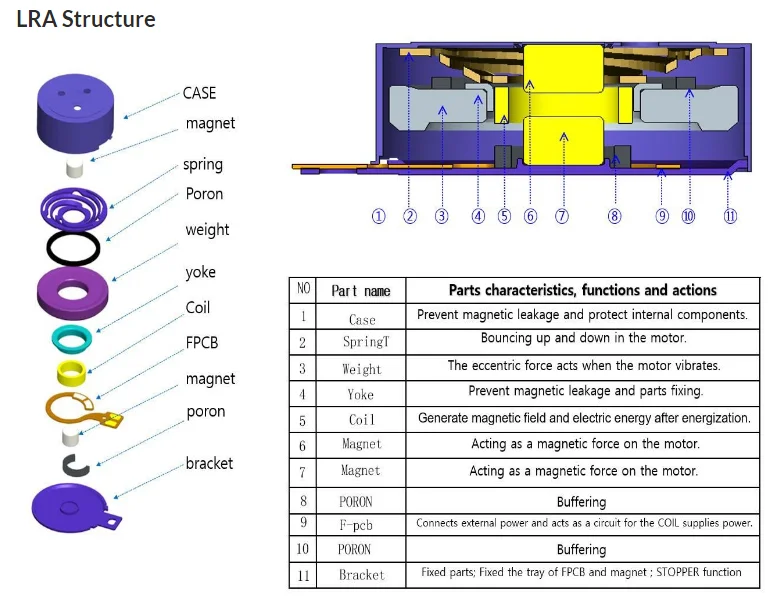

Mechanical Tear Down Of Coin Vibration Motor

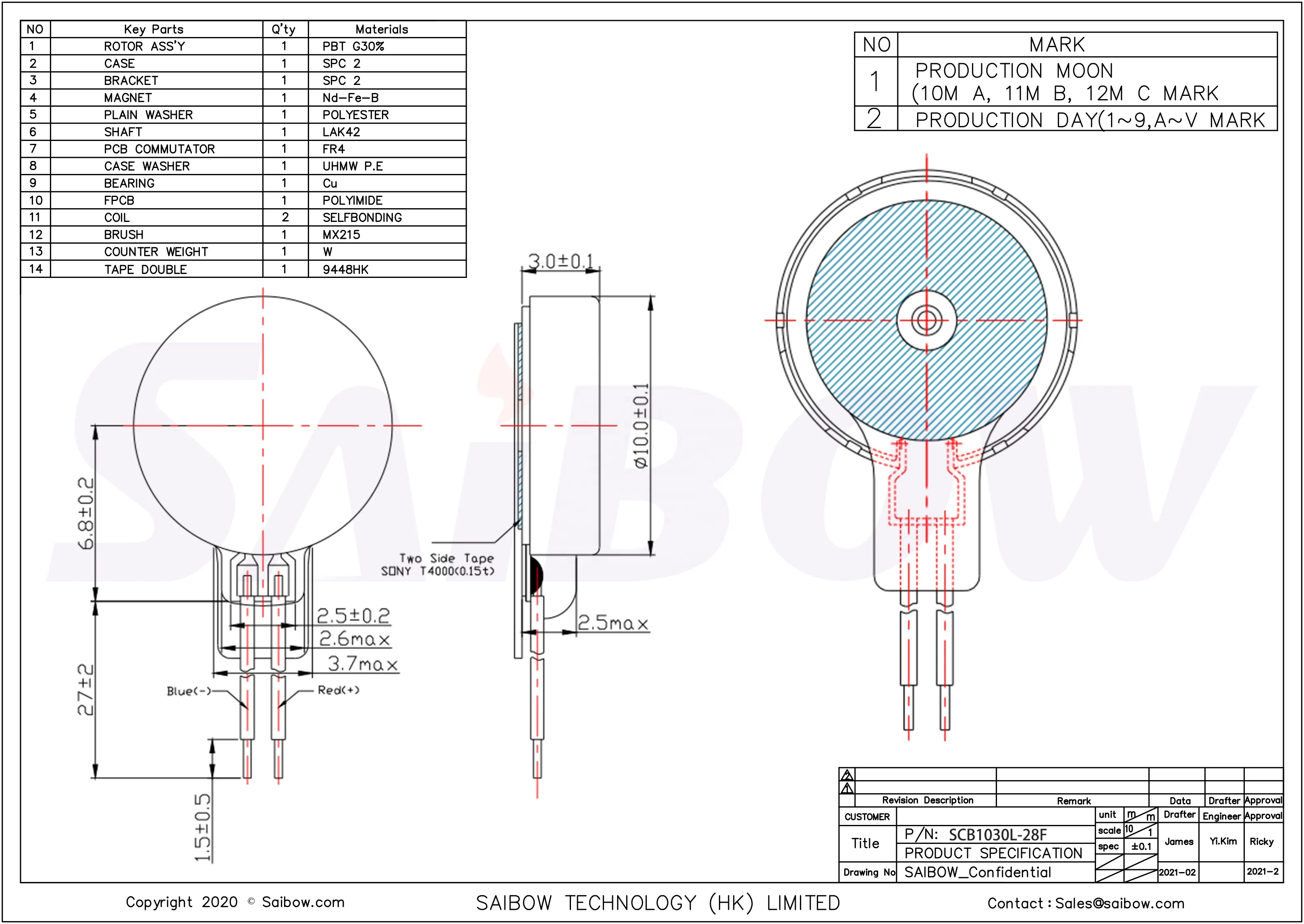

Product Drawing:
The adhesive sponge or adhesive tape could be removed. Connectors could be added to the lead wires. Please negotiate before making samples for any specific requirements.
APPLICATIONS:
You could find the right haptic solution with our below various vibrators:
7-10mm diameter coin type brushed vibration motors.
3-4mm height reflow solderable SMD type vibration motors
4-7mm diameter cylinder type brushed vibration motors.
5-9 diameter coin type brushless vibration motors.
7-10mm diameter coin type brushed vibration motors.
3-4mm height reflow solderable SMD type vibration motors
4-7mm diameter cylinder type brushed vibration motors.
5-9 diameter coin type brushless vibration motors.
