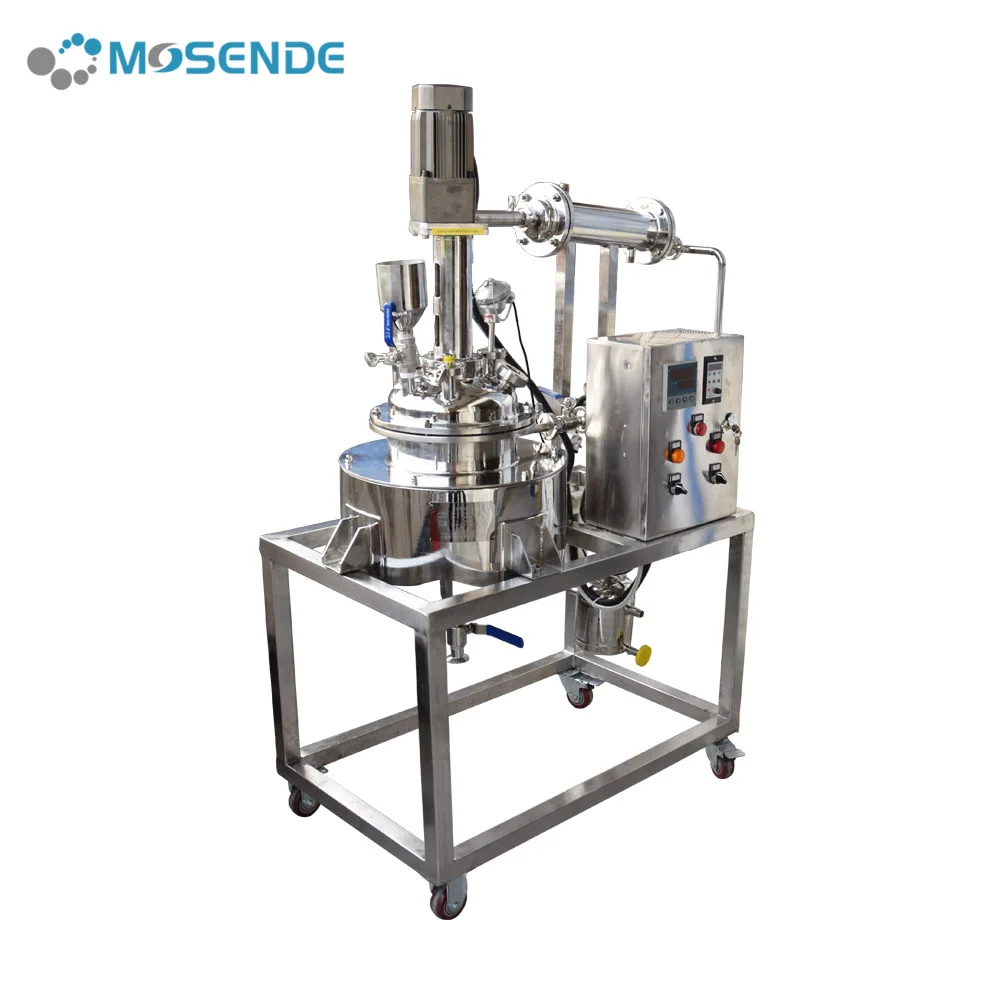

50L Reactor Vessel Industrial Chemical Biodiesel Reactor Pyrolysis Reactor
Product Description
SG series stainless steel reaction kettle (tank) body, lid, stirrer and other parts are made of SUS304 or SUS316 stainless steel plate. The tank body is polished by fine mirror or electrolytic polishing, which conforms to the national hygiene standard. Heating and cooling devices can be configured to meet different process and production needs. Heat transfer forms include jacket electric heating, jacket external heat transfer oil circulation equipment heating, refrigeration, steam heating, coil heating. The equipment has reasonable structure design, advanced technology, durability, reaction application in cosmetics, medicine, paint, chemical industry, pigment, resin, food, scientific research and other industries.
Specifications
Product name | Specifications | remarks |
Double layer stainless steel reactor | XHSG-50L
| Kettle volume: 50L 50L stainless steel reactor Kettle size: φ 400 * 400mm Cylinder: 4mm Jacket: 3mm Outer layer: 2mm Material: s31603 Power: 750W Speed: 0-200rpm Working volume: 50L Design full volume: 78L Kettle body: Three layer design, jacket electric heating, outer insulation Discharge valve: no dead angle discharge valve Material: SS316 stainless steel Working temperature: RT + 10 ℃ ~ 300 ℃ Heating power: 8000w Working pressure: - 0.1 ~ 0.3MPa Sealing mode: mechanical seal, made of silicon carbide Heating mode: electric heating (bottom electric heating design, Heat transfer oil in mezzanine) Lid opening: 1. Mixing station 2. Feeding port 3. Temperature measuring port 4. Pressure gauge / relief valve 5. Exhaust port 6. Condensation reflux 7. Air inlet / standby Opening of kettle body: Imported oil * 1 Oil drain port * 2 Mezzanine exhaust port × 1 Condensing unit: matching SS316L distillation reflux pipeline Equipped with: 0.5 square tube condenser (φ 159 × 600mm) Equipped with 10L receiving bottle (with vent valve and drain port) Agitator: double-layer blade, push type 3 blade Electrical control cabinet: Digital frequency converter PID intelligent temperature controller Main power switch Heating operation switch Mixing operation switch Safety emergency stop switch Power supply voltage: 380V 50 / 60Hz Installation dimension: 1300 × 750 * 1850mm Transport package size: 1500 × 900 × 1600mm |
FOB price is reactor price. If you need temperature control system, please contact customer service.
Stainless steel reactor customization service link:https://mosende.en.alibaba.com/productgrouplist-900192609/Customized_services.html?spm=a2700.shop_index.88.24
