Сушилка для фруктов в шкафу сушилка листьев специй водорослей манго

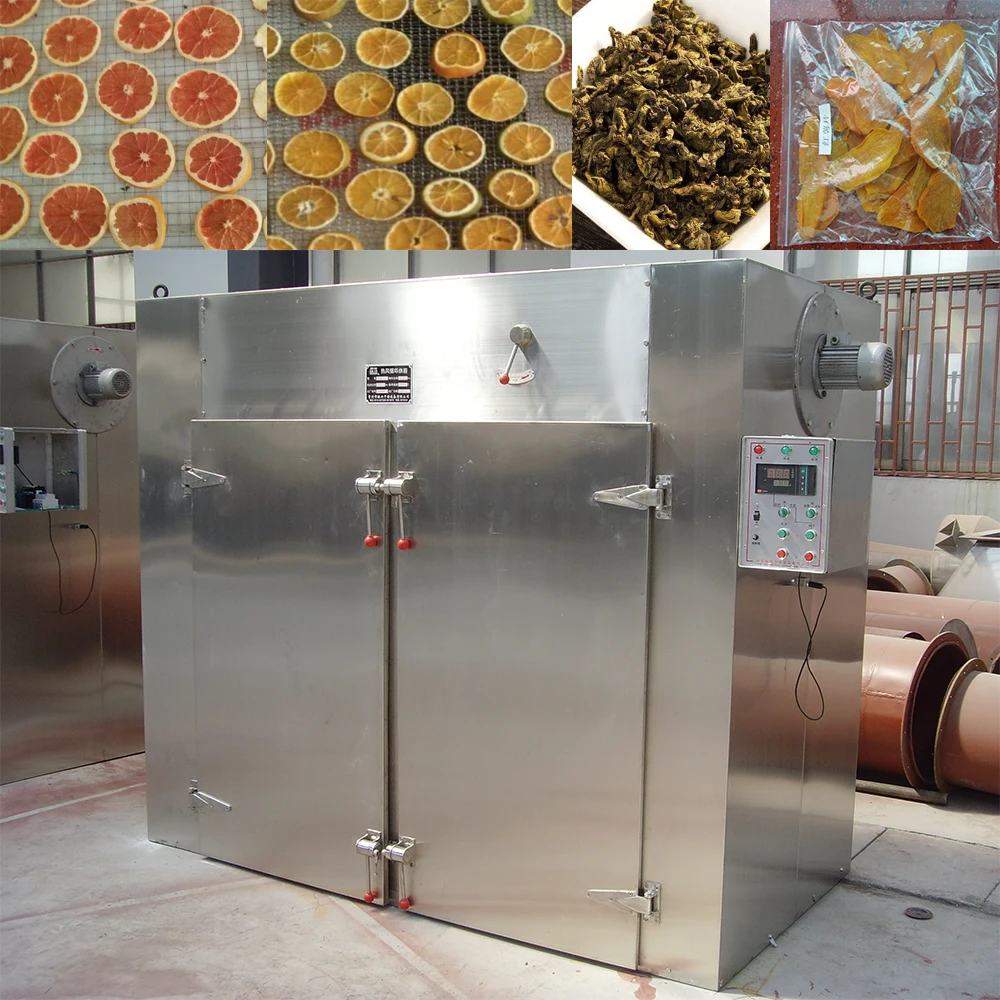

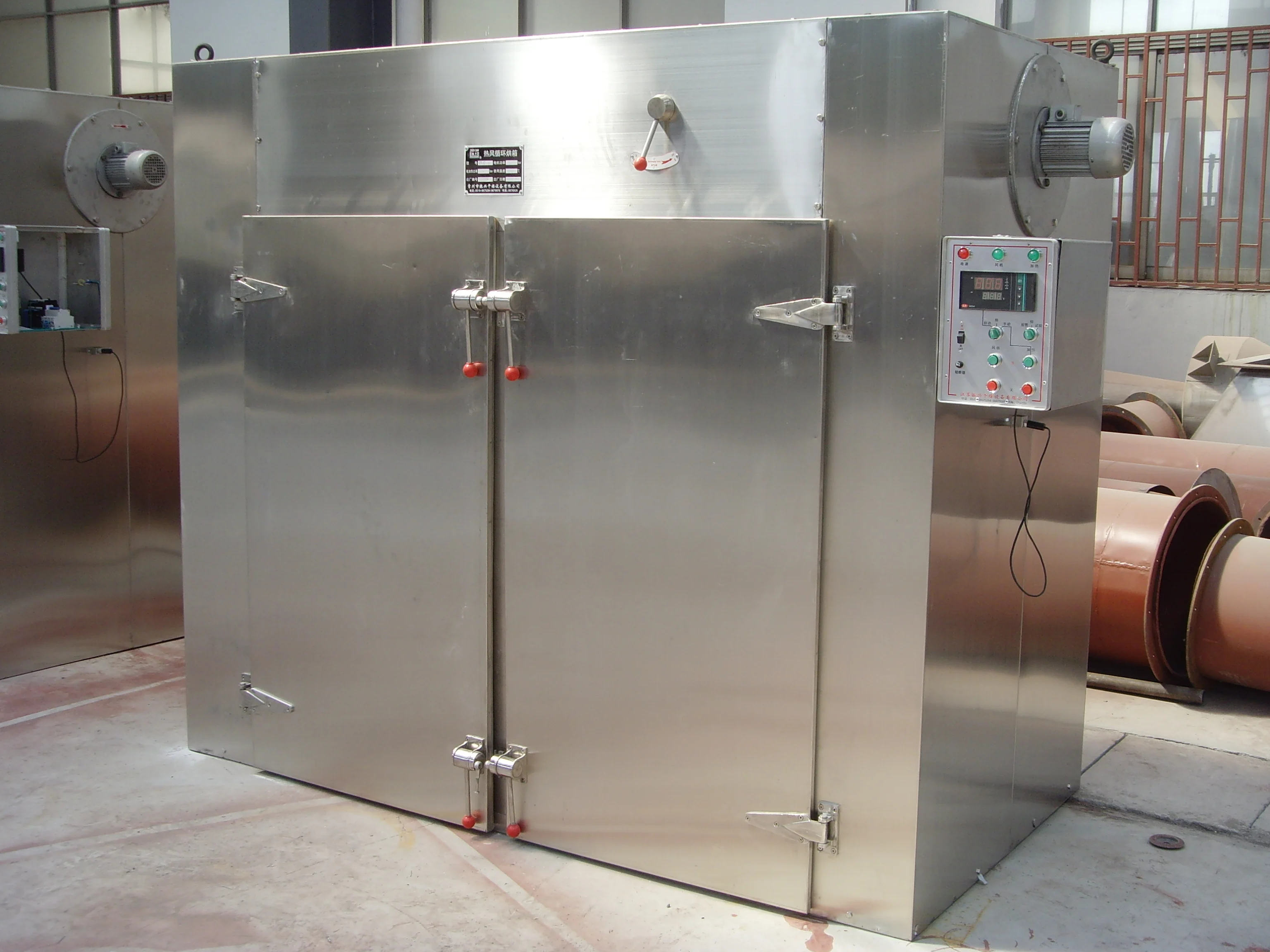

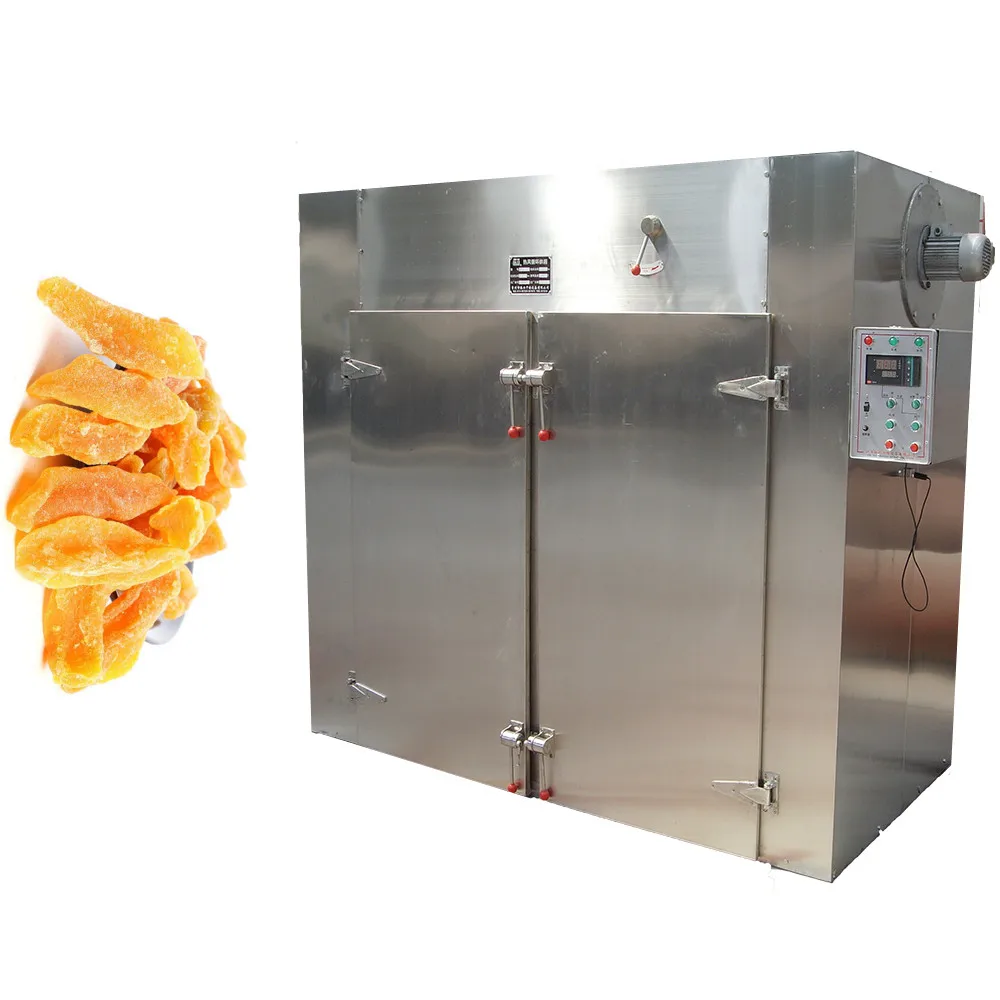

 hot air pump fruit/vegetable drying machine

whatsapp:+86-15939517669

mango/banana/apple/chilli drying machine/dryer machine/drying equipment

The equipment is mainly composed of heat pump, drying chamber and trolley and trays, except for standard parts such as motor and electrical parts, the rest are made of stainless steel (SUS304) material.Strong and durable equipment, stable and reliable performance;The finished product has good quality and remarkable energy saving effect;Convenient temperature and humidity control, no waste water, waste gas, waste residue in the drying process, environmental friendly;Wide application range, low operation cost, good economy and other effects.

Technical parameter:

 hot air pump fruit/vegetable drying machine

whatsapp:+86-15939517669

mango/banana/apple/chilli drying machine/dryer machine/drying equipment

 hot air pump fruit/vegetable drying machine

whatsapp:+86-15939517669

mango/banana/apple/chilli drying machine/dryer machine/drying equipment

Parts Quantity and Requirement

Two drying cart(695*935*1430) was equipped, the hot circulation fan adopts 2 0.45 KW Axial flow fan, 48 0.5mm drying trays are also adopted. There is dehumidifier fan besides the outlet. The controlling of the temperature is displayed by numbers automatically. Other parts are equipped as the standards in the business. This is the electric heating one.

 The working standard of the drying oven.

1. Working temperature:50-140℃(can be adjusted according to the requirement)

2. The total air flow of the hot air circulation is 3450x2=6900 m3/H

3. Heating source : electrical heating heating power: 15kw

4. Max capacity: 120kg/batch

 Requirement for the material

1. The internal wall uses 0.8mm stainless steel and the external wall use 1.2mm stainless steel. The frame was hold by the 5# angle iron

2. The drying cart was made by 38*38 or 38*25 stainless steel cube tube,the side rail was made by δ1.5 mm board stainless steel.

3. The drying tray was 0.5mm hand made plate.The size of the drying plate is 6408460*45mm.

4. Aluminum silicate heating preservation cotton is used for heating preservation. The thickness is 80mm.

5. The drying door sealing uses food grade silicone rubber circle (can be customized)

 Production requirement

1. The drying oven was assembled , the gap between the top and oven is no more than 2mm.

2.  The rising of the temperature after continuously working for 3 hour or longer can be more than 40℃

3. The working noise can be no more than 72dB.

 Technical parameter

1.working volume:2.4(m³) :2.4

2.Air fan volume:3450x2=6900(m³/h)

3.power of automatic fan:0.45kw/set

4.Adopt drying trays: 640x460x45 48pcs

5.heating power:15kw

304SUS shelf

Food Grade PP plastic tryas

Application raw material:

Rice/onion/chilli/pepper/mushroom/spice/tea leaf/cassava /plantains/corn/meat/fish/peanut/mango/squid shredded/cardamom/poultry manure/pasted food/natural flowers /saffron /abricot bar/garlic/pineapple/vanilla/alfalfa/fruit chips/cannabiss trimmer/ plums/organic fruit/bird nest /maize/grape/herbal leaf /beef jerky/black pepper /almond /condiment /pigment/gluten/vermicelli /cuttlefish/wolfberry /raisin/jujube/carrot /chamomile/condiment/food additives /goji berry /black buckwheat

 hot air pump fruit/vegetable drying machine

whatsapp:+86-15939517669

mango/banana/apple/chilli drying machine/dryer machine/drying equipment

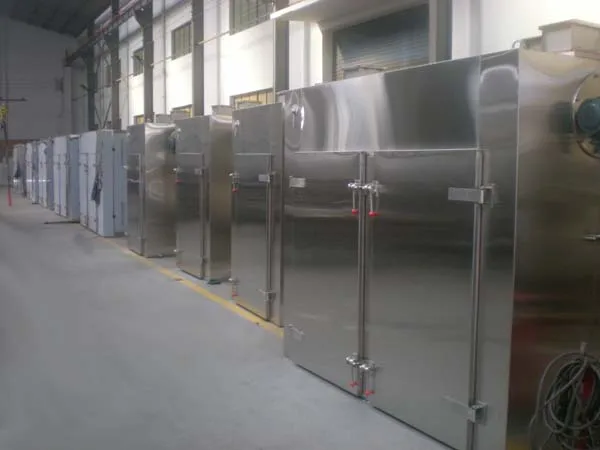

COMPANY WORKSHOP
