Вращающиеся DIY бирки кружки мини размер дерево пластик гравер YRR лазерная гравировальная
- Категория: Industry Laser Equipment >>>
- Поставщик: Shenzhen,Salon,Technologies,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.69 $* | 0.46 $* |
| Aug-19-2025 | 0.87 $* | 0.11 $* |
| Jul-19-2025 | 0.44 $* | 0.70 $* |
| Jun-19-2025 | 0.35 $* | 0.31 $* |
| May-19-2025 | 0.47 $* | 0.29 $* |
| Apr-19-2025 | 0.40 $* | 0.30 $* |
| Mar-19-2025 | 0.12 $* | 0.66 $* |
| Feb-19-2025 | 0.60 $* | 0.52 $* |
| Jan-19-2025 | 0.67 $* | 0.3 $* |
Характеристики
Product Overview

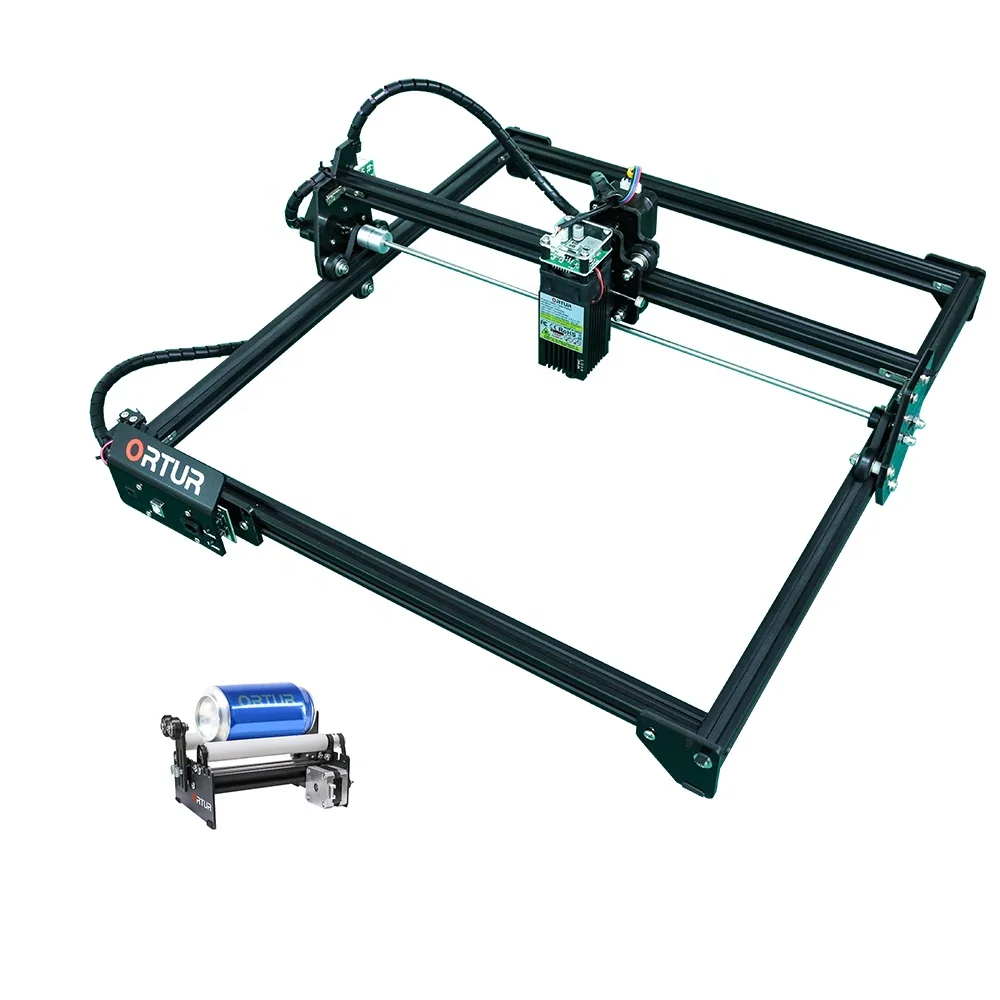

2021 Latest Version OEM Ortur Laser Master 2-7W 15W 20W
● The Laser Master 2 - 7W is good at picture engraving.
● The Laser Master 2 - 15W is the most cost-effective, available for both engraving and cutting.
● The Laser Master 2 - 20W is higher power and supports a faster engraving and cutting.
● The Laser Master 2 - 15W is the most cost-effective, available for both engraving and cutting.
● The Laser Master 2 - 20W is higher power and supports a faster engraving and cutting.
OLM2-7W Adjustable Focus
OLM2-15W Fixed Focus
OLM2-20W Fixed Focus
PRODUCT SPECIFICATIONS
Specifications of laser master 2 | Data | |
Power | 36W, 12V 3A | |
Wave Length | 445 ± 5nm | |
Default Focal Length | 55MM for 15W & 20W | |
Default Focal Length | 58MM for 7W | |
7W Luminous Power | 1200-1600 mw | |
15W Luminous Power | 4000-4500 mw | |
20W Luminous Power | 5000-5500mw | |
Carving Area | X: 400MM x Y: 430MM | |
Motherboard | OLM-MAX-V10 Motherboard, with 32Bits MCU | |
Firmware | Ortur Laser Master V1.4 Firmware | |
Engraving Speed | 0-3,000MM/Min | |
Control Mode | PWM | |
Computer OS | Win XP, Win 7, Win 8, Win 10 (LaserGRBL) Mac and Linux (LightBurn) | |
Control Softwares | LaserGRBL (free), LightBurn (Paid Software) | |
Input Format | NC, DXF, BMP, JPG, PNG, SVG, etc. | |
Available Materials of Engraving | Wood, Paperboard, Acrylic, Leather, Some Plastic(opaque), Power Coated Metal, etc. | |
Available Materials of Cutting | Kraft Paper, Paper Board, Thin Plywood, KT Board, Felt Cloth, Leather, etc. | |
Input Voltage | 110V-220V (Compatible) | |
Power Adapter Output | 12V / 3A | |
Operating Temp. | -10℃-30℃ | |
Packaging Information | ||
Product Size | 570*550*175.2MM | |
Box Size： | 590*210*120MM | |
Net Weight | 2.22KGS (LU1-2) / 2.48KGS (LU1-3 and LU1-4) | |
Gross Weight： | 3.40KGS (LU1-2) / 3.60KGS (LU1-3 and LU1-4) | |
Packing Way： | X-axis Aseembly+Y-axis Aseembly+Laser Module+Accessories, inserted in PE Foam, packed in a cardboard box. | |
PRODUCT CONFIGURATION
Main Features:
●Specialized Motherboard with STM32 MCU
●The Most Advanced 32Bits Laser Engraver Firmware
Ortur laser master firmware, smarter, faster, higher precision and easier to use.
● Laser power range could be S0 - S1000, compared to 8bits desktop laser engravers, which only has S0 - S255, Ortur Laser Master
● Engraving speed could be as high as 3000MM/Min.
●Active Position Protection
●Laser Beam Safety Guard
●Exposure Duration Detection and Limitation
● LaserGRBL ( free software ) supports Windows XP, 7, 8, 10.
● LightBurn ( paid software, lightburnsoftware.com ) supports Windows, Mac OS, and Linux.
● This laser engraver supports PWM mode.
● Pre-assembled parts, just need 10 - 20 minutes to install the machine.
● 400 x 430 mm large engraving area.
● Aluminum profile frame + structured cabling, solid structure, smooth operation, attractive appearance
● Synchronizing shaft mechanical structure, avoid out-sync on two Y rails, during full speed engraving.
●The Most Advanced 32Bits Laser Engraver Firmware
Ortur laser master firmware, smarter, faster, higher precision and easier to use.
● Laser power range could be S0 - S1000, compared to 8bits desktop laser engravers, which only has S0 - S255, Ortur Laser Master
● Engraving speed could be as high as 3000MM/Min.
●Active Position Protection
●Laser Beam Safety Guard
●Exposure Duration Detection and Limitation
● LaserGRBL ( free software ) supports Windows XP, 7, 8, 10.
● LightBurn ( paid software, lightburnsoftware.com ) supports Windows, Mac OS, and Linux.
● This laser engraver supports PWM mode.
● Pre-assembled parts, just need 10 - 20 minutes to install the machine.
● 400 x 430 mm large engraving area.
● Aluminum profile frame + structured cabling, solid structure, smooth operation, attractive appearance
● Synchronizing shaft mechanical structure, avoid out-sync on two Y rails, during full speed engraving.

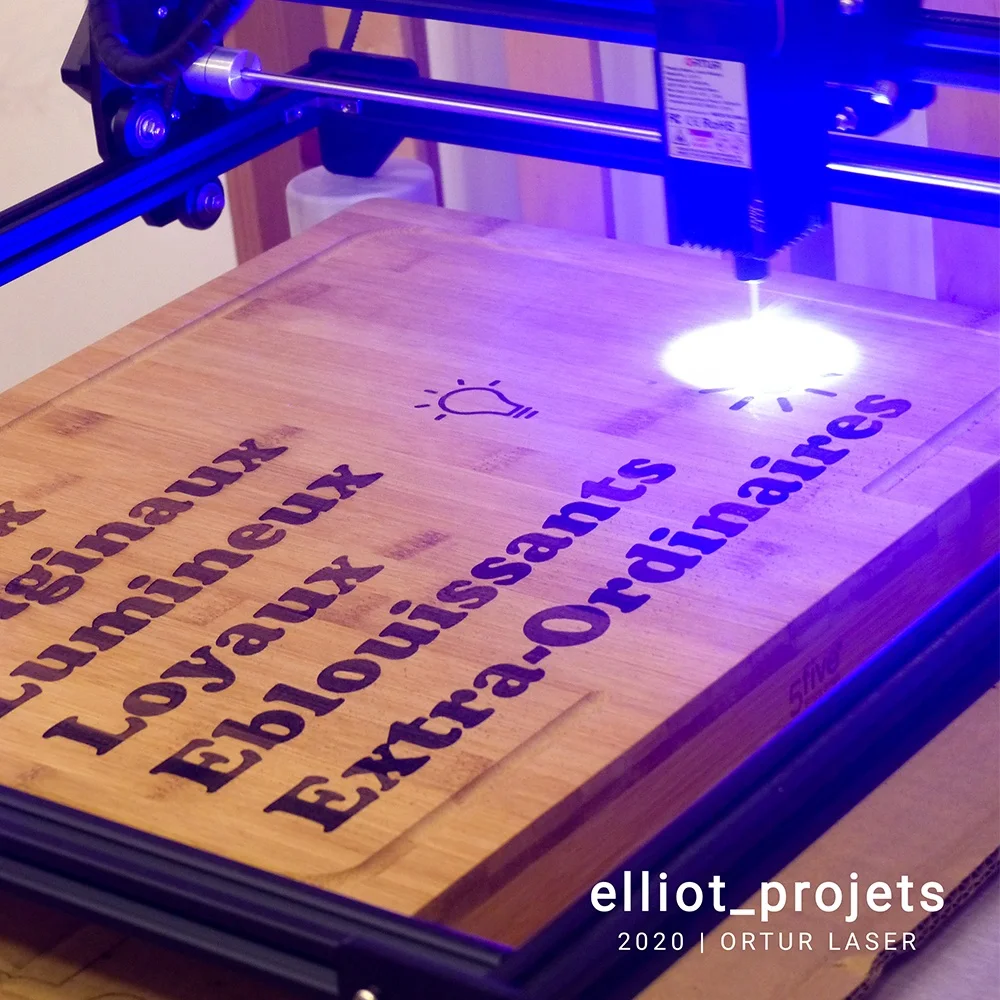

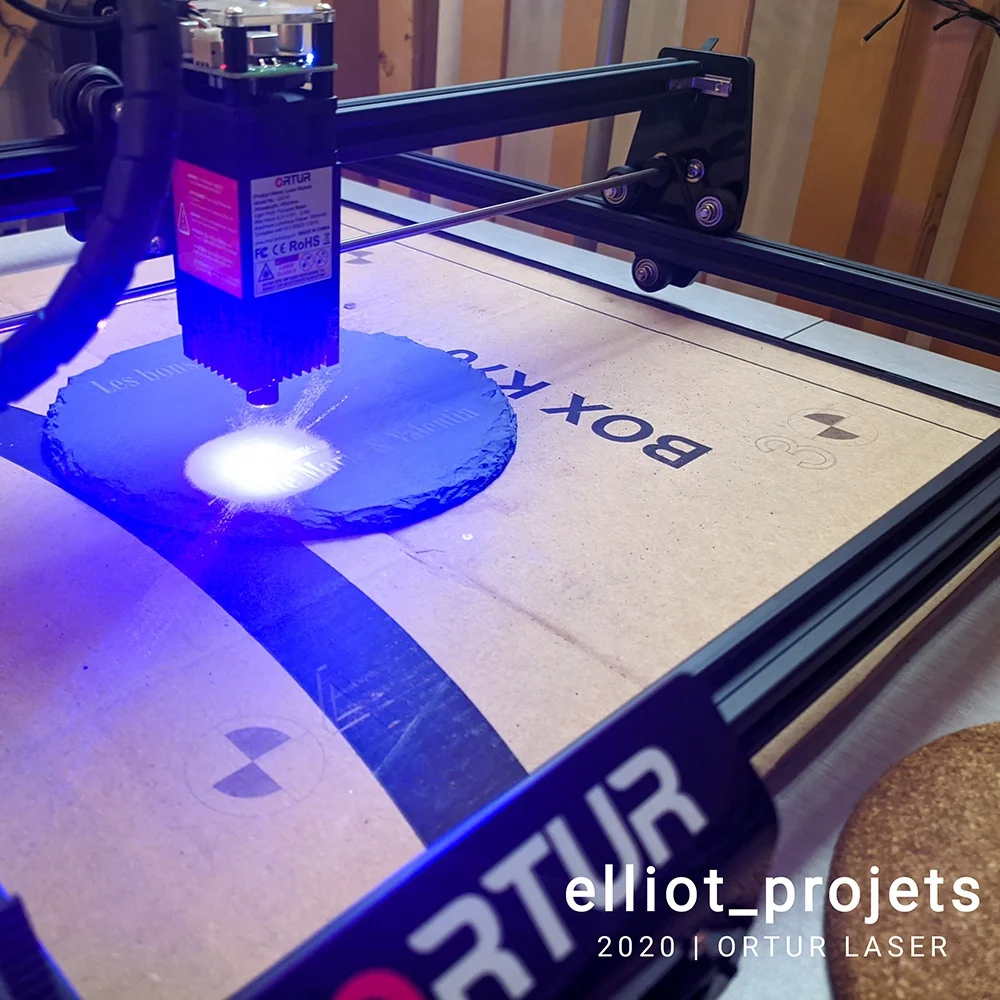

Successful Project
plywood
paperboard
stone
glass
ceramic
acrylic
FAQ
About Ortur brand
100% factory manufacturer located in China, welcome to visit our factory whenever you like!
We offer you a wide range of 3D printers and Ortur Laser Master series with performance levels adequate to the various uses which you could envision for your 3D printer.
It is important to know that our factory do not just sell "boxes", but we offer support and advice to get the best results with
the printer you choose.
We are always available to provide the spare parts and filaments you need with your 3D printers/Ortur Laser Masters.
You could rely on us for the consistent quality and service!
About Tax:
Most countries we ship the parcel for free shipping , but we do not cover any tax and duty!
About customs charging fee . no body can control , every country customs has different Import and export tariff system.
About Maintenancece:
All products have12 months warrantyagainst manufacturing defects,buy it with confidence. If any breakdown, send us the working video, we shall offer solutions for you. Usually we do not accpt return. If the item was damaged during transportation or cannot be used normally, pls do not hesitate to contact us and provide us the photos and working video, we will give a partial refund or send the spare parts for free.
About delivery:
we need 1-3 days handle order in factory when payment received. As normal, it needs 5-7 days update first tracking and 15-60 days for delivery. If you do not receive the goods as promised,pls feel free to contact us before opening a dispute or leaving us a negative feedback.We would reply you within 24 hours and provide the best solution. If the parcel confirmed lost during transportation, we will give you a full refund or resend the item without any extra fees
100% factory manufacturer located in China, welcome to visit our factory whenever you like!
We offer you a wide range of 3D printers and Ortur Laser Master series with performance levels adequate to the various uses which you could envision for your 3D printer.
It is important to know that our factory do not just sell "boxes", but we offer support and advice to get the best results with
the printer you choose.
We are always available to provide the spare parts and filaments you need with your 3D printers/Ortur Laser Masters.
You could rely on us for the consistent quality and service!
About Tax:
Most countries we ship the parcel for free shipping , but we do not cover any tax and duty!
About customs charging fee . no body can control , every country customs has different Import and export tariff system.
About Maintenancece:
All products have12 months warrantyagainst manufacturing defects,buy it with confidence. If any breakdown, send us the working video, we shall offer solutions for you. Usually we do not accpt return. If the item was damaged during transportation or cannot be used normally, pls do not hesitate to contact us and provide us the photos and working video, we will give a partial refund or send the spare parts for free.
About delivery:
we need 1-3 days handle order in factory when payment received. As normal, it needs 5-7 days update first tracking and 15-60 days for delivery. If you do not receive the goods as promised,pls feel free to contact us before opening a dispute or leaving us a negative feedback.We would reply you within 24 hours and provide the best solution. If the parcel confirmed lost during transportation, we will give you a full refund or resend the item without any extra fees
