Испарительный конденсатор с замкнутым контуром для промышленного


Поделиться:


Цена:7 250,00 $ - 7 600,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 8628.90 $* 9059.64 $*
Aug-16-2025 8555.53 $* 8983.35 $*
Jul-16-2025 7178.35 $* 7537.40 $*
Jun-16-2025 8410.36 $* 8831.52 $*
May-16-2025 7323.46 $* 7689.47 $*
Apr-16-2025 8265.6 $* 8678.60 $*
Mar-16-2025 8193.16 $* 8603.46 $*
Feb-16-2025 8120.81 $* 8526.42 $*
Jan-16-2025 8048.32 $* 8450.14 $*

Характеристики



Products Description

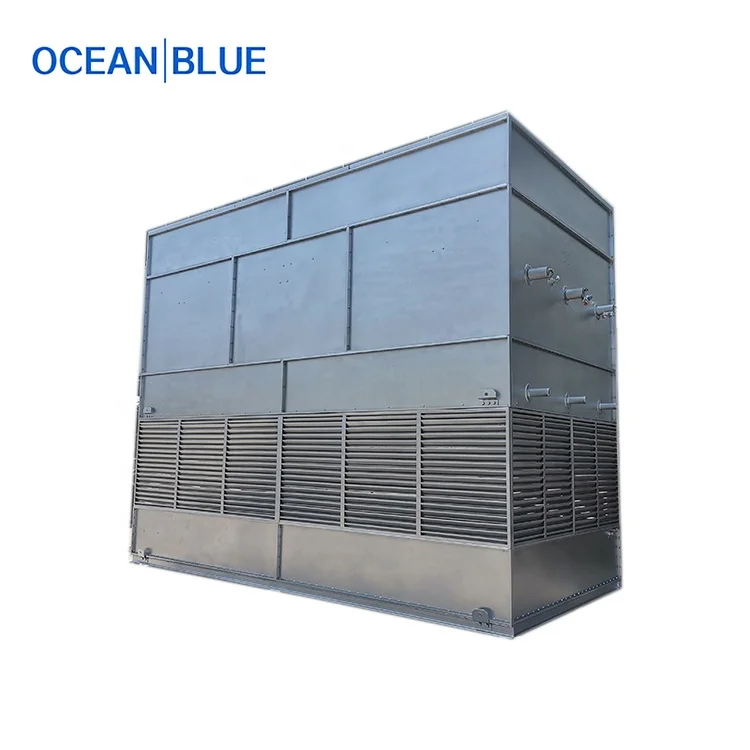

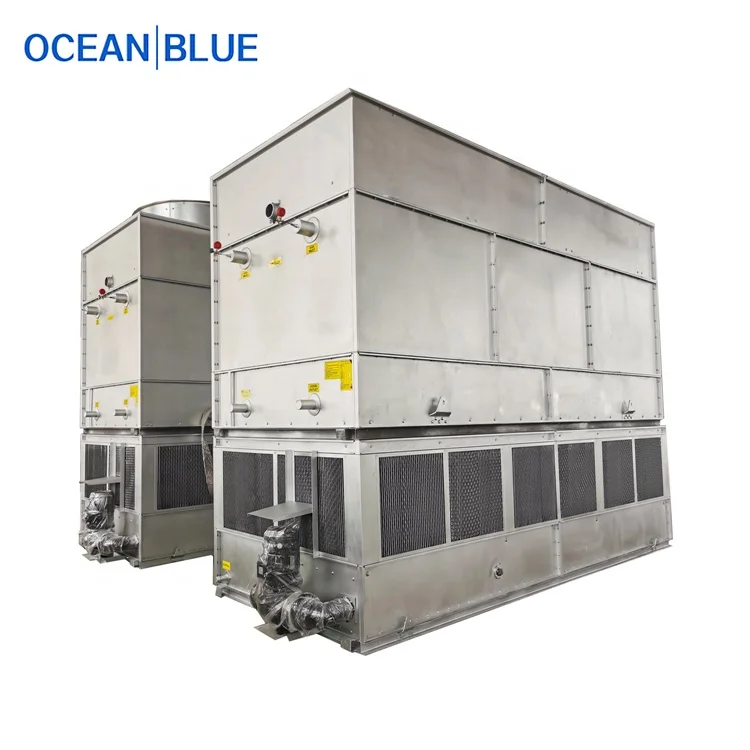

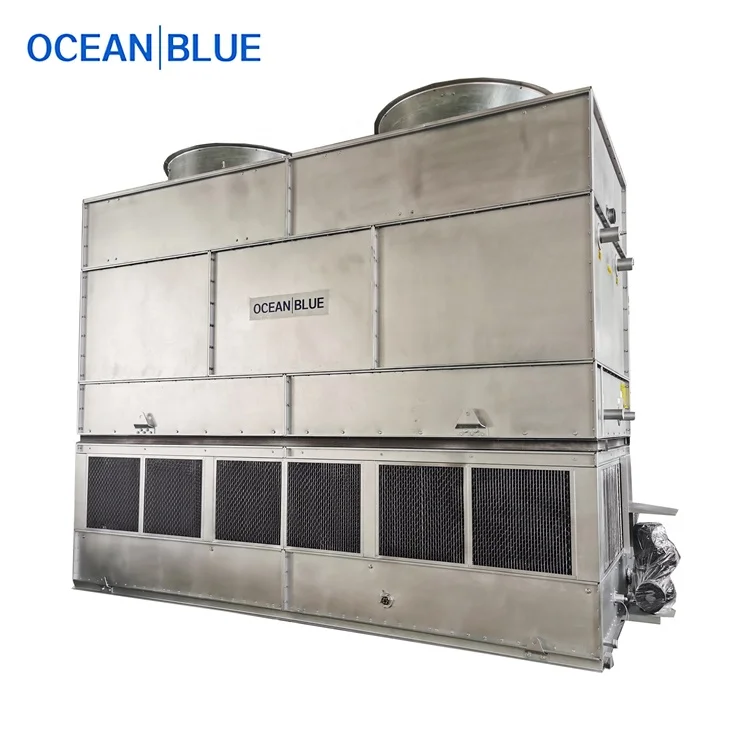

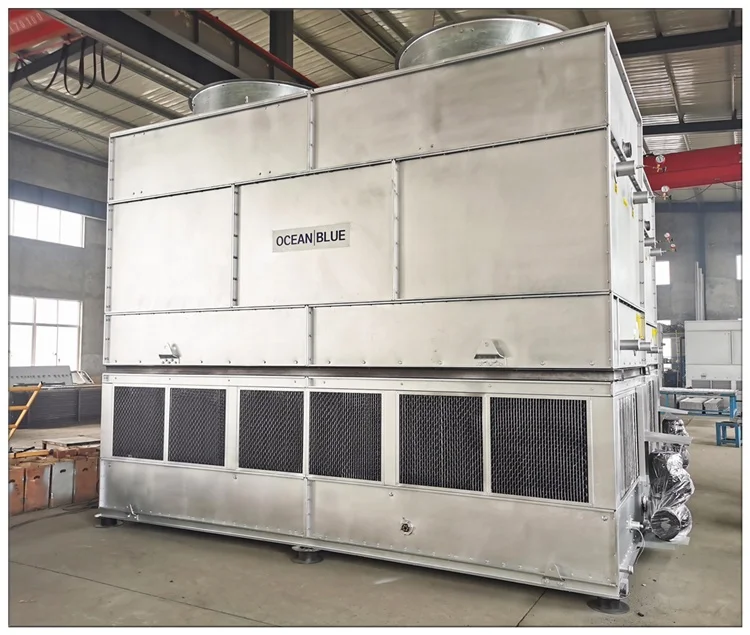

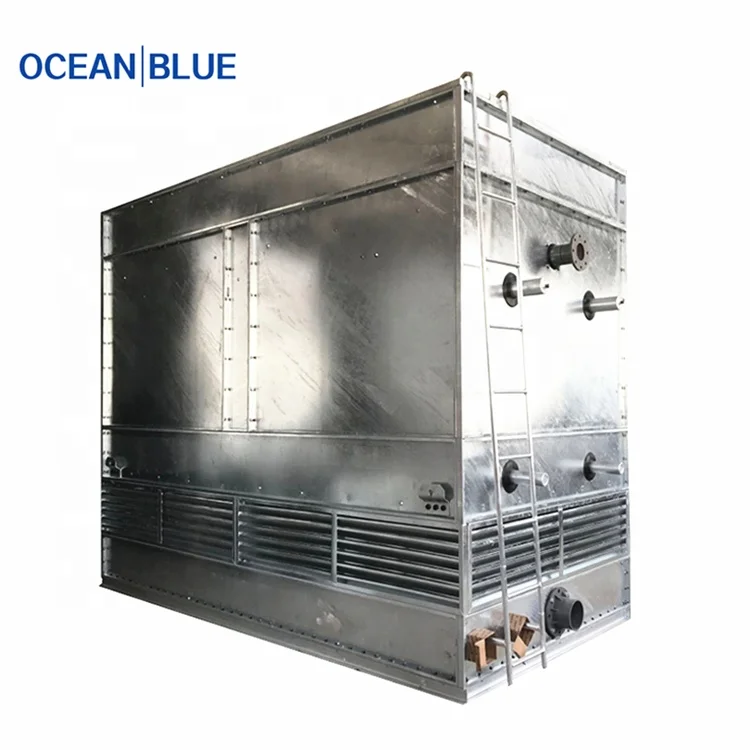

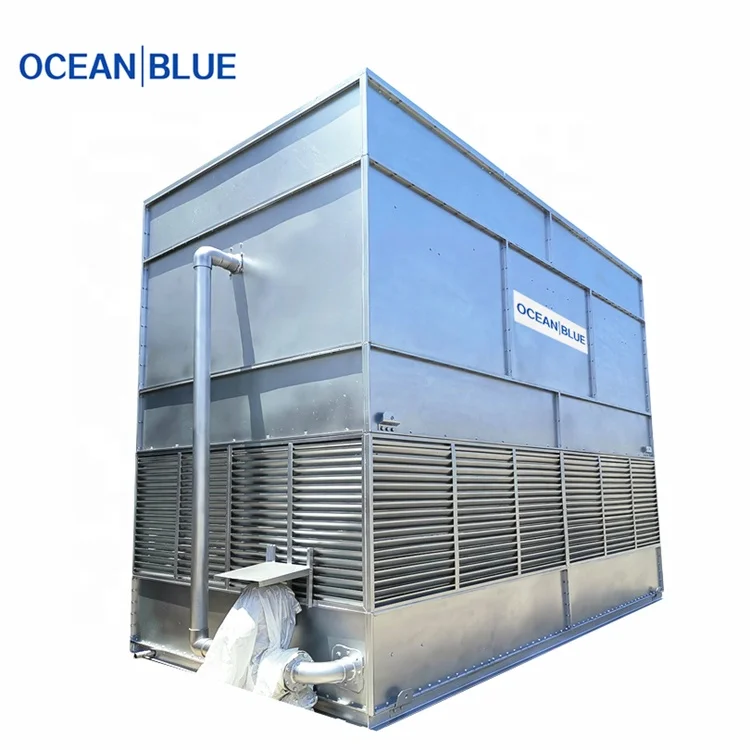

ECE Evaporative Condenser
Evaporative condenser is one of the most important parts of the whole refrigeration system. The condenser condenses the refrigerant gas inside the coil and complete a heat exchange circle. Evaporative condenser is widely applied to cold storage, ice store, chemical industry, supermarket etc.









Product Paramenters


Model
Heat Rejection (KW)
Size (mm)
(L*W*H)
Weight (Kg)
Fans Power
(KW)
Water Pump
Power(KW)
Transport
Operate
ECE350
356
2100*1420*3080
1960
2950
2.2*1
1.1
ECE400
405
2100*1590*3080
2130
3250
2.2*2
1.1
ECE450
455
2100*1790*3080
2300
3550
2.2*2
1.5
ECE500
506
2100*1960*3080
2460
3850
2.2*2
1.5
ECE550
556
2170*2100*3080
2630
4200
2.2*2
1.5
ECE600
606
2400*2100*3180
2950
4650
2.2*2
2.2
ECE700
706
2740*2100*3180
3310
5240
5.5*1
2.2
ECE800
805
3085*2100*3180
3670
5870
5.5*1
3
ECE900
906
3485*2100*3230
4100
6570
2.2*3
4
ECE1000
1005
3825*2100*3230
4400
7160
2.2*3
4
ECE1100
1105
4240*2120*3390
5130
7350
4.0*2
4
ECE1200
1203
4240*2230*3210
5550
7780
4.0*2
4
ECE1300
1304
5000*2120*3330
5980
8370
4.0*2
4
ECE1400
1406
5000*2230*3330
6440
8500
4.0*2
4
ECE1500
1505
5000*2070*3560
6900
9250
5.5*2
4
ECE1600
1603
5000*2150*3700
7520
10500
5.5*2
5.5
ECE1700
1701
5600*2070*3700
7910
11050
5.5*2
5.5
ECE1800
1804
5600*2200*3700
8640
11700
5.5*2
5.5








Details Images





Condensing Coil
Hop dip galvanized coil or stainless steel coil; Oval tube unique design, high efficiency heat exchange process.










Axial Fan
Low noise with large air-flow;
Aluminum alloy blades;
Damp-proof motor.


Drift Eliminator
High-effective water eliminater
is made of PVC, can filter the drips
from expelled air-steam.



Water Pump
Low noise and large water flow;
Protection level IP55, insulation level F.

Water Distribution System
The top nozzles evenly spray the water
onto the outer surface of the condensing
coil and form a water layer.



Successful Project




Project in Thailand

Project in India
Project in Peru


Exhibition




Product packaging




FAQ


How to choose a right model ?

We need to know the under information to confirm the model you need:
1. The information of the compressor: the model, the cooling capacity, the motor power, the quantity
2. Condensing temperature
3. Wet bulb temperature
4. Heat rejection (KW)
5. The refrigerant : Ammonia or Freon (R717 or R22 or R134A or others)

If you need to replace others brand evaporative condenser, you just need to send the brand and the model to us, then we can choose the suitable model for you !!!
