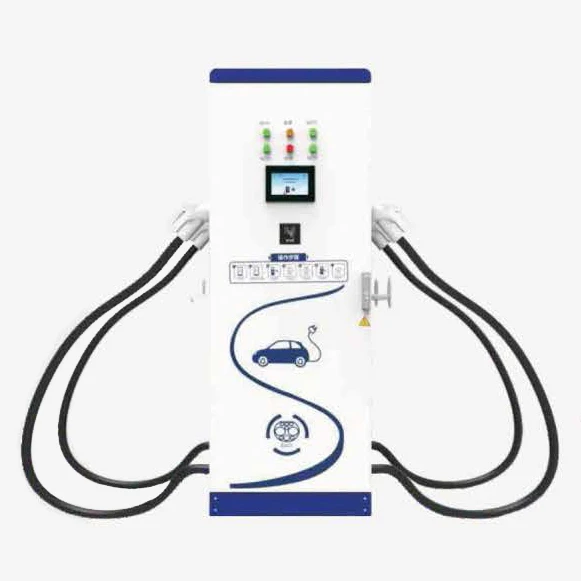

Ev зарядное устройство 160-240kw настенный Ac зарядная станция Электрический для электротранспортного средства

Описание и отзывы

Трекер стоимости

Характеристики

Applicable Scene:

DC charging pile is suitable for urban special charging stations (buses, taxis, business vehicles, sanitation vehicles, logistics vehicles, etc.), urban public charging stations (private cars, commuter vehicles, buses) commercial real estate, intercity highway charging stations and other occasions requiring DC rapid charging, especially suitable for rapid deployment under restricted conditions.

Features:

1. With input side overvoltage, undervoltage protection, output side overvoltage, overcurrent protection, insulation detection protection, over temperature, short circuit, leakage, lightning protection, battery anti-connection protection..

2. With power, charging, fault three state indication, fully compatible with the new international version, with emergency shutdown, connection confirmation detection, charging door detection, charging gun lock, charging gun temperature detection and other functions, all-round to ensure charging safety.

3. Charging operation is diverse, according to "automatic filling "," time mode "," amount mode "," electricity mode ", combined with the needs of the BMS to charge electric vehicles.

4. With operation authority password management function, support non-contact IC card and mobile phone APP for identity authentication, charging control, payment and settlement functions

5,Support wired (CAN, Ethernet) and wireless (GPRS,3G,4G, etc.) communication mode, charging pile group centralized management, system software with local and remote upgrade function.

6,payment method: mobile phone APP payment, credit card payment, WeChat / Alipay payment, etc

Technical Parameter

Model	DCL160-240D
Type	DC charging pile
User Interface	700*700*1917mm
Output Rating	160Kw/240Kw
Output Current Range	0-250A
Output Frequency	50/60(±2%)Hz
Levels Of Protection	IP54
Way To Install	upright
Input Voltage Range	20% AC380V± input
Communication Interface	Ethernet
Earth Leakage Protection	Leakage current ≤0.15 MA, action
User Interface	7-inch Bright Color Touch
Output Voltage	200-750V
Type Of Gun	Four plug
