Автоматические крышки подъемные кормления вспомогательное оборудование укупорки машины пользовательские пластиковые бутылки оптом крышка Лифт
- Категория: Capping Machines >>>
- Поставщик: Guangzhou,Lantliv,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.91 $* | 0.78 $* |
| Aug-19-2025 | 0.95 $* | 0.88 $* |
| Jul-19-2025 | 0.29 $* | 0.87 $* |
| Jun-19-2025 | 0.72 $* | 0.76 $* |
| May-19-2025 | 0.12 $* | 0.37 $* |
| Apr-19-2025 | 0.85 $* | 0.78 $* |
| Mar-19-2025 | 0.21 $* | 0.17 $* |
| Feb-19-2025 | 0.59 $* | 0.58 $* |
| Jan-19-2025 | 0.14 $* | 0.90 $* |
Характеристики
Product Description
Automatic bottle caps elevator is stable in operation and is suitable for plastic caps, metal crown caps, aluminum caps, etc. Special caps, which are transported by belt to transport the caps into the capper, which is the best auxiliary device for the capping machine.
Product Details
Features
1. The lifting cover machine series equipment is designed and manufactured according to the process and technical requirements of the traditional cover machine. The cover process is stable and reliable, meeting the ideal requirements.
2. The capping machine uses the principle of the gravity center of the bottle cap to arrange the bottle cap and make it output in the same direction (mouth up or down). This machine is a mechatronic product with simple and reasonable structure. It is suitable for the capping of products of various specifications, and can make stepless adjustment to the production capacity according to the specifications and characteristics of the products. It has strong adaptability to the lids, and is suitable for the lids of various specifications such as food, medicine, cosmetics, etc.
3. This machine can be used together with all kinds of capping machines and thread sealing machines. Its working principle is that through the function of micro switch detection, the bottle cap in the hopper can be sent into the cap trimmer at a uniform speed according to the production needs through the conveying scraper, so as to ensure that the bottle cap in the cap trimmer can be kept in a good state.
4. The machine is easy to operate, with the bottom cover added and the top cover speed adjustable. It can automatically stop the top cover when the cover is full. It is an ideal auxiliary equipment of capping machine.
5. Without special training, ordinary people can operate and repair the machine after guidance. The standardized electrical components make it very easy to purchase accessories and facilitate daily maintenance and management.
6. The whole machine is made of SUS304 stainless steel, and the parts are of standardized design, which is interchangeable and fully meets the environmental requirements of GMP.
7. The lift type lid straightening machine uses the weight imbalance of the lid to lift the qualified lid. The equipment directly lifts the qualified lid to the discharge port through the lid straightening conveyor belt, and then uses the positioning device to position the lid, so that it can output in the same direction (port up or down), that is, to complete the lid straightening There is no need for manual intervention in the whole process.
2. The capping machine uses the principle of the gravity center of the bottle cap to arrange the bottle cap and make it output in the same direction (mouth up or down). This machine is a mechatronic product with simple and reasonable structure. It is suitable for the capping of products of various specifications, and can make stepless adjustment to the production capacity according to the specifications and characteristics of the products. It has strong adaptability to the lids, and is suitable for the lids of various specifications such as food, medicine, cosmetics, etc.
3. This machine can be used together with all kinds of capping machines and thread sealing machines. Its working principle is that through the function of micro switch detection, the bottle cap in the hopper can be sent into the cap trimmer at a uniform speed according to the production needs through the conveying scraper, so as to ensure that the bottle cap in the cap trimmer can be kept in a good state.
4. The machine is easy to operate, with the bottom cover added and the top cover speed adjustable. It can automatically stop the top cover when the cover is full. It is an ideal auxiliary equipment of capping machine.
5. Without special training, ordinary people can operate and repair the machine after guidance. The standardized electrical components make it very easy to purchase accessories and facilitate daily maintenance and management.
6. The whole machine is made of SUS304 stainless steel, and the parts are of standardized design, which is interchangeable and fully meets the environmental requirements of GMP.
7. The lift type lid straightening machine uses the weight imbalance of the lid to lift the qualified lid. The equipment directly lifts the qualified lid to the discharge port through the lid straightening conveyor belt, and then uses the positioning device to position the lid, so that it can output in the same direction (port up or down), that is, to complete the lid straightening There is no need for manual intervention in the whole process.
Specification
Name | Automatic bottle caps elevator |
Applicable cap diameter | Φ20≤D≤Φ100mm (customized) |
Applicable cap height size | 20≤D≤40mm (customized) |
Speed | 80-160pcs/min (customized) |
Material | stainless steel 304 |
Suitable for | plastic cover, metal cover, wide cover, can be customized |
Power | 200W |
Voltage | AC220V, single phase, 50/60HZ |
Working pressure | No need compressed air |
Machine size(L*W*H) | 700*700*1800mm (customized) |
Net weight | 100kg |

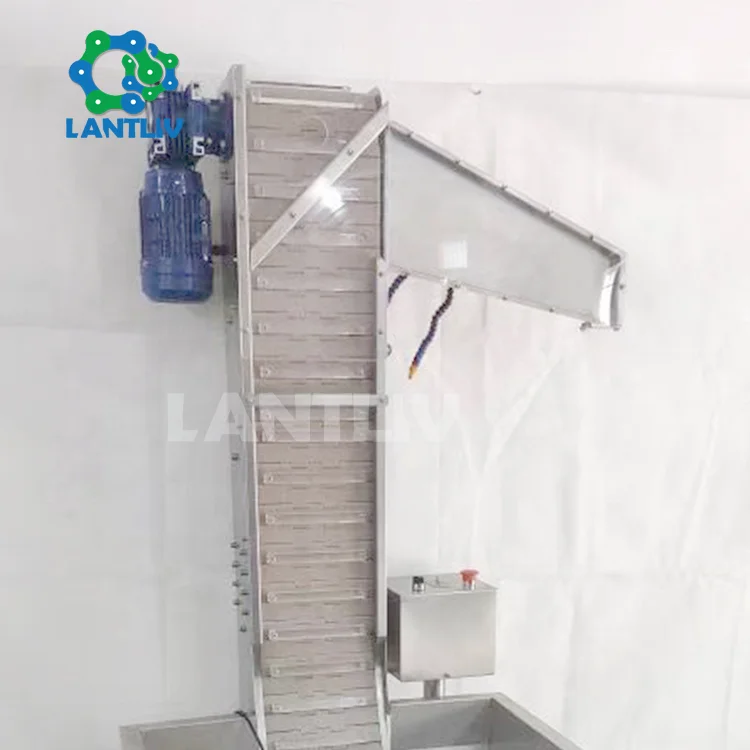

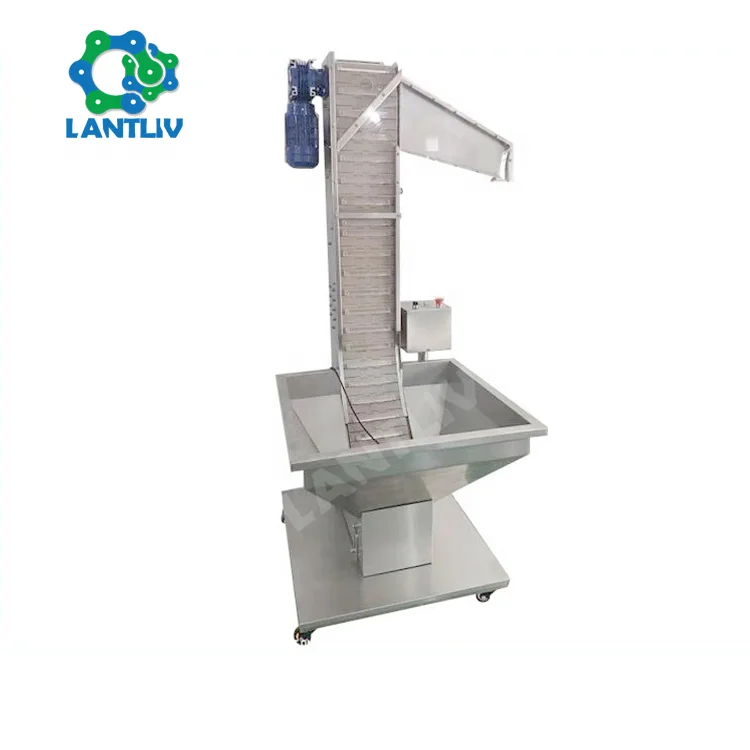

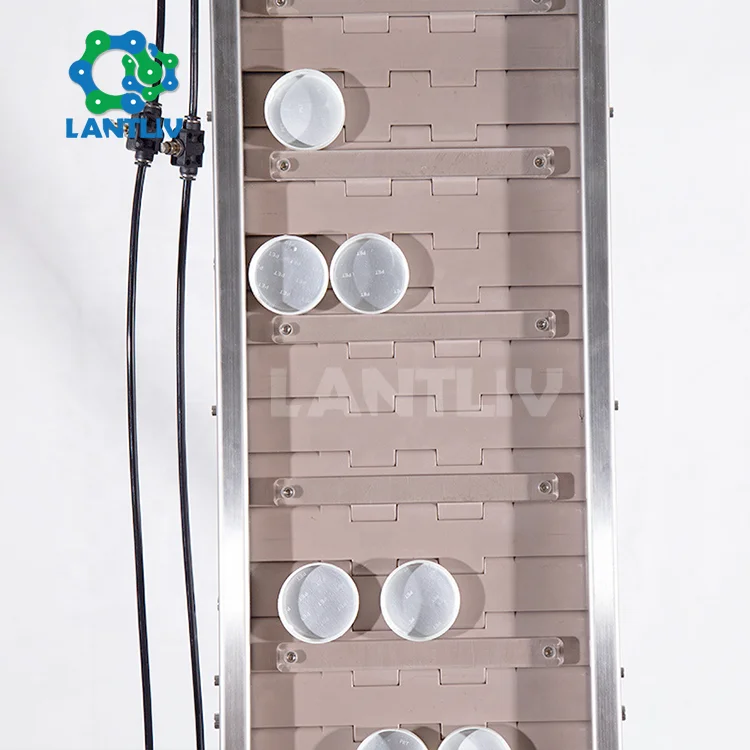

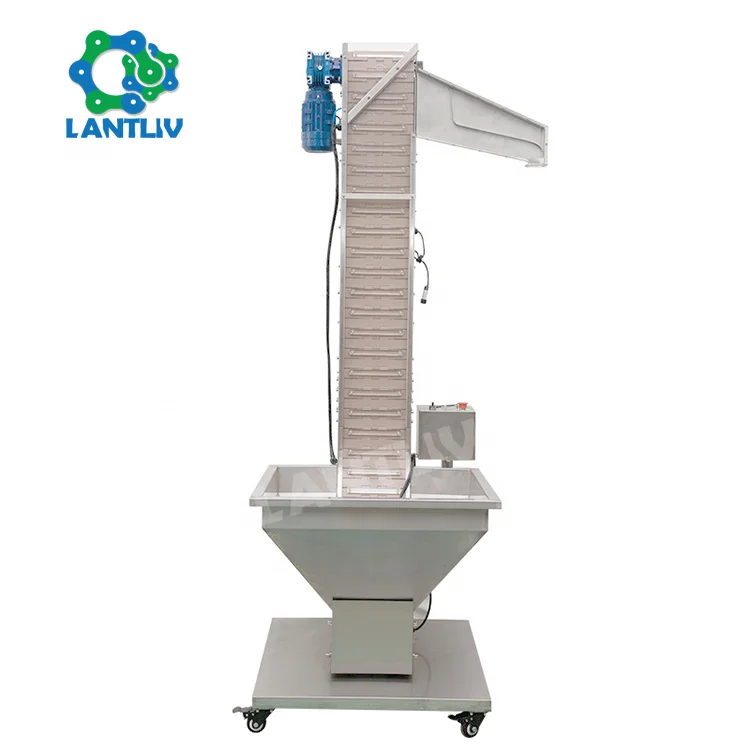

Details Images

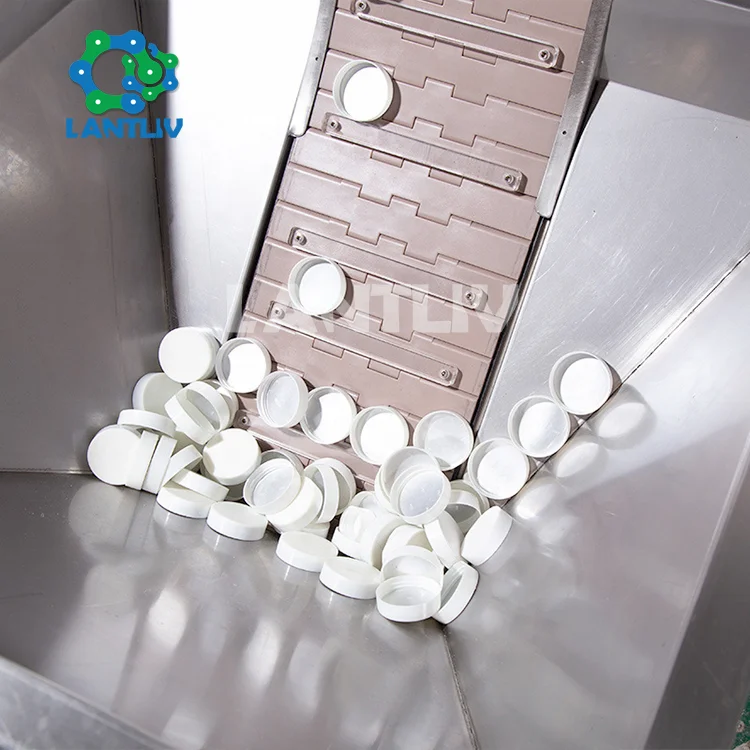

Automatic bottle caps elevator is a high speed sorter for a range of caps. Whether large or small in diameter, the machine sorts them all. And when sorting caps, this machine is accurate and quick.
Related Products
Packing & Delivery
1. Wrapped with plastic film inside and strong carton case or non-fumigated plywood box outside, it is moisture-proof and suitable for long-distance sea, land and air transportation.
2. Delivery time: 10-15 days after receiving the deposit.
3. For machines are big and heavy parcel, and different country with different delivery cost, so we suggest below delivery
solution:
(1) Over 1cbm or 100kg, recommended shipment by sea.
(2) Below 1cbm or 100kg, recommended shipment by air.
(3) Below 0.5cbm or 50kg, recommended shipment by express.
2. Delivery time: 10-15 days after receiving the deposit.
3. For machines are big and heavy parcel, and different country with different delivery cost, so we suggest below delivery
solution:
(1) Over 1cbm or 100kg, recommended shipment by sea.
(2) Below 1cbm or 100kg, recommended shipment by air.
(3) Below 0.5cbm or 50kg, recommended shipment by express.
FAQ
Q: What's your guarantee or the warranty of the quality if we buy your machines?
A: We offer you the high quality machines with two years guarantee and supply long life technical support. Except for wearing parts.
Q: When can I get my machines after I paid?
A: The delivery time is based on the exact machine you confirmed and the order quantity.
Q: How can I install my machines when they arrive?
A: Operating instructions, operating videos, online videos, or we arrange our engineers to your factory to install the machines and train your staffs how to operate the machines, but the cost of round-trip air tickets, meals, and hotel accommodation will be borne by the buyer.
Q: How about the spare parts?
A: We offer you a spare parts list for you refer.
A: We offer you the high quality machines with two years guarantee and supply long life technical support. Except for wearing parts.
Q: When can I get my machines after I paid?
A: The delivery time is based on the exact machine you confirmed and the order quantity.
Q: How can I install my machines when they arrive?
A: Operating instructions, operating videos, online videos, or we arrange our engineers to your factory to install the machines and train your staffs how to operate the machines, but the cost of round-trip air tickets, meals, and hotel accommodation will be borne by the buyer.
Q: How about the spare parts?
A: We offer you a spare parts list for you refer.
