Аппарат молекулярной дистилляции Омега 3 молекулярная Дистилляция

Аппарат молекулярной дистилляции Омега 3 молекулярная Дистилляция

Категория: Evaporator >>>
Поставщик: Xian,Toption,Instrument,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.18 $*	0.76 $*
Aug-16-2025	0.74 $*	0.76 $*
Jul-16-2025	0.31 $*	0.59 $*
Jun-16-2025	0.91 $*	0.33 $*
May-16-2025	0.83 $*	0.95 $*
Apr-16-2025	0.11 $*	0.83 $*
Mar-16-2025	0.68 $*	0.15 $*
Feb-16-2025	0.61 $*	0.44 $*
Jan-16-2025	0.46 $*	0.23 $*

Характеристики

Products Description

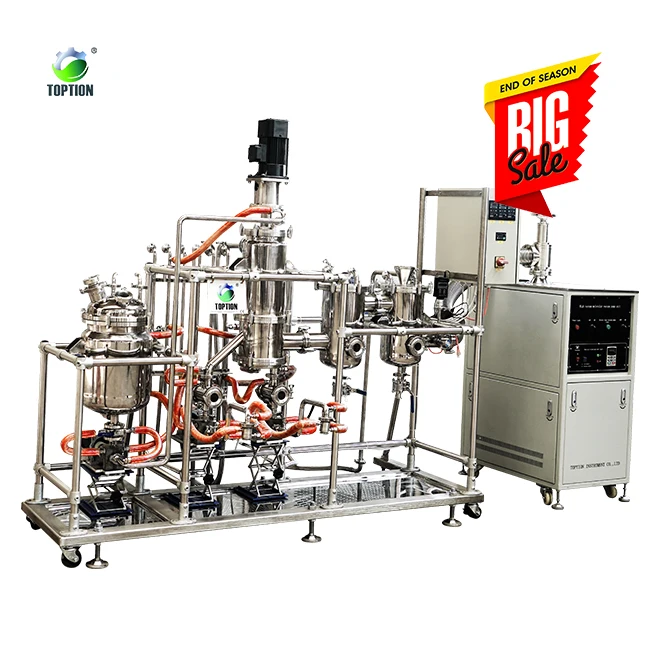

Short path (molecular) distillation system is considered as the safest mode of separation and to purify the thermally unstable molecules & related compounds with low volatility & elevated boiling point. In the high vacuum environment, molecular distillation has the advantages of low distillation temperature, short heating time and rapid separation.

Specification

	MDS-6CE	MDS-10CE	MDS-20CE	MDS-30CE	MDS-50CE	MDS-100CE
Feeding Rates（L/h）	0.5L-3L/H	3-15 L/h	5L-25L/H	5L-30L/H	10L-50L/H	30L-200L/H
CBD Throughput (kg/h)	0.5L-3 kg/h	5 – 12 kg/h	5 – 25 kg/h	5 – 30 kg/h	10 – 50 kg/h	30-200 L/h
Degree	< 0.001mbar with rotary vane pump and oil diffusion vacuum pump
Evaporation Area (㎡)	0.06㎡	0.1 m²	0.2㎡	0.3㎡	0.5㎡	1 m²
Diameter	\\	5 inch	7 inch	8 inch	12 inch	14 inch
Wiper Style	Scraper type film scraping rotor
Material	S316L stainless steel / PTFE (wiper blade)
Vacuum Seal	Mechanical seal (Magnetic seal is optional)
Scraper Motor Power (w)	200W	370W	370W	550W	750W	750W
Speed Regulation Mode	Electronic speed regulation	Electronic speed regulation	Electronic speed regulation	Electronic speed regulation	Electronic speed regulation	Electronic speed regulation
Max.Scraping Speed (rmp)	450	200～1000rpm/min	200～1000rpm/min	450	Frequency control of motor speed	Frequency control of motor speed
Jacket Volume(L)	\\	1.1	7.1	\\	17.3	\\
Volume(L)	\\	0.23	1.24	\\	3.90	\\
Heat Exchanging Area (㎡）	0.20	0.40	0.60	1.00	1.70	2.00
Volume(L)	10L	20L	20L	30L	50L	100L
Jacket Volume(L)	\\	10L	14L	\\	20L	\\
Standard Feeding Rate (L/h)	0.5L～3L/H	3L～15L/H	5L～25L/H	5L～30L/H	10L～50L/H	30L～200L/H
Lighter component discharge	0.5L～3L/H	3L～15L/H	5L～15L/H	5L～30L/H	10L～50L/H	30L～200L/H

Application

Applied industry	Examples of the species of refined products
Pharmaceutical	CBD oil, cbd oil full spectrum distillate, high purity hemp oil, delta 8, fish oil, Acyl chloride, amino acid ester, vitamin E,glucose derivative, terpene ester, natural or synthetic vitamin, beta-carotene, gingerol, capsicum pigment,etc.
Food	Monoglycerides, palm oil, tocopherol, fish oil, rice bran oil, fatty acids and their derivatives, dienoic acid
Food		Vegetable oil, diglycerides, glutamate, cream, lactic acid, linseed oil, dimer acid,etc.
Chemistry	Advanced alcohols, glycerides, herbicides, halogenated alkanes, pesticides, silicone oils, waxes, fatty acids, etc.
Plastic industry	Epoxy resin, epoxidated oil, isocyanate, plasticizer, stabilizer, polyether and polyether polyol,etc.
Petroleum industry	Base oil, bright oil, lubricating oil, vaseline, fir oil, residual tar, etc.
Cosmetic industry	Lanolin fatty acid, lanol, including algae, roots of plants, extract of capsicum, high fat ester, turmeric essential oil, dry ginger essential oil,etc.
