Annealing Lehr:

Usage:

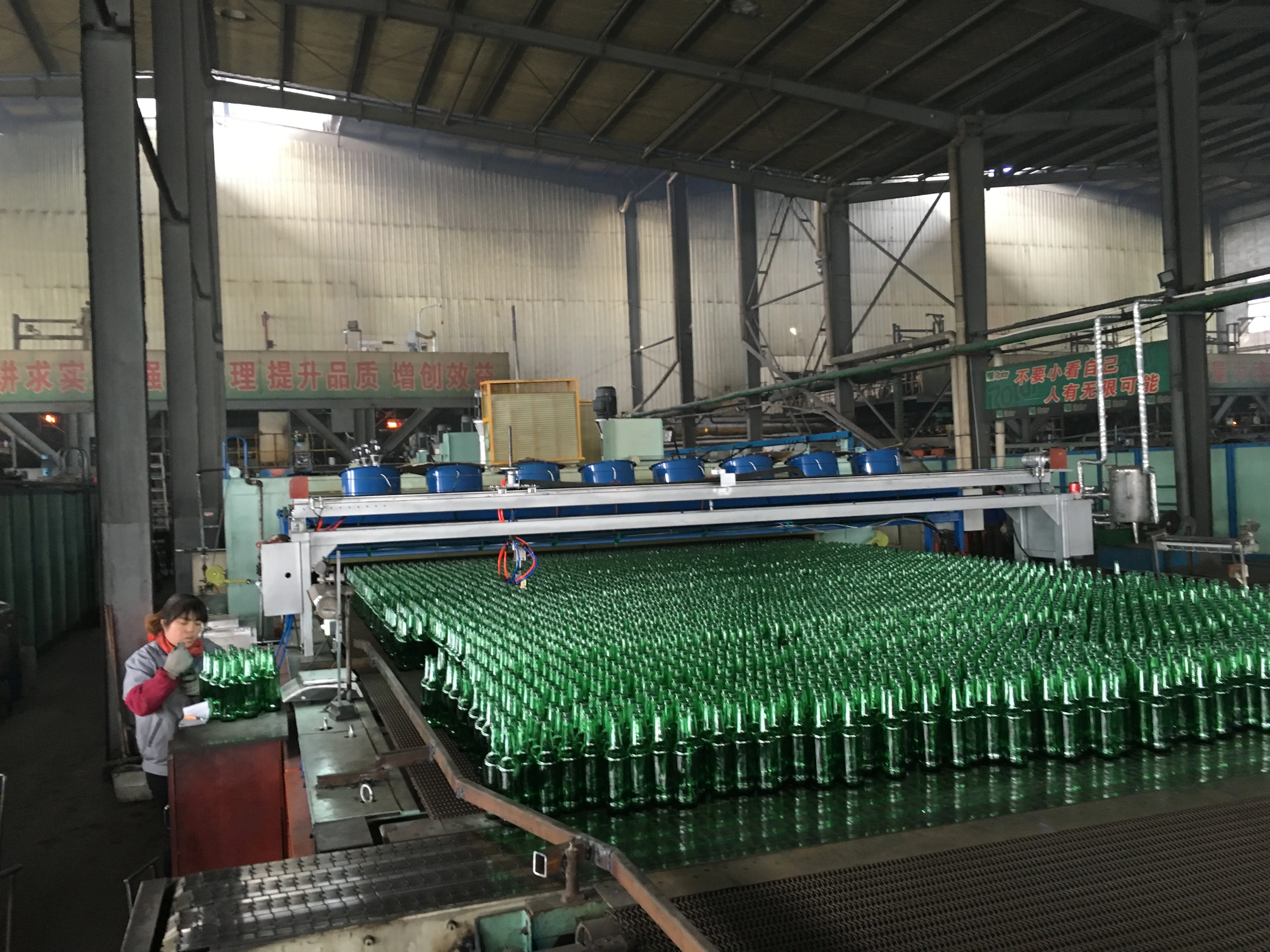

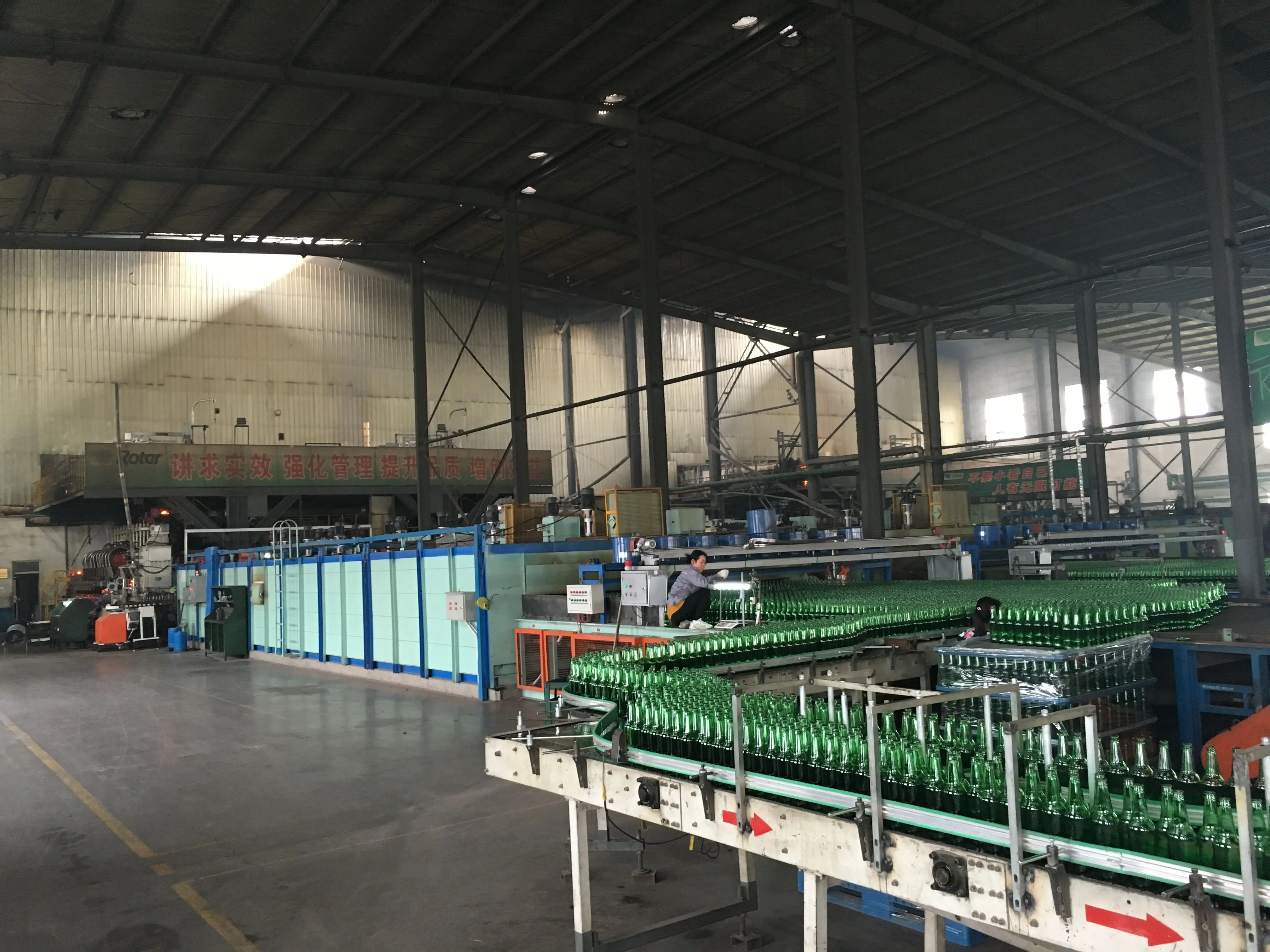

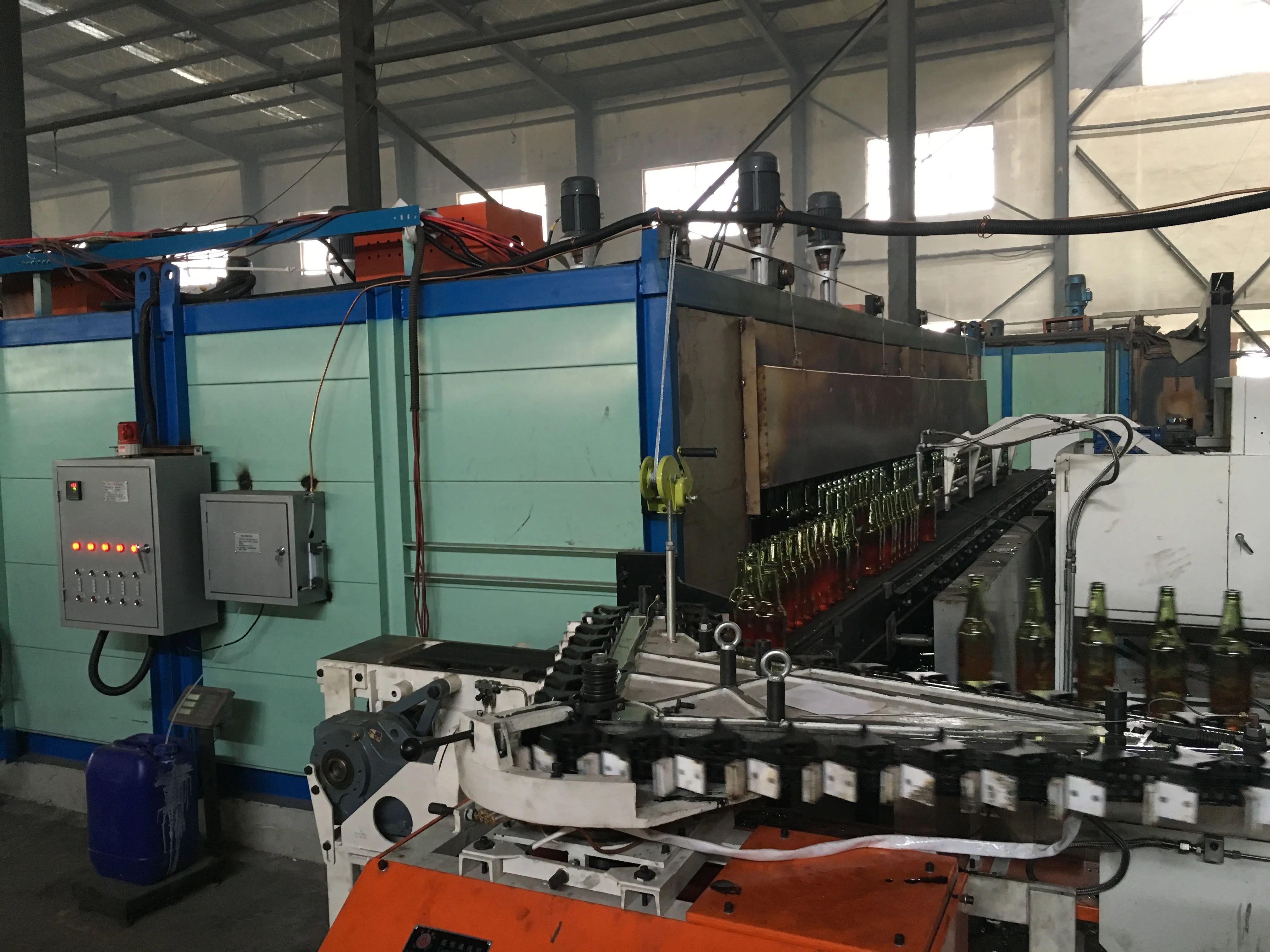

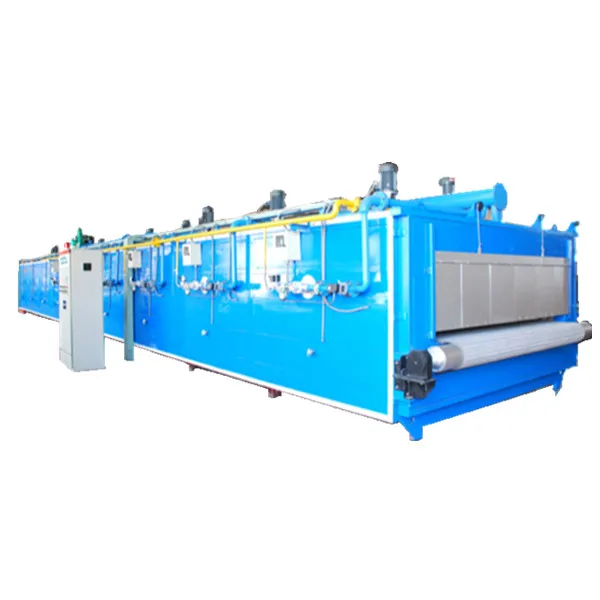

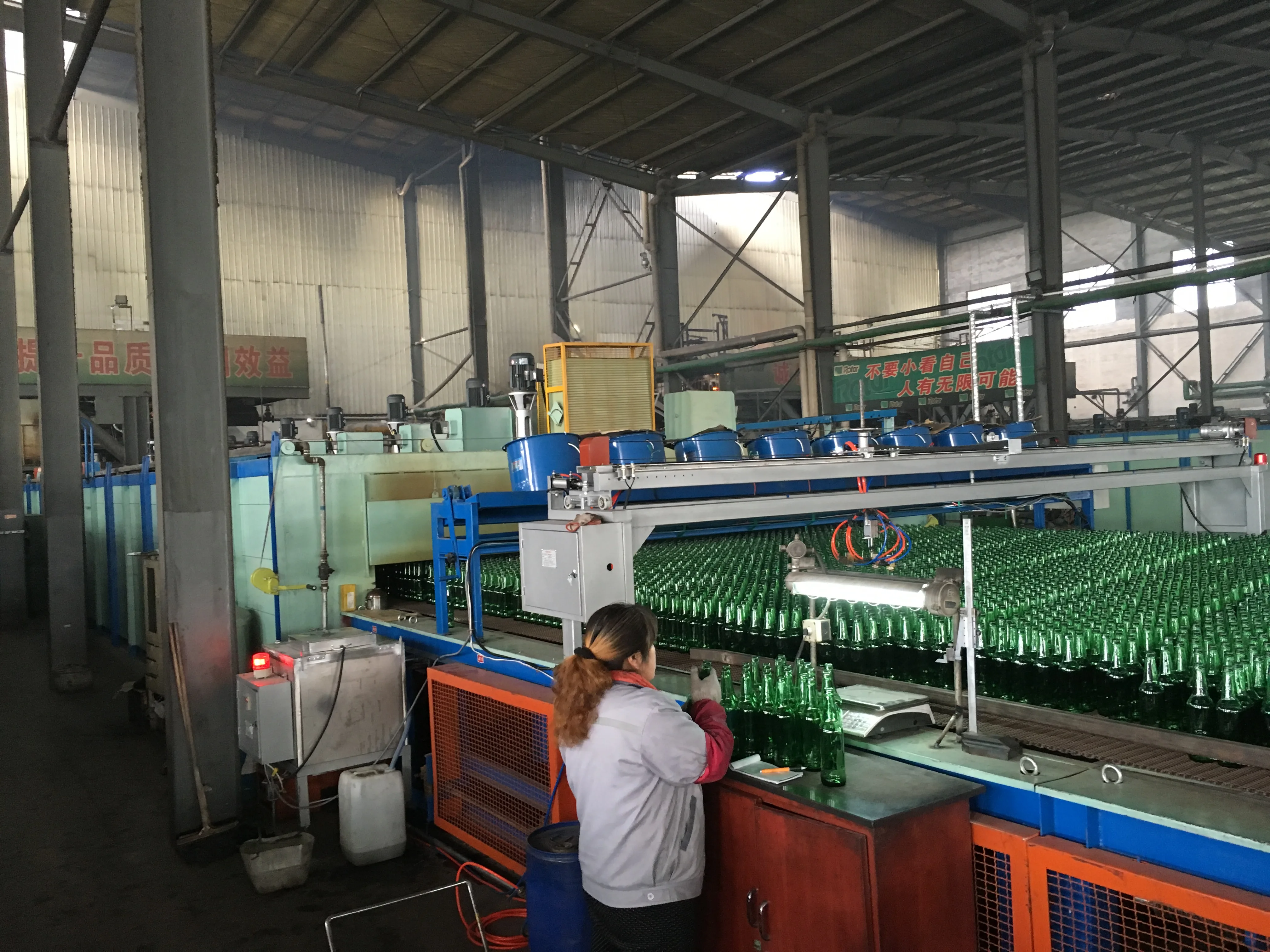

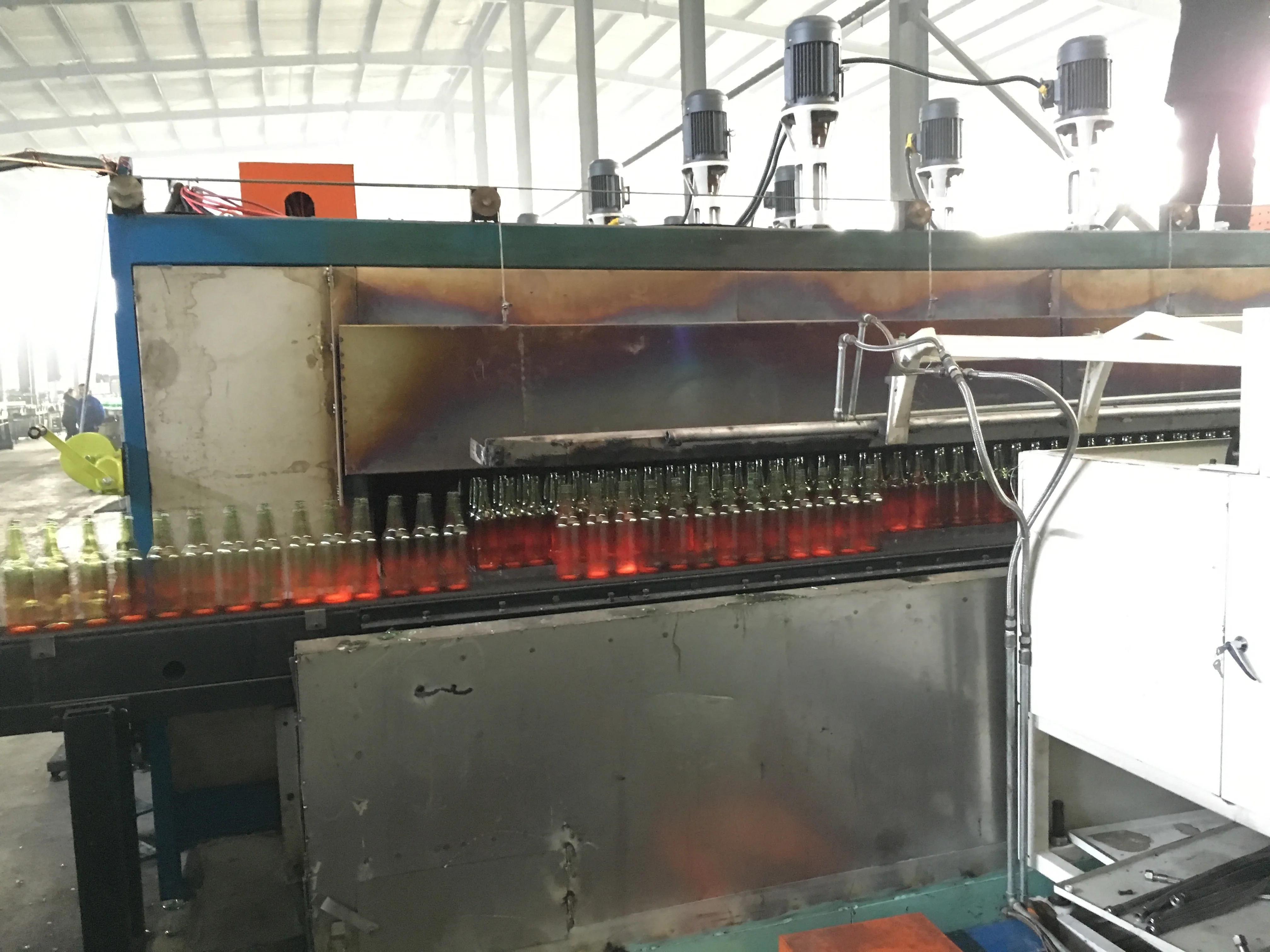

BLTHL-(X) series air-recirculation annealing lehr is suitable for the annealing of glass bottles,pots,and glassware,to release the stress caused by the quick cooling during the forming process.

Characteristics:

1.The structure of the lehr is made of steel,it is designed by section by section installation,so that it is convenient for transportation,and can achieve a quicker installation on site;especially for the reconstruction customer,the reconstruction time can be reduced greatly.

2.Temperature of each zone can be automatically controlled,the thermal parameters can be monitored easily by the customer.

3.Air recirculation makes sure a uniform temperature at each zone,and increases the heat transmission efficiency.

4.Good insulation makes sure lower energy consumption,and therefore a lower cost.

Advanced Technology,Low Energy Consumption:

1.Perfect insulation:heating zones with first-class ceramicc fibre,so that the out surface temperature is not exceed ambient temperature 15℃,and therefore save a lot of energy.

2.The air-recirculation design makes sure an uniform temperature in the chamber,and improve the pass rate of the processed products.A specially designed air flow route makes sure an uniform air flow distribution and avoid partial overheating at the heating elements and in the chamber,meanwhile,to achieve a high heat transmission efficiency.

3.Temperature-adjust assembly is installed at the homogenous zones and cooling zones,to achieve the different required temperature by different glass products.When the temperature is higher than required,a servo-motor will open a valve to introduce cool air to the suction mouth of the recirculation fan,and thereby to lower the temperature of the chamber.
