Полностью автоматические машины для производства
- Категория: Nail Making Machines >>>
- Поставщик: Shijiazhuang,Tops,Hardware,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 14161.60 $* | 14869.42 $* |
| Aug-19-2025 | 14042.8 $* | 14744.8 $* |
| Jul-19-2025 | 11781.57 $* | 12370.51 $* |
| Jun-19-2025 | 13804.93 $* | 14494.99 $* |
| May-19-2025 | 12019.72 $* | 12620.23 $* |
| Apr-19-2025 | 13566.58 $* | 14244.33 $* |
| Mar-19-2025 | 13447.61 $* | 14119.57 $* |
| Feb-19-2025 | 13328.1 $* | 13994.71 $* |
| Jan-19-2025 | 13209.71 $* | 13869.90 $* |
Характеристики
Product Description
Features:Coil nails making machine is a kind of automatically equipment for making coil nails and coil roofing nails.It adopt PLC control,touch screen and electrical components with high quality,detection for lacking of material,leaking,counting and cutting automatically.Low noise,save energy,high working speed and easy to operate.
Specification
High speed thread rolling machine
The high speed thread roller machine adopts electromagnetic vibration feeding system, and equipped with automatic control feeding facilities. It adopts synchronous feeding mechanism. The main motor is controlled by frequency converter, which is convenient for adjusting productivity according to needs. The working environment is clean, the special-shaped nail is clean and shiny.The machine has reasonable structure, convenient operation, reliable action, suitable for the processing of a variety of diameter,length of smooth rod thread and all kinds of special-shaped nails. It is an ideal and efficient production equipment.
The machine is composed of four parts : vibrating feeding system, thread rolling forming system, main drive system and electric control system.
Model Number | TOPS-TR |
Wire diameter | 2.0-4.2mm |
Length of nail | 25-100mm |
Working speed | 1000-1100 pcs/min. |
Main motor power | 5.5kw |
Total motor power | 6.34kw |
Power supply | 380V/50HZ,3 phase |
Dimension | main frame 1200*1300*1400mm |
Weight | 1100 kgs |

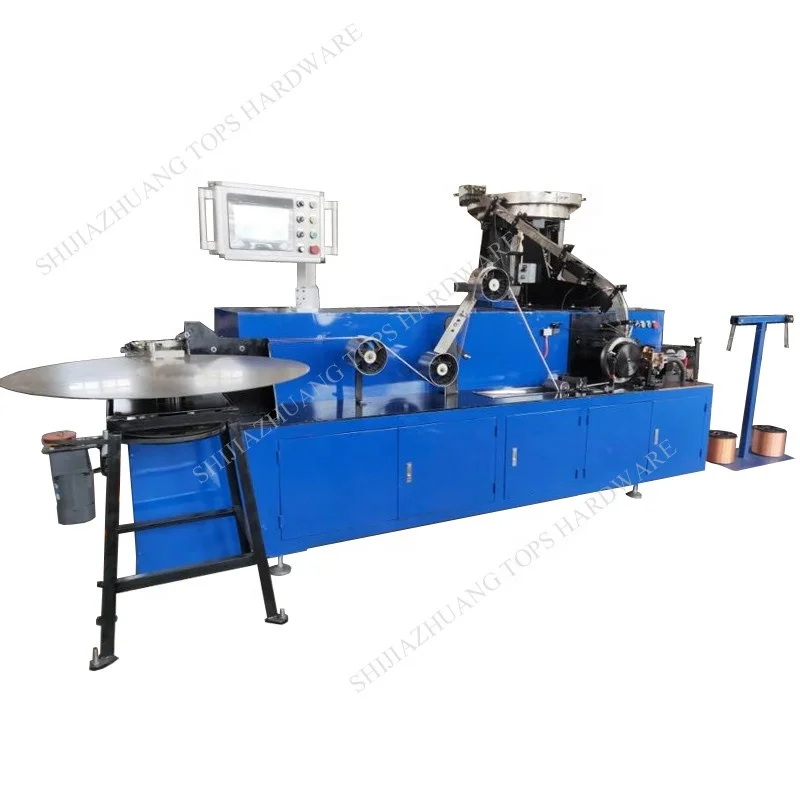

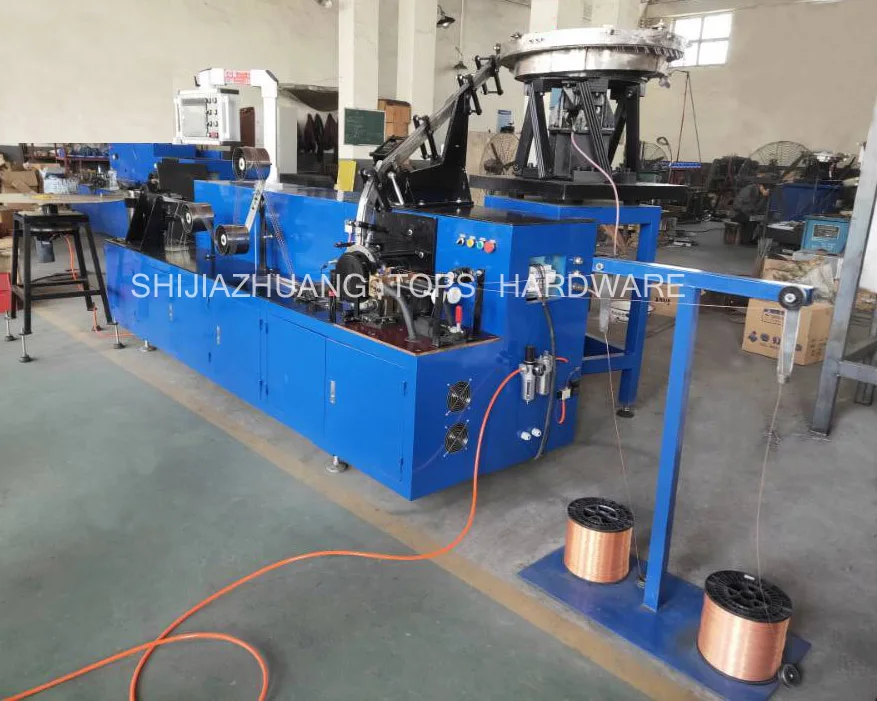

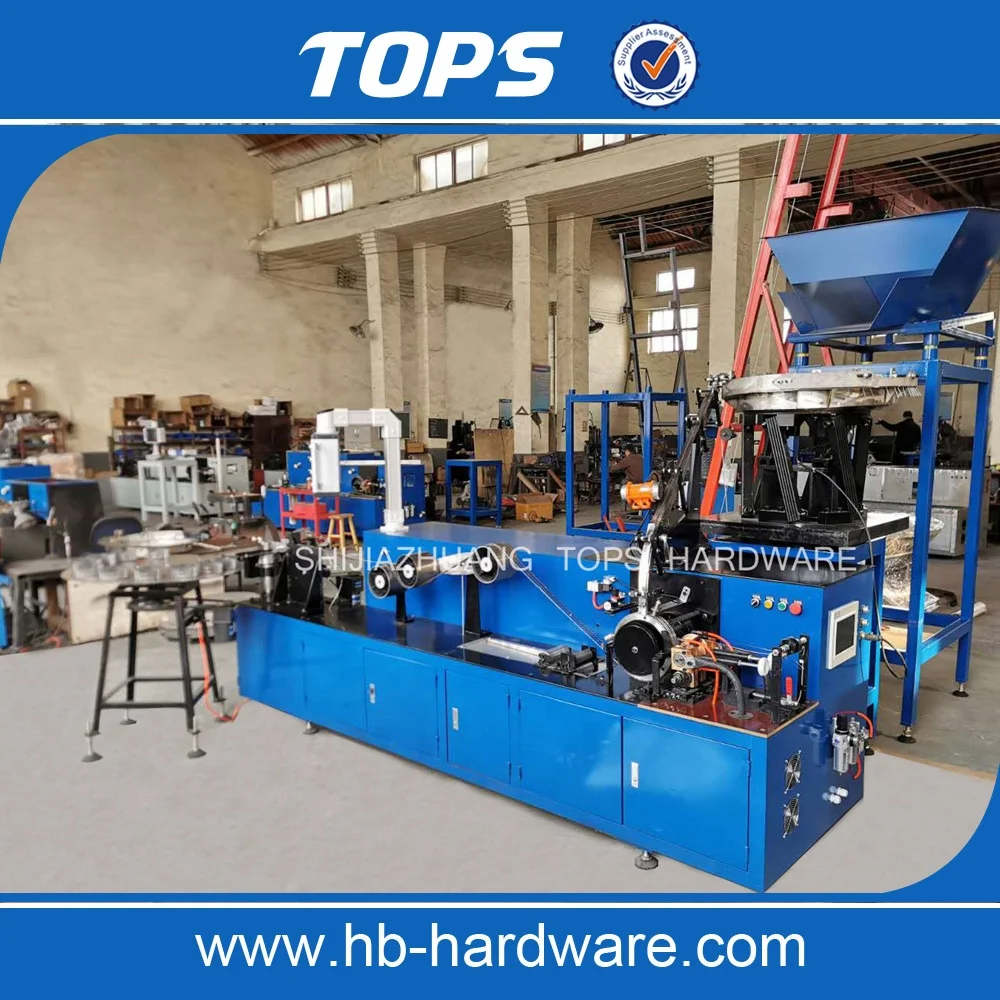

High speed coil nails making machine
The equipment adopts PLC control and touch screen display, which can automatically detect the missing materials, missing nails, counting, cutting materials and other technological process in the system, and display the faultposition on the touch screen.
The welding power supply is the core part of the nail coiling machine, and the equipment is equipped with the adjustable welding power supply of 20,000-40000 HZ frequency, which can reliably guarantee the welding quality of the nail, and the welding power saving more than 30%.
It also adopts thick stainless steel and enlarge the elbow structure, reduce the phenomenon of down nail clamping, more durable.
The guide rail can lift the structure, convenient to take out the stuck nails. Also optimize the cutting structure, reduce the
probability of cutting nails, extend the life of cutting cylinder.
Model NO. | TOPS-CNM |
Type | With vibrate hopper,full automatic |
Diameter of nails | 2.0-4.2mm |
Length of nail | 25-130mm |
Working speed | 1800-2700 pcs/min. |
Motor power | 15kw |
Dimension | main frame 2880*1250*1720mm |
Weight | 1400kgs |

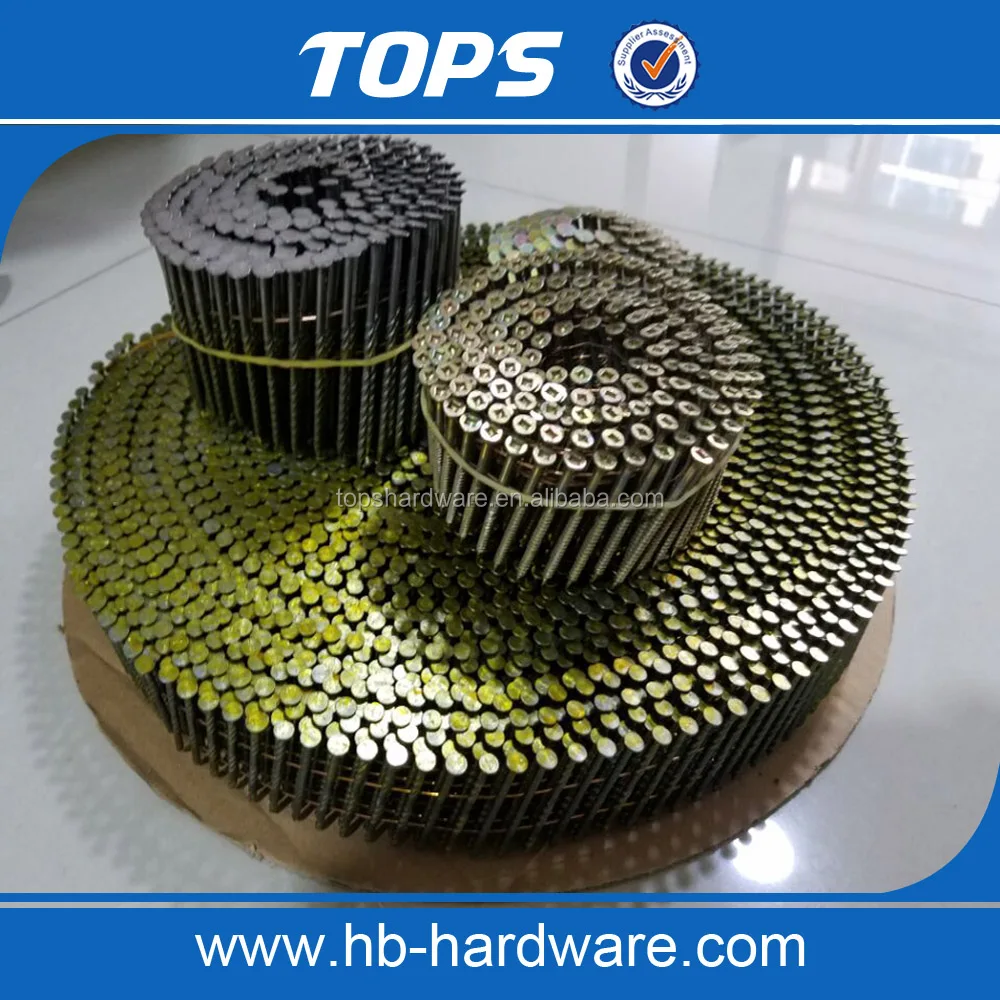

Product application:Coil nails is widely used in construction and decoration,such as soft and hard wood,bamboo ware,ordinary plastic,mud wall.repair furniture,packing wooden cases,etc.
Packing & Delivery
Any need feel free to contact me:whatsapp/wechat: +86 18233118608
